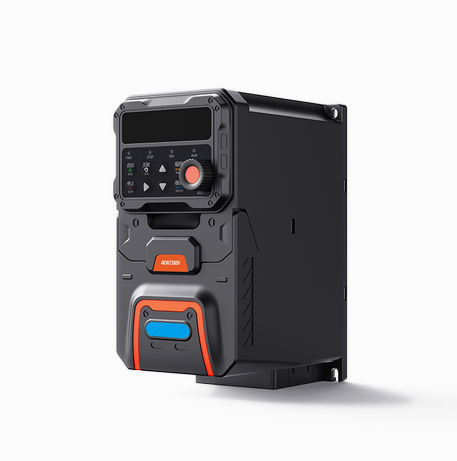

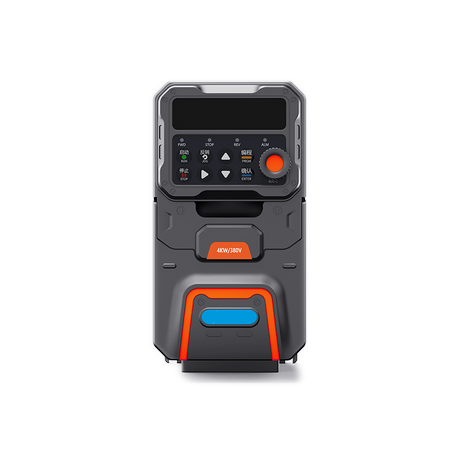

Features
| 3-Phase Input: 380~480V ± 10%, 50/60Hz | ||||

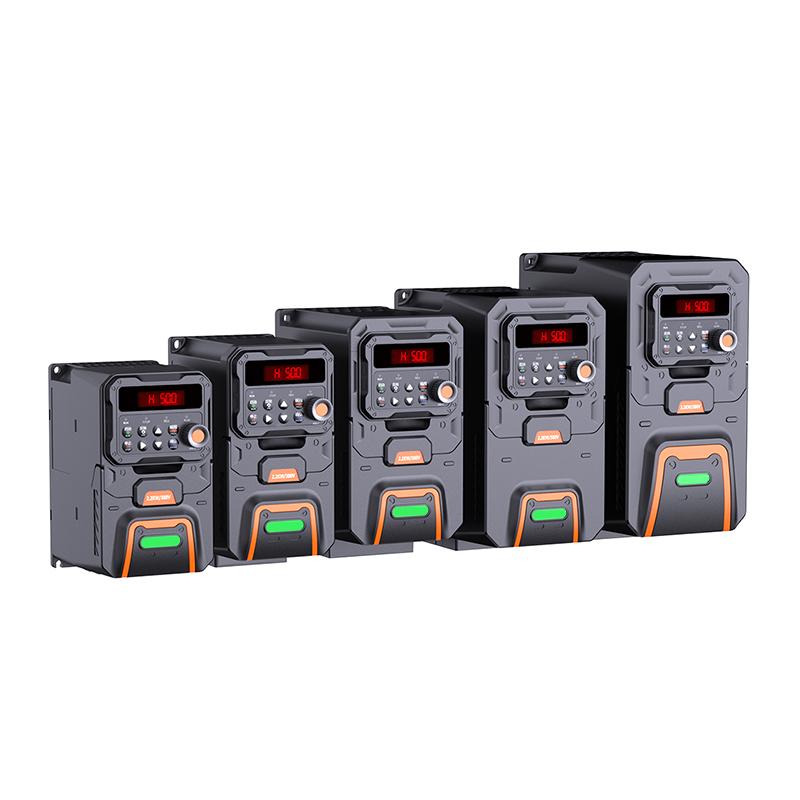

| Model | Adapted Motor | Rated Output Current (A) | Dimensions (mm) | |
| KW | HP | |||
| GP-800M0007G3 | 0.75 | 1 | 2.1 | 152.9*86*128.7 |
| GP-800M0015G3 | 1.5 | 2 | 3.7 | 152.9*86*128.7 |
| GP-800M0022G3 | 2.2 | 3 | 5.1 | 152.9*86*128.7 |
| GP-800M0040G3 | 4 | 5 | 8.5 | 170*86*132.7 |
| GP-800M0055G3 | 5.5 | 7.5 | 13 | 188*96*152.7 |
| ITEM | SPECIFICATION | |
| Basic Functions |
Maximum Frequency | Vector Control: 0~599Hz; V/F Control: 0~599Hz |
| Carrier Frequency |
0.5kHz~16kHz；the carrier frequency will be automatically adjusted according to the load characteristics. |
|
|
Input Frequency Resolution |
Digital Seƫng: 0.1Hz Analog Seƫng: 0.01V corresponding maximum frequency×0.1% |
|
|
Control Mode |
Open Loop Vector Control(SVC); V/F Control |
|
|
Startup Torque |
G Type; 0.5Hz/150%(SVC); P Type; 0.5Hz/100%. |
|
|
Warranty |
18 months |
|
| Basic Functions |
Speed Range and Precision |
1:100(SVC); ±0.5%(SVC) |
|
Overload Capability |
G Type: 150% rated current 60s; 180% rated current 3s |
|
|
Torque Boost |
0.1%~30.0% |
|
|
V/F Curve |
Line Type、Square Type |
|
|
Acc. / dec Curve |
Straight line or S curve acceleraƟon and deceleration mode. Acceleration and deceleration time range between 0.0 to 500.0s. |
|
|
DC Brake |
DC Brake Frequency: 0.00Hz to maximum frequency. Brake time: 0.0s to 36.0s |
|
|
Multi-speed Running |
It can realize at maximum of 8 segments speed running via the control terminal. |
|
|
Built-in PID |
It is easy to realize process-controlled closed loop control system. |
|
|
Over-voltage/current Stall Control |
It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. |
|
|
Motor Over-temperature ProtecƟon |
Acceptable motor temperature sensor input (PT100, PT1000) |
|
|
Timing Control |
Timing control function: set time range 0.0~6500.0Min |
|
|
Bus Support |
RS-485, which support MODBUS protocol |
|
|
Protection Function |
It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required. |
|
| Running |
Running Command Source |
Operation panel reference, control terminal reference, and communication reference |
|
Target Frequency Source |
Digital reference, analog signal reference, multi-segment speed reference, PI control reference, and communication reference |
|
|
Control Signal Input Terminal |
4 digital input; 1 analog input, support 0~10V, 4~20mA, 0~20mA, 20~0mA, 20~4mA and 10~0V signal |
|
|
Control Signal Output Terminal |
1 relay output; 1 analog output, support 0~10V, 4~20mA, 0~20mA, 20~0mA, 20~4mA and 10~0V signal |
|
| Environment |
Using Place |
Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
|
Altitude |
0~4000m; Derating use when more than 1000m (decrease by 1% per 100 meters) |
|
|
Ambitent Temperature |
-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
|
|
Humidity |
Less than 95%RH, without condensing |
|
|
Vibration |
Less than 5.9m/s (0.6g |
|
|
Storage Temperature |
-20℃~＋60℃ |
|
|
IP Level |
IP20 |
|
|
Power Distribution System |
TN, TT |
|
