OVERVIEW

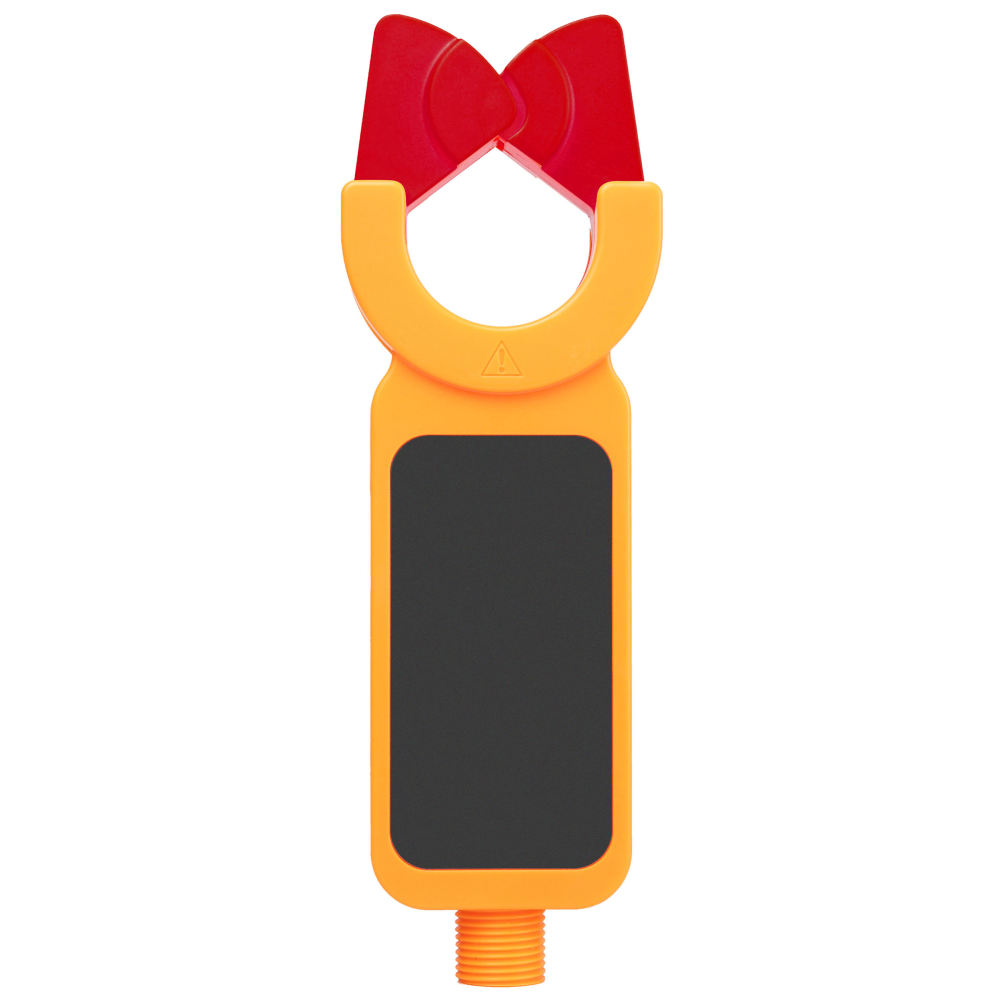

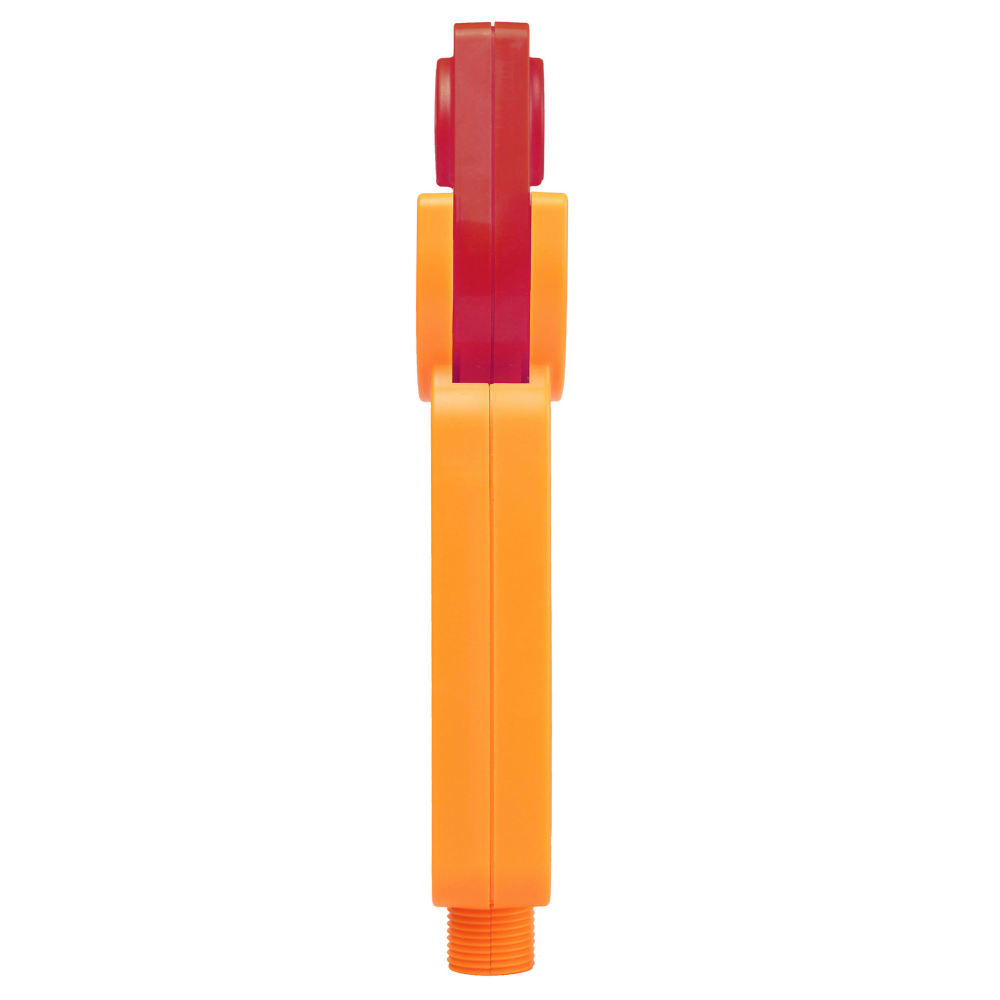

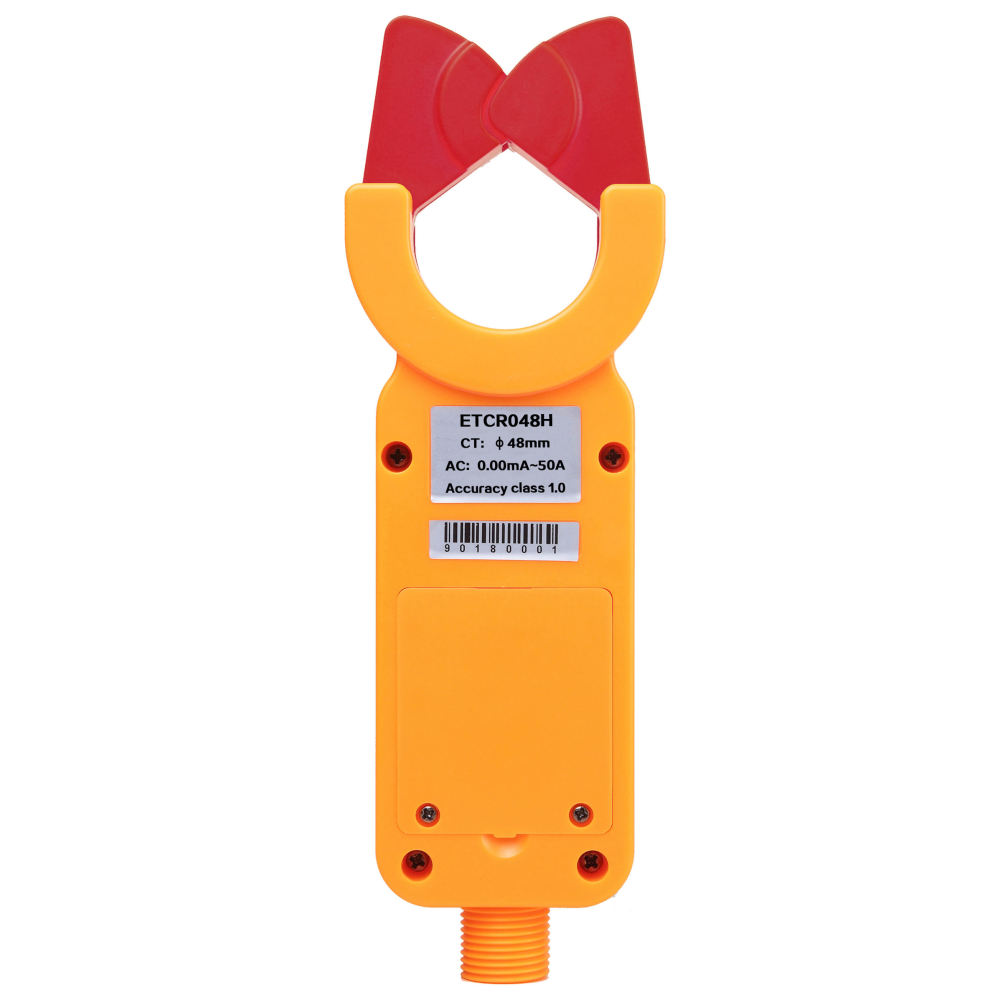

GoodProx high voltage clamp sensor GP-CUS-048H is an industrial-grade precision tool engineered for safe, non-contact measurement of high-voltage AC current. This GP-CUS-048H current sensor features a 10kV high-voltage rating, advanced anti-interference technology and rugged construction, delivering accurate, stable readings in harsh high-voltage environments.
As a 10kV high voltage clamp sensor, it supports one-person on-site operation with no complex setup required, making it the essential non-contact current sensor for power grid technicians, substation engineers and industrial electricians.
FEATURES
- 10kV High Voltage Rating: Specialized for high-voltage electrical system measurement with GP-CUS-048H high voltage clamp sensor.
- Non-Contact Sensing: Safe AC current measurement without wire contact.
- High Precision: Lab-grade accuracy for reliable industrial current detection.
- Anti-Interference Tech: Multi-layer filtering for stable readings in complex electromagnetic environments.
- Rugged Build: Dust/impact/water-resistant casing for industrial current sensor field conditions.
- One-Click Operation: Intuitive control for fast, efficient on-site measurement.
- Clear Display: Backlit LCD for easy readouts in low-light power station environments.
- Safety Design: Insulated clamp jaw for high-voltage operator protection.
SPECIFICATION
|
Product Function
|
|
Detecting of AC leakage current/current, higher harmonic current, phase, electric energy, power, power factor etc.
|
|
Product Features
|
|
1. Unique automatic plug and pull clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable.
|
|
2. Adopts Permalloy core and CT double-layer shielding technology, with high performance and high accuracy, high anti-interference ability, suitable for complex interference environment.
|
|
3. Battery jar could put in 4pcs 1.5V AAA alkaline dry cell and supply power for secondary development.
|
|
4. Insulating rod interface: M24 screw thread.
|
|
5. Insulating strength: AC3700V/ms ( between the core and coil)
|
|
6. Safety class: CATⅢ600V （operate with insulation rod below 60kV)
|
|
7. Working temperature: -15°C~50°C
|
|
Technical Specification
|
|
Model
|
GP-CUS-048H
|
|
Range
|
0.00mA～50A AC
|
|
Resolution
|
0.01mA
|
|
Accuracy Class
|
±1.0%
|
|
Phase Error
|
≤2°
|
|
Turn Ratio
|
800:1
|
|
Reference Load
|
0～500mA≤300Ω
0～5A≤30Ω
0～50A≤3Ω
|
|
Frequency
|
-
|
|
Clamp Size
|
φ48mm
|
|
Dimension
|
255mmX84mmX39mm
|
|
Weight
|
274g
|
|
Warranty
|
12 months
|
APPLICATIONS
- Power Grid: High-voltage transmission line current monitoring and measurement.
- Substation Engineering: Transformer substation high-voltage circuit current detection.
- Power Plant: High-voltage generator and distribution system current testing.
- Industrial Manufacturing: High-voltage production line equipment current monitoring.
- Railway Engineering: High-voltage power supply system current measurement.
- Renewable Energy: Wind/solar power station high-voltage current detection.
- Electrical Inspection: Third-party high-voltage electrical safety compliance testing.

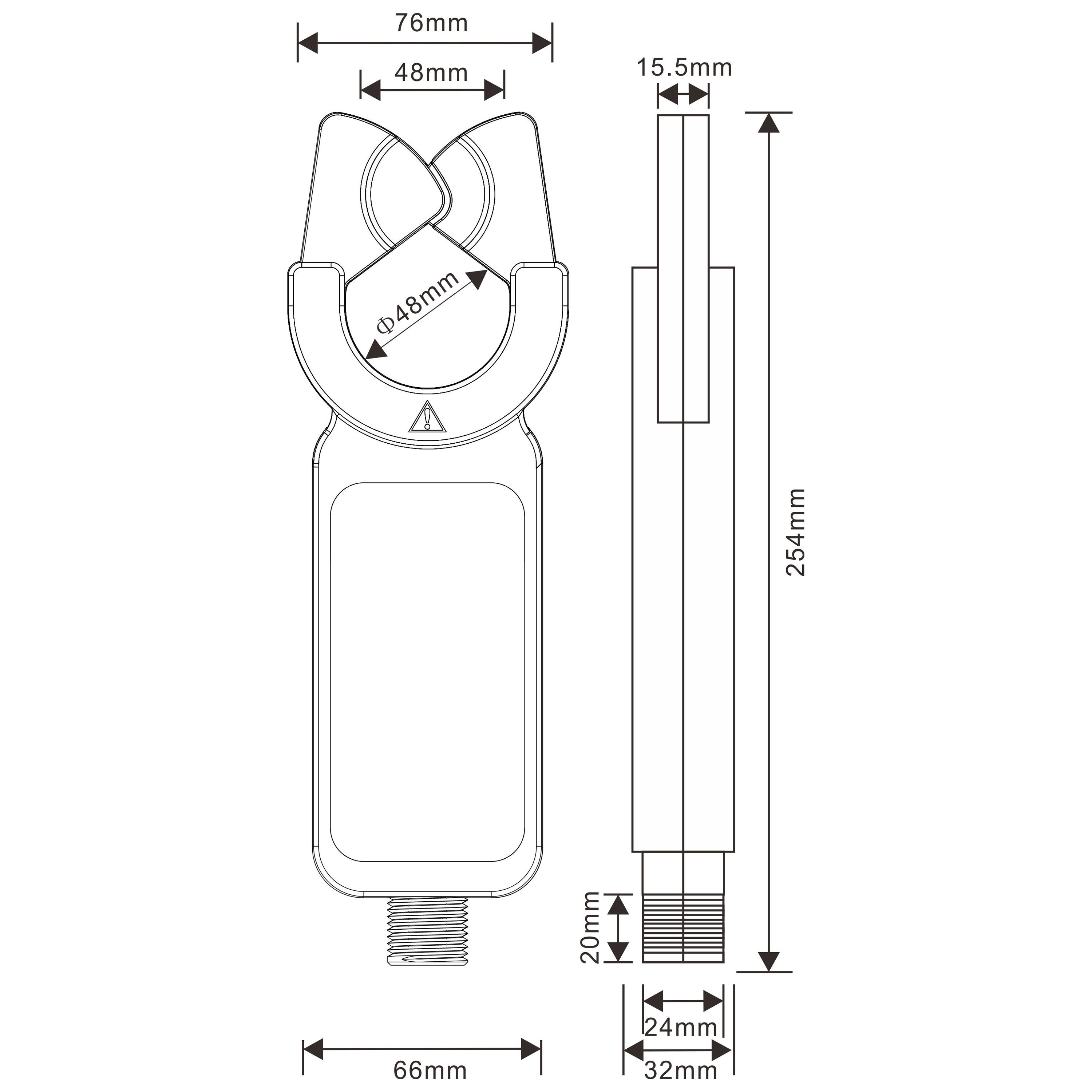

PRODUCT DETAILS
USAGE NOTES
- Follow high-voltage safety protocols when using the GP-CUS-048H high voltage clamp sensor.
- Ensure clamp jaw is clean and closed tightly for accurate GP-CUS-048H current sensor readings.
- Avoid testing in extreme electromagnetic interference beyond the anti-interference range.
- Calibrate the 10kV high voltage clamp sensor regularly per the user manual.
- Do not touch metal parts during high-voltage GoodProx high voltage current transducer operation.
- Recharge battery fully before remote power grid field work.
- Store in a cool, dry place and keep in the carrying case when not in use.
Why Choose GoodProx GP-CUS-048H?
✅ 10kV High Voltage Safety: 10kV high voltage clamp sensor ensures safe operation in high-voltage environments.
✅ Non-Contact Design: Eliminates direct wire contact for maximum operator safety.
✅ Industrial-Grade Precision: GP-CUS-048H current sensor delivers reliable, repeatable readings.
✅ On-Site Durability: Rugged construction for long-term use in harsh high-voltage conditions.
✅ Anti-Interference Performance: Stable readings in complex electromagnetic power grid environments.
✅ Genuine Quality: Strict QC + pre-shipment calibration for consistent performance.
✅ Specialized for High Voltage: Tailored for [Long-tail Keyword] non-contact 10kV current sensor for industrial use.
