OVERVIEW
GoodProx non-contact AC DC tester is a professional precision tool for safe, non-contact AC/DC voltage and current detection. This GP-CUS-035AD AC DC tester features advanced sensing technology and anti-interference design, delivering accurate, stable readings without direct wire contact—maximizing operator safety. As a GP-CUS-035AD voltage current detector, it’s ultra-portable, one-click operable and built with a rugged casing for on-site use. Fully compliant with electrical testing standards, it’s the essential portable electrical tester for electricians, maintenance teams and inspectors, meeting all circuit testing, fault diagnosis and safety inspection needs.
FEATURES
- Dual Mode: Measures both AC and DC currents with a single sensor.
- Non-Contact: Safe, live-line measurement without breaking circuits.
- High Accuracy: ±1.0% full scale accuracy for reliable data.
- Wide Range: Covers 0.0A to 1000A AC/DC.
- Compact Jaw: 30x35mm opening fits large conductors.
- Signal Output: 1mV/A standard output for easy interfacing.
- Zero Function: Eliminates earth magnetic field interference for DC readings.
SPECIFICATION
|
Product Function
|
|
On-line detecting of AC/DC current.
|
|
Product Features
|
|
1. Clamp structure, no need disconnect the line being tested, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable.
|
|
2. Adopts Permalloy core and Hall induction technology, with high performance and high accuracy, high anti-interference ability.
|
|
3. Output current or voltage signal, the range, transformation ratio, output interface of the sensor could OEM.
|
|
4. Output interface: 1.5m shield wires, the terminal interface: φ3.5mm Audio plug/BNC plug/4.0mm double banana plug (optional).
|
|
5. Insulating strength: AC3700V/ms (between the core and coil)
|
|
6. Safety class: CATⅢ600V
|
|
7. Working temperature: -15°C~50°C.
|
|
Technical Specification
|
|
Model
|
GP-CUS-035AD
|
|
Range
|
0.0A~1000A AC/DC
|
|
Resolution
|
0.1A
|
|
Accuracy Class
|
±2.0%
|
|
Output Signal
|
1mV/1A
|
|
Phase Error
|
≤3°
|
|
Reset Mode
|
ZERO reset rotary knob
|
|
Clamp Size
|

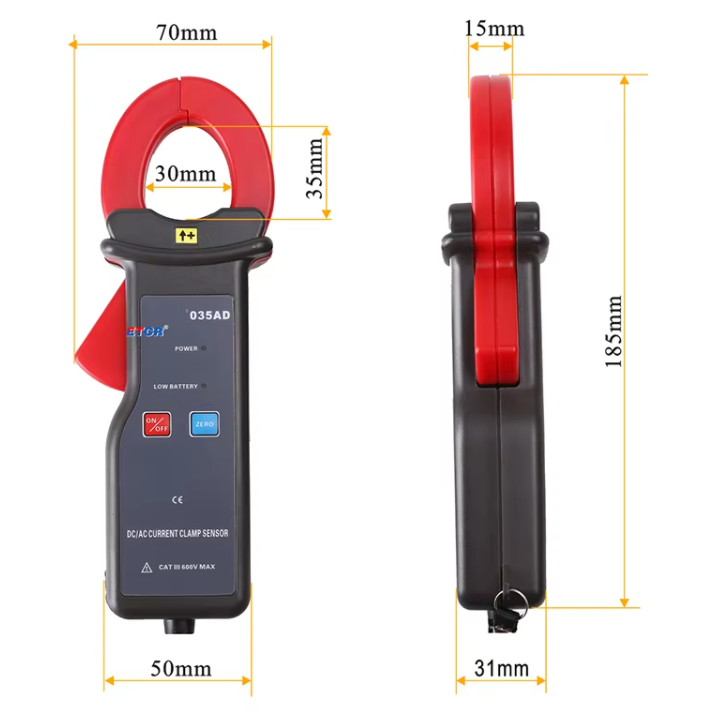

30mmX35mm
|
|
Dimension
|
122mmX70mmX33mm
|
|
Weight
|
180g
|
|
Power Supply
|
9V DC 6F22
|
|
Warranty
|
12 months
|
APPLICATIONS
- Non-Contact Sensing: Safe AC/DC detection without wire contact via GP-CUS-035AD non-contact AC DC tester.
- Dual AC/DC Detection: Precise voltage and current measurement for all AC/DC circuit scenarios.
- Anti-Interference Tech: Stable readings in complex electromagnetic interference environments.
- Rugged Compact Build: Dust/impact-resistant casing for portable electrical tester on-site use.
- One-Click Operation: Intuitive control for fast, efficient circuit detection.
- Clear Indication: Bright LED/backlit display for easy readouts in low-light conditions.
- Battery-Powered: Mini portable design for remote circuit inspection use.
- Safety Alerts: Over-range + low battery prompts to avoid testing errors.

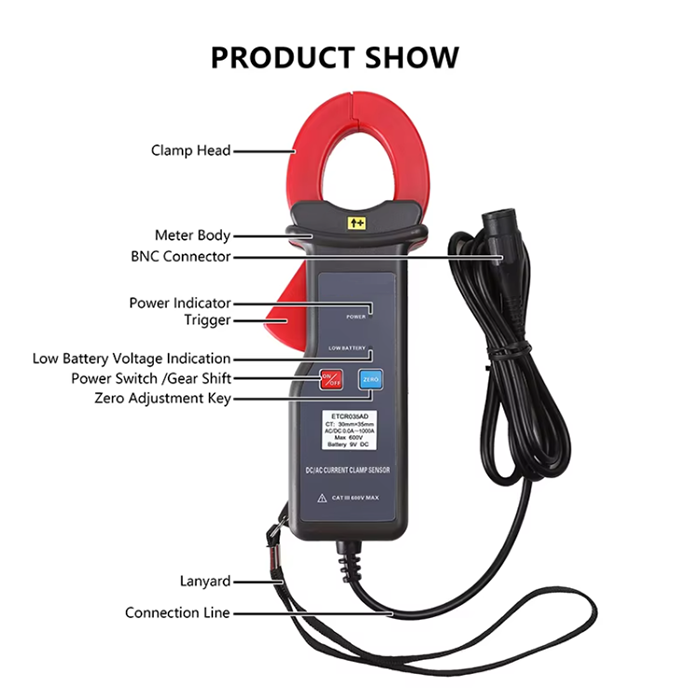

PRODUCT DETAILS
USAGE NOTES
- Follow electrical safety protocols when using the GP-CUS-035AD non-contact AC DC tester.
- Keep the sensing head clean for accurate GP-CUS-035AD voltage current detector readings.
- Avoid testing in extreme electromagnetic interference beyond the rated range.
- Calibrate the GP-CUS-035AD AC DC tester regularly per the user manual.
- Do not use the non-contact voltage tester in wet/humid environments.
- Recharge the battery fully before remote on-site inspection work.
- Store in a cool, dry place and keep in the storage pouch when not in use.
Why Choose GoodProx GP-CUS-035AD?
✅ Non-Contact Safety: GP-CUS-EM035AD non-contact AC DC tester ensures zero direct wire contact for maximum operator safety
✅ Dual AC/DC Function: All-in-one voltage and current detection—no extra testing tools
✅ Strong Anti-Interference: Stable readings in complex industrial/home circuit environments
✅ Ultra-Portable: Mini compact design for easy carrying and on-site GP-CUS-035AD non-contact voltage tester use
✅ Genuine Quality: Strict QC + pre-shipment calibration for consistent performance
✅ Wide Compatibility: Tailored for non-contact circuit tester for home/industrial inspection scenarios
