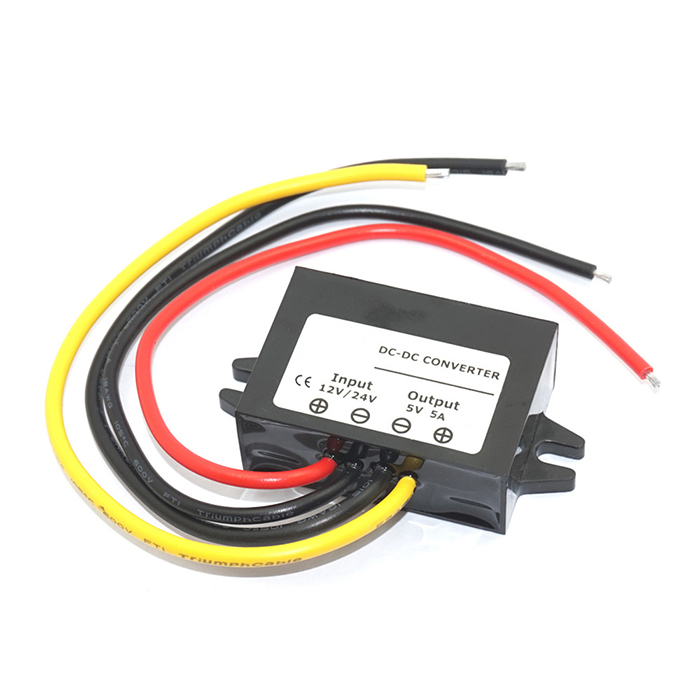

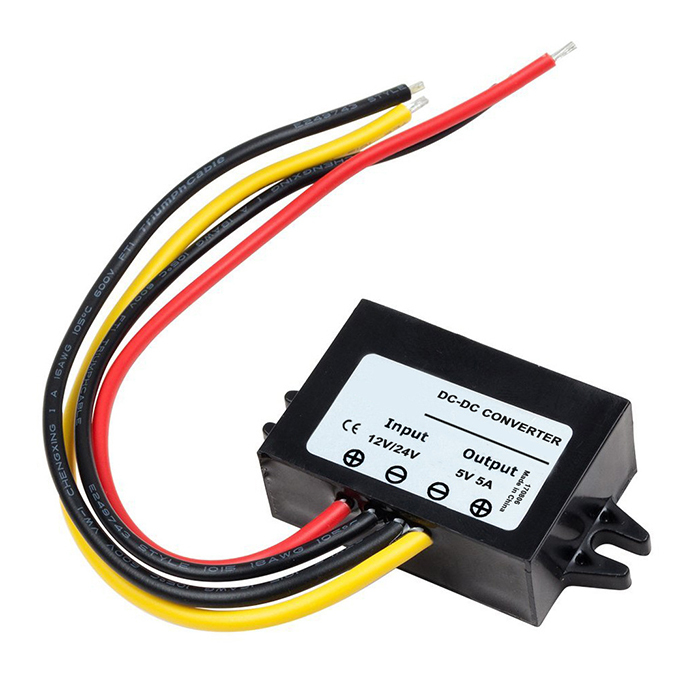

12V/24V to 5V DC-DC Buck Converters, 3A-10A, 15W-50W

IP68 waterproof 12V/24V to 5V buck converter.
High efficiency up to 92%, multi-protection, 3A-10A.
Stable output for automotive, marine, industrial and electronics.

$38.56

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview
FAQ

OVERVIEW

GoodProx 12V/24V to 5V DC DC buck converter series (GP-CVT-1224S05) is a compact, non-isolated step-down module designed for stable voltage transformation from 12V/24V DC to a constant 5V DC, with 3A/5A/10A output options (15W/25W/50W power). As a professional DC-DC buck converter supplier, GoodProx optimizes this module for long-term use with industry-leading performance and reliability, suitable for a wide range of low-voltage electronic systems.

FEATURES

High conversion efficiency: Up to 92% efficiency minimizes power loss, saving energy for battery-powered and continuous-use applications.
Multi-layer protection mechanisms: Built-in over-voltage, over-current, and over-temperature protection ensures safe operation, preventing damage to the converter and connected devices.
Ultra-long service life: Up to 100,000 hours of working life, suitable for high-frequency use in automotive, marine and industrial scenarios.
IP68 waterproof rating: Fully sealed waterproof design, resistant to dust and moisture, ideal for outdoor and harsh environment use of DC DC buck converter.
Stable voltage output: Voltage regulation <1%, load regulation <2%, low ripple & noise (30-50mVp-p) for stable power supply to precision electronics.
Certified & compliant: CE, RoHS certified, meets international electronic component standards for global use.
Compact & lightweight: Small size (63*27*14mm to 63*32*18mm) and light weight (≤40g/≤65g) for easy installation in limited space.

SPECIFICATION GP-CVT-1224S05, 12V/24V to 5V Series

SKU/Model	GP-1224S0503	GP-1224S0505S	GP-1224S0510S
Rated Voltage	12V/24V DC
Rated Voltage Range	8-32V DC	8-36V DC
Output Voltage	5V DC
Voltage Regulation	<1%
Output Current	3A	5A	10A
Output Power	15W	25W	50W
Output Type	Single Phase
Efficiency	91%	92%	92%
Load Regulation	<2%
No Load Loss	5mA	10mA	15mA
Ripple & Noise	30mVp-p	50mVp-p	50mVp-p
Protections	Over load, Over Voltage and Over temperature protections
Waterproof Level	IP68
Certificates	CE, RoHS
Working Temp.	-40 ~ + 80℃
Weight	≤ 40g	≤ 65g
Size (mm)	632714	633218
Warranty	18 months

APPLICATIONS

The GoodProx 12V/24V to 5V DC DC buck converter is a versatile step-down module, suitable for all 12V/24V DC input systems that require a stable 5V DC power supply. Its IP68 waterproof, wide temperature range and multi-protection design make it ideal for automotive, marine, industrial and outdoor DC DC buck converter applications, including:

✔️Industrial

✔️Alternative Energy

✔️Golf Cart

✔️Forklift

✔️Electromotor

✔️Telecommunications

✔️Boat & Yacht

✔️Medical

✔️Dua Battery System

✔️LED Marketplaces and so on.

USAGE NOTES

Please ensure the input voltage is within the product's rated range (8-36V DC) to avoid device damage due to overvoltage.
Do not exceed the rated output current during use. Ensure the device is well-ventilated for heat dissipation to avoid high-temperature overload.
Strictly distinguish between positive and negative poles when wiring; reverse connection may cause circuit short circuit and damage the product.
This product is a non-isolated buck converter, suitable for conventional voltage stabilization scenarios. For special working conditions, please consult technical support.

Selected high-quality components and strict quality control. This 12V/24V to 5V DC-DC buck converter meets the voltage conversion needs of various scenarios with stable performance and durable quality, making it reliable and worry-free.

Why Choose GoodProx GP-CVT-1224S05 Buck Converter?

✅ Stable 5V output from 12V/24V input for [Primary Keyword] 12V/24V to 5V DC-DC buck converter
✅ IP68 waterproof design works reliably outdoors
✅ Up to 92% efficiency saves energy and reduces heat
✅ Full protections keep devices safe
✅ Compact size fits tight spaces
✅ CE & RoHS certified for global use

DC-DC Converter FAQ

What is the difference between a Buck and a Boost converter? +

A Buck converter (Step-down) reduces the input voltage to a lower output voltage.
A Boost converter (Step-up) increases the input voltage to a higher output voltage.

What does "Isolated" vs "Non-Isolated" mean? +

Isolated converters have electrical separation (via a transformer) between input and output, which provides safety and noise immunity.
Non-Isolated converters share a common ground and are typically more efficient and compact.

What is the efficiency of this converter? +

Efficiency is the ratio of output power to input power. High-efficiency converters (e.g., >95%) minimize power loss as heat, which is crucial for battery-powered applications and thermal management.

Why is my converter overheating? +

Possible causes:

Exceeding the rated output load → Reduce power draw.
Poor ventilation → Ensure airflow around the unit.
Faulty wiring → Check connections.

The output voltage is unstable. What should I do? +

Try:

Check input voltage (must be in input voltage range).
Verify load is within output limit.
Test with a multimeter to confirm output.

Can I use this with solar panels? +

Yes, DC-DC converters are commonly used in solar systems to match the panel voltage to the battery or load voltage. Ensure the input voltage range covers your solar panel's maximum power point (MPP).
