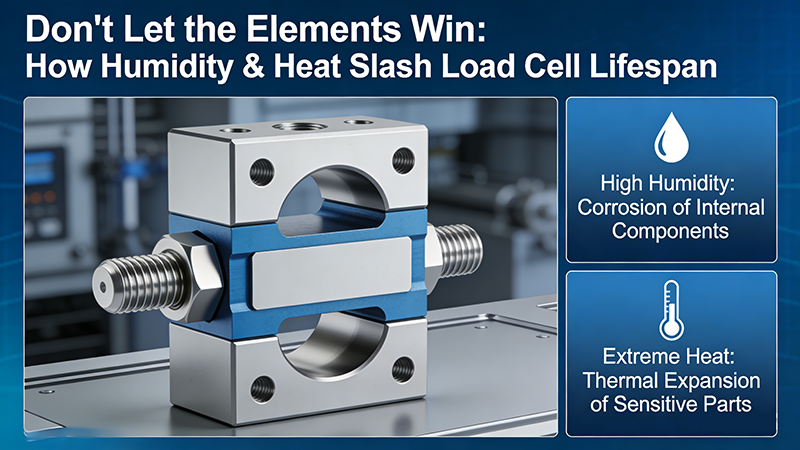

How Humidity & Heat Slash Load Cell Lifespan

Look, we need to talk about your digital load cells lifespan.
In the world of industrial weighing, a load cell is the heart of the system. If your readings are drifting for no reason, or if weighing sensors keep failing years before they should, you’re probably not dealing with a sudden shock, more often, it's slowly poisoned by its environment.
Is likely one of two things: Humidity or temperature.

Let's check out exactly how these factors impact load cell lifespan and what you need to look for in your next purchase.



How Does Temperature and Humidity Affect Load Cell

1. The Heat Problem

How humidity effect on load cell? Think of an industrial load cell getting too hot. For standard industrial load cells, the normal operating temperature range is -20℃ to +60℃; continuous operation above 60℃ will trigger obvious performance degradation, and temperatures exceeding 85℃ will cause irreversible damage to core components.
Inside, the tiny resistors and circuits that do the measuring don't like the heat. Their sensitivity changes. Their accuracy drifts. It's like trying to use a tape measure that expands on a hot day—your readings won't be stable.

High heat can also make the metal parts themselves swell slightly, messing with the core measurement.

2. The Humidity Problem

Now, picture moisture getting inside. For industrial load cells, a humidity range of 30%RH~70%RH is the safe operating standard; long-term operation in an environment with humidity higher than 85%RH (especially non-condensing humidity) will cause rapid aging of internal components, and condensing humidity is the most destructive to load cells.
Damp air or water vapor can sneak in, even in small amounts. Once inside, it reduces electrical insulation. This can cause signal errors or even short circuits. It's like spilling a drop of water on your phone's circuits—things stop working properly.

Moisture also causes rust and corrosion on metal parts over time, slowly eating away at them. Plus, some materials inside can swell or shrink as they absorb and release moisture, throwing off the calibration.

3. The Double Trouble: Heat + Moisture

Combine heat and humidity, and the problems multiply fast. Heat accelerates everything moisture does. Corrosion happens quicker. Materials break down faster. The physical and chemical changes inside become more complex and damaging.

It’s a one-two punch that drastically shortens the life and kills the accuracy of your equipment.


4 Ways to Protect Load Cell from Humidity and Temperature​

Pick a load cell built for tough conditions. In high-heat, high-humidity environments, you need a device with a robust design. Look for special materials and construction rated for these extremes. This ensures it stays accurate and reliable when things get harsh.

• For high-temperature scenarios (60℃~150℃): Select load cells with high-temperature strain gauges, high-temperature epoxy adhesives, and stainless steel 316L elastic bodies (heat resistance up to 200℃).
• For high-humidity/anti-corrosion scenarios: Choose hermetically sealed load cells with nickel-plated or PTFE coating on the surface, and IP68/IP69K protection grade (the core standard for wet environment selection).
• Key selection parameter: Prioritize load cells with wide temperature compensation (-40℃~+85℃) to reduce baseline drift caused by temperature changes.

Give your industrial load cell a shield. Use seals, protective covers, or waterproof coatings to block moisture, dust, and heat. Sealing the housing properly can boost its protection rating, keeping the sensitive electronics safe inside.

Check weighing sensors in tough environments more often. Harsh conditions can wear them down faster. Schedule regular calibration. If readings drift or performance drops, test and replace them quickly. Don’t wait for a failure, calibrate load cell now.
The calibration cycle of load cell in high-temperature and high-humidity environments is shortened from the normal 12 months to 3~6 months. Harsh conditions can wear them down faster. Schedule regular calibration with professional weighing calibration equipment (e.g., standard weights of M1 grade or above), and focus on detecting zero drift and full-scale drift (the allowable drift range for industrial grade load cells is ≤0.03%FS). If readings drift beyond the allowable range or performance drops (e.g., insulation resistance ＜2000MΩ), test and replace them quickly. Don’t wait for a failure—calibrate the load cell in time.

Use technology to cancel out environmental effects. You can add temperature compensation circuits to stabilize readings when it gets hot. Or, use software algorithms to adjust for humidity changes. This keeps the output consistent, no matter the weather.

In short: Heat and humidity challenge digital load cells, but they don’t have to break them. Choose tough industrial load cell, protect them well, check them often, and use smart compensation. That’s how you keep them working accurately, even in the worst conditions.

By understanding the environmental impact, you can select a GoodProx load cell that delivers persistence.
