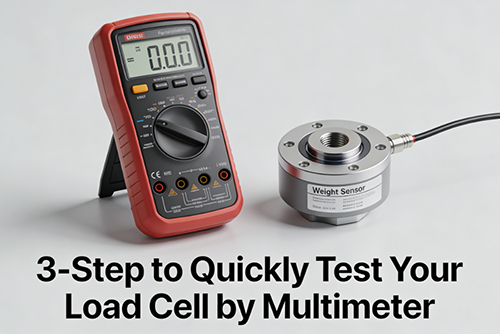

3-Step to Quickly Test Your Load Cell by Multimeter

Alright, let's paint a picture. It's 3 PM on a Friday. Your batching system is flashing red. The PLC is screaming about an over-range error, and your production manager is giving you that look. Before you start drafting a PO for a new load cell​ or calling in a $250/hour service tech, grab the most underrated tool in your kit: the humble multimeter.

Forget the complex load cell calibration certificates for a second. We're about to perform a quick "autopsy" to see if the heart of your weighing system is still beating.
Here’s how to tell if your sensor is dead, dying, or just needs a good cleaning.

Step 1: The "Heartbeat" Check (Bridge Resistance)

What you're testing:​ The integrity of the strain gauge bridge. Think of this as checking for an open circuit or a short circuit—the two most common ways a load cell​ gives up the ghost.

How to do it:

1. Disconnect everything.​ Unplug the sensor from the junction box or indicator. This is non-negotiable.
2. Set your multimeter​ to Ohms (Ω).
3. Test Input Resistance:​ Touch the red probe to Ex+​ (usually Red wire) and the black probe to Ex-​ (usually Black wire).
4. Test Output Resistance:​ Touch the red probe to Sig+​ (usually Green wire) and the black probe to Sig-​ (usually White wire).

The Verdict:

• Alive & Kicking:​ You should see a stable reading. For most standard industrial load cells​ (like the GoodProx​ S-Type load cell or Shear Beam load cell series), this is typically 350Ω ± 10Ω​ for input and output. If you see a value in this ballpark, the bridge is intact.
• Dead as a Doornail:​ If you see "O.L" (Open Loop) or a reading of several megaohms, the wire is broken inside. If you see 0-2Ω, you've got a dead short. Time for a replacement.

Step 2: The "Insulation" Check (The Ghost in the Machine)

What you're testing:​ Moisture ingress and insulation breakdown. This is the sneaky culprit behind drifting readings and erratic signals. We're checking if the sensor's guts are touching its metal body.

How to do it:

1. Keep the multimeter​ on Ohms.
2. Touch one probe to the shield​ wire (usually bare copper or a separate colored sheath).
3. Touch the other probe to the metal body​ of the load cell​ (scratch a tiny spot if it's painted).
4. Repeat, touching the shield to each of the four bridge wires (Red, Black, Green, White).

The Verdict:

• Healthy:​ You should see "O.L" or a very high resistance (ideally >2 MΩ). No continuity means the electronics are sealed tight.
• Moisture Mayhem:​ If you get any low resistance reading (especially under 1kΩ), moisture has seeped in, creating a path to ground. This is a common failure mode in washdown environments, even for IP67-rated units. This sensor is likely causing your noise issues.

Step 3: The "Cross-Talk" Check (Is it Leaking?)

What you're testing:​ Isolation between the excitation and signal sides. A healthy bridge should have high resistance between input and output terminals.

How to do it:

1. Measure the resistance between Ex+ (Red)​ and Sig+ (Green).
2. Measure between Ex+ (Red)​ and Sig- (White).
3. Repeat for Ex- (Black)​ to the signal wires.

The Verdict:

• Normal:​ You should see a resistance value that is roughly the same for all four combinations, and it should be close to the nominal bridge resistance (e.g., ~350Ω). This symmetry is key.

• Damaged:​ If one pair reads wildly different from the others (e.g., 100Ω vs 500Ω), it indicates an internal fault, often from a severe overload that damaged a specific strain gauge.

The GoodProx Advantage: Built to Pass the Test

When you're sourcing industrial automation products, you need components that don't fail the basic sniff test. GoodProx​ load cells​ are engineered with robust strain gauge technology and hermetic sealing to ensure that when you run this multimeter test, you get the "Alive & Kicking" result every time. Our consistent bridge resistance​ specs mean your maintenance team can stock spares with confidence, knowing the readings will match.

Pro Tip:​ Always keep the datasheet for your specific GoodProx​ model handy. While 350Ω is industry standard, some high-precision or miniature models may differ. Knowing the exact spec turns this 3-minute test from a guess into a definitive diagnosis.

So next time the scale acts up, don't panic. Grab your meter. If it passes, the problem is probably mechanical (binding, debris) or in the indicator. If it fails, you've just saved hours of diagnostic time and proven you need a new sensor. Now go enjoy that Friday.
