Home > Electrical Equipment > DC-DC Converters > 24V to 12V DC-DC Buck Converters

1/1

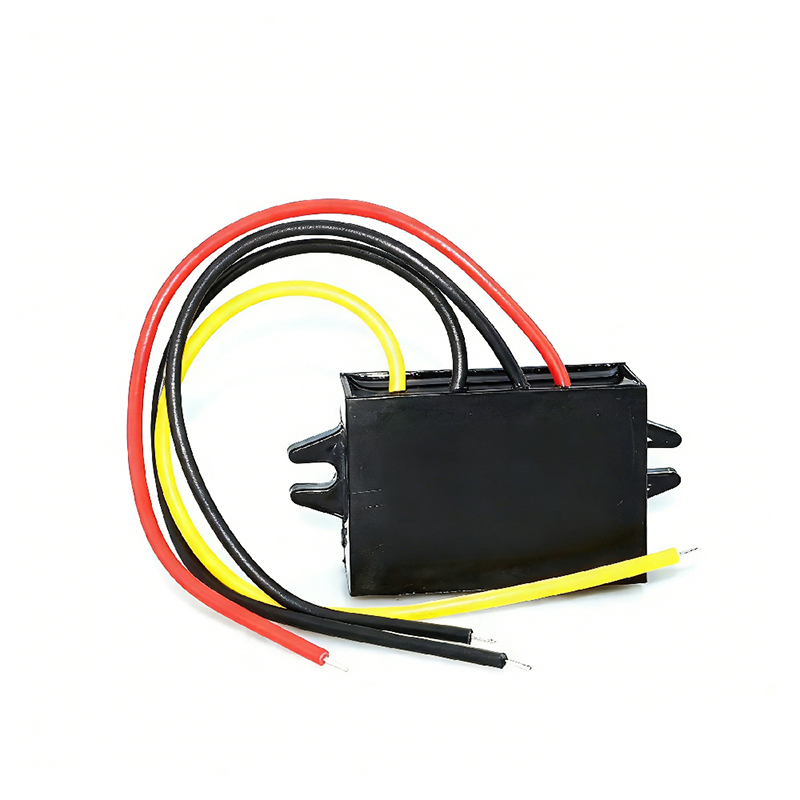

24V to 12V DC-DC Buck Converters, 1.5A-100A, 18W-1200W

Ultra-Wide input range 18-36V to 12V buck converter.
Waterproof, dustproof, shockproof and resistant to corrosive environments.
Simple design, clear interface, easy to install and integrate quickly.

$88.32

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Input & Output Voltage:

24V to 12V
Output Current & Power:

1.5A 18W

3A 36W

10A 120W

20A 240W

30A 360W

40A 480W

50A 600W

60A 720W

85A 1020W

100A 1200W

Quantity:

1/1

Overview
FAQ

OVERVIEW
GoodProx 24V to 12V DC-DC buck converter provides stable voltage step-down from 24V to 12V for automotive, marine, industrial and solar applications. Covering 1.5A–100A / 18W–1200W, this IP68 buck converter features up to 97% efficiency, full protections and a rugged sealed design. It is the reliable 24V to 12V step-down converter for mobile and industrial power systems.

FEATURES

Wide Power Range: 1.5A–100A, 18W–1200W for versatile load demands.
High Efficiency: Up to 97% conversion, low energy loss.
IP68 Waterproof: Dustproof, waterproof, shock-resistant for harsh environments.
Full Protections: Over-voltage, over-current, over-temperature, short-circuit protection.
Stable Output: Voltage regulation ±1%, low ripple & noise.
Wide Temp Range: -40°C to +85°C working temperature.
Cast Aluminum Shell: Rugged, durable, excellent heat dissipation.
Certified Safe: CE, RoHS certified, long warranty.

SPECIFICATION GP-CVT-24S12, 24V to 12V Series

SKU/Model	GP-24S121R5	GP-24S1205	GP-24S1210	GP-24S1220	GP-24S1230	GP-24S1240	GP-24S1250	GP-24S1260	GP-24S1285	GP-24S12100
Rated Voltage	24V DC
Rated Voltage Range	18-36V DC
Output Voltage	12V DC ± 2%
Voltage Regulation	±1%
Output Current	1.5A	5A	10A	20A	30A	40A	50A	60A	85A	100A
Output Power	18W	60W	120W	240W	360W	480W	600W	720W	1020W	1200W
Output Type	Single Phase
Efficiency	92%	95%	97%	95%	97%	97%	92%	92%	92%	92%
Load Regulation	<2%
No Load Loss	1mA	20mA	20mA	30mA	80mA	80mA	70mA	70mA	70mA	70mA
Ripple & Noise	22mVp-p	80mVp-p	100mVp-p	130mVp-p	200mVp-p	200mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p
Protections	Over load, Over Voltage and Over temperature protections
Waterproof Level	IP68
Certificates	CE, RoHS
Working Temp.	-40 ~ + 85℃
Weight (kg)	0.07	0.07	0.30	0.30	0.55	0.55	1.6	2.3	2.3	2.3
Size (mm)	633218	633218	747432	747432	1008039	1008039	15012763	15012763	22012763	22012763
Warranty	18 months

APPLICATIONS

✔️Industrial

✔️Alternative Energy

✔️Golf Cart

✔️Forklift

✔️Electromotor

✔️Telecommunications

✔️Boat & Yacht

✔️Medical

✔️Dua Battery System

✔️LED Marketplaces and so on.

USAGE NOTES

1. Use within rated input voltage range for 24V to 12V step-down converter。
2. Do not overload the output current or power.
3. Ensure good heat dissipation for high-power models.
4. Follow wiring diagram to avoid short circuit.
5. Keep away from flammable materials during operation.

Why Choose This Buck Converter?
✅ Stable 12V output from 24V input for 24V to 12V DC-DC buck converter.
✅ IP68 waterproof design for outdoor & harsh environment use.
✅ Up to 97% high efficiency saves energy & reduces heat.
✅ Full protections ensure safe long-term operation.
✅ Wide current selection from 1.5A to 100A fits all needs.
✅ CE & RoHS certified for industrial & vehicle safety.

DC-DC Converter FAQ

What is the difference between a Buck and a Boost converter? +

A Buck converter (Step-down) reduces the input voltage to a lower output voltage.
A Boost converter (Step-up) increases the input voltage to a higher output voltage.

What does "Isolated" vs "Non-Isolated" mean? +

Isolated converters have electrical separation (via a transformer) between input and output, which provides safety and noise immunity.
Non-Isolated converters share a common ground and are typically more efficient and compact.

What is the efficiency of this converter? +

Efficiency is the ratio of output power to input power. High-efficiency converters (e.g., >95%) minimize power loss as heat, which is crucial for battery-powered applications and thermal management.

Why is my converter overheating? +

Possible causes:

Exceeding the rated output load → Reduce power draw.
Poor ventilation → Ensure airflow around the unit.
Faulty wiring → Check connections.

The output voltage is unstable. What should I do? +

Try:

Check input voltage (must be in input voltage range).
Verify load is within output limit.
Test with a multimeter to confirm output.

Can I use this with solar panels? +

Yes, DC-DC converters are commonly used in solar systems to match the panel voltage to the battery or load voltage. Ensure the input voltage range covers your solar panel's maximum power point (MPP).
