OVERVIEW
GoodProx hazardous area earth tester GP-RM-EM2KB+ is a certified industrial-grade explosion-proof measurement tool engineered exclusively for safe, high-precision electrical grounding resistance testing in explosive and flammable hazardous environments. As a professional explosion-proof earth tester, it is built to strict explosion-proof safety standards, combining advanced high-sensitivity sensing technology with a rugged, impact and dust-proof explosion-proof casing to deliver fast, error-free readings in the most demanding working conditions.
This professional explosion-proof earth tester for hazardous areas features battery-powered operation, intuitive one-person use and strong anti-interference performance, eliminating complex setup while ensuring absolute operational safety in flammable gas, dust and vapor-rich zones.
FEATURES
- Certified Explosion-Proof Design: The explosion-proof earth tester meets international explosion-proof standards for safe use in hazardous explosive environments.
- High Precision Measurement: Industrial-grade accuracy delivers stable, reliable grounding resistance readings with the explosion-proof ground resistance meter.
- Rugged Hazardous Area Build: Reinforced explosion-proof casing resists impact, dust and moisture—ideal for harsh hazardous area ground resistance tester use cases.
- Advanced Anti-Interference: Multi-layer filtering tech ensures accurate readings in complex electromagnetic environments of industrial hazardous zones.
- Portable & User-Friendly: Lightweight design and one-click operation make this portable explosion-proof earth tester perfect for on-site hazardous area testing.
- Backlit LCD Display: Clear digital readouts in low-light explosive environments for easy data reading and recording.
- Practical Smart Alerts: Low battery indication and over-range alarm prevent testing errors and ensure continuous safe operation.
- Battery-Powered Safety: Cable-free design eliminates electrical hazards, suitable for remote hazardous area locations with no power access.
SPECIFICATION
|
Technical Specification
|
|
Model
|
GP-RM-EM2KB+ Explosion Proof Type Clamp Earth Resistance Tester
|
|
Resistance Range
|
Range
|
Resolution
|
Accuracy
|
|
0.010Ω~0.099Ω
|
0.001Ω
|
±(1%+0.01Ω)
|
|
0.10Ω~0.99Ω
|
0.01Ω
|
±(1%+0.01Ω)
|
|
1.0Ω~49.9Ω
|
0.1Ω
|
±(1%+0.1Ω)
|
|
50.0Ω~99.5Ω
|
0.5Ω
|
±(1.5%+0.5Ω)
|
|
100Ω~199Ω
|
1Ω
|
±(2%+1Ω)
|
|
200Ω~395Ω
|
5Ω
|
±(5%+5Ω)
|
|
400~590Ω
|
10Ω
|
±(10%+10Ω)
|
|
600Ω~880Ω
|
20Ω
|
±(20%+20Ω)
|
|
900Ω~1200Ω
|
30Ω
|
±(25%+30Ω)
|
|
Power Supply
|
DC: 6V (4PCS LR6 Alkaline batteries)
|
|

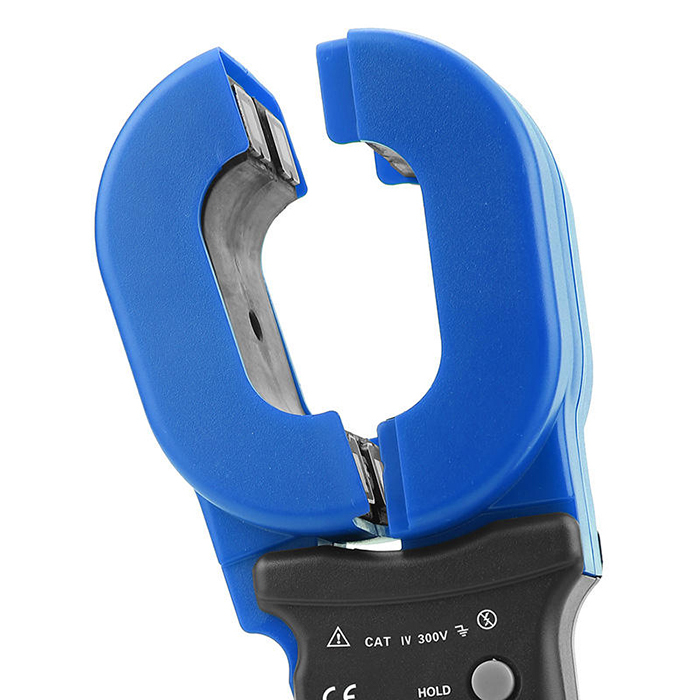

Clamp Jaw Size
|
65mmX32mm
|
|
Clamp Jaw Opening Size
|
32mm
|
|
Tester Dimension
|
285mm(L)X85mm(W)X56mm(H)
|
|
Tester Weight
|
1100g (include battery)
|
|
Ex-Mark
|
Ex ia Ⅱ BT3Ga
|
|
Explosion-Proof Qualified No.
|
CE18.2380
|
|
LCD Screen
|
4 Digits LCD display, Screen 47mm(L)X28.5mm(W)
|
|
Data Storage
|
99 groups
|
|
Audible & Visible Alarm
|
“Du—du—du” alarm sound, press “AL” key to turn on/off
|
|
Alarm Threshold Setting Range
|
Resistance: 1~199Ω
|
|
Protection Level
|
Double insulation
|
|
Gear Shift
|
Automatically
|
|
External Magnet / Electric Field
|
<40A/m ; <1V/m
|
|
Resistance Test Frequency
|
>1KHz
|
|

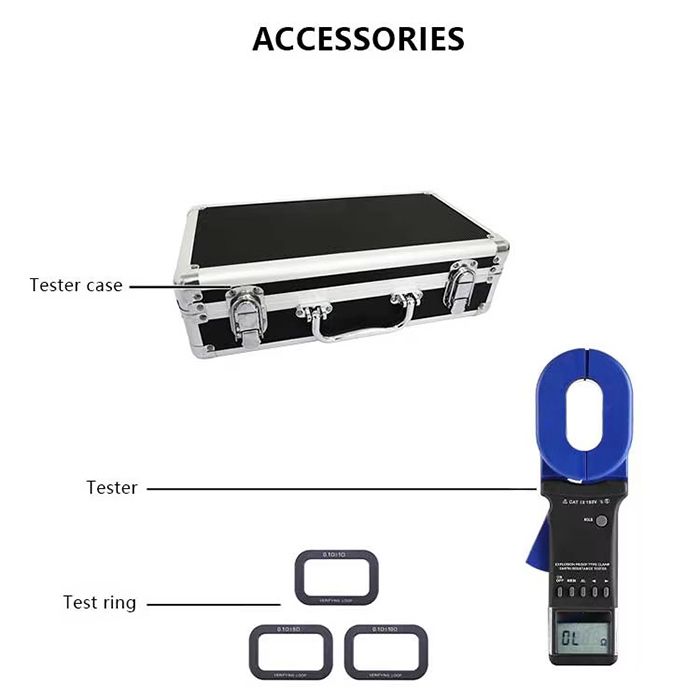

Accessories
|
Tester: 1PCS; Test Ring: 1PCS; Tester Case: 1PCS; Battery: LR6 (4PCS)
|
|
Warranty
|
12 months
|
APPLICATIONS
This safety-certified GoodProx GP-RM-EM2KB+ explosion-proof earth tester is the essential industrial explosion-proof earth meter for all industries and hazardous scenarios requiring safe grounding resistance testing in explosive environments:
- Petrochemical Industry: Refineries, chemical plants, oil storage tanks and pipeline grounding system safety inspections.
- Oil & Gas Sector: Onshore/offshore oil rigs, gas processing plants and fuel station grounding maintenance in explosive zones.
- Mining Industry: Coal mines, metal mines and underground mining equipment grounding testing in flammable dust environments.
- Pharmaceutical Manufacturing: Chemical synthesis and flammable material production area grounding safety compliance checks.
- Paint & Coating Industry: Flammable solvent production and storage facility grounding resistance testing.
- Industrial Hazardous Zones: All factory explosive gas/dust/vapor zones with electrical equipment grounding inspections.
- Marine & Offshore: Offshore platforms, tanker ships and marine fuel handling facility grounding safety testing.

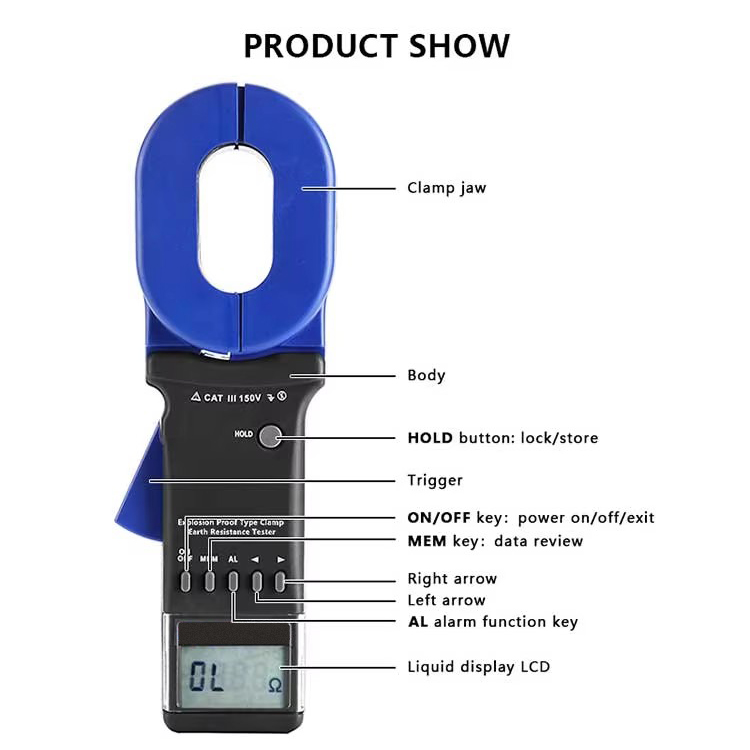

PRODUCT DETAILS
Why Choose GoodProx GP-RM-EM2KB+ Explosion-Proof Earth Tester?
✅ Certified Explosion-Proof Safety: The GP-RM-EM2KB+ explosion-proof ground resistance meter meets international explosion-proof standards, ensuring absolute safety in hazardous areas
✅ Industrial-Grade Precision: Delivers accurate, repeatable grounding readings for critical safety compliance checks in explosive environments
✅ Rugged Hazardous Area Durability: Reinforced explosion-proof casing resists impact, dust and moisture for long-term use in harsh working conditions
✅ On-Site Portable Convenience: Lightweight design makes this portable grounding tester for explosive environments ideal for all-day field operation
✅ User-Friendly Operation: Intuitive one-click controls require no specialized training—safe and easy use for all technicians
✅ Strong Anti-Interference: Advanced filtering tech guarantees stable readings in high-electromagnetic interference hazardous industrial zones
✅ Genuine Quality: Authentic explosion-proof ground meter with strict QC and explosion-proof certification for reliable performance
