OVERVIEW

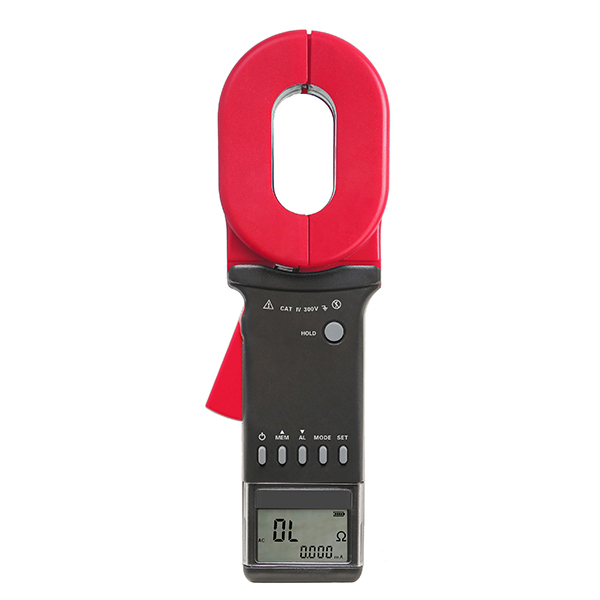

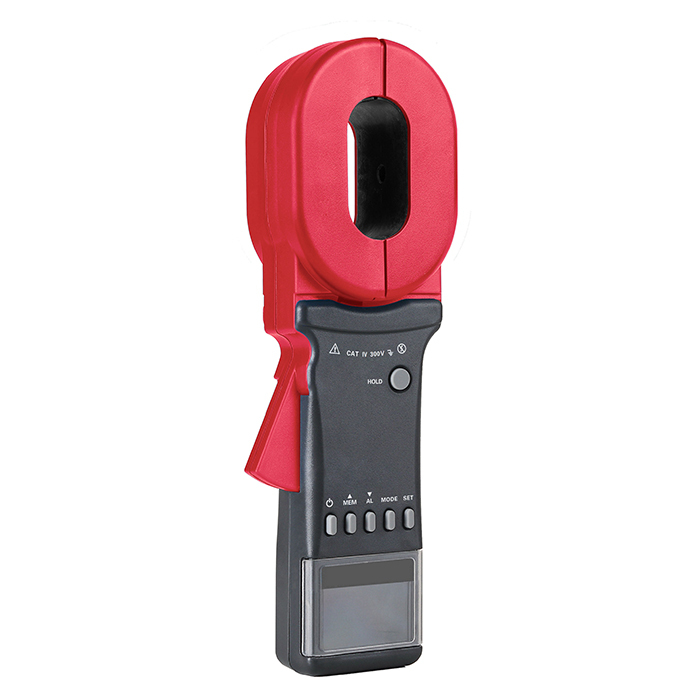

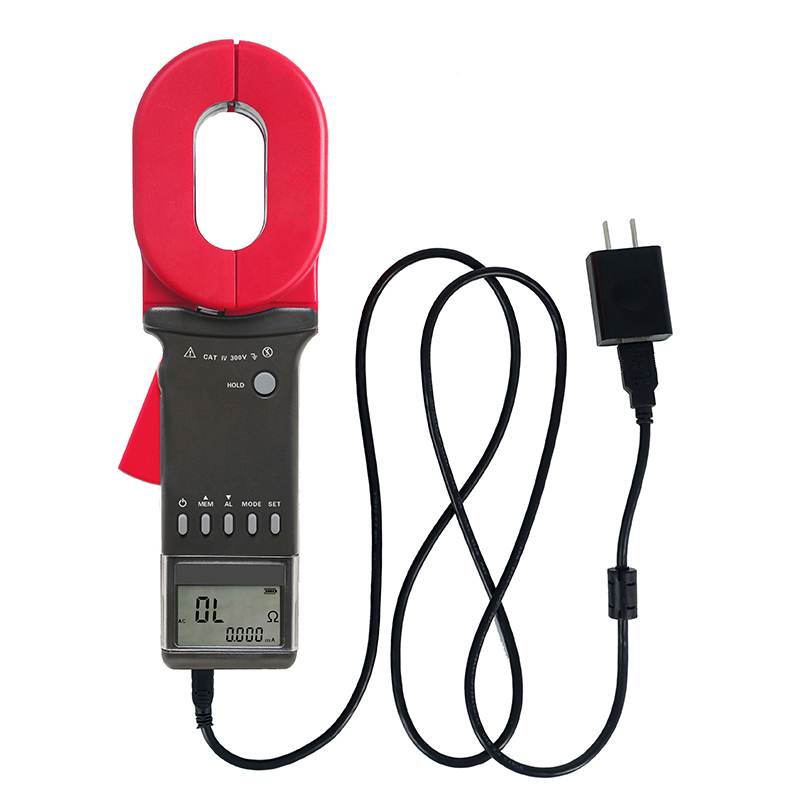

GoodProx digital ground tester GP-RM-EM2D2K is an industrial-grade precision measurement tool engineered for comprehensive electrical grounding system testing, boasting an industry-leading 0.010Ω-1500Ω ground resistance tester ultra-wide range that covers all low, medium and high resistance grounding applications—even beyond standard industrial needs.
Crafted with advanced high-sensitivity sensing components and a robust microprocessor, this 0.010Ω-1500Ω ultra-wide range earth resistance tester delivers lab-grade accurate, repeatable readings for routine safety inspections, fault diagnosis and preventive maintenance in the harshest industrial environments.
FEATURES
- Ultra-Wide 0.010Ω-1500Ω Range: This 0.010Ω-1500Ω ground resistance tester covers all grounding test scenarios, no additional tools needed.
- High Precision Measurement: The earth resistance tester offers industrial-grade accuracy with minimal reading error for stable results.
- Backlit LCD Display: Clear digital readouts on the digital ground tester in low-light field and industrial conditions.
- Rugged Portable Build: Portable earth tester with shock/dustproof casing for harsh on-site working environments.
- One-Click Easy Operation: Auto range switching, data hold and one-key testing for efficient workflows with the high precision grounding tester.
- Advanced Anti-Interference: Multi-layer filtering tech minimizes electromagnetic interference for accurate readings in complex industrial areas.
- Practical Smart Alerts: Low battery indication, over-range alarm and calibration prompt for the industrial ground resistance meter.
- Multi-Mode Testing: Supports standard grounding test modes for versatile use as a professional digital earth resistance meter.
SPECIFICATION
|
Technical Specification
|
|
Model
|
GP-RM-EM2D2K
|
|

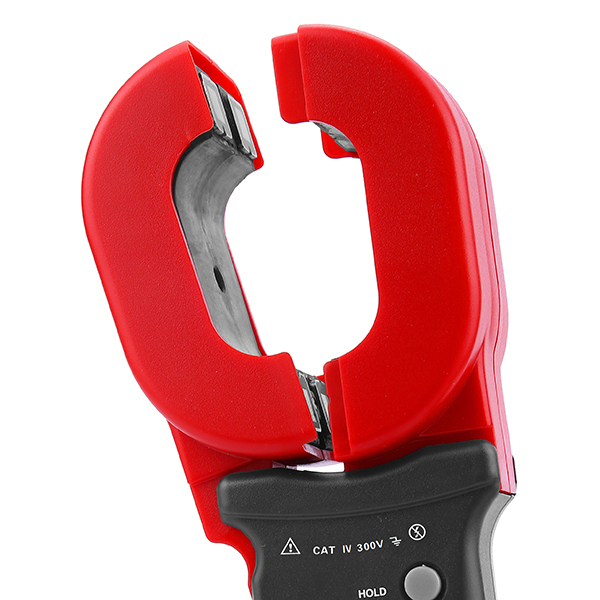

Clamp Jaw Size
|
65mmX32mm
|
|
Tester Dimension
|
295mm (L)X98mm(W)X66mm(T)
|
|
Weight
|
2.5kg (include accessories)
|
|
Resistance Range
|
0.010Ω~1500Ω
|
|
Resistance Resolution
|
0.001Ω
|
|
Resistance Test Accuracy
|
± (1%rdg+0.01Ω)
|
|
Current Range
|
0.000mA~40.0A
|
|
Current Resolution
|
1uA
|
|
Current Test Accuracy
|
± (1.5%rdg+0.5mA)
|
|
Power Supply
|
Rechargeable lithium battery DC3.7V 2600mAh
|
|
Single Measurement Time
|
0.5 second
|
|
LCD Monitor
|
4-digit LCD digital display, 47mm(L)X28.5mm(W)
|
|
Data Storage
|
999 groups
|
|
Audible & Visible Alarm
|
“Du—Du—Du” alarm sound
|
|
Alarm Threshold Setting Range
|
Resistance: 1~199Ω; Current: 1~499mA
|
|
Gear Shift
|
Automatically
|
|
External Magnet / Electric Field
|
＜40A/m; ＜1V/m
|
|
Resistance Test Frequency
|
＞1KHz
|
|
Interface
|
USB interface, Software monitoring, data upload to computer
|
|

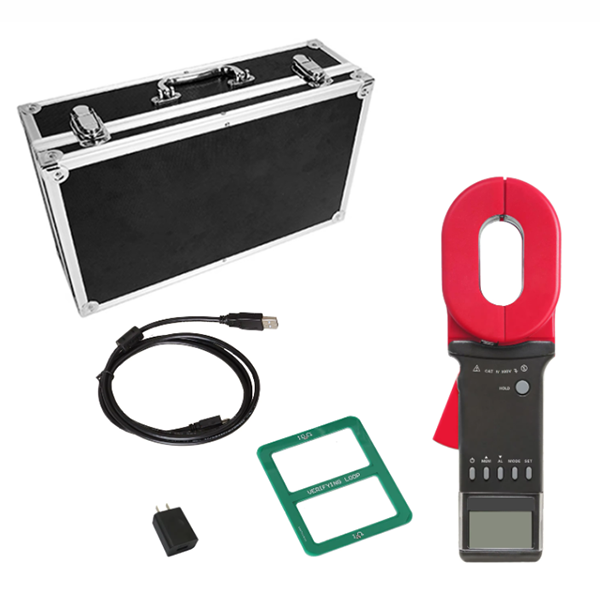

Accessories
|
Meter: 1PCS; Test ring: 1PCS; USB data cable / charge cable: 1PCS; Charger: 1PCS; Instrument Case: 1PCS
|
APPLICATIONS
This versatile high-performance earth resistance tester is the ultimate ultra-wide range earth tester for a wide spectrum of industries and on-site testing scenarios where an extended 0.010Ω-1500Ω grounding measurement range is critical:
- Power Industry: Substations, power plants, transformer stations and high-voltage distribution lines grounding inspection & fault testing
- Construction & Real Estate: Lightning protection grounding testing for high-rise buildings, industrial facilities and large residential complexes
- Telecommunications: Telecom base stations, data centers, communication towers and outdoor network equipment grounding maintenance
- Manufacturing & Heavy Industry: Factory production lines, heavy machinery and hazardous area equipment grounding safety compliance checks
- Mining & Petrochemical: Mining equipment, oil refineries and petrochemical plant grounding system testing in extreme working conditions
- Infrastructure & Transportation: Railway, highway and airport grounding system maintenance and safety inspections
- Electrical Safety Audits: Third-party professional safety inspections and certification testing for all types of electrical grounding installations

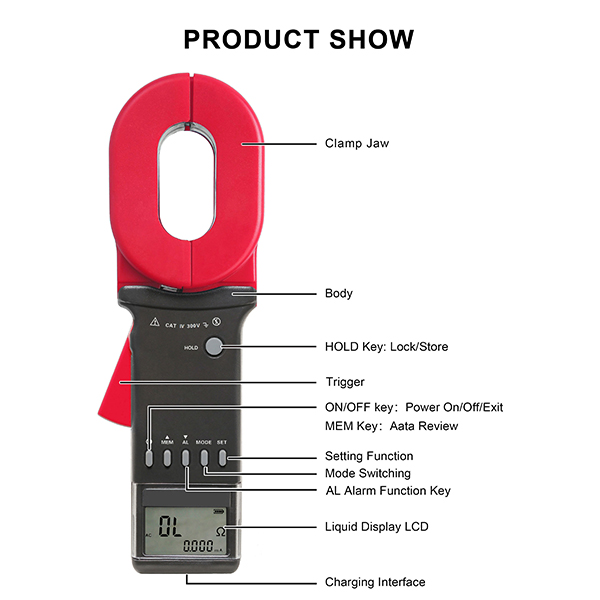

PRODUCT DETAILS
Why Choose GoodProx GP-RM-EM2D2K Earth Resistance Tester?
✅ Unbeatable 0.010Ω-1500Ω Ultra-Wide Range: The 0.010Ω-1500Ω ground resistance tester covers all grounding test needs, eliminating the need for multiple tools.
✅ Industrial-Grade Precision: Our digital ground tester delivers accurate, repeatable readings for critical electrical safety checks.
✅ On-Site Portable Design: The portable industrial ground resistance tester for on-site use is lightweight and compact for all-day field operation.
✅ Rugged Durability: Dust/impact/shockproof casing makes the industrial ground resistance meter ideal for harsh industrial and outdoor conditions.
✅ User-Friendly Operation: Intuitive one-click controls and auto functions make the earth resistance tester easy for all skill levels.
✅ Strong Anti-Interference: Advanced filtering ensures stable readings in high-electromagnetic interference industrial environments.
✅ Genuine Quality: With strict QC and pre-shipment calibration, complying with international electrical measurement standards.
