OVERVIEW
GoodProx digital earth tester GP-RM-EM2D1KA is an industrial-grade premium measurement tool engineered for ultra-precise electrical grounding system testing, highlighted by its industry-leading 0.01Ω high precision ground tester resolution—setting a new standard for lab-grade accuracy in on-site field testing.
Built with advanced high-sensitivity sensing chips, microprocessor technology and industrial-grade alloy materials, this 0.01Ω high accuracy earth resistance tester delivers repeatable, error-free readings for routine safety inspections, fault diagnosis and high-precision grounding calibration.
FEATURES
- 0.01Ω Ultra-Fine Resolution: This 0.01Ω high precision ground tester offers lab-grade fine resolution for ultra-accurate grounding measurements.
- High Accuracy Performance: The earth resistance tester delivers industry-leading accuracy with minimal measurement error.
- Intuitive Backlit Display: Large LCD screen of the digital earth tester ensures clear readouts in low-light field conditions.
- Rugged Industrial Build: Portable ETCR earth tester with shock/dust/impact resistance for harsh on-site working environments.
- One-Click Easy Operation: Auto range switching, data hold and one-key testing for efficient workflows with the high accuracy earth resistance meter.
- Strong Anti-Interference: Advanced multi-layer filtering tech minimizes electromagnetic interference for stable readings in complex industrial areas.
- Practical Smart Reminders: Low battery indication, over-range alarm and calibration prompt for the 0.01Ω grounding tester.
- Versatile Test Modes: Supports multiple standard grounding test modes for universal use as an industrial precision ground tester.
SPECIFICATION
|
Technical Specification
|
|
Model
|
GP-RM-EM2D1KA
|
|
Resistance Range
|
0.010Ω~200Ω
|
|
Current Range
|
-
|
|
Resistance Range & Accuracy
(23℃±5℃，75%RH)
|
Range
|
Resolution
|
Accuracy
|
|
0.010Ω~0.099Ω
|
0.001Ω
|
±(1%rdg+0.01Ω)
|
|
0.10Ω~0.99Ω
|
0.01Ω
|
±(1%rdg+0.01Ω)
|
|
1.0Ω~49.9Ω
|
0.1Ω
|
±(1%rdg+0.1Ω)
|
|
50.0Ω~99.5Ω
|
0.5Ω
|
±(1.5%rdg+0.5Ω)
|
|
100Ω~199Ω
|
1Ω
|
±(2%rdg+1Ω)
|
|
200Ω~395Ω
|
5Ω
|
±(5%rdg+5Ω)
|
|
400Ω~590Ω
|
10Ω
|
±(10%rdg+10Ω)
|
|
600Ω~880Ω
|
20Ω
|
±(20%rdg+20Ω)
|
|
Current Range & Accuracy
|
0.00mA~9.95mA
|
0.05mA
|
±(2.5%rdg+1mA)
|
|
10.0mA~99.0mA
|
0.1mA
|
±（2.5%rdg+5mA）
|
|
100mA~300mA
|
1mA
|
±（2.5%rdg+10mA）
|
|
0.30A~2.99A
|
0.01A
|
±（2.5%rdg+0.1A）
|
|
3.0A~9.9A
|
0.1 A
|
±（2.5%rdg+0.3A）
|
|
10.0A~20.0A
|
0.1 A
|
±(3%+1A)
|
|
Clamp Jaw Size
|
32mm
|
|
Tester Dimension
|
275mm(L)X85mm(W)X56mm(H)
|
|
Tester Weight
|
1130g
|
|
Power Supply
|
DC: 6V (4 PCS of LR6 Alkaline batteries)
|
|
Single Measurement Time
|
0.5 second
|
|
LCD Screen
|
4 Digits LCD display,
|
|
Data Memory
|
99 Groups
|
|
Audible & Visible Alarm
|
“Du—du—du” alarm sound , press AL key to turn on/off
|
|
Alarm Threshold Setting Range
|
Resistance:1~199Ω;Current:1~499mA(only C type)
|
|
Protection Level
|
Double insulation
|
|
Gear Shift
|
Automatically
|
|
RS232 Interface
|
Optional
|
|

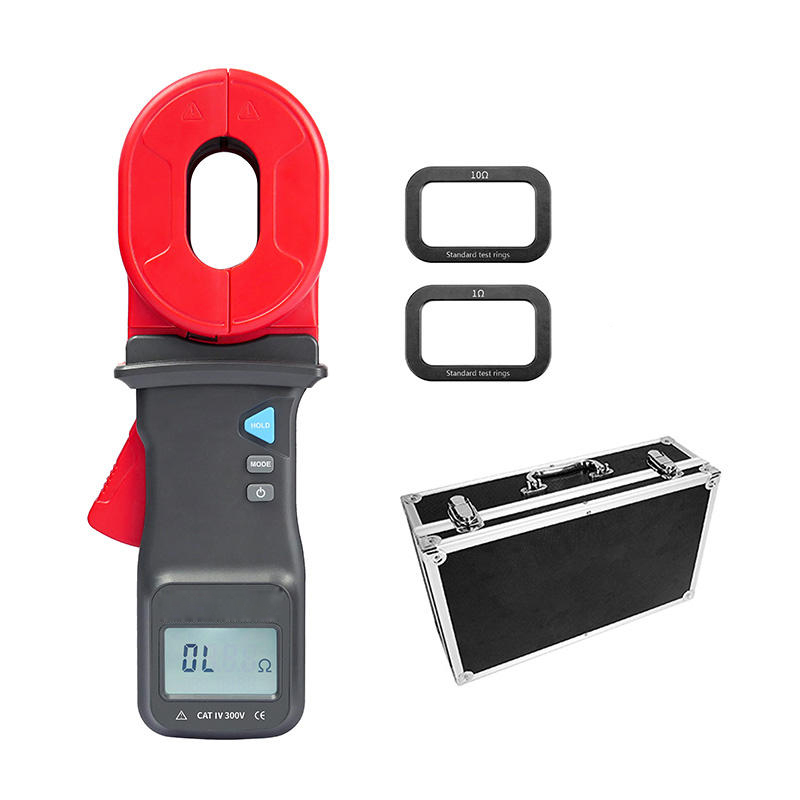

Accessories
|
Meter: 1PCS; Test Ring: 1PCS; Meter Suitcase: 1PCS
|
|
Warranty
|
12 months
|
APPLICATIONS
This high-precision earth resistance tester is the top-tier industrial precision ground tester for a wide range of industries and scenarios where 0.01Ω ultra-fine grounding measurement accuracy is critical:
- Power Industry: Substation, power plant and transformer station grounding system calibration, precision inspection and fault diagnosis.
- Telecommunications: Telecom base stations, data centers and communication tower high-precision grounding maintenance & safety checks.
- Construction & Real Estate: High-end commercial building, industrial facility and lightning protection engineering precision grounding testing.
- Manufacturing & Heavy Industry: Precision machinery, production line and hazardous area equipment grounding safety compliance calibration.
- Aerospace & Electronics: High-precision electronic equipment and aerospace facility grounding system precision measurement.
- Property & Facility Management: Premium commercial complex and industrial park grounding system routine precision maintenance.
- Electrical Safety Inspections: Third-party professional safety audits and high-precision grounding system certification testing.
PRODUCT DETAILS
Why Choose GoodProx GP-RM-EM2D1KA Earth Resistance Tester?
✅ 0.01Ω Ultra-Fine Resolution: The 0.01Ω high precision ground tester delivers lab-grade accuracy, meeting all high-precision grounding test needs.
✅ Industrial-Grade Reliability: Our digital earth tester is built with premium materials for long-term use in harsh environments.
✅ On-Site Portability: The portable 0.01Ω digital earth tester for on-site testing is lightweight and compact for all-day field operation.
✅ User-Friendly Design: Intuitive one-click operation makes the earth resistance tester easy for all skill levels.
✅ Strong Anti-Interference: Multi-layer filtering ensures stable, accurate readings in high-electromagnetic interference industrial areas.
✅ Comprehensive Smart Functions: Auto range, data hold and smart reminders streamline your testing workflow.
✅ Genuine Quality: Authentic with strict QC and calibration, complying with international electrical measurement standards.
