OVERVIEW

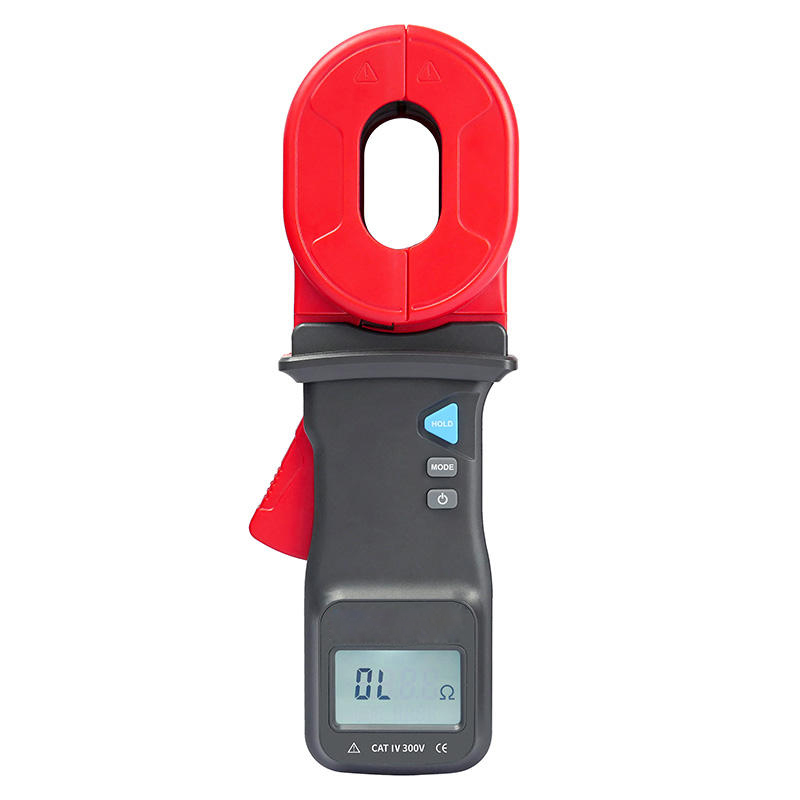

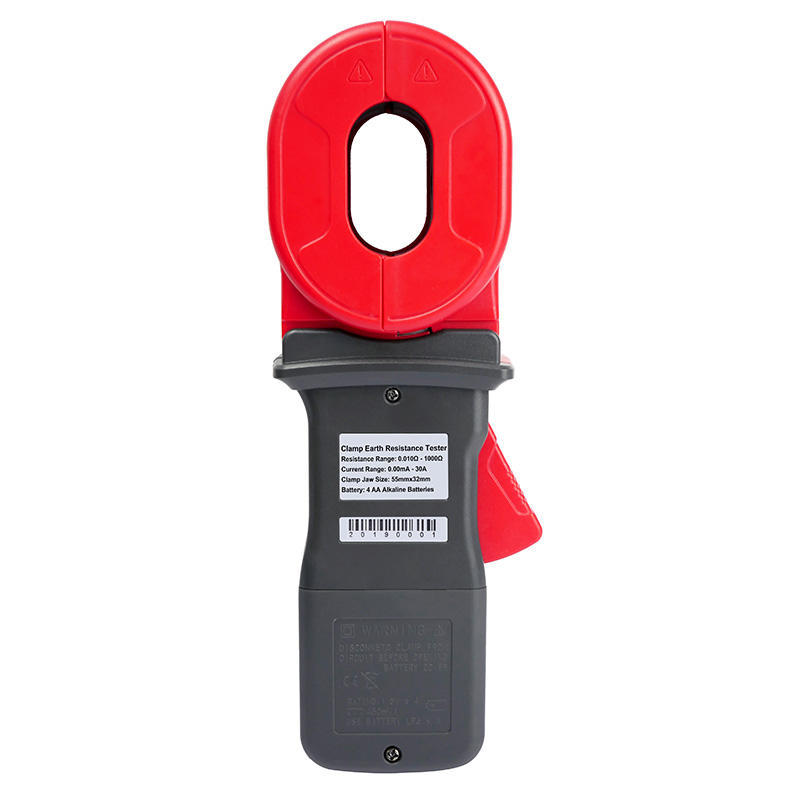

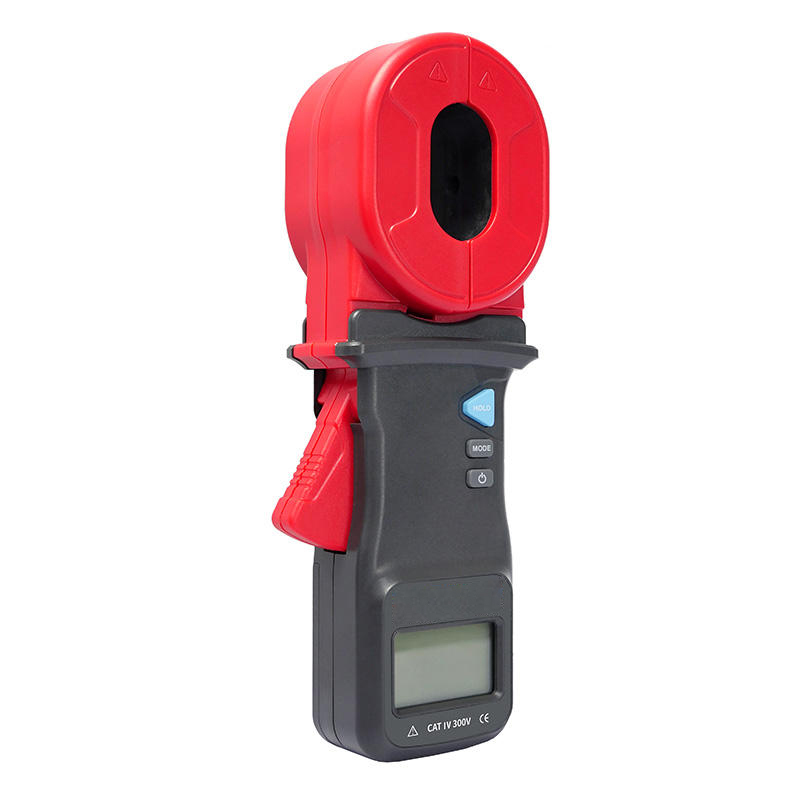

GoodProx GP-RM-EM2KC clamp-on earth tester is a revolutionary non-contact measurement tool engineered for efficient and accurate grounding system testing. As a top-rated digital earth clamp meter, it eliminates the need for traditional auxiliary grounding probes, enabling one-person operation and fast on-site testing. Built with industrial-grade materials and advanced digital sensing technology, this professional clamp-on earth resistance tester delivers reliable, repeatable results for all your electrical grounding safety compliance needs.
Whether for routine inspections, fault diagnosis or preventive maintenance, this non-contact ground resistance tester is the ultimate portable solution for industrial, commercial and utility applications.
FEATURES
- Non-Contact Testing: This clamp-on earth tester enables probe-free ground resistance measurement, cutting test time and supporting one-person operation.
- High Precision Measurement: The clamp-on ground resistance tester offers industry-leading accuracy for stable, reliable grounding system readings.
- Compact Clamp Design: Lightweight, ergonomic clamp body of the digital earth clamp meter fits tight spaces, ideal for on-site field testing.
- Clear Digital Display: Backlit LCD screen provides easy-to-read measurements in low-light environments for the earth tester.
- Portable & Durable: Rugged, battery-powered portable clamp-on earth meter resists dust/impact, perfect for harsh industrial working conditions.
- Fast Response: Instant measurement readouts with no complex calibration for the industrial ground resistance clamp tester.
- Wide Measurement Range: Versatile non-contact digital ground resistance clamp meter for industrial use covers all common grounding resistance ranges.
SPECIFICATION
|
Technical Specification
|
|
Model
|
GP-RM-EM2KC
|
|
Resistance Range
|
0.010Ω~1200Ω
|
|
Current Range
|
0.0mA～30.0A
|
|
Resistance Range & Accuracy
(23℃±5℃，75%RH)
|
Range
|
Resolution
|
Accuracy
|
|
0.010Ω~0.099Ω
|
0.001Ω
|
±(1%rdg+0.01Ω)
|
|
0.10Ω~0.99Ω
|
0.01Ω
|
±(1%rdg+0.01Ω)
|
|
1.0Ω~49.9Ω
|
0.1Ω
|
±(1%rdg+0.1Ω)
|
|
50.0Ω~99.5Ω
|
0.5Ω
|
±(1.5%rdg+0.5Ω)
|
|
100Ω~199Ω
|
1Ω
|
±(2%rdg+1Ω)
|
|
200Ω~395Ω
|
5Ω
|
±(5%rdg+5Ω)
|
|
400Ω~590Ω
|
10Ω
|
±(10%rdg+10Ω)
|
|
600Ω~880Ω
|
20Ω
|
±(20%rdg+20Ω)
|
|
Current Range & Accuracy
|
0.00mA~9.95mA
|
0.05mA
|
±（2.5%rdg+5mA）
|
|
10.0mA~99.0mA
|
0.1mA
|
±（2.5%rdg+5mA）
|
|
100mA~300mA
|
1mA
|
±（2.5%rdg+10mA）
|
|
0.30A~2.99A
|
0.01A
|
±（2.5%rdg+0.1A）
|
|
3.0A~9.9A
|
0.1 A
|
±（2.5%rdg+0.3A）
|
|
10.0A~20.0A
|
0.1 A
|
±(3%+1A)
|
|
Clamp Jaw Size
|
55mmX32mm
|
|
Tester Dimension
|
275mm(L)X85mm(W)X56mm(H)
|
|
Tester Weight
|
1130g
|
|
Power Supply
|
DC: 6V (4 PCS of LR6 Alkaline batteries)
|
|
Single Measurement Time
|
0.5 second
|
|
LCD Screen
|
4 Digits LCD display,
|
|
Data Memory
|
99 Groups
|
|
Audible & Visible Alarm
|
“Du—du—du” alarm sound , press AL key to turn on/off
|
|
Alarm Threshold Setting Range
|
Resistance:1~199Ω;Current:1~499mA(only C type)
|
|
Protection Level
|
Double insulation
|
|
Gear Shift
|
Automatically
|
|
RS232 Interface
|
Optional
|
|
Accessories
|

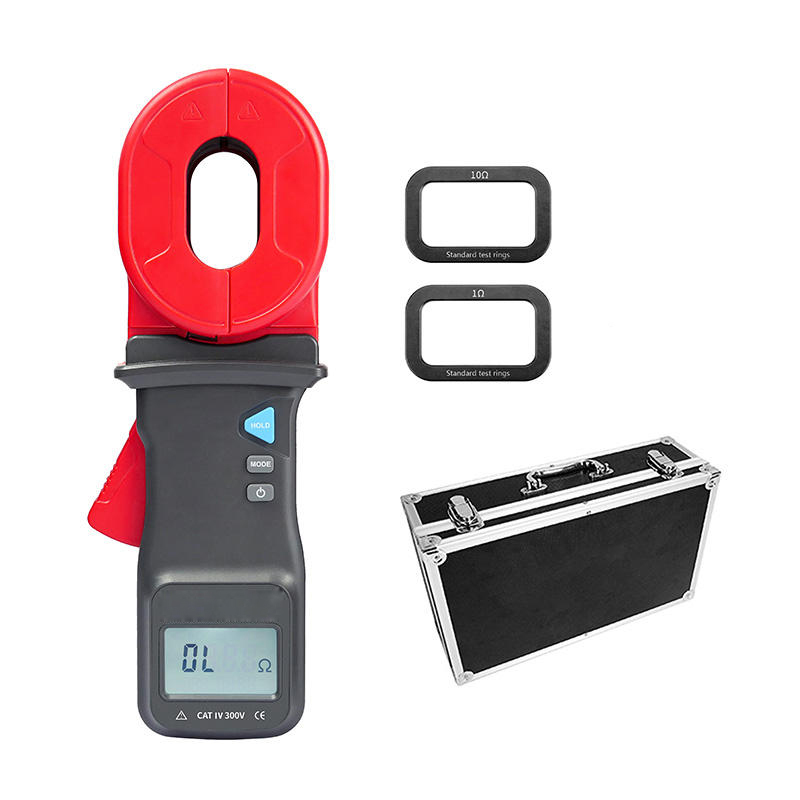

Meter: 1PCS; Test Ring: 1PCS; Meter Suitcase: 1PCS
|
|
Warranty
|
12 months
|
APPLICATIONS
This versatile digital earth ground resistance tester is widely used in various industries and scenarios where electrical grounding safety is critical:
- Power Systems: Substations, power distribution lines, transformer stations and power plant grounding system testing.
- Industrial Sector: Metallurgy, manufacturing, petrochemical and aviation industries for equipment grounding inspections.
- Telecommunications: Telecom base stations, data centers and communication tower grounding system maintenance.
- Building & Construction: Lightning protection grounding testing for commercial and industrial buildings.
- Routine Safety Inspections: Preventive maintenance and compliance testing for all electrical grounding systems.
PRODUCT DETAILS
Why Choose GoodProx Ground Resistance Measurement Tool?
✅ Unmatched Accuracy: Our high accuracy earth resistance tester ensures reliable measurement results for critical electrical safety checks
✅ Portable Convenience: The portable earth resistance meter design allows easy transportation and on-site use
✅ Durable Construction: Rugged industrial build for long-term use in harsh working environments
✅ User-Friendly: Intuitive operation with no professional training required
✅ Multi-Functional: All-in-one solution for ground resistance and earth voltage measurement
✅ Industry Compliance: Meets international electrical safety standards for reliable and safe use
