Home > Sensors > Limit Switch > Adjustable Rocker Waterproof Limit Switch

1/1

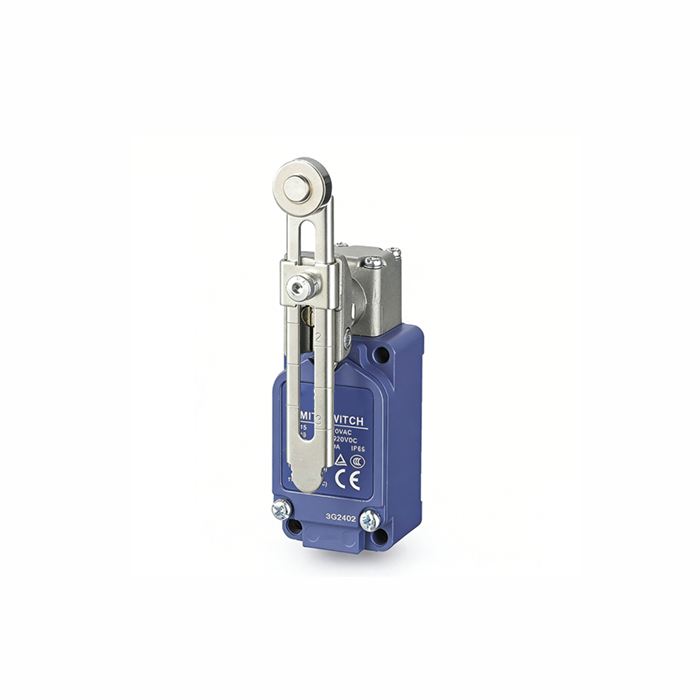

Waterproof Limit Switch | Adjustable Rocker Travel Switch

SKU: GP-LMS-CA122Q

IP66 waterproof adjustable rocker limit switch with stable action.
Long service life and flexible installation.
Ideal for machinery stroke control, safety interlock and automation equipment.

$86.59

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

OVERVIEW

GoodProx limit switch GP-LMS-CA122Q is a professional industrial travel switch with an adjustable rocker actuator and IP66 waterproof/dustproof design. It provides reliable position control and safety interlock for various mechanical equipment. With strong anti‑vibration, long mechanical life and stable electrical performance, this industrial limit switch is widely used in machine tools, cranes, conveyor systems and automation equipment.

FEATURES

Adjustable Rocker: Flexible angle and length adjustment for versatile installation.
IP66 Protection: Waterproof, dustproof and oil‑resistant for harsh environments.
High Reliability: Stable action, anti‑vibration and anti‑shock structure.
Long Service Life: Durable contacts and mechanical components.
Quick Action: Fast and accurate switching response.
Easy Wiring: Standard terminal design for simple installation.
Wide Compatibility: Fits most industrial control systems.
Sturdy Structure: Shockproof housing for heavy‑duty use.

SPECIFICATION

Model	GP-LMS-CA122Q
Max. voltage	380V
Max. current	10A
Operation speed	1mm-1m/s
Operating frequency	Electrical: 30 operations/min
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (below 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between noncontinuious terminal
	1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration	10~55Hz,1.5mm double amplitude
Shock	Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 300m/Sec² (about 30G'S)
Ambient temperature	Using: -20~+70℃ (With no icing)
Humidity	<95% RH
Electrical life	500,000 operations above
Protection level	IP66
Certificate	TUV, ISO9001, CCC, CE
Warranty	12 months

RATINGS

Rated Voltage	Noninductive Load (A)				Indutive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2
250VAC	5		2	1	5		3	1
480VAC	3		1.5	0.8	3		1.5	0.8
600VAC	1		1	0.5	1.5		1	0.5
8VDC	10		6	3	10		6
14VDC	10		6	3	10		6
30VDC	6		4	3	6		4
125VDC	0.8		0.2	0.2	0.8		0.2
250VDC	0.4		0.1	0.1	0.4		0.1

NOTES:

1.Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).

2.Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.

APPLICATIONS

Machine Tools: Lathe, milling machine stroke and safety control.
Cranes & Hoists: Lifting equipment travel limit protection.
Conveyor Systems: Belt conveyor position and safety interlock.
Packaging Machinery: Automatic packaging line stroke control.
Construction Equipment: Elevator, hoist safety limit detection.
Automation Lines: Assembly, production equipment position control.
Port Machinery: Shore crane, container equipment safety control.

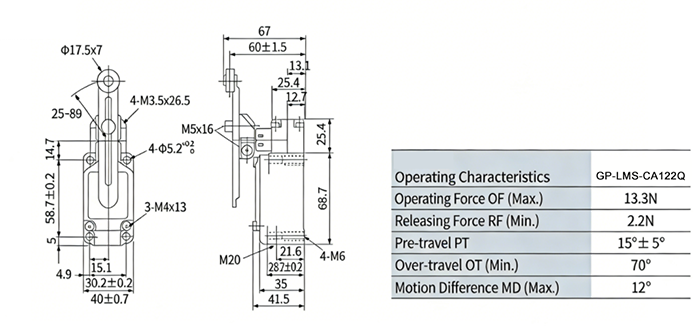

DIMENSIONS

CONTACT TYPE

USAGE NOTES

Install the IP66 travel switch GP-LMS-CA122Q securely on equipment.
Adjust the rocker to suitable position before use.
Follow wiring diagram to ensure correct connection.
Do not exceed rated voltage and current.
Keep switch away from strong corrosion and high temperature.
Regularly check actuator and contacts for normal operation.
Clean surface to maintain IP66 protection performance.

Why Choose GoodProx GP-LMS-CA122Q?

✅ Adjustable rocker design fits diverse installation needs.
✅ IP66 waterproof ensures stable performance in harsh environments.
✅ Long service life reduces maintenance and replacement cost.
✅ Universal structure compatible with most industrial equipment.
✅ Genuine quality, certified safety performance.
✅ Stable under vibration, shock and dust conditions.
