OVERVIEW

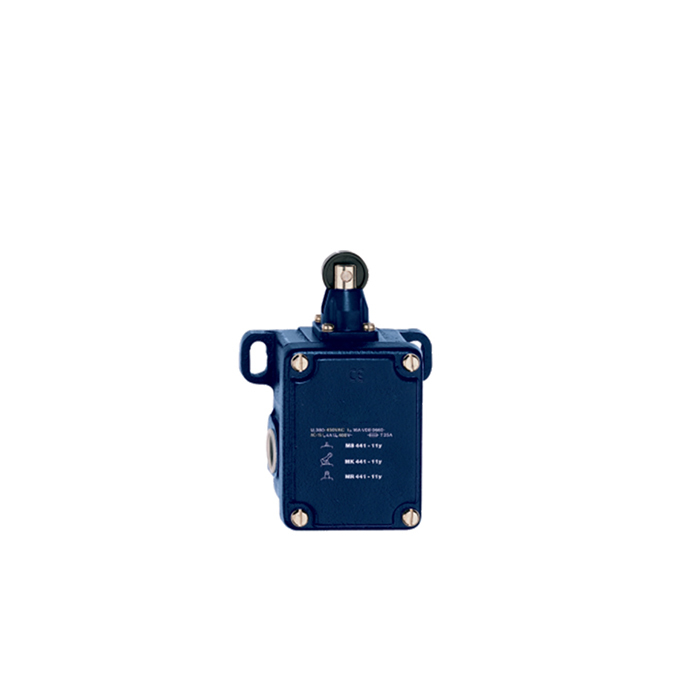

GoodProx heavy-duty travel limit switch is a high-reliability mechanical control switch built for harsh industrial environments and heavy machinery position control. Featuring a galvanized gray cast iron shell, inert gas glass-sealed silver contacts and IP65 dust/waterproof protection, this GP-LMS-MR441 industrial limit switch operates stably in -30°C~+90°C, with 5 million mechanical life cycles and fast-action switching.
Designed for 90° repositionable actuator and dual M20×1.5 cable entries, it’s the essential IP65 heavy-duty limit switch for conveyor deviation prevention, crane over-roll protection and industrial equipment safety interlock across steel, cement and material handling sectors.

FEATURES

• Heavy-Duty Build: Galvanized gray cast iron shell for GP-LMS-MR441 industrial limit switch ruggedness.
• Sealed Silver Contacts: Glass-sealed with inert gas, environment-resistant stable conduction.
• IP65 Protection: IEC dust/waterproof for harsh industrial working conditions IP65 heavy-duty limit switch.
• Long Service Life: 5M mechanical cycles, 2M NC contact operations for low maintenance.
• Wide Temp Range: -30°C~+90°C stable operation in extreme industrial temperatures.
• Flexible Actuator: 90° repositionable roller plunger for versatile installation.
• Fast-Action Switching: 35ms max switching time, 5ms bounce duration for precise control.
• Dual Cable Entries: M20×1.5 screw connections, 1.5-2.5mm² cable compatibility.

SPECIFICATION

APPLICATIONS

• Conveyor Systems: Belt deviation prevention and travel limit control.
• Crane & Hoist: Over-roll protection and lifting machinery position sensing.
• Steel Industry: Steel mill heavy equipment and production line safety control.
• Cement Plant: Cement manufacturing machinery and material handling equipment.
• Loading & Unloading: Port/warehouse heavy-duty loading machinery position control.
• Heavy Machinery: Industrial large-scale conveying and processing equipment.
• Material Handling: Automated logistics and bulk material transport system safety.

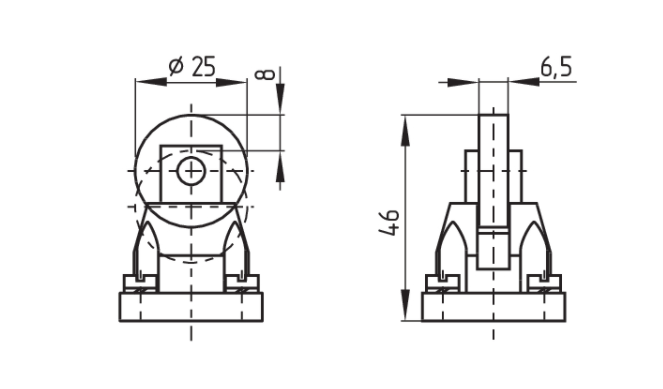

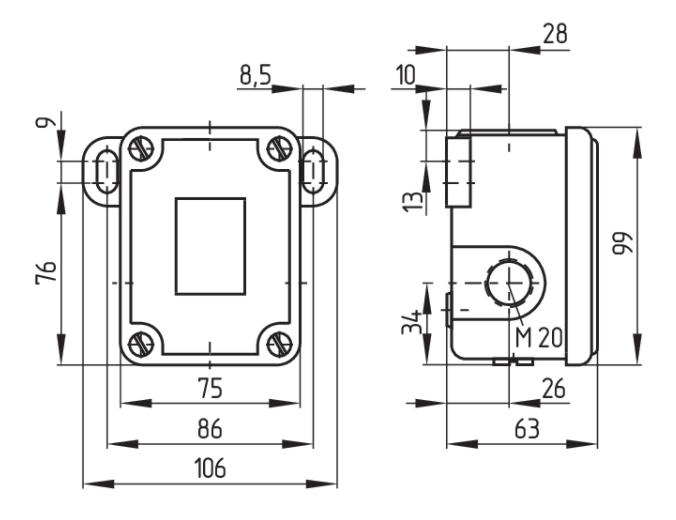

DIMENSIONS

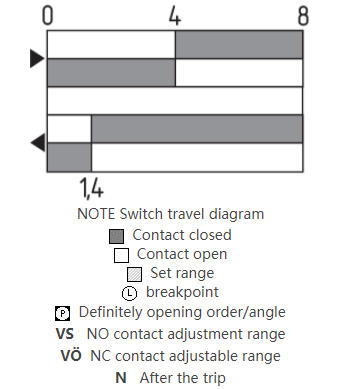

WIRING DIAGRAM

USAGE NOTES

• Mount GP-LMS-MR441 heavy-duty travel limit switch per machinery position requirements.
• Adjust the 90° actuator to match the equipment’s travel control angle.
• Use 1.5-2.5mm² cables with M20×1.5 screw connections for secure wiring.
• Avoid direct heavy impact to the roller plunger to extend contact life.
• Clean the shell with dry cloth only—no corrosive cleaners to maintain IP65 performance.
• Do not exceed the 250VAC rated voltage/16A test current.
• Store in a dry, cool environment when not in use for long-term reliability.

Why Choose GoodProx GP-LMS-MR441?

✅ Industrial-Grade Durability: Cast iron shell and sealed contacts make GP-LMS-MR441 heavy-duty travel limit switch ideal for harsh environments.
✅ High Reliability: Fast-action switching and long mechanical life for uninterrupted industrial operation.
✅ IP65 Protection: Dust/waterproof design ensures performance in dusty/wet industrial sites IP65 heavy-duty limit switch.
✅ Flexible Installation: 90° repositionable actuator and dual cable entries fit diverse machinery.
✅ Wide Temp Adaptation: -30°C~+90°C range for cold/hot industrial working conditions.
✅ Genuine Quality: CE/ISO9001 certified, strict QC for consistent industrial performance.
✅ Safety Focused: Perfect for GP-LMS-MR441 for conveyor/crane safety protection.
