Home > Sensors > Limit Switch > Adjustable Roller Limit Switch

1/1

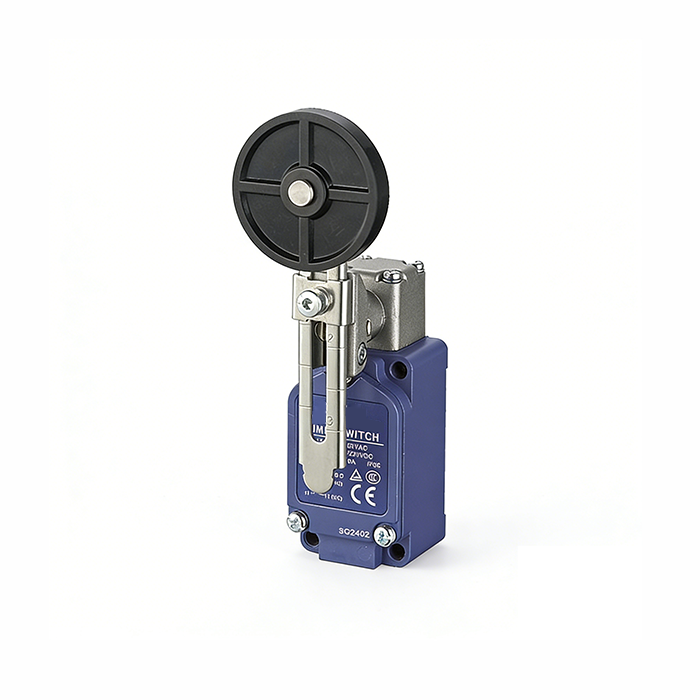

Adjustable Roller Limit Switch | IP66 Waterproof

SKU: GP-LMS-CA122QD

IP66 waterproof adjustable lever limit switch with stable action.
Long service life and strong adaptability.
Ideal for industrial machinery stroke control and safety protection.

~~$97.66~~ $88.75

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

OVERVIEW

GoodProx limit switch GP-LMS-CA122QD is a heavy-duty industrial travel switch with an adjustable lever actuator and IP66 waterproof/dustproof structure. It provides reliable position detection and safety interlock for various mechanical equipment. With high stability, long service life and strong anti-vibration performance, this industrial limit switch is widely used in machine tools, cranes, conveyor systems and automated production lines.

FEATURES

Adjustable Lever: Flexible length and angle for versatile installation.
IP66 Protection: Waterproof, dustproof, oil-resistant for harsh environments.
High Reliability: Stable action, anti-vibration and anti-shock.
Long Service Life: Durable contacts and mechanical structure.
Quick Action: Fast and accurate switching response.
Easy Wiring: Standard terminals for simple installation.
Wide Compatibility: Suitable for most industrial control systems.
Sturdy Housing: Shockproof and wear-resistant for heavy-duty use.

SPECIFICATION

Model	GP-LMS-CA122QD
Max. voltage	380V
Max. current	10A
Operation speed	1mm-1m/s
Operating frequency	Electrical: 30 operations/min
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (below 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between noncontinuious terminal
	1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration	10~55Hz,1.5mm double amplitude
Shock	Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 300m/Sec² (about 30G'S)
Ambient temperature	Using: -20~+70℃ (With no icing)
Humidity	<95% RH
Electrical life	500,000 operations above
Protection level	IP66
Cetitifcate	TUV, ISO9001, CCC, CE
Warranty	12 months

RATINGS

Rated Voltage	Noninductive Load (A)				Indutive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2
250VAC	5		2	1	5		3	1
480VAC	3		1.5	0.8	3		1.5	0.8
600VAC	1		1	0.5	1.5		1	0.5
8VDC	10		6	3	10		6
14VDC	10		6	3	10		6
30VDC	6		4	3	6		4
125VDC	0.8		0.2	0.2	0.8		0.2
250VDC	0.4		0.1	0.1	0.4		0.1

NOTES:

1.Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).

2.Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.

APPLICATIONS

Machine Tools: Lathe, milling machine stroke and safety control.
Cranes & Hoists: Lifting equipment travel limit protection.
Conveyor Systems: Belt conveyor position and safety interlock.
Packaging Machinery: Automatic packaging line stroke control.
Construction Equipment: Elevator, hoist safety limit detection.
Automation Lines: Assembly, production equipment position control.
Port Machinery: Shore crane, container equipment safety control.

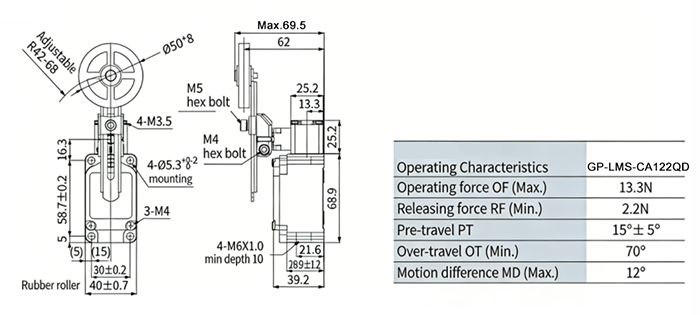

DIMENSIONS

CONTACT TYPE

USAGE NOTES

Install the IP66 travel switch firmly on equipment.
Adjust the lever to a suitable position before operation.
Follow the wiring diagram for correct connection.
Do not exceed rated voltage and current.
Keep away from strong corrosion and high-temperature environments.
Regularly check lever and contacts for normal operation.
Clean surface regularly to maintain IP66 protection.

Why Choose GoodProx GP-LMS-CA122Q?

✅ Adjustable lever fits diverse installation requirements.
✅ IP66 waterproof ensures stable performance in harsh environments.
✅ Long service life reduces maintenance and replacement cost.
✅ Universal structure compatible with most industrial equipment.
✅ Genuine quality, certified safety performance.
✅ Stable under vibration, shock and dust conditions.
