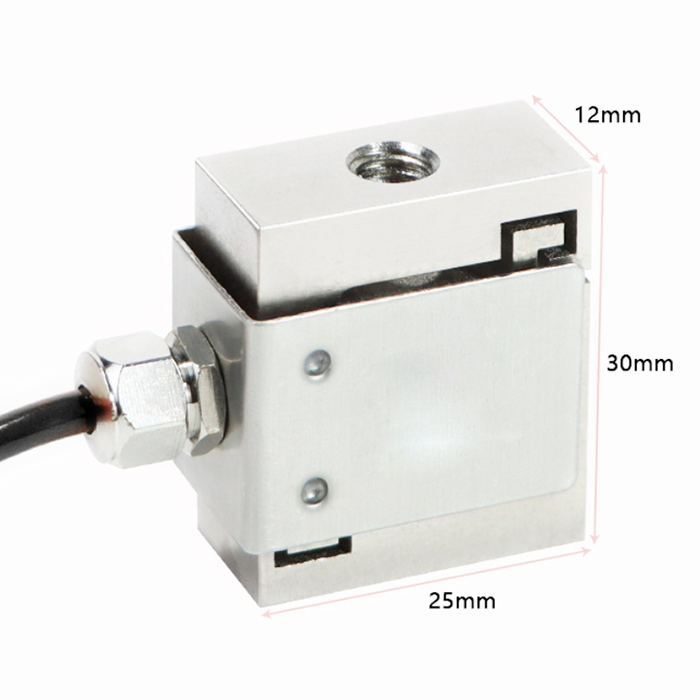

Features
- S-type miniature design for tight-space force measurement.
- Bidirectional tension and compression sensing.
- Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg.
- High-quality alloy steel with chemical nickel plating.
- Excellent linearity, low hysteresis & creep.
- Stable signal, strong anti-interference performance.
- Easy installation & wide compatibility.

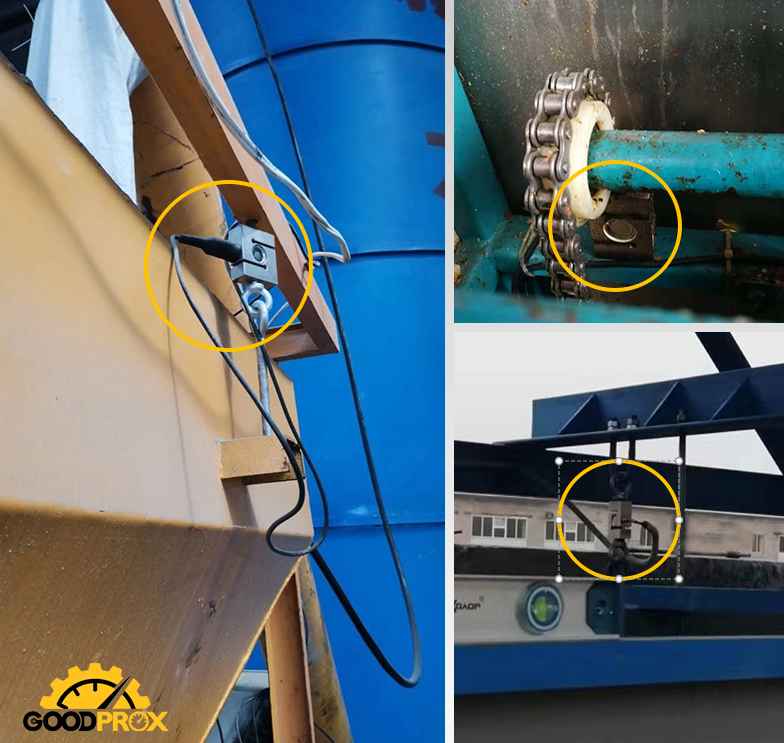

Application Overview
This S-type miniature load cell is widely used in:
- Universal material testing machines.
- Hopper scales, hook scales & platform scales.
- Packaging scales & belt weighing systems.
- Plug force testers & pull-pressure test instruments.
- Automation equipment & precision force detection.
Specification - GP-LC-LY106
| Rated Capacity |
1 kg ~ 100 kg |
| Output Sensitivity |
2.0±5% mV/V |
| Zero Output |
±1% F.S. |
| Non-linearity |
0.03% F.S. |
| Hysteresis |
0.03% F.S. |
| Repeatability |
0.03% F.S. |
| Creep (30 min) |
0.03% F.S. |
| Temperature Sensitivity Drift |
0.03% F.S. / 10℃ |
| Zero Temperature Drift |
0.03% F.S. / 10℃ |
| Response Frequency |
10k Hz |
| Material |
Alloy Steel |
| Impedance |
350Ω |
| Insulation Resistance |
≥5000MΩ/100VDC |
| Operating Voltage |
5-15V |
| Operating Temperature Range |
-20~80℃ |
| Safe Overload |
150% |

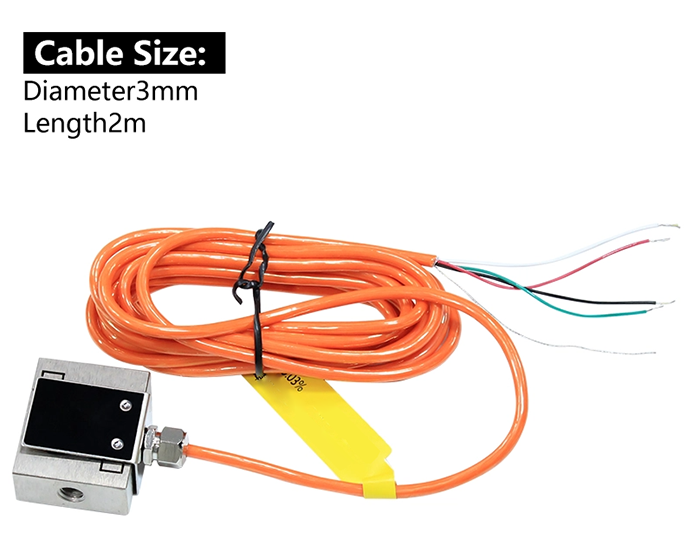

| Cable Specification |
Φ3*2m |
| Cable Maximum Tension |
100N |
| Warranty |
18 months |
*We can provide 3D models and one-on-one technical consultation. Please contact us:

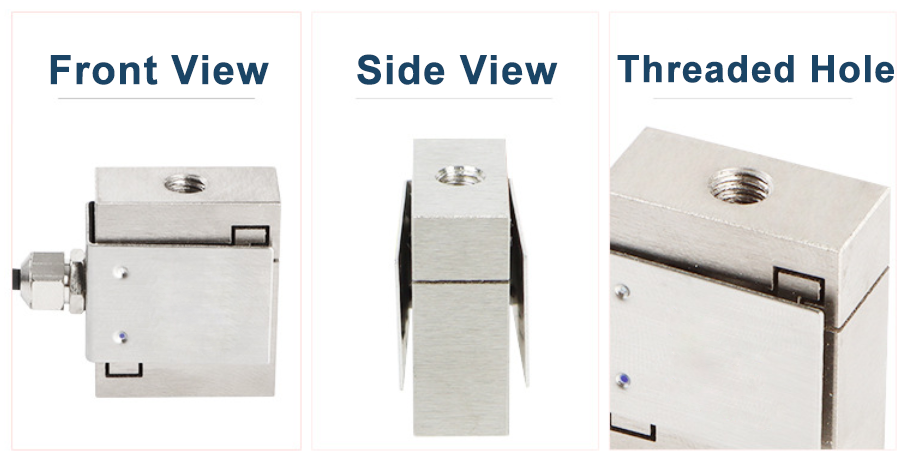

Product Details

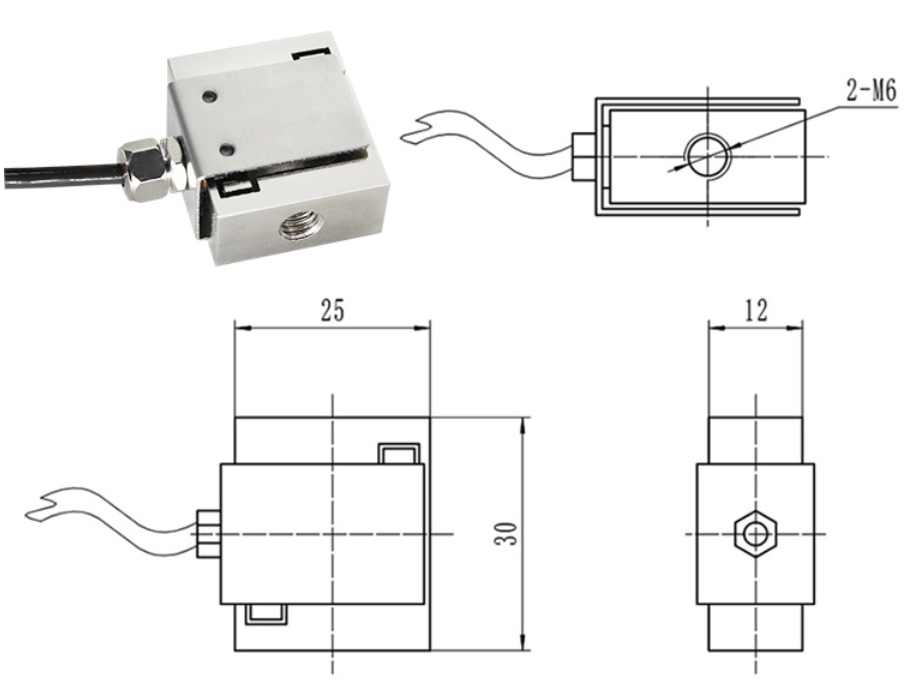

Dimensions
