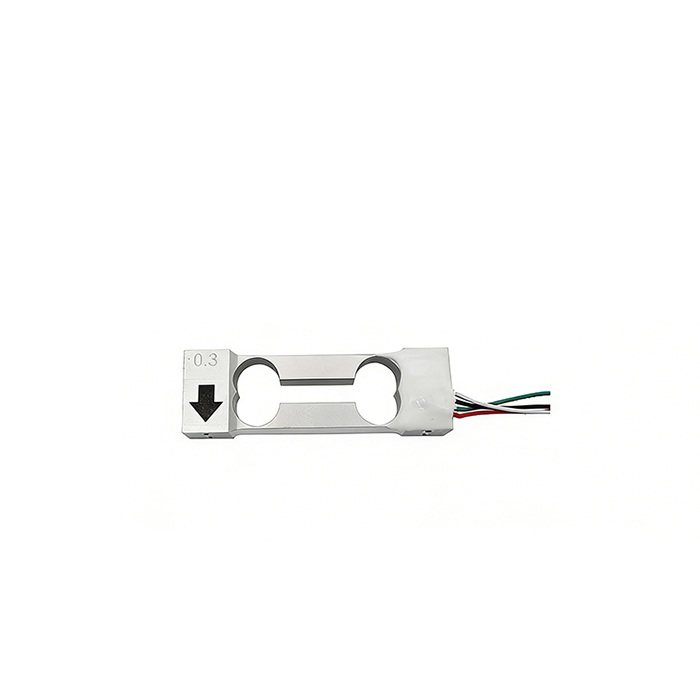

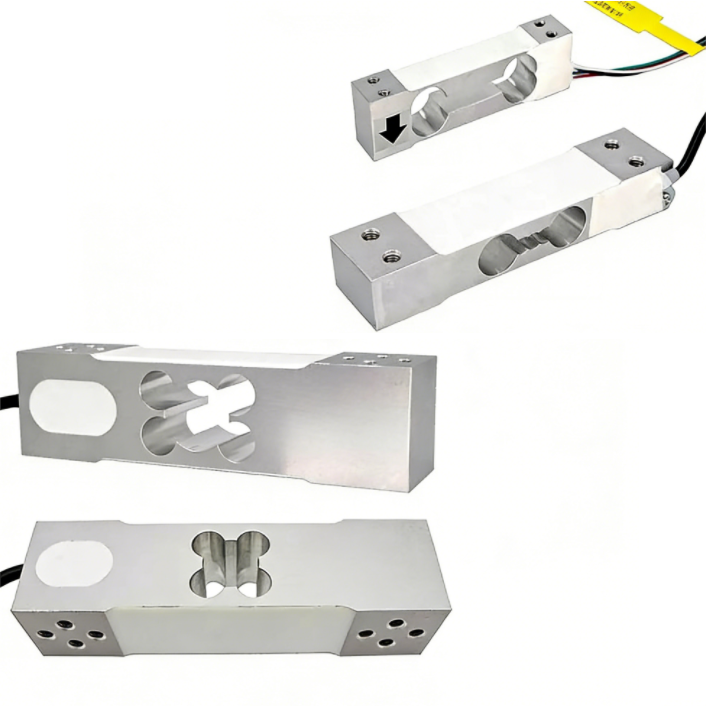

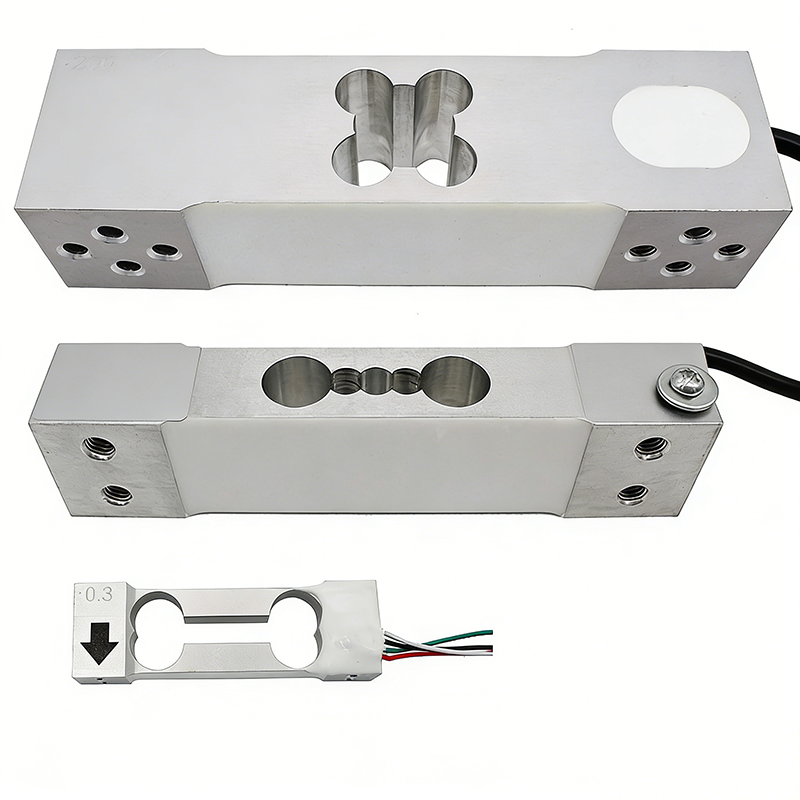

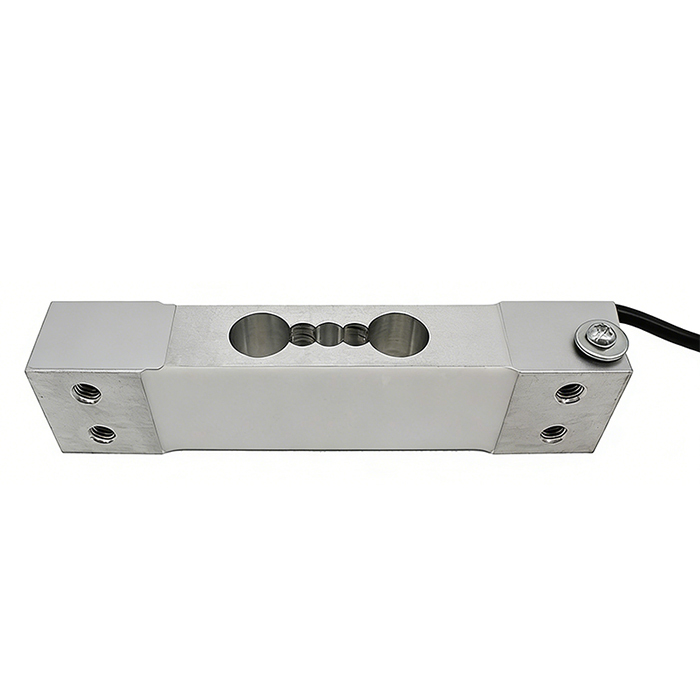

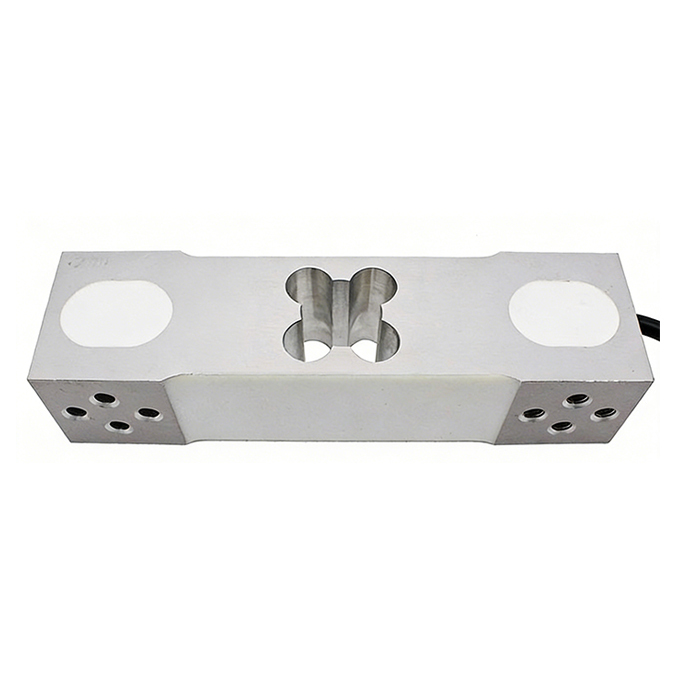

Shear Beam Load Cell | 300g-500kg | Single Point

SKU:
  • GoodProx shear beam single point load cell offers 300g, 1kg, 2kg, 6kg, 10kg, 20kg, 60kg, 100kg, 200kg, 500kg for selectable.
  • High stability and accuracy, quality alloy steel with nickel plating.
  • Perfect for electronic belt scales, packaging scales, filling scales and automation weighing equipment.
$0.00 $73.23
SAVE $10.00 WITH PURCHASE OVER 1 UNITS
Get it
AUTO10
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Capacity:
    0-300g
    0-600g
    0-1kg
    0-2kg
    0-3kg
    0-6kg
    0-10kg
    0-20kg
    0-40kg
    0-60kg
    0-100kg
    0-200kg
    0-300kg
    0-500kg
Quantity:
-
+
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
1/1
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Shear Beam Load Cell | 300g-500kg |  Single Point
  • Overview

Features

  • Single-point shear beam structure for reliable weighing.
  • Wide capacity range: 300g, 1kg, 2kg, 6kg, 10kg, 20kg, 60kg, 100kg, 200kg, 500kg.
  • High precision with ultra-low nonlinearity and hysteresis.
  • Nickel-plated alloy steel for corrosion resistance & durability.
  • Stable anti-interference signal for industrial environments.
  • Easy installation & long service life.
  • Ideal for various electronic weighing & automation systems.

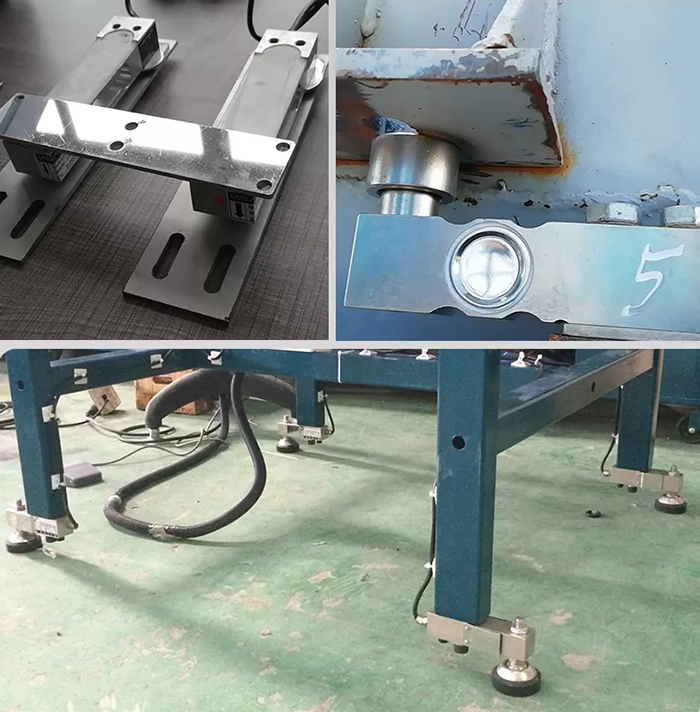

Application Overview
This single point load cell 300g–500kg is widely used in:
  • Electronic belt scales.
  • Packaging scales & filling scales.
  • Automatic weighing & batching systems.
  • Industrial automation weighing equipment.
  • Precision testing & weighing instruments.




Specification - GP-LC-X306
Rated Capacity 300g ~ 500kg
Output Sensitivity 2.0±5% mV/V
Zero Output ±1% F.S.
Non-linearity 0.02% F.S.
Hysteresis 0.03% F.S.
Repeatability 0.02% F.S.
Creep (30 min) 0.03% F.S.
Temperature Sensitivity Drift 0.03% F.S. / 10
Zero Temperature Drift 0.03% F.S. / 10
Response Frequency 1k Hz
Material Alloy Steel
Impedance 350Ω
Insulation Resistance ≥5000MΩ/100VDC
Operating Voltage 5-15V
Operating Temperature Range -20~80
Safe Overload 150%
Cable Specification Φ5*3m
Cable Maximum Tension 100N
Warranty 18 months


*We can provide 3D models and one-on-one technical consultation. Please contact us:



Product Details

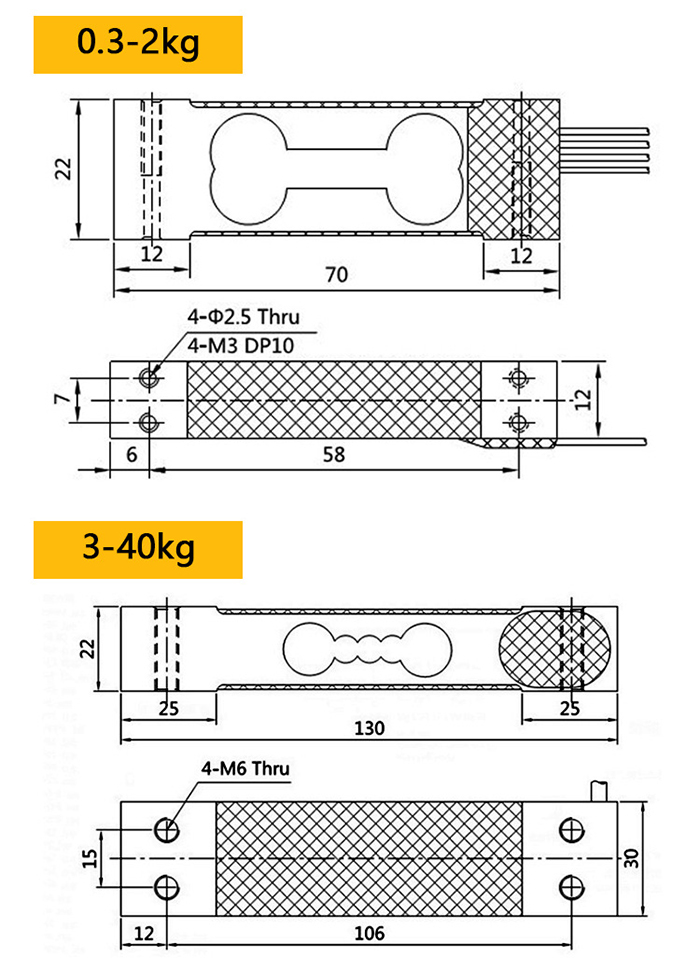

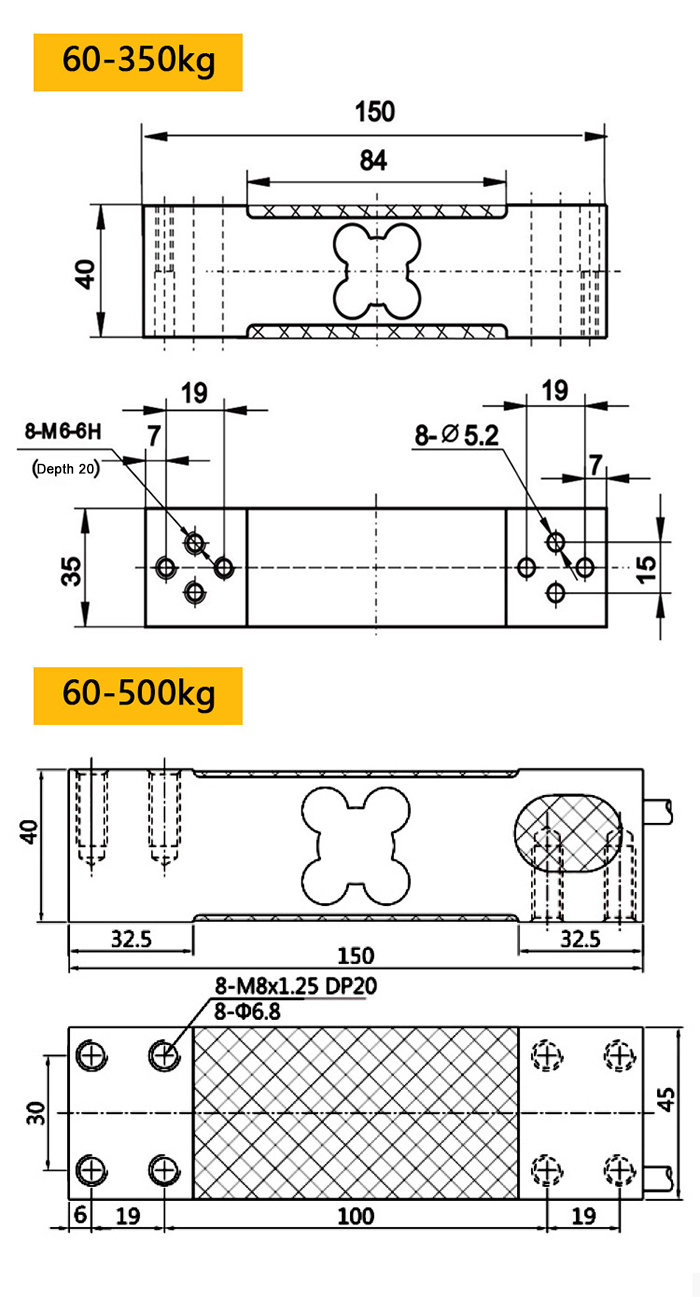

Dimensions
