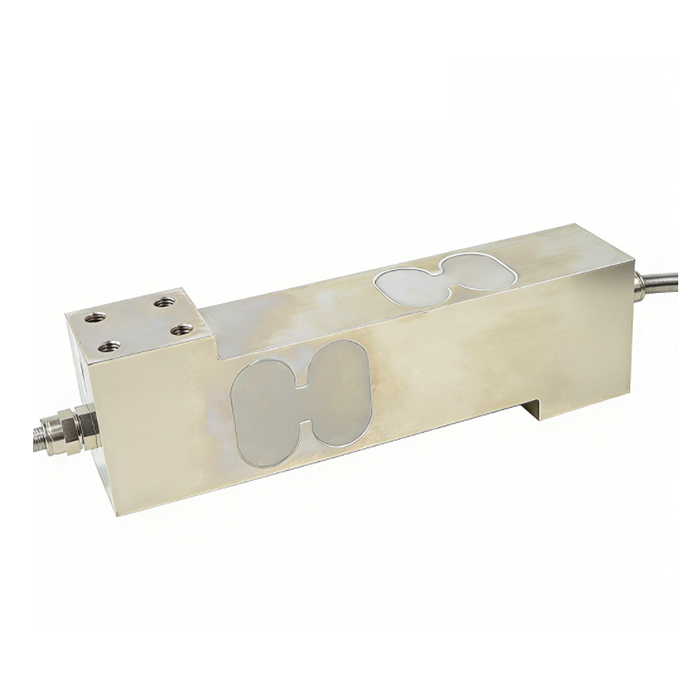

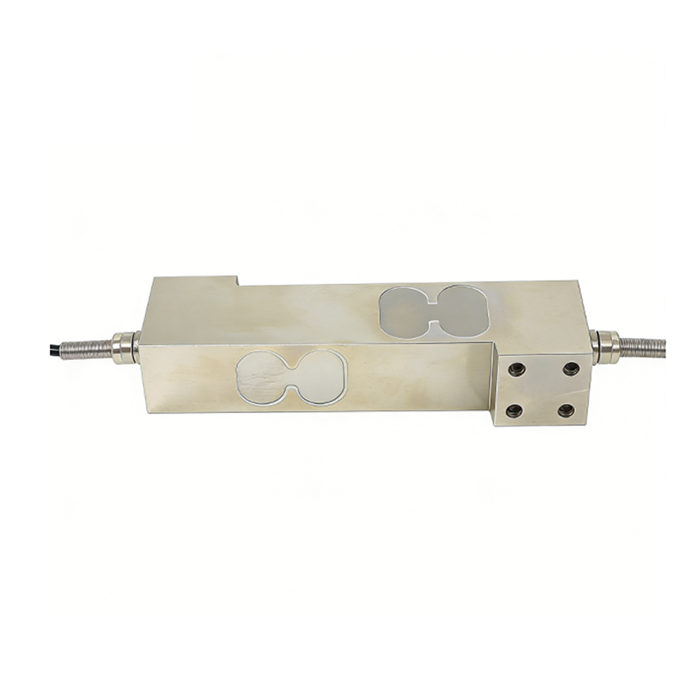

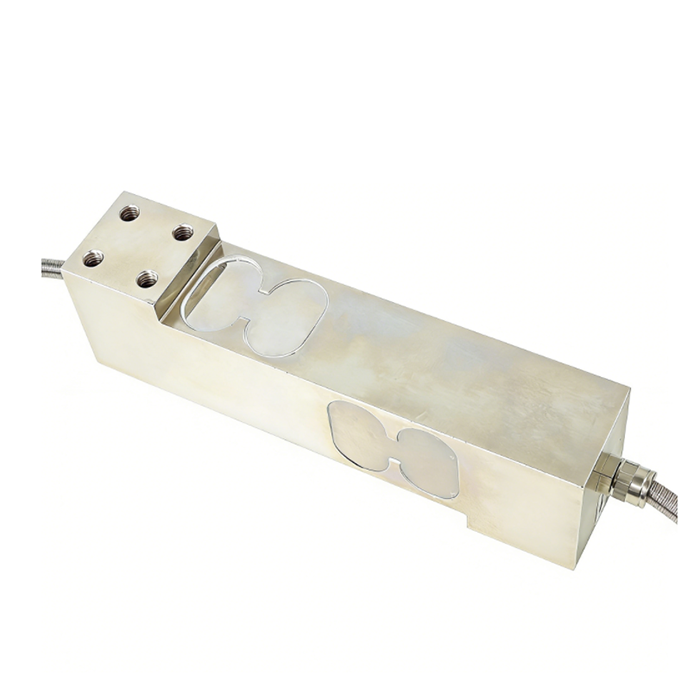

Beam Load Cell | 50kg-1000kg | Bidirectional 2-Axis X/Y

GoodProx bidirectional axis X/Y beam load cell supports 50kg, 100kg, 200kg, 500kg and 1000kg for two-axis force measurement.
Multi-dimensional foce measurement, bidirection tension and compression.
Measure the force and instantaneous changes on two axes (X, Y), ideal for robot force control, industrial assembly and precision testing.

$421.61

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

Features

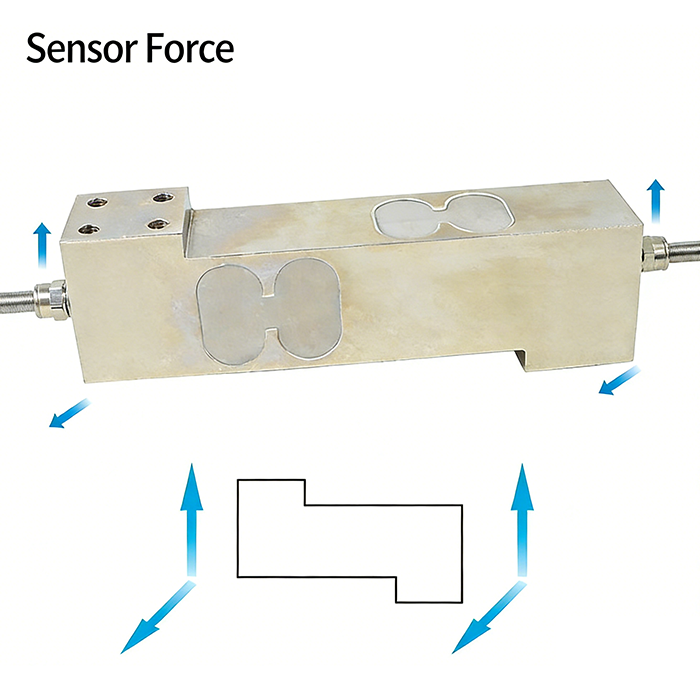

X/Y bidirectional axis force measurement for multi-dimensional force detection.
Simultaneous tension and compression sensing in two directions.
Compact structure with high accuracy and long-term stability.
42CrMo alloy steel with nickel-plated surface for rust & wear resistance.
High strength, toughness and durability for industrial environments.
Wide capacities: 50kg, 100kg, 200kg, 500kg, 1000kg (X/Y same range).

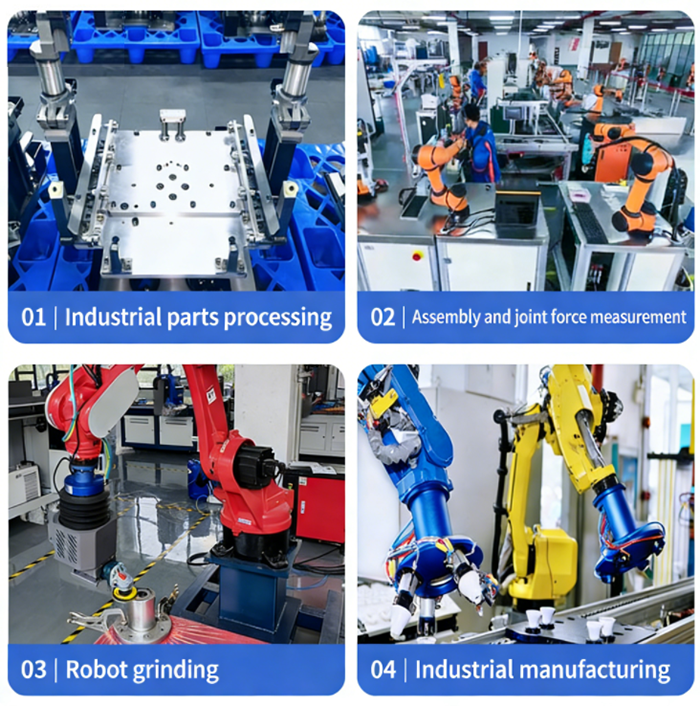

Application Overview

This X/Y bidirectional beam load cell is widely used in:

Robot grinding, welding & assembly force detection.
Robot tactile force teaching & control.
Fatigue testing machines & vehicle durability tests.
Industrial parts processing & precision manufacturing.
Multi-dimensional force measurement & automation equipment.

Specification - GP-LC-DW001

Rated Capacity	50kg ~ 1000kg
Output Sensitivity	1.0% mV/V
Zero Output	±2% F.S.
Non-linearity	0.1% F.S.
Hysteresis	0.1% F.S.
Repeatability	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.5% F.S. / 10℃
Zero Temperature Drift	0.05% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~75℃
Safe Overload	150%

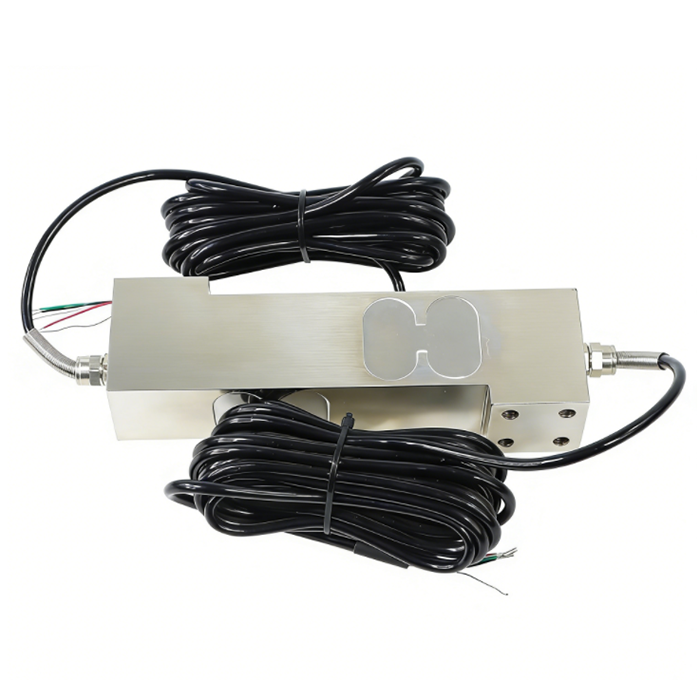

Cable Specification	Φ5*4m
Cable Maximum Tension	100N
Warranty	18 months
