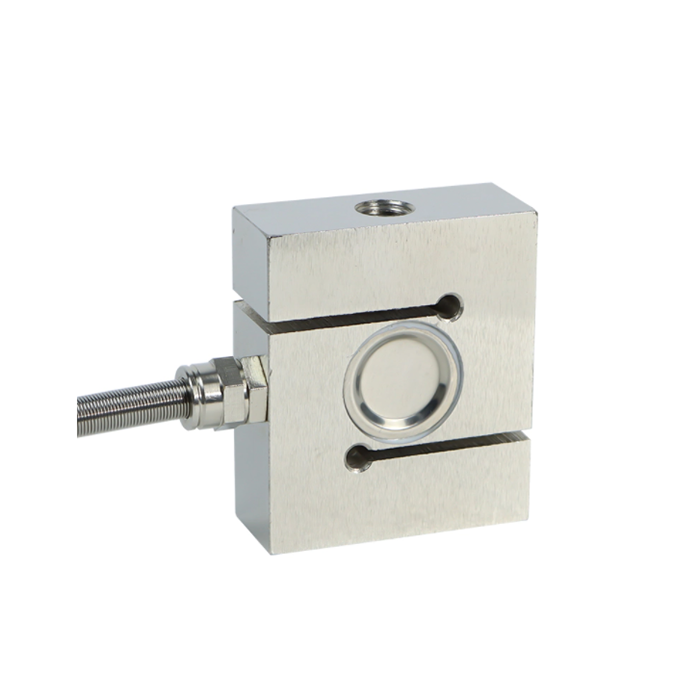

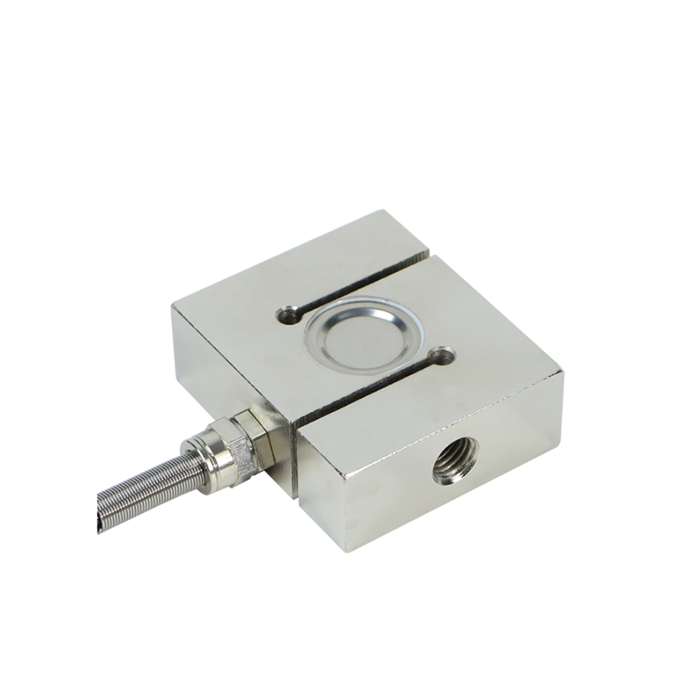

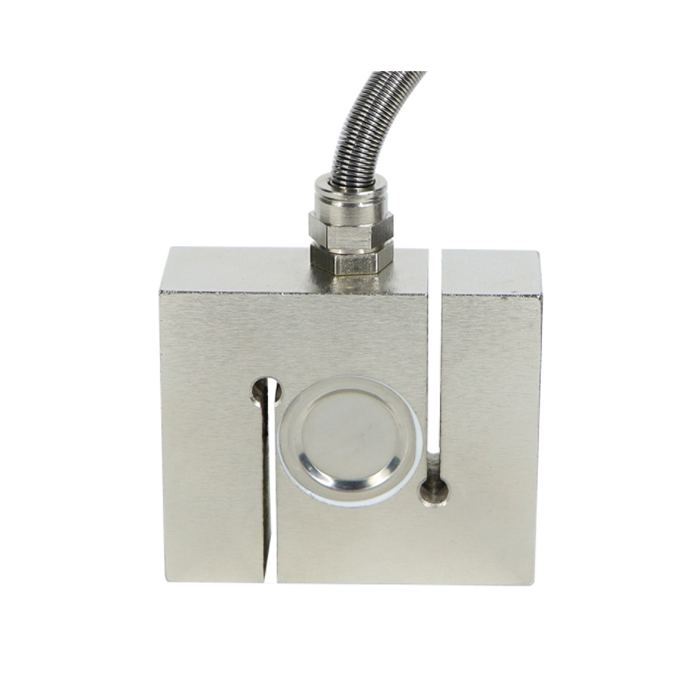

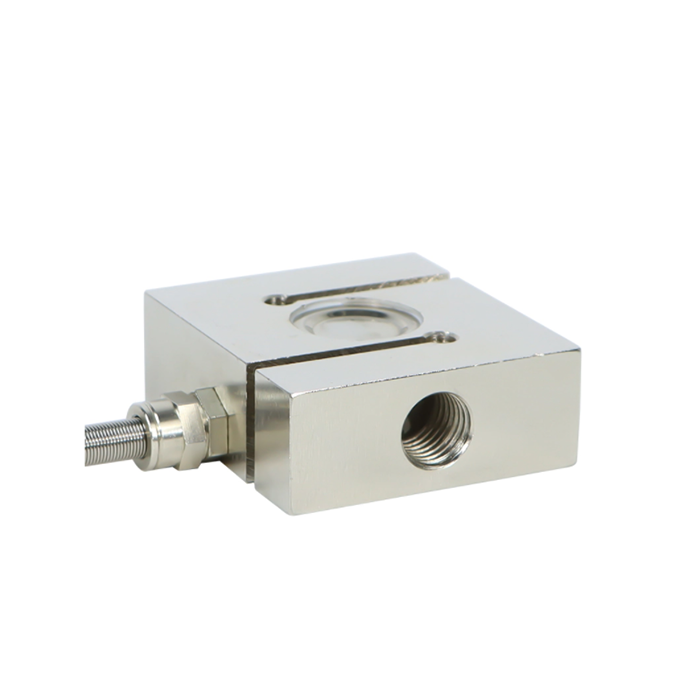

S-Type Tension Compression Load Cell | 300kg to 10T

S-type tension compression load cell
0.05% high accuracy, alloy steel, compact structure.
For hopper scales, test machines, packaging scales and automation.

$89.84

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Quantity:

1/1

Overview

Overview

GoodProx GP-LC-LY104 load cell is a high-precision S-type load cell designed for bidirectional tension and compression force measurement. Made of nickel-plated alloy steel, this tension compression load cell features high accuracy, strong stability and long service life. It is widely used in material testing, hopper scales, packaging scales and industrial automation systems.

Features

Bidirectional Force Measurement: Tension & compression for GP-LC-LY104 load cell.
High Accuracy: 0.05% F.S. non-linearity & hysteresis.
Compact Structure: Small size, easy installation.
Nickel-Plated Alloy Steel: Durable, anti-corrosion.
Long-Term Stability: Reliable continuous performance.
Strong Anti-Interference: Stable in industrial environments.
Wide Range: 300kg, 500kg, 1T, 1.5T, 2T, 3T, 5T, 10T optional.
Standard Output: 2.0mV/V for universal use.

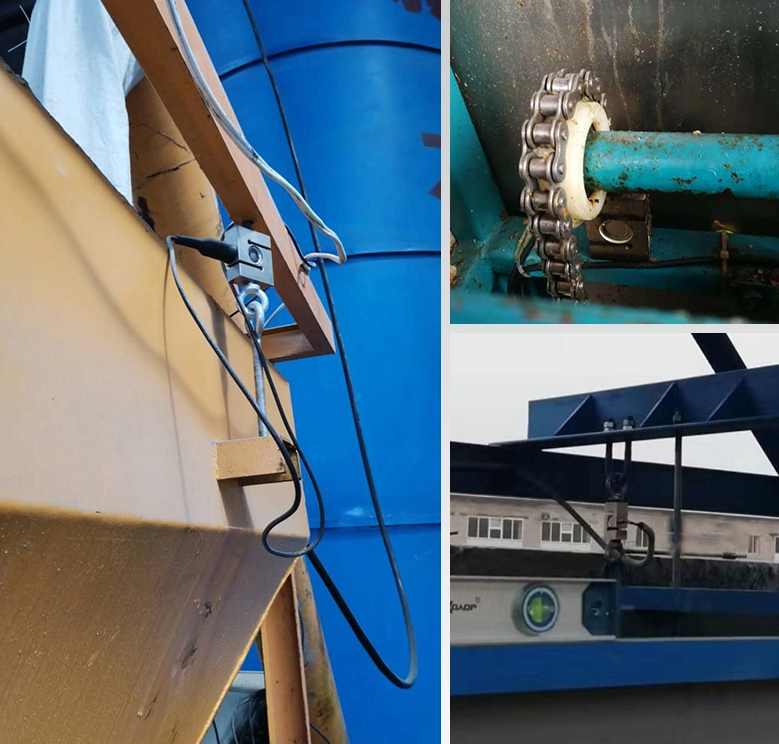

Application Overview

Material Test Machines: Universal tension and pressure test.
Hopper Scales: Silo and tank weighing systems.
Hook Scales: Lifting and hanging weighing.
Packaging Scales: Automatic weighing and packaging.
Belt Scales: Conveyor weighing detection.
Force Testers: Plug force and load testing.
Industrial Automation: Force feedback and control.
Weighing Instruments: Various electronic scales.

Specification - GP-LC-LY104

Model	GP-LC-LY104
Sensitivity	2.0mV/V
Zero point output	±1%F.S.
Non-linearity	0.05%F.S.
Repeatability	0.03%F.S.
Creep (30 min)	0.05%F.S.
Temperature sensitivity drift	0.05%F.S./10℃
Zero temperature drift	0.05%F.S./10℃
Response frequency	1kHz
Material	Alloy Steel
Impedance	350Ω
Insulation resistance	≥5000MΩ/100V DC
Working power	DC 5-15V
Operating temperature range	-20-80℃
Safety overload	150%R.C.
Extreme overload	200%R.C.
Warranty	18 months
