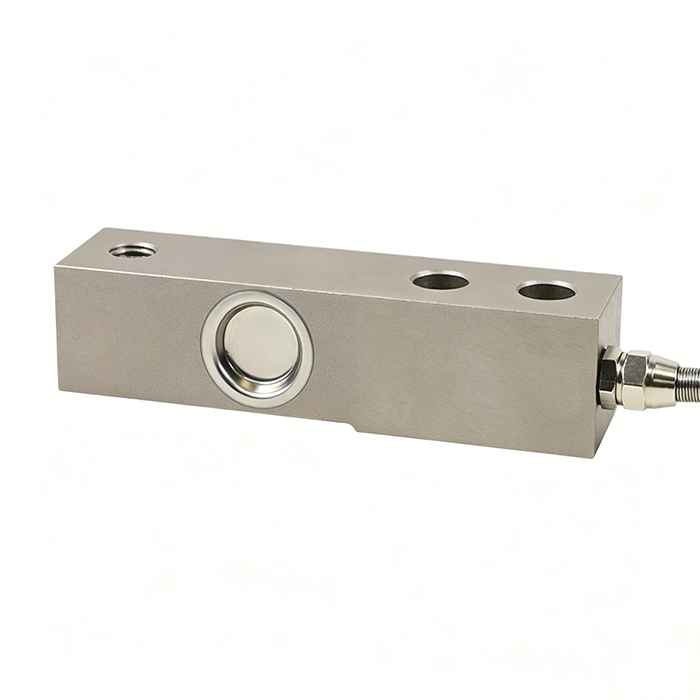

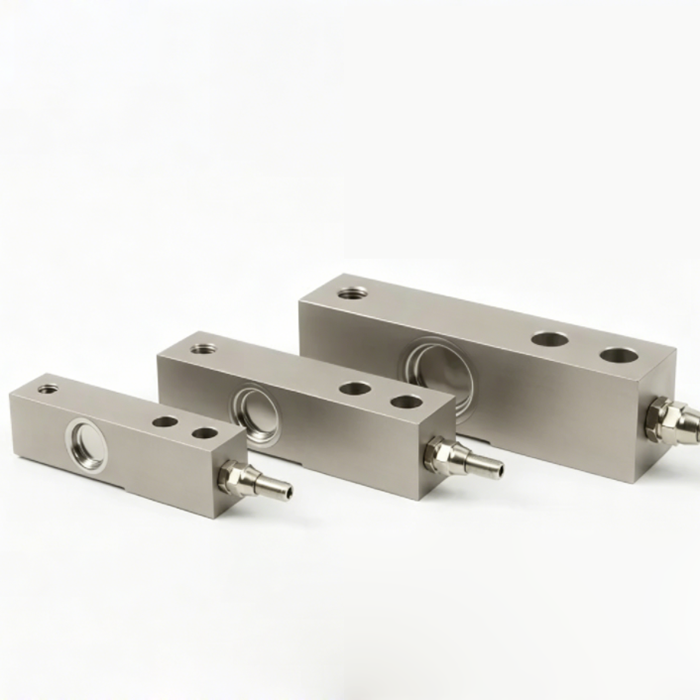

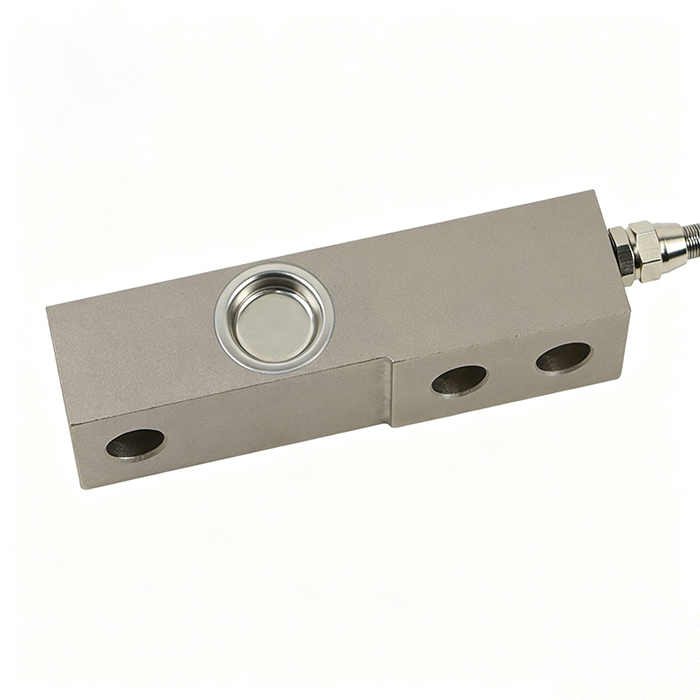

Cantilever Load Cell | 50kg-10T

Shear beam load cell, high precision.
Stable output, high precision, compact size and alloy steel.
For platform scales, floor scales and industrial weighing systems.

$73.43

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Quantity:

1/1

Overview

Overview

GoodProx shear beam load cell GP-LC-X301 is a professional cantilever load cell designed for industrial weighing applications. Made of durable alloy steel, this platform scale load cell provides high precision, stable signal and long service life. It is widely used in platform scales, floor scales, hopper scales and automation weighing systems.

Features

High Precision: Accurate weighing for shear beam load cell.
Cantilever Structure: Stable shear beam force measurement.
Alloy Steel Material: Sturdy, durable and anti-deformation.
Strong Anti-Interference: Reliable in harsh industrial environments.
Low Drift: Long-term stable output.
Easy Installation: Standard mounting design.
Wide Compatibility: Works with all weighing indicators.
High Stability: Consistent performance for continuous use.

Application Overview

Platform Scales: Medium and large platform scale weighing.
Floor Scales: Industrial floor scale load cell.
Hopper Weighing: Hopper, silo and tank weighing systems.
Packaging Machines: Automatic weighing and batching control.
Logistics Scales: Warehouse and freight weighing equipment.
Test Machines: Force and load measurement systems.
Industrial Automation: On-line weighing and monitoring.
Batching Systems: Mixing and batching weighing control.

Specification - GP-LC-X301

Model No.		GP-LC-X301

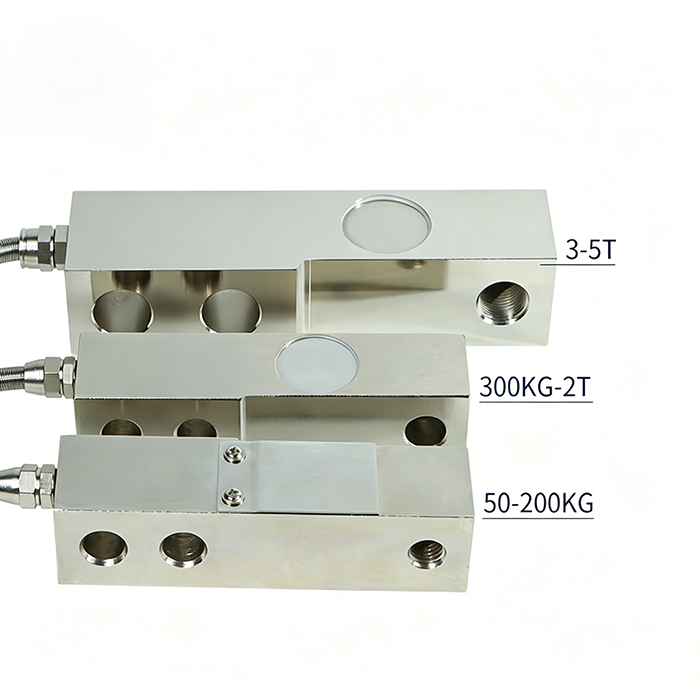

Rated capacity		50kg, 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T, 5T, 10T
Accuracy class1)2)		0.03%		C3
Min. dead load		0kg
Rated output		2.0 ± 0.002mV/V
Zero balance		±1% of Emax
Y-value		6000		10000
Repeatability error		< ± 0.015% of AL3)		< ± 0.010% of AL3)
Creep; 30 minute		< ± 0.030% of AL		< ± 0.017% of AL
Min. dead load output return (DR); 30 min		< ± 0.030% of AL		< ± 0.017% of AL
Temp. effect on	Min. dead load output	< ± 0.0023% of Emax/℃		< ± 0.0014% of Emax/℃
	Rated output 2)	< ± 0.0020% of AL/℃		< ± 0.0012% of AL/℃
Temperature range	Compensated	-10 to + 40 [+ 14 to +104]℃(°F)
	Operating	-40 to + 65 [- 40 to +149]
	Safe storage	-40 to + 80 [- 40 to +176]
Excitation voltage	Recommended	5 ~ 15V AC/DC
Terminal resistance	Maximum	15V AC/DC
	Excitation	384 ± 5Ω
	Output	350 ± 3Ω
Insulation resistance @50VDC		> 5000MΩ
Breakdown voltage		> 500V AC
Seal type / IP rating		Silicone potting	Hermetically welded
Load limit	Safe	150% of Emax
Material	Ultimate	300% of Emax
	Spring element	Alloy steel with nickel platted
	Strain gauge	PI
	Cable	O.D.Φ5.5; 4-wire; PVC
Cable length		0.06-0.3t	0.5-2t		3-10t
		2.0m	2.0m		5.0m
Fatigue life		> 1,000,000cycles @Emax
Deflection at Emax; approx		< 0.5mm
Barometric pressure effect on Zero Output		< 1.0Vmin/kPa

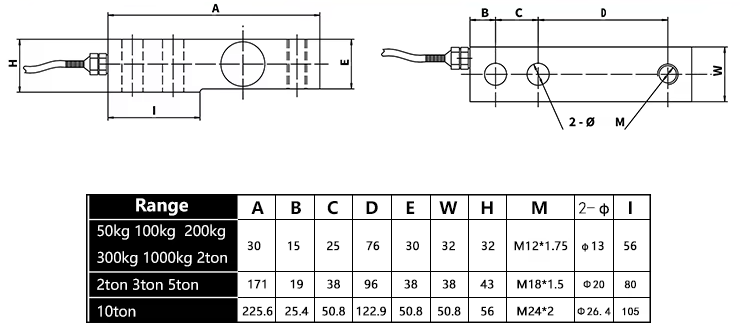

Mounting screw	Size/Grade	M12/8.8	M14/8.8		M18 / 10.9
	Recommended torque	98N.m	120N.m		275N.m
Warranty	18 months
