Home > Sensors > Load Cell > S-Type Load Cell | 5 kg-5 ton | High Accuracy

1/1

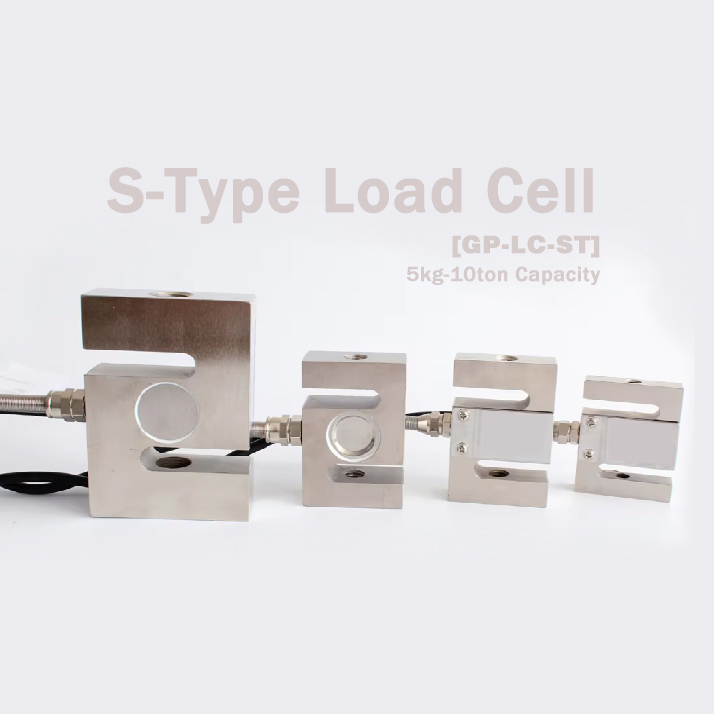

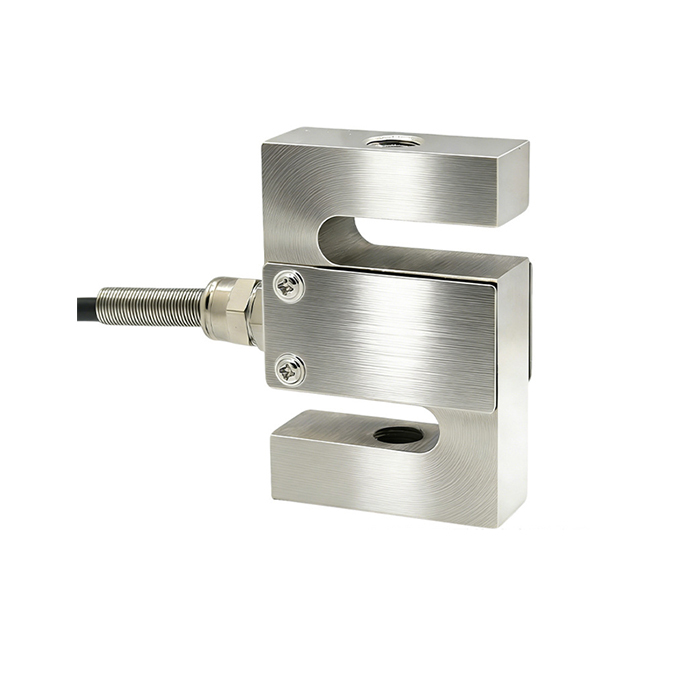

S-Type Load Cell | 5kg-10ton | High Accuracy

Name: S-Type Load Cell | 5kg-10ton | High Accuracy
Brand: GoodProx - Industrial Automation Products Online Store & Solution
SKU: GP-LC-LY103
Price: 86.52 USD
Availability: InStock
Rating: 5 (3 reviews)

GoodProx S-type load cell provides 5kg to 10ton high-precision force measurement.
Tension compression load cell features bidirectional force detection.
IP66 waterproofing, and 42CrMoA alloy steel, ideal for hopper scales, batching plants, crane scales and testing machines.

$86.52

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Capacity:

0-5kg (M8 *1.25)

0-10kg (M8 *1.25)

0-20kg (M8 *1.25)

0-30kg (M8 *1.25)

0-50kg (M8 *1.25)

0-50kg (M12 *1.75)

0-100kg (M12 *1.75)

0-200kg (M12 *1.75)

0-300kg (M12 *1.75)

0-500kg (M12 *1.75)

0-1T (M12 *1.75)

0-2T (M12 *1.75)

0-3T (M12 *1.75)

0-5T (M12 *1.75)

0-7T (M12 *1.75)

0-10T (M12 *1.75)

Quantity:

1/1

Overview

Features

0.03% F.S. high accuracy for precise force measurement.

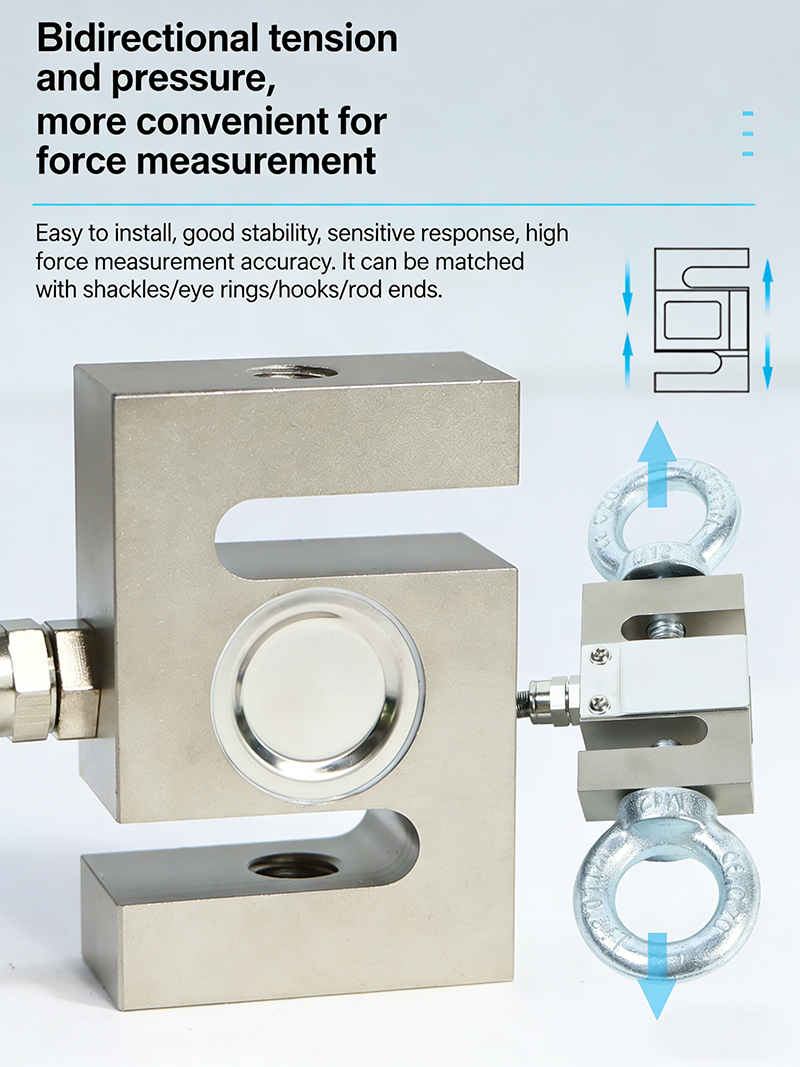

Bidirectional tension and compression sensing design.
42CrMoA alloy steel with nickel plating, waterproof & corrosion-resistant.
IP66 protection level for harsh industrial environments.

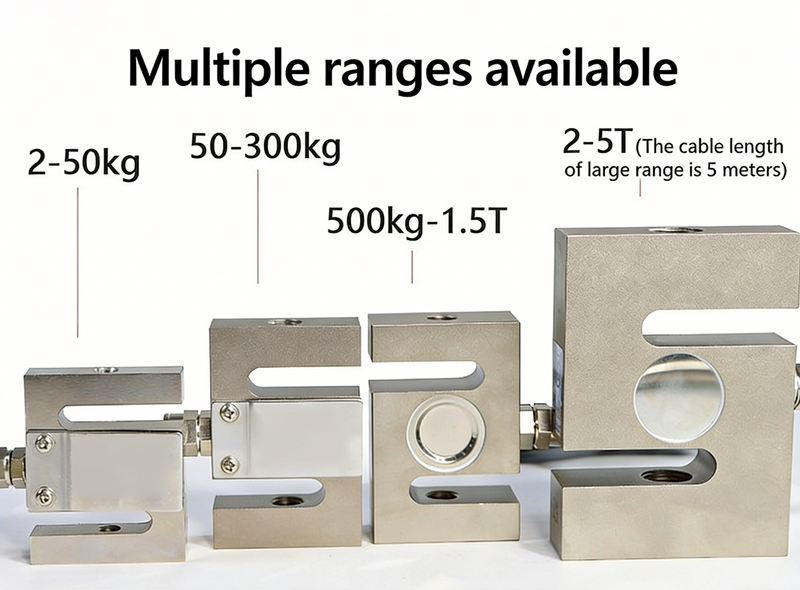

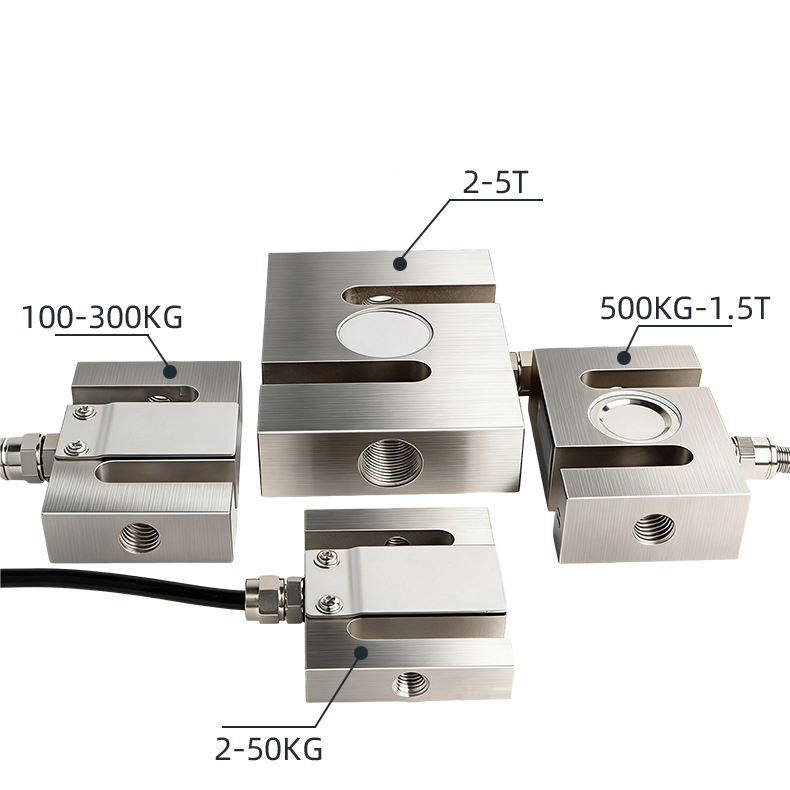

Wide capacity range: 5kg ~ 10ton, support customization.
Easy installation with good stability and sensitive response.
Suitable for hopper scales, batching plants, testing machines & automation equipment.

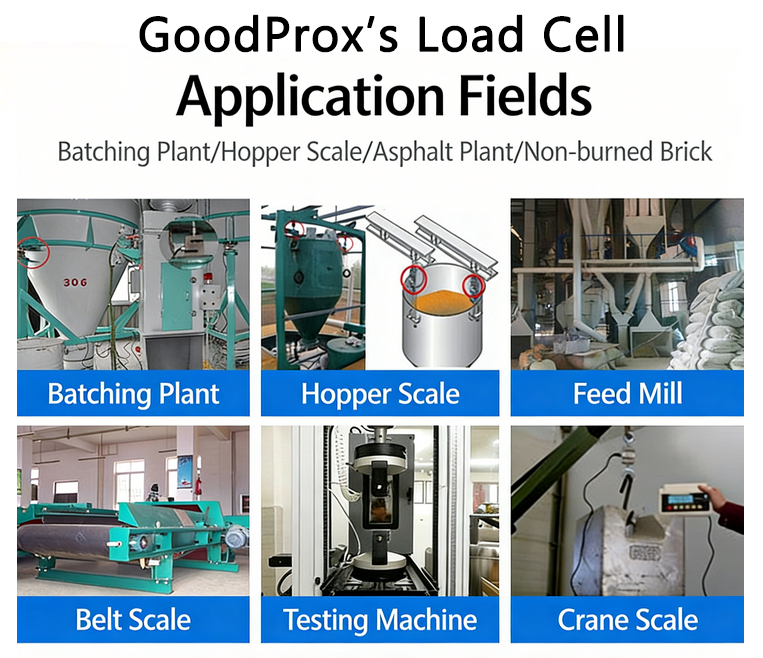

Application Overview

This high accuracy S-type load cell is widely used in:

Hopper scales & batching plants.
Asphalt mixing stations & non-burned brick equipment.
Belt scales & feed mills.
Universal testing machines.
Crane scales & lifting equipment.
Industrial automation force detection systems.

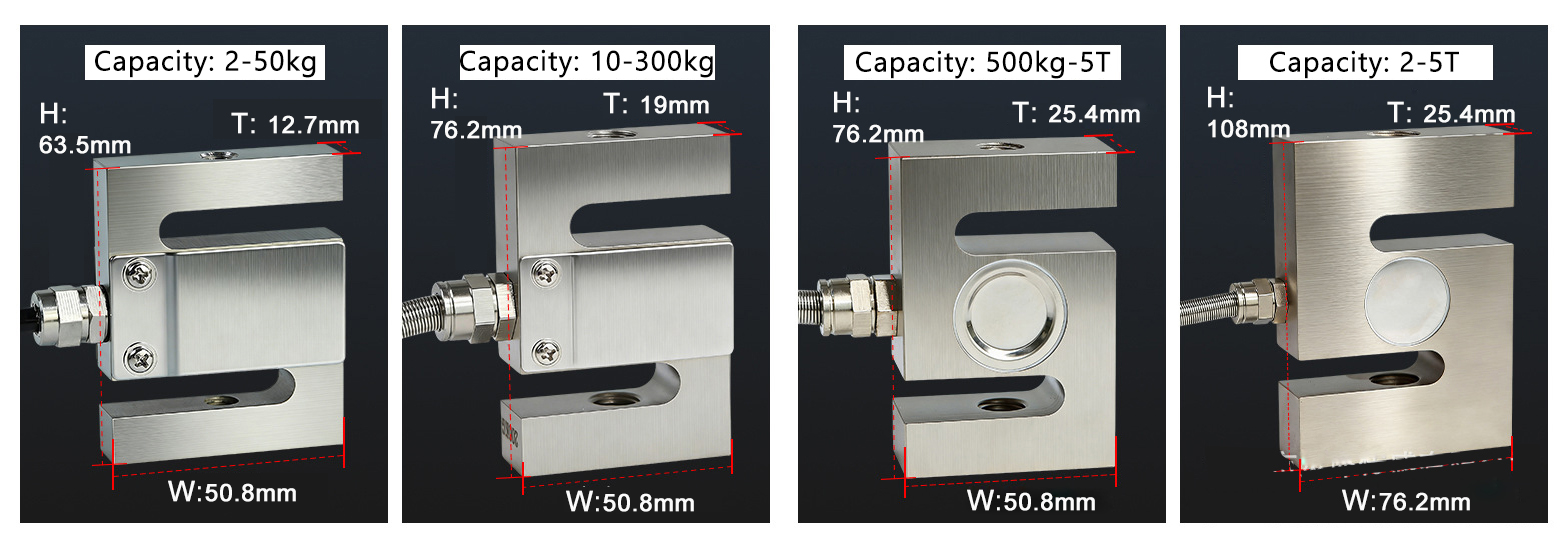

Specification - GP-LC-ST

Rated Capacity	5 kg ~ 5 ton
Output Sensitivity	2.0±10% mV/V
Zero Output	±1% F.S.
Non-linearity	0.03% F.S.
Hysteresis	0.03% F.S.
Repeatability	0.03% F.S.
Creep (30 min)	0.03% F.S.
Temperature Sensitivity Drift	0.03% F.S. / 10℃
Zero Temperature Drift	0.03% F.S. / 10℃
Response Frequency	1k Hz
Material	42CrMoA
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	150%
Cable Specification	0.2-1T: Φ52m 2-5T: Φ55m
Cable Maximum Tension	100N
TEDS	Selectable
Protection Class	IP65/IP68
Warranty	12 months

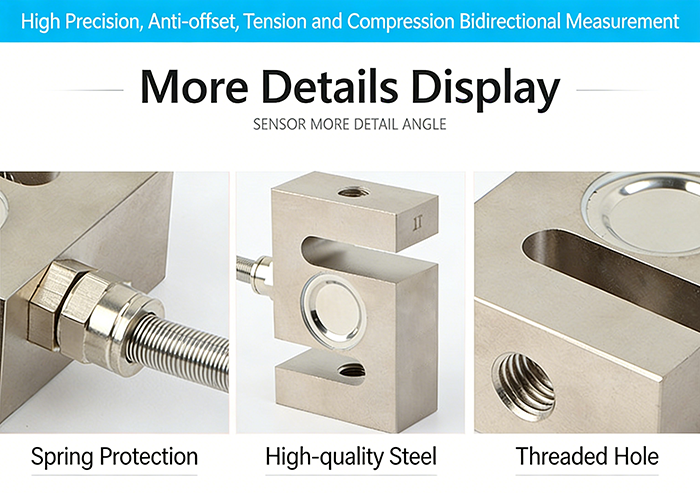

Product Details

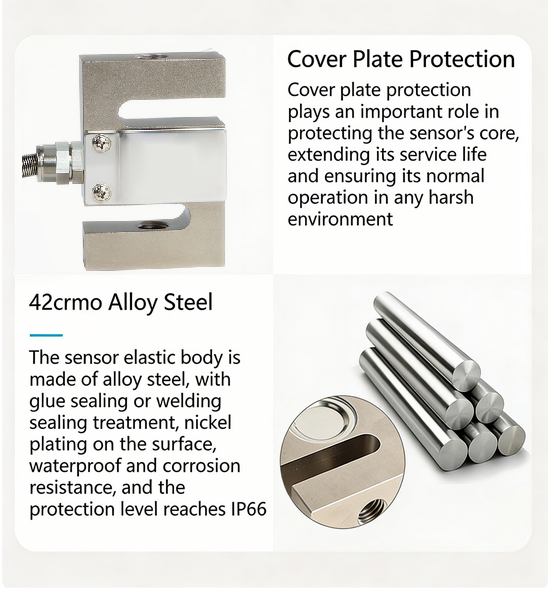

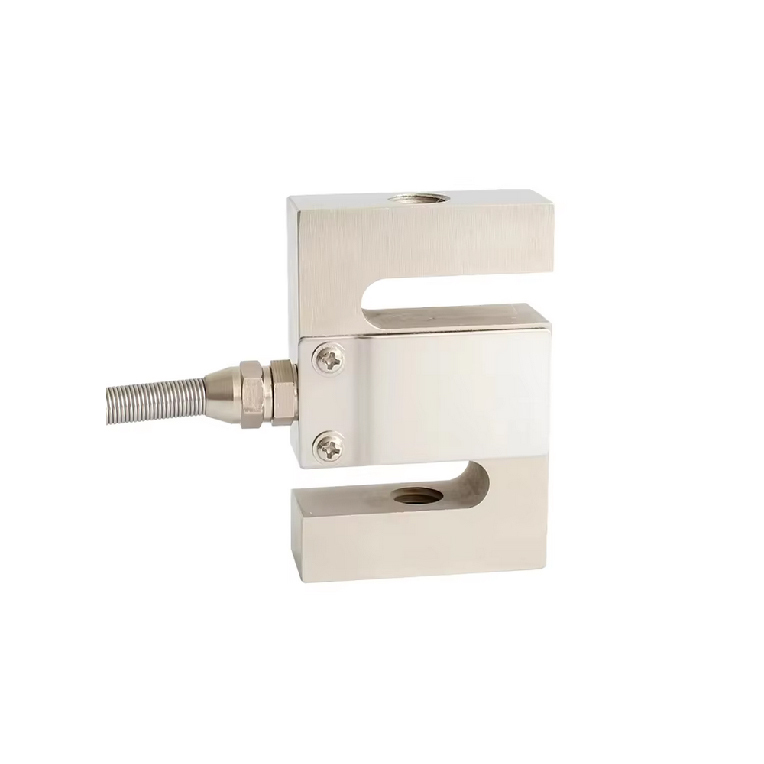

Made of high-strength 42CrMoA alloy steel, this S beam load cell adopts glue sealing or welding sealing with nickel-plated surface. The cover plate protects the core, ensuring stable performance of the tension compression load cell in extreme environments. It supports quick installation with shackles, hooks and rod ends.
