Home > Sensors > Load Cell > Cantilever Beam Load Cell | 500kg-30T | High Accuracy

1/1

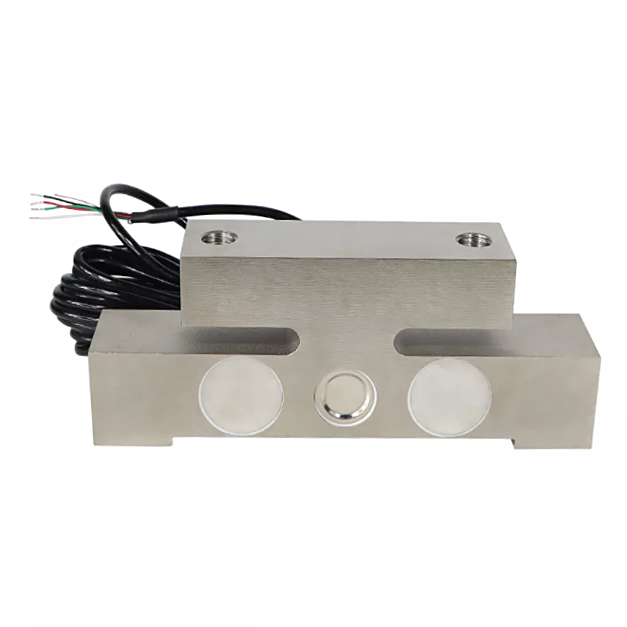

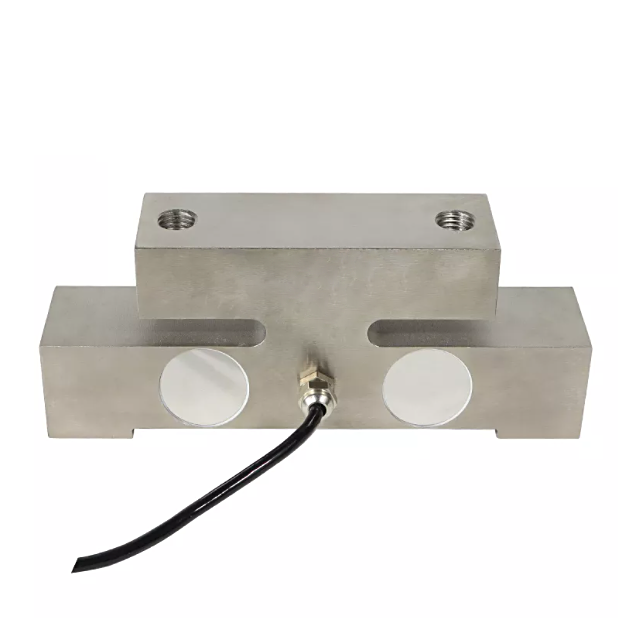

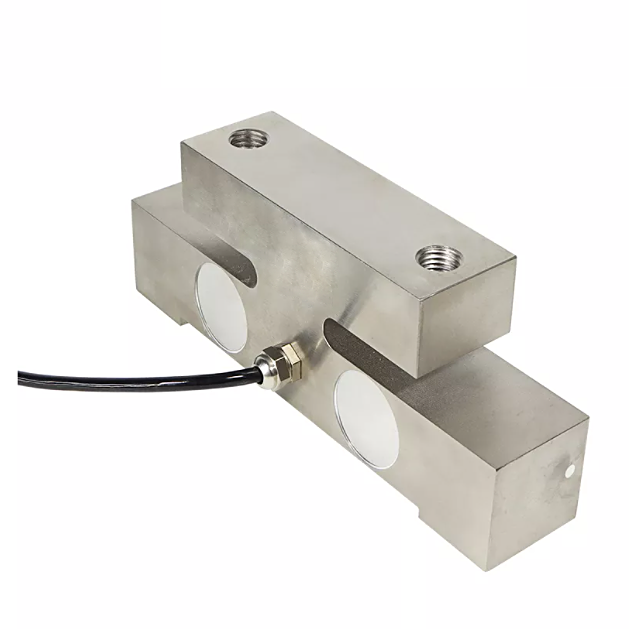

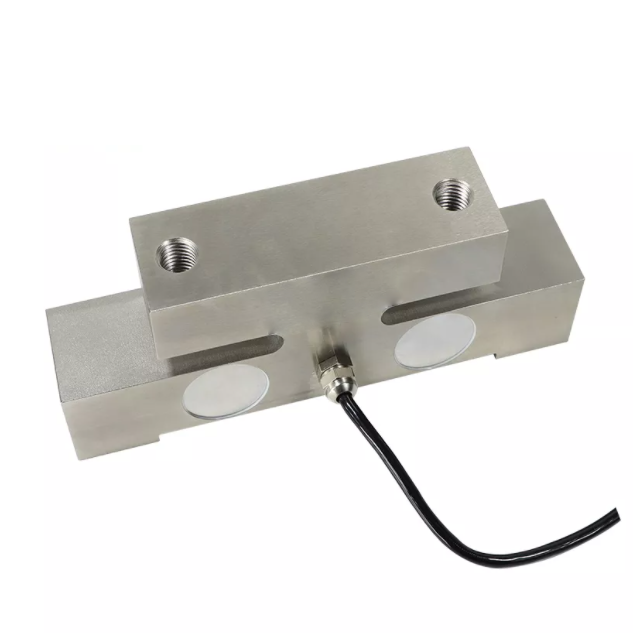

Cantilever Beam Load Cell | 500kg-30T | High Accuracy

GoodProx cantilever beam load cell offers capacity 500KG, 1T, 2T, 3T, 5T, 10T, 20T, 30T for selectable.
Easy to install and suitable for truck scales, floor scales, and industrial weighing systems.
The bridge-type load cell is a large-tonnage sensor specially designed for use in various ground scales.

$258.46

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Quantity:

1/1

Overview

Features

High accuracy with low linearity, hysteresis and creep.
Excellent long-term stability for continuous industrial use.
Fully sealed structure for harsh environment applications.
Premium alloy steel material for high strength and durability.
Multiple ranges: 500kg, 1T, 2T, 3T, 5T, 10T, 20T, 30T.
Easy installation & wide compatibility with various weighing scales.

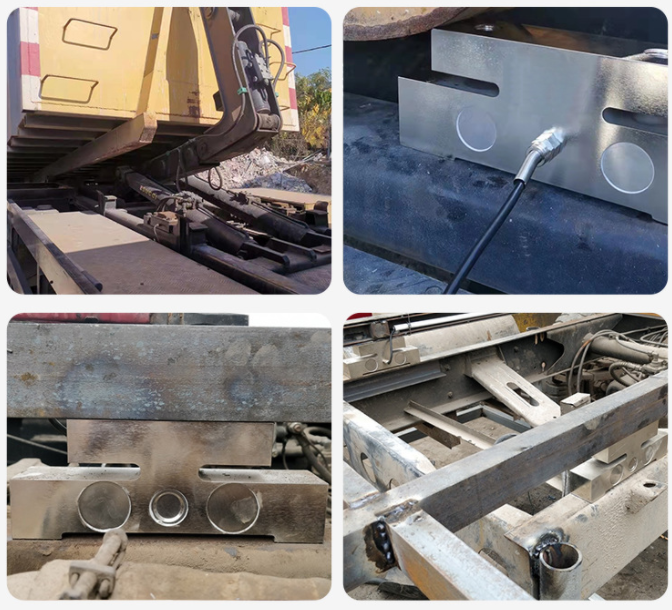

Application Overview

Cantilever beam load cell 500kg–30T is widely used in:

Truck scales & vehicle weighing systems.
Floor scales & warehouse scales.
Rail scales & axle load scales.
Crane lifting equipment weighing.
Industrial heavy-duty force measurement.

Specification - GP-LC-Q101

Rated Capacity	500kg ~ 30T
Output Sensitivity	1.0% mV/V
Zero Output	±1% F.S.
Non-linearity	0.2% F.S.
Hysteresis	0.2% F.S.
Repeatability	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.03% F.S. / 10℃
Zero Temperature Drift	0.05% F.S. / 10℃
Response Frequency	1k Hz
Material	Alloy Steel
Impedance	700Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~60℃
Safe Overload	150%
Cable Specification	Φ5*5m
Cable Maximum Tension	100N
Warranty	18 months
