Home > Sensors > Load Cell > S-Type Load Cell | 300kg-10T | Tension & Compression

1/1

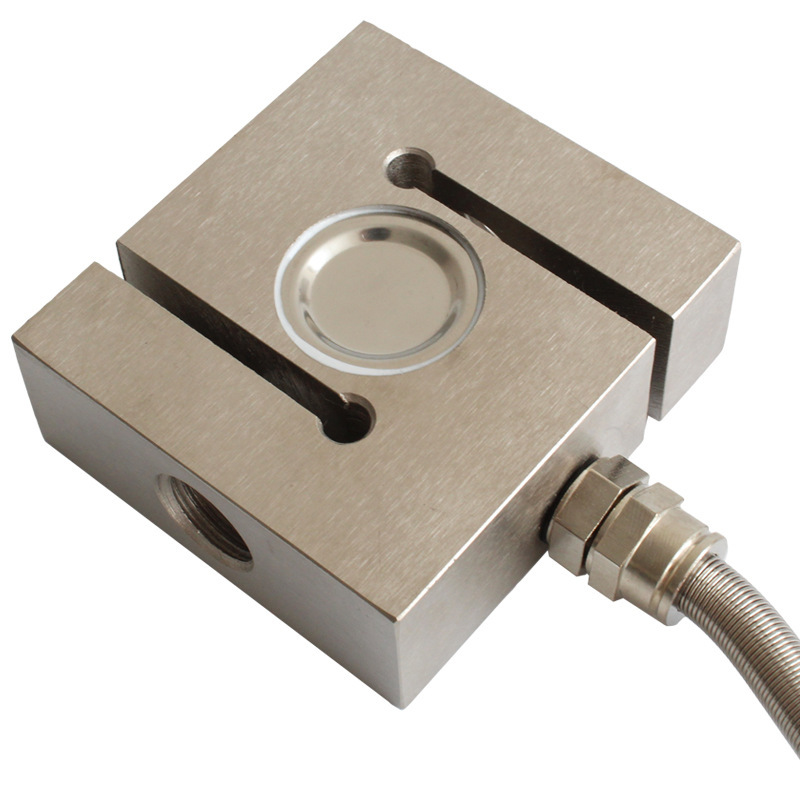

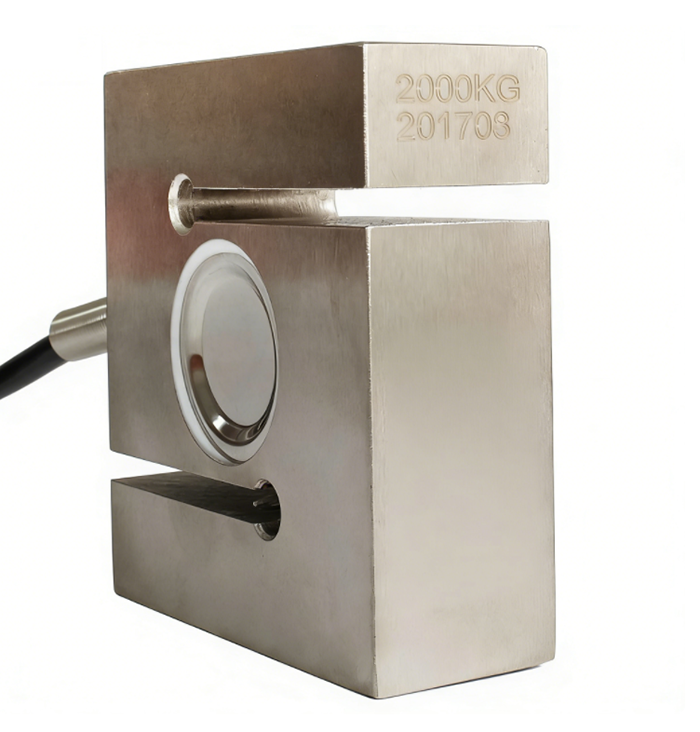

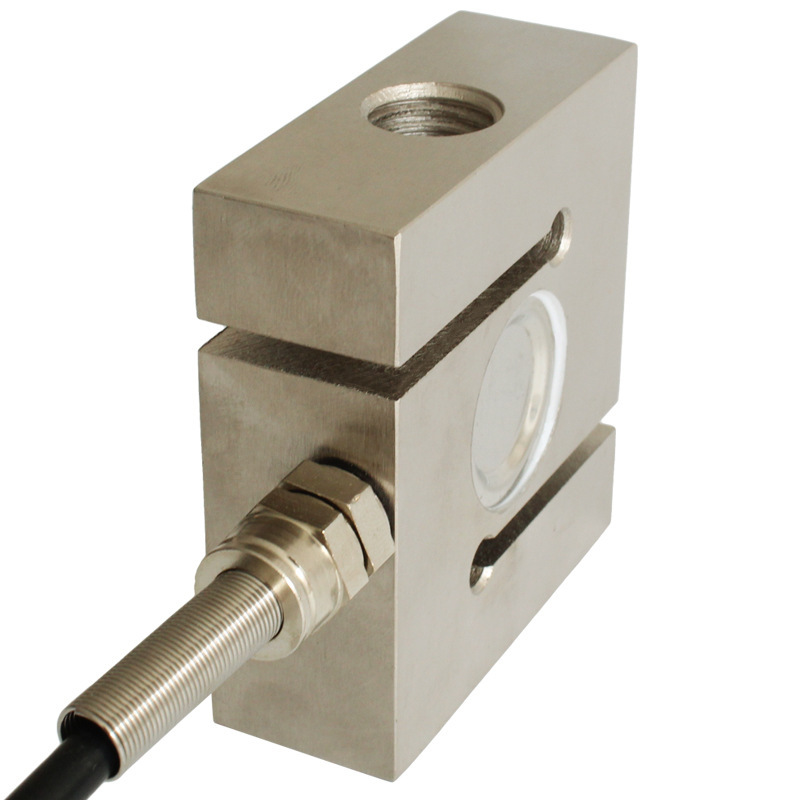

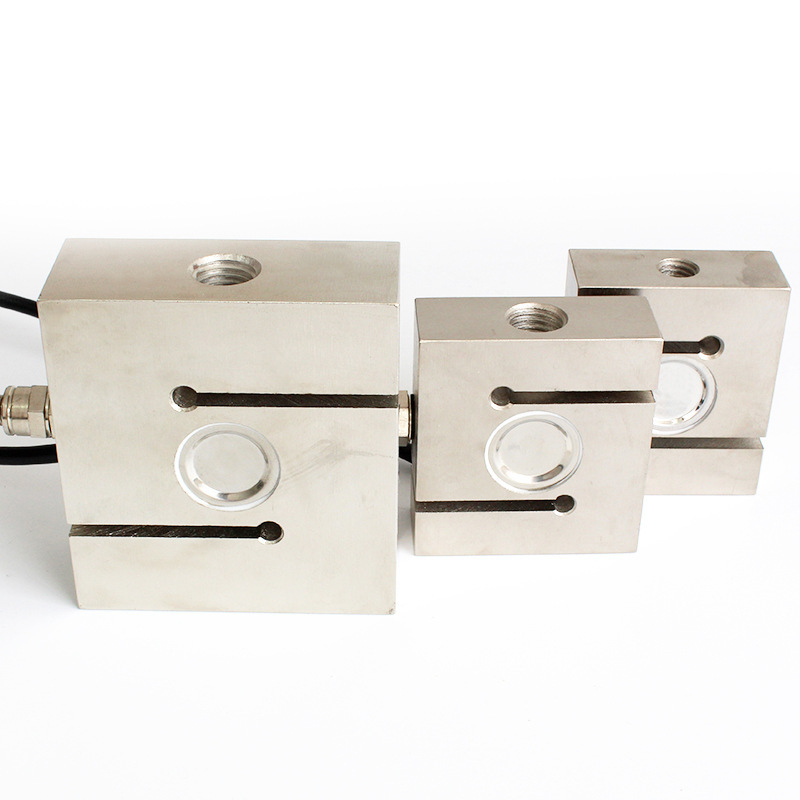

S-Type Load Cell | 300kg-10T | Tension & Compression

Name: S-Type Load Cell | 300kg-10T | Tension & Compression
Brand: GoodProx - Industrial Automation Products Online Store & Solution
SKU: GP-LC-LY102
Price: 89.84 USD
Availability: InStock
Rating: 5 (2 reviews)

GoodProx S-type load cell supports capacities from 300kg to 10T for bidirection tension and compression force measurement.
Anti‑bias load design, high precision and 42CrMoA alloy steel.
S beam load cell delivers stable performance for crane scales, hopper scales and industrial force monitoring.

$89.84

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

1/1

Overview

Features

S-type structure for dual tension & compression sensing.
Anti-bias load design with excellent symmetry.
High precision, stable output & strong durability.
Premium 42CrMoA alloy steel for heavy-duty use.
Easy installation & adapts to extreme conditions.
In-stock & ready for fast global shipping.

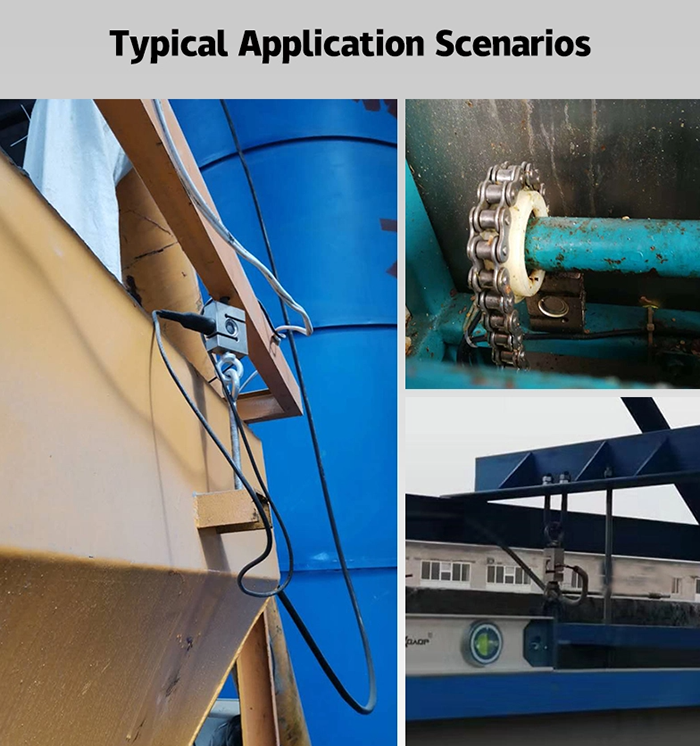

Application Overview

This S-type tension compression load cell is widely used in:

Crane scales, track scales & hopper scales.
Mixing stations, asphalt stations & batching systems.
Industrial force measurement & control systems.
Various automatic weighing & testing equipment.
Bin scales & non-fired brick machinery.

Specification - GP-LC-LY102

Rated Capacity	300 kg ~ 10 ton
Output Sensitivity	2.0±10% mV/V
Zero Output	±1% F.S.
Non-linearity	0.05% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.03% F.S.
Creep (30 min)	0.05% F.S.
Temperature Sensitivity Drift	0.05% F.S. / 10℃
Zero Temperature Drift	0.05% F.S. / 10℃
Response Frequency	10k Hz
Material	42CrMoA
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	150%
Cable Specification	0.2-1T: Φ52m 2-5T: Φ55m
Cable Maximum Tension	100N
Warranty	18 months
