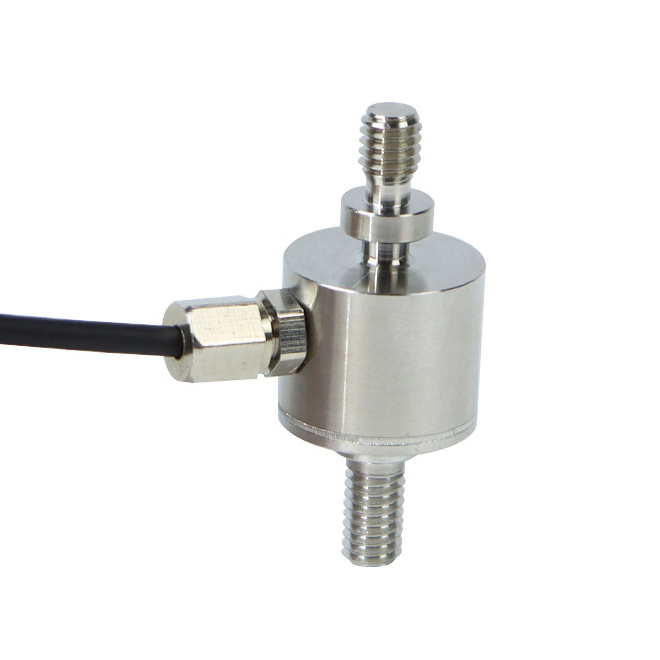

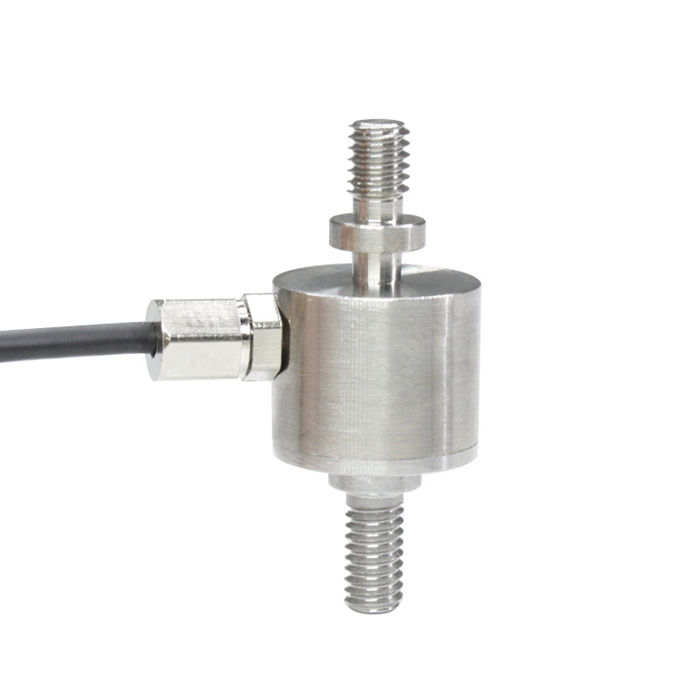

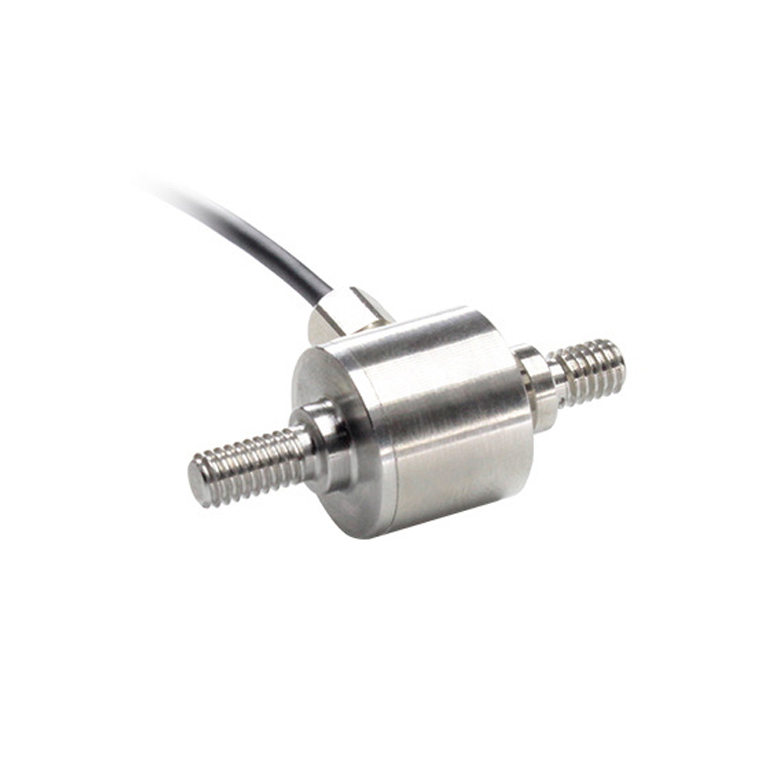

Capsule Load Cell | 10kg-50kg | Tension & Compression

GoodProx capsule load cell supports 10kg to 50kg ranges for bidirectional tension and compression force measurement.

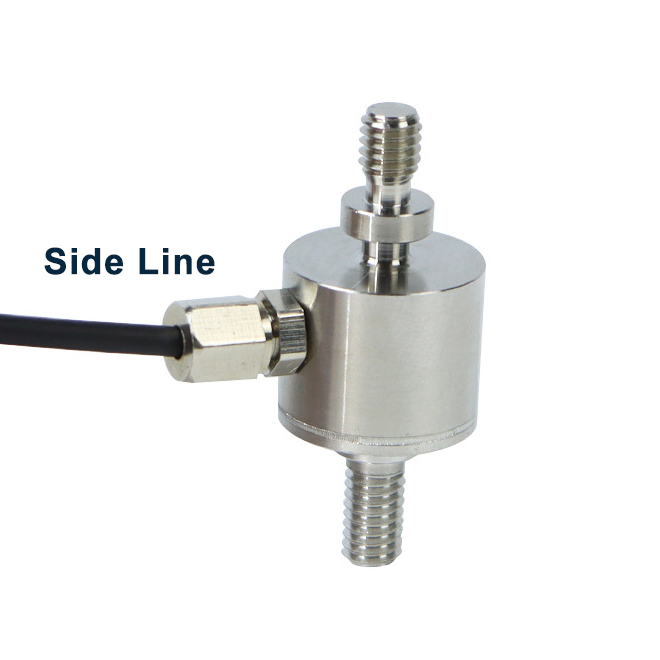

This miniature capsule sensor features a compact side-exit cable design, high stability and excellent sealing.
Perfect for limited-space testing, press equipment and robotic force detection.

$158.38

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

Features

Miniature capsule design with side exit cable.
Dual-direction tension & compression force measurement.
High long-term stability and reliable output.
Compact structure for tight installation spaces.
Excellent sealing for industrial working environments.
High accuracy & easy to install & integrate.
Alloy steel material for durability & long service life.

Application Overview

This miniature capsule load cell is widely used in:

Key tactile sensation testing instruments.
Cold & hot press force detection equipment.
Robot hand & gripper force measurement.
Limited-space precision force detection.
Small industrial automation & testing devices.

Specification -

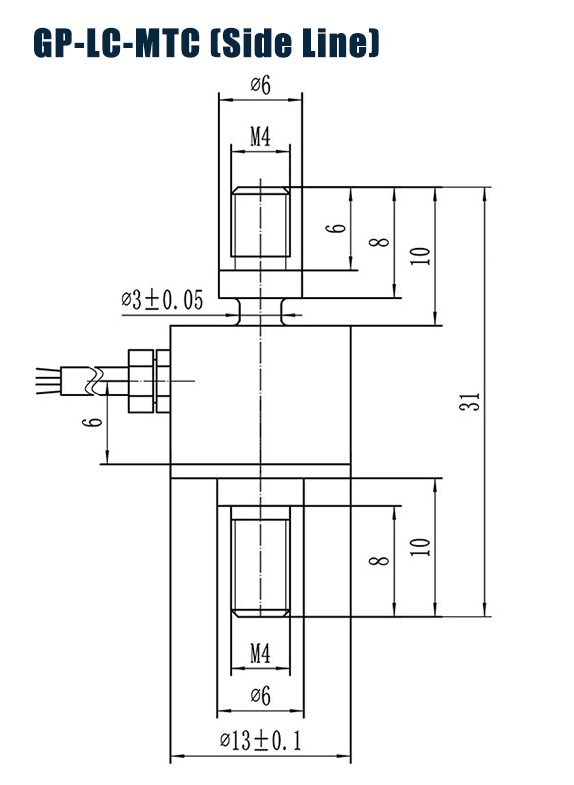

GP-LC-MTC (Side Line)

Model	GP-LC-MTC (Side Line)
Rated Capacity	10 kg ~ 50 kg
Output Sensitivity	1.0±10% mV/V
Zero Output	±0.05% F.S.
Non-linearity	0.5% F.S.
Hysteresis	0.5% F.S.
Repeatability	0.5% F.S.
Creep (30 min)	0.2% F.S.
Temperature Sensitivity Drift	0.02% F.S. / 10℃
Zero Temperature Drift	0.02% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	500Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	150% R.C.
Ultimate Overload	200% R.C.

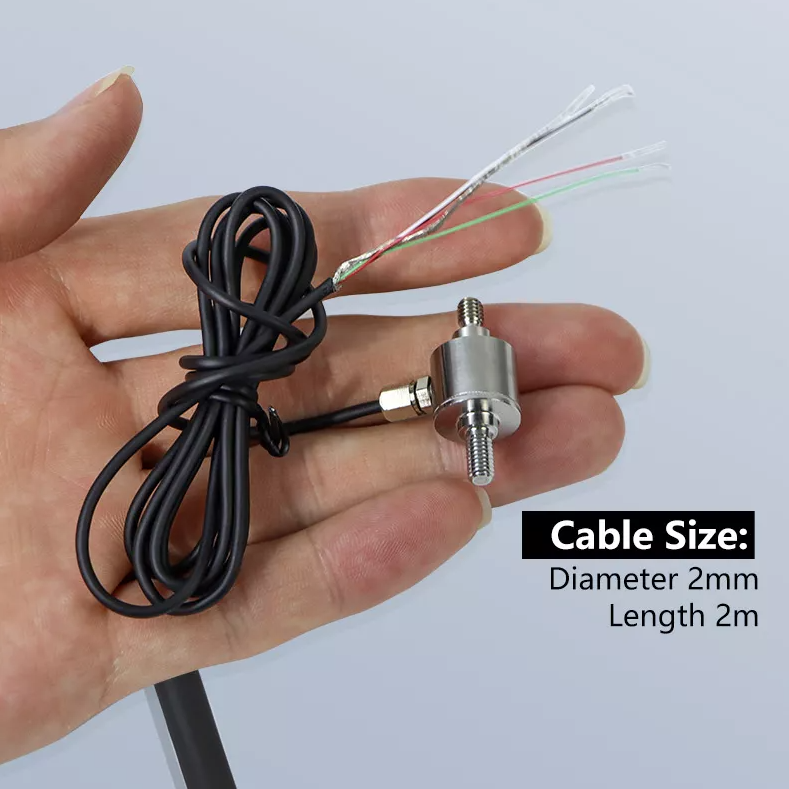

Cable Specification	Φ2*2m
Cable Maximum Tension	100N
Warranty	18 months
