Home > Sensors > Load Cell > Capsule Load Cell | 3kg-500kg | Dual-purpose Force Measurement

1/1

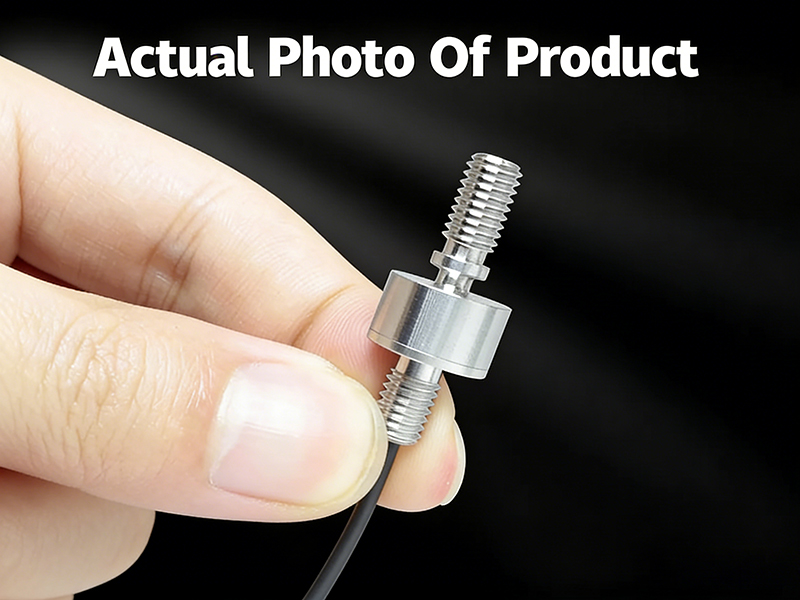

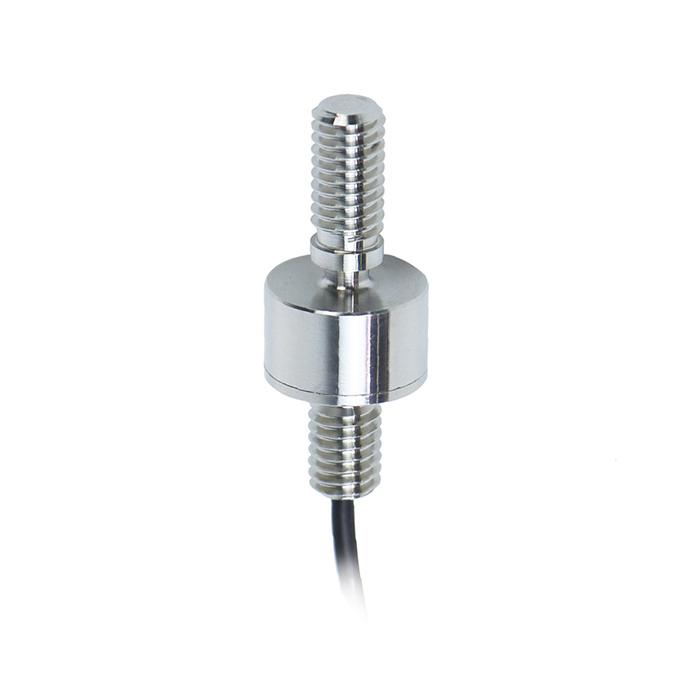

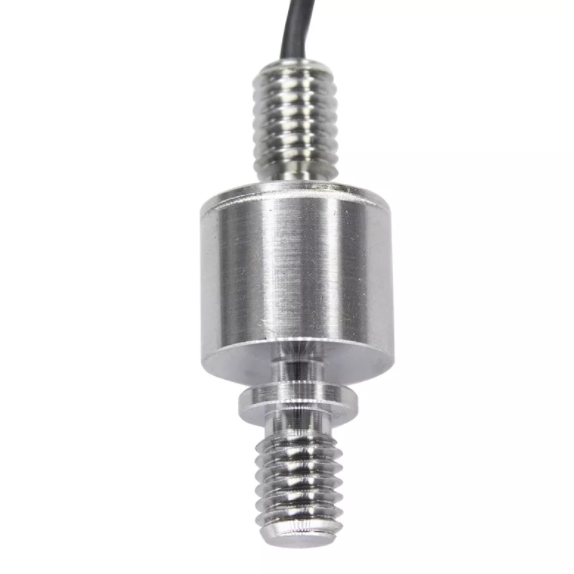

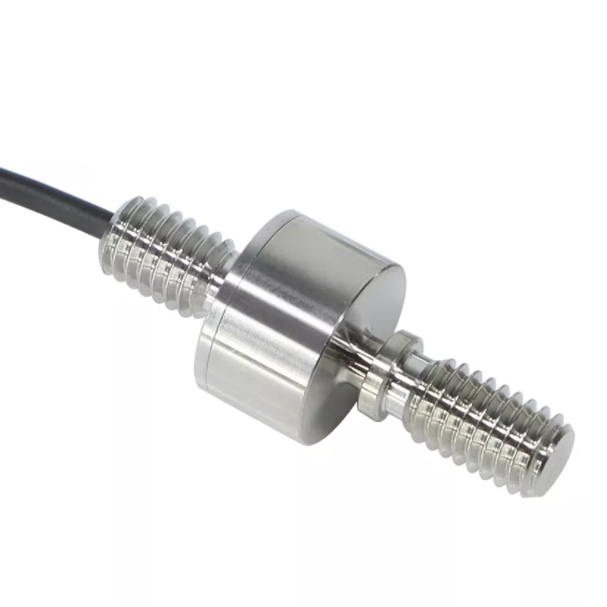

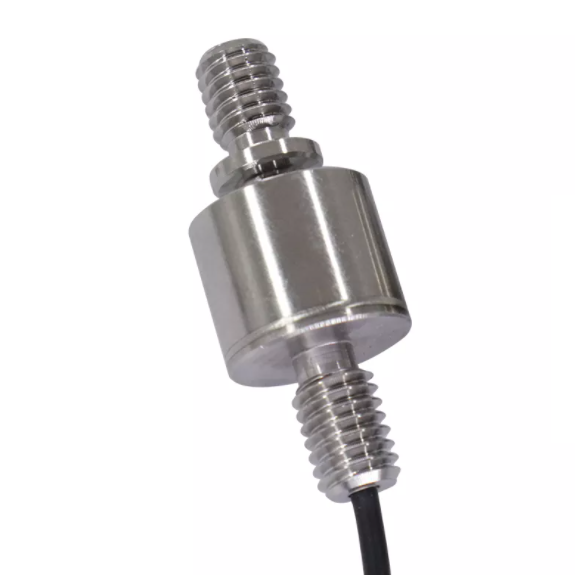

Capsule Load Cell | 3kg-500kg | Dual-purpose Force Measurement

GoodProx capsule load cell provides 3kg to 500kg dual‑purpose tension and compression force measurement.
Miniature capsule sensor features a compact structure, high accuracy and excellent sealing.
Perfect for limited‑space installation in testing machines, press equipment and robotic force detection.

$165.84

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Quantity:

1/1

Overview

Features

Miniature capsule design for tight installation spaces.

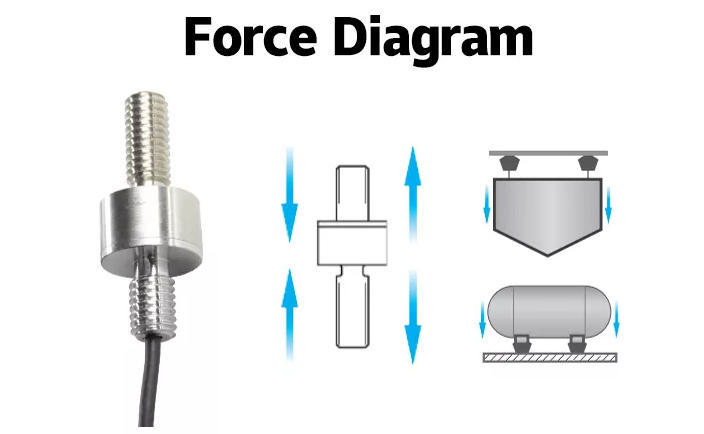

Dual‑purpose tension & compression force measurement.
High long‑term stability and reliable performance.
Excellent structural sealing for industrial environments.
Wide measuring range: 3kg ~ 500kg.
Simple installation & easy integration.
Alloy steel material for durability & long service life.

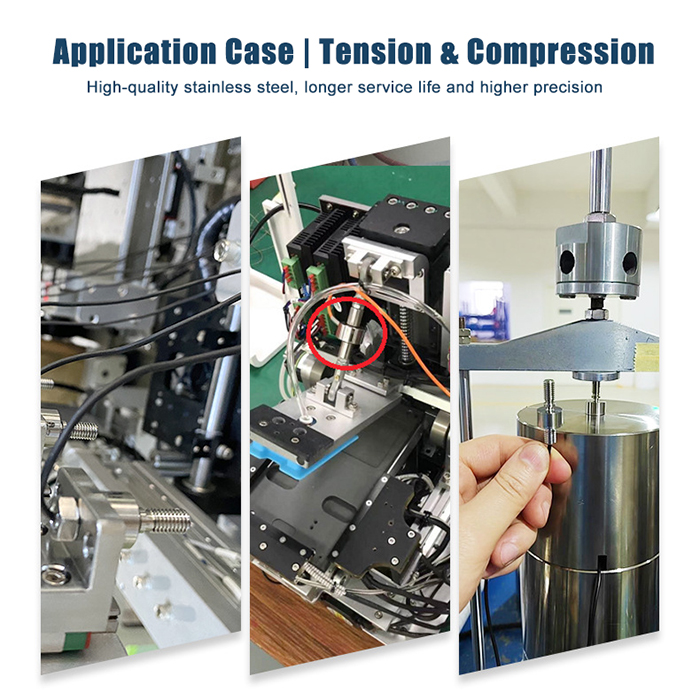

Application Overview

This miniature capsule load cell is widely used in:

Key tactile sensation testing instruments.
Cold & hot press force detection.
Robot hand & gripper force measurement.
Limited‑space precision force detection.
Small industrial testing & automation equipment.

Specification -

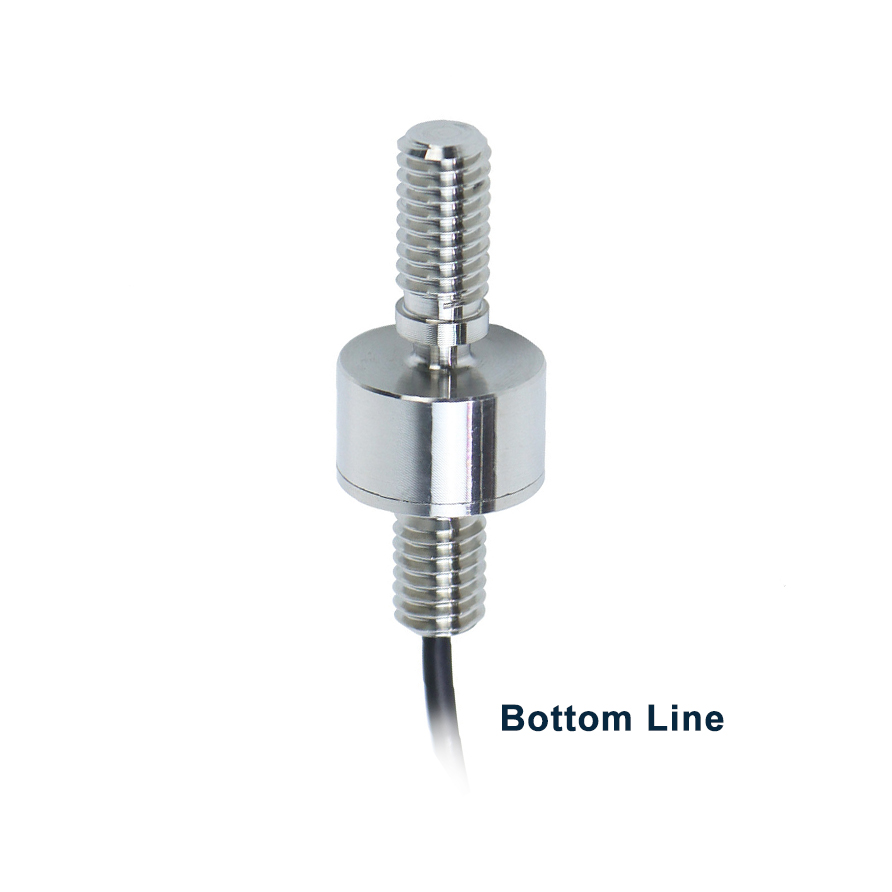

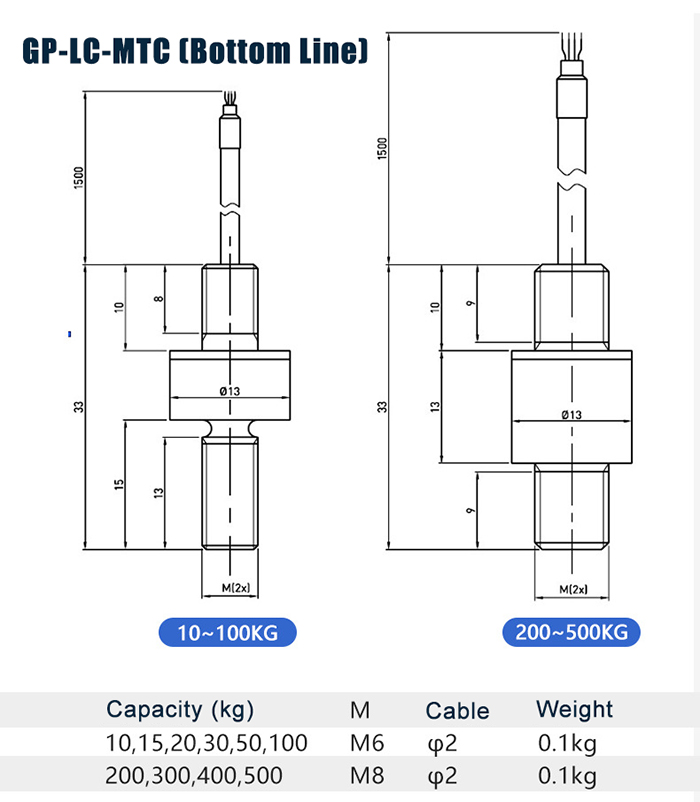

GP-LC-MTC (Bottom Line)

Model	GP-LC-MTCB (Bottom Line)
Rated Capacity	3 kg ~ 500 kg
Output Sensitivity	1.0±20% mV/V
Zero Output	±5% F.S.
Non-linearity	1% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.05% F.S.
Creep (30 min)	0.01% F.S.
Temperature Sensitivity Drift	0.02% F.S. / 10℃
Zero Temperature Drift	0.02% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	350/500/1000Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	120% R.C.
Ultimate Overload	200% R.C.
Cable Specification	Φ2*2m
Cable Maximum Tension	100N
Warranty	18 months
