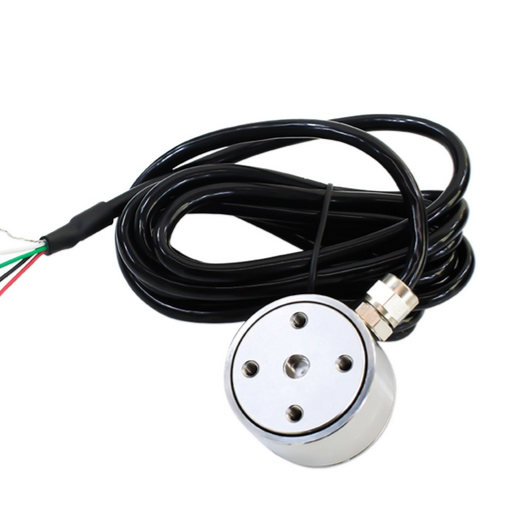

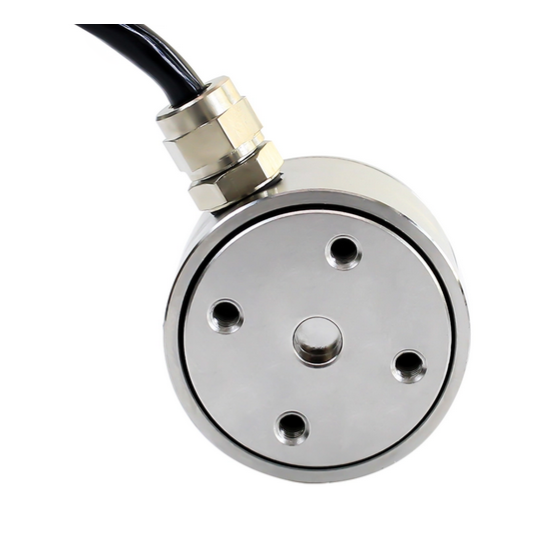

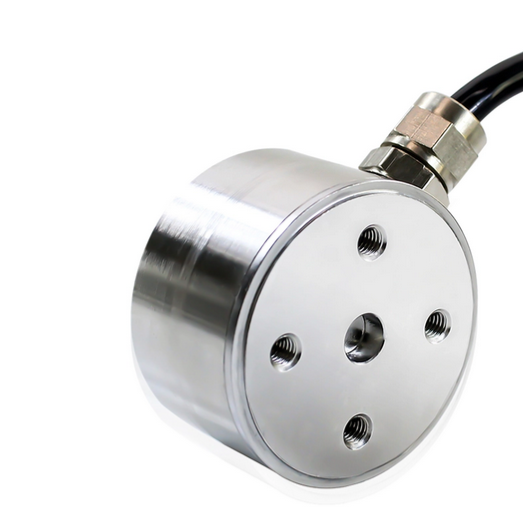

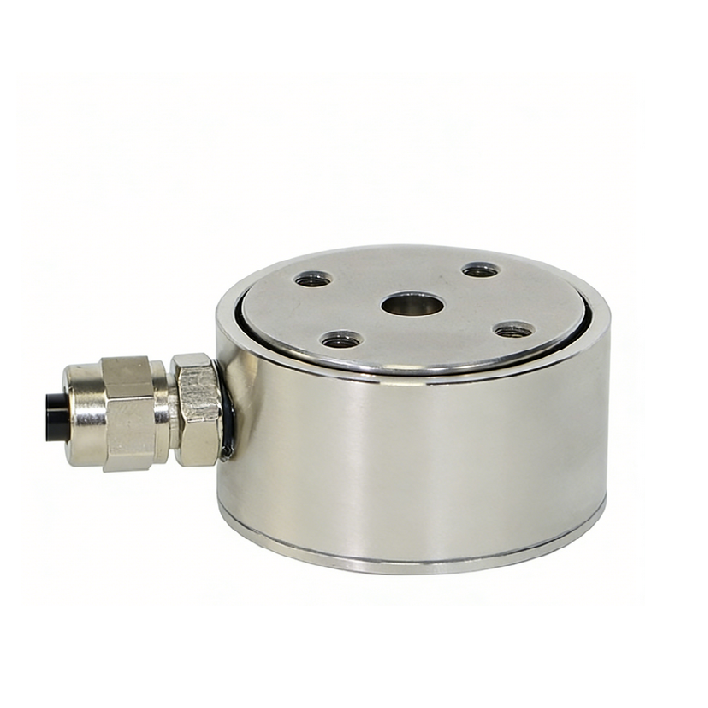

Column Load Cell | 1kg-2T | Tension & Compression

GoodProx column load cell provides capacities from 1kg to 2T for accurate tension and compression force measurement.
With a compact structure and nickel-plated alloy steel body.
Ideal for tank weighing, industrial batching, press detection and robotic grasping applications.

$124.56

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Quantity:

1/1

Overview

Features

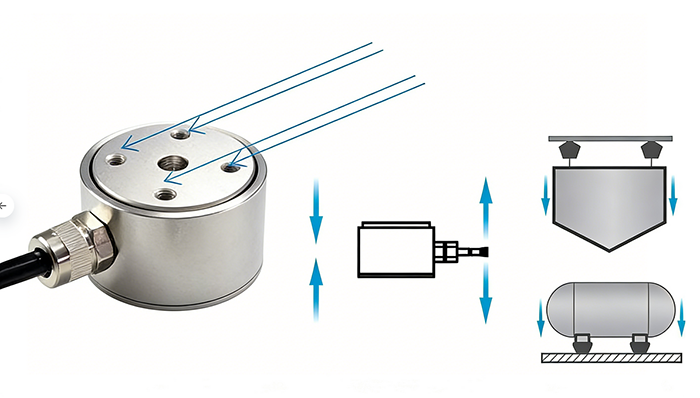

Column type design for dual tension & compression measurement.
Wide capacity range: 1kg ~ 2T.
High accuracy with low nonlinearity, hysteresis and creep.
Premium alloy steel with chemical nickel-plated surface.
Compact structure for limited-space installation.
Stable performance & strong anti-interference ability.
Customizable cable length available.

Application Overview

This column type load cell 1kg–2T is widely used in:

Medium & large tank weighing systems.
Industrial batching control systems.

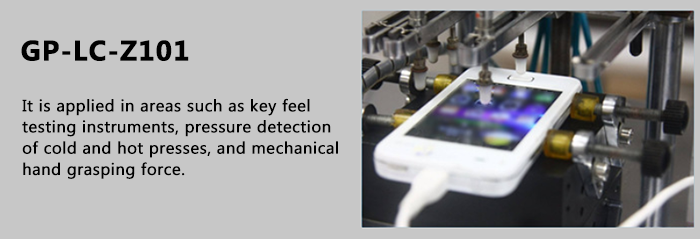

Key feel testing instruments.
Cold & hot press force detection.
Robotic hand grasping force measurement.
Various tension & compression test equipment.

Specification - GP-LC-Z101

Rated Capacity	1 kg ~ 2 T
Output Sensitivity	2.0±5% mV/V
Zero Output	±2% F.S.
Non-linearity	0.051% F.S.
Hysteresis	0.03% F.S.
Repeatability	0.03% F.S.
Creep (30 min)	0.03% F.S.
Temperature Sensitivity Drift	0.03% F.S. / 10℃
Zero Temperature Drift	0.05% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20~80℃
Safe Overload	150%
Cable Specification	Φ3*2m
Cable Maximum Tension	100N
Warranty	18 months
