Overview

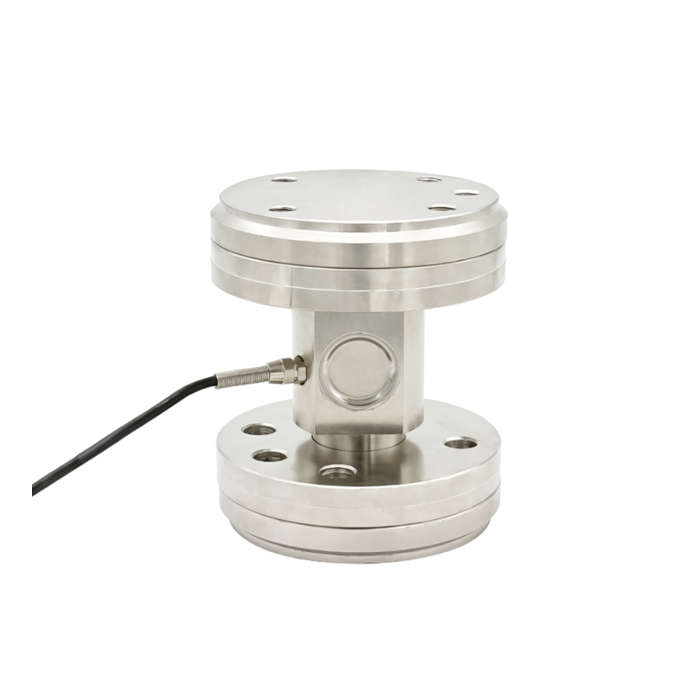

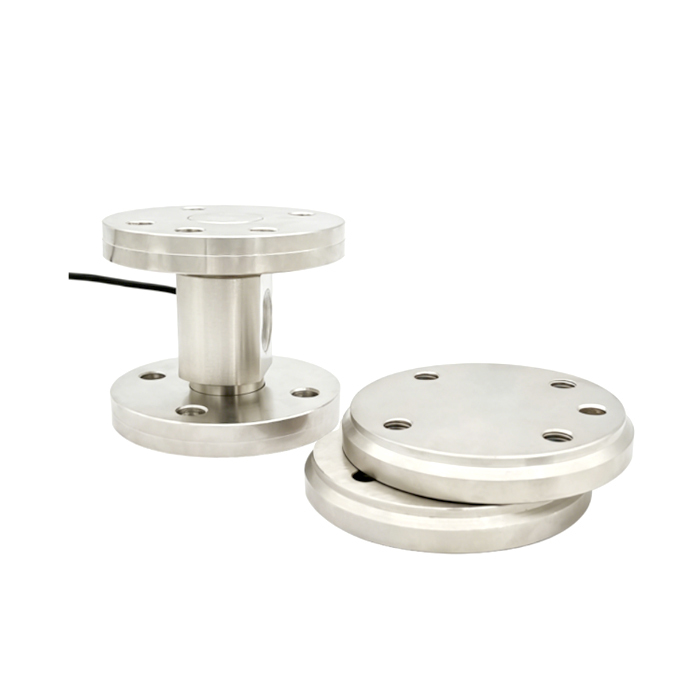

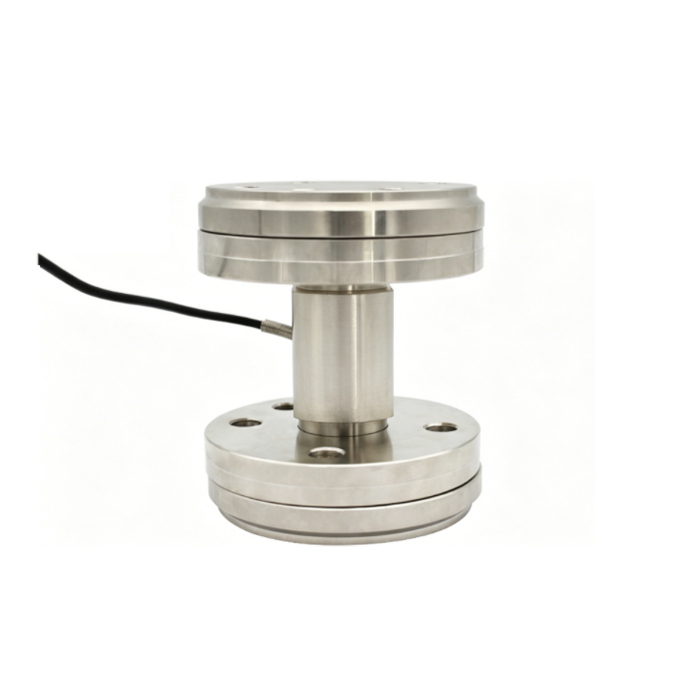

GoodProx load cell GP-LC-Z013 is a high-stability column type load cell with flange mounting structure. Made of quality alloy steel, this flange load cell supports large ranges 5T–30T and delivers stable signal, strong anti-interference and reliable performance. It is widely used in dry powder mortar tanks, hopper weighing, auto testing and industrial force measurement systems.
Features
- High Stability: Stable and reliable GP-LC-Z013 load cell output.
- Flange Mounting: Easy installation for tank and hopper weighing.
- Compact Structure: Fits small installation spaces.
- High‑Quality Alloy Steel: Durable and deformation‑resistant.
- Strong Anti‑Interference: Stable signal in harsh environments.
- Large Range: 5T, 10T, 20T, 30T available.
- Customizable: Non‑standard customization supported.
- Long Service Life: Suitable for heavy‑duty industrial use.
Application Overview
- Mortar Tank Weighing: Dry powder mortar silo weighing.
- Hopper & Silo: Large capacity tank weighing system.
- Auto Testing: Automobile compression and pressure test.
- Automatic Assembly: Industrial assembly force detection.
- 3C Product Test: Electronic product pressure testing.
- New Energy Assembly: New energy equipment testing.
- Medical Testing: Medical device force measurement.
- Machine Maker: Mold assembly and industrial testing.
Specification - GP-LC-Z013
| Model |
GP-LC-Z013 |
| Capacity |
5T, 10T, 20T, 30T |
| Sensitivity |
1.0/2.0±0.05%mV/V |
| Zero point output |
±1%F.S. |
| Non-linearity |
0.1%F.S. |
| Hysteresis |
0.1%F.S. |
| Repeatability |
0.05%F.S. |
| Creep (30 min) |
0.05%F.S. |
| Temperature sensitivity drift |
0.05%F.S./10℃ |
| Zero temperature drift |
0.05%F.S./10℃ |
| Response frequency |
1kHz |
| Material |
Alloy Steel |
| Impedance |
350Ω |
| Insulation resistance |
≥5000MΩ/100V DC |
| Working power |
DC 5-15V |
| Operating temperature range |
-20-80℃ |
| Safety overload |
150%R.C. |
| Extreme overload |
200%R.C. |
| Cable Size |
Φ5*3m |
| Warranty |
18 months |

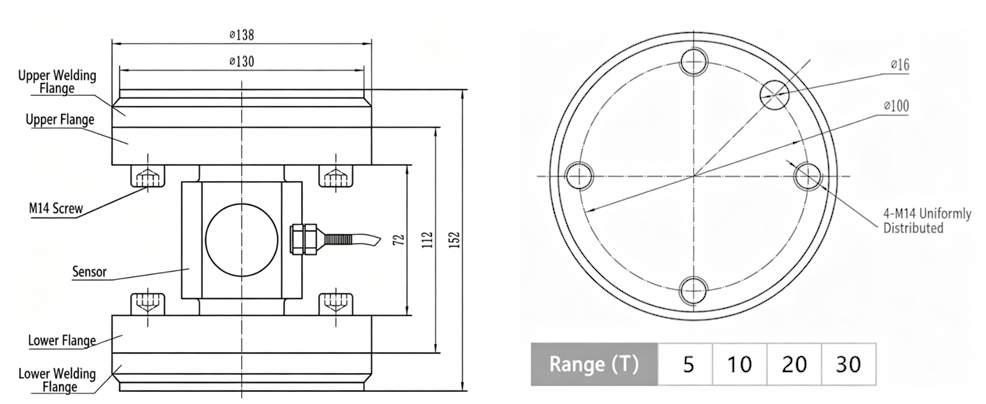

Dimensions
Cable Connection Diagram
Why Choose GoodProx GP-LC-Z013 Load Cell?
The GP-LC-Z013 column type load cell provides high stability for large force measurement. Flange design ensures easy and firm installation. Compact structure saves space. Quality alloy steel and strong anti-interference make it perfect for heavy‑duty industrial weighing and testing.
