OVERVIEW

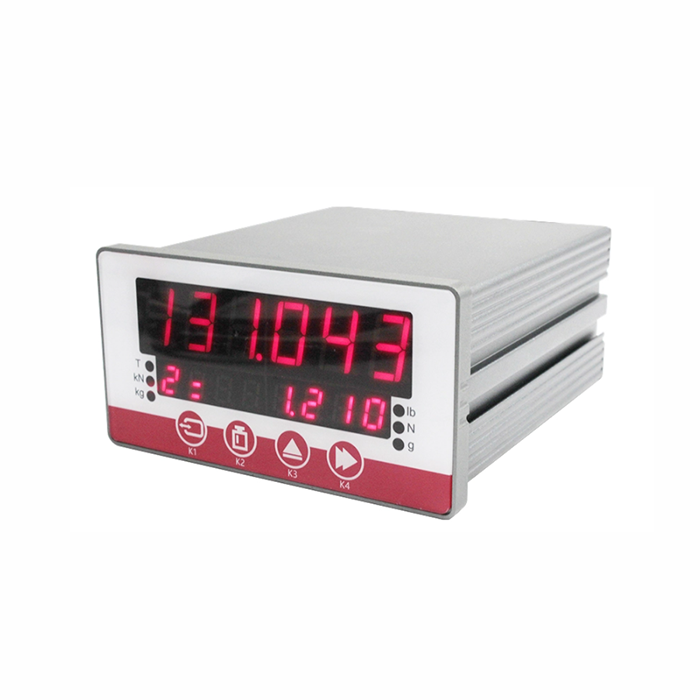

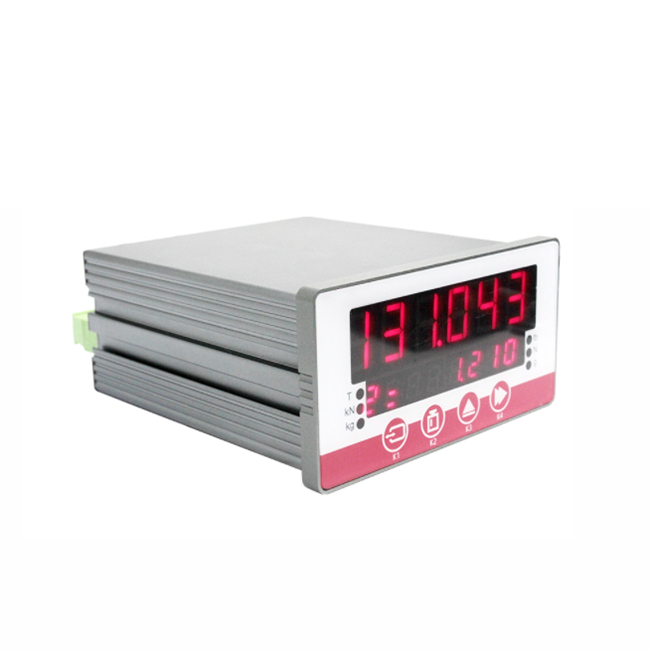

GoodProx load cell indicator GP-ID-D6Y800 is a multi‑function digital display controller for force sensors and load cells. It features high precision, dual LED display, RS485 Modbus‑RTU, isolated 4‑20mA / 0‑10V analog output, peak/valley capture and relay control. This RS485 load cell display is widely used in weighing systems, force measurement, automatic batching and industrial testing.
FEATURES
- High Precision Measurement: Accuracy <0.01% F.S, fast sampling up to 320Hz.

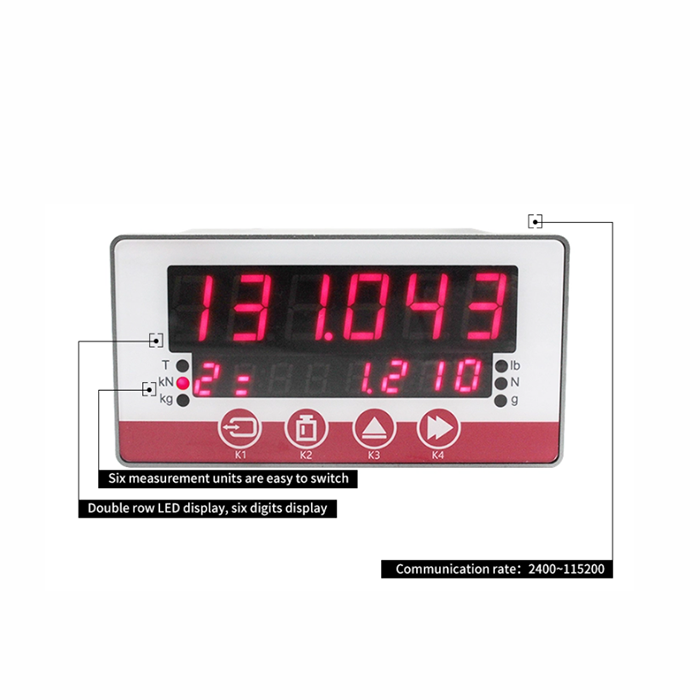

- Dual LED Display: 6-digit main display + 8-digit auxiliary display.
- Isolated Communication: RS485 Modbus-RTU for stable data transmission.
- Analog Output: 4-20mA & 0-10V isolated transmission.
- Peak & Valley Capture: Auto capture max/min force values.
- Multi Functions: Zero tracking, auto zero, creep compensation.
- Relay Control: 6-way relay output for alarm & control.
- Touch Keypad: Capacitive touch with key lock function.
Specification - GP-ID-D6Y800
| Model |
GP-ID-D6Y800 |
| Supply Voltage |
10-30V DC |
| Measurement Accuracy |
>0.01% |
| Measurement Speed |
5-320Hz, temperature driff less than 10P |
| Display Division |
-99999~99999 |
| Transmitting Output |
0-10V, 4-20mA |
| Communication Rate |
2400-115200 |
| Switch |
2-way relay |
| Power Supply Voltage of External Sensor |
5V power supply |
| Working Environment |
-20~70℃, relative humidity<90% |
| Warranty |
12 months |

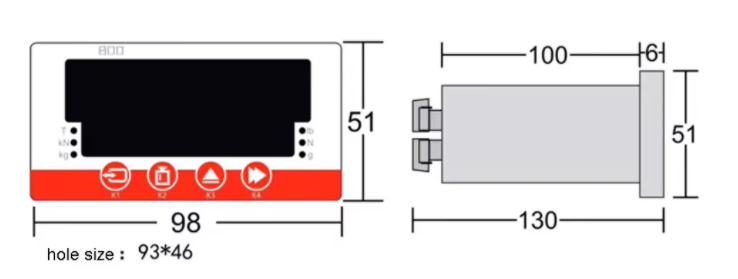

DIMENSIONS

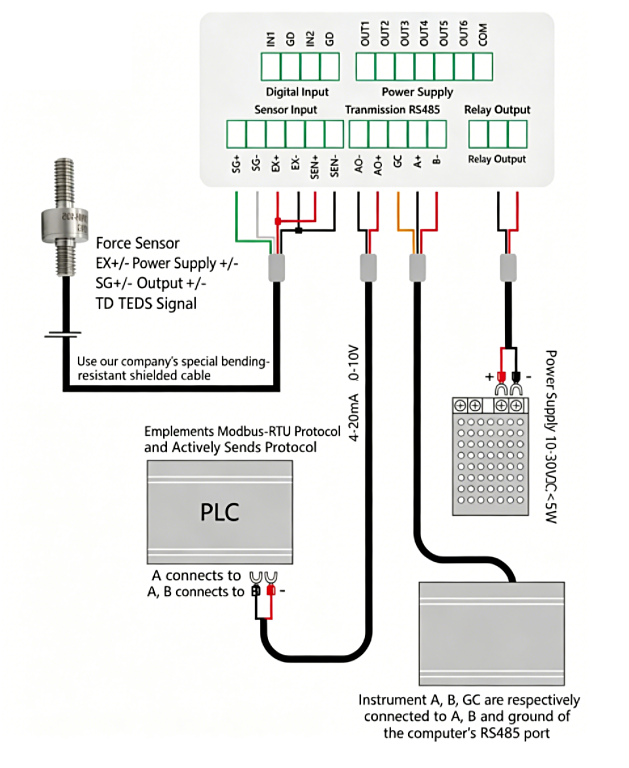

WIRING
SELECTION INTRODUCTION

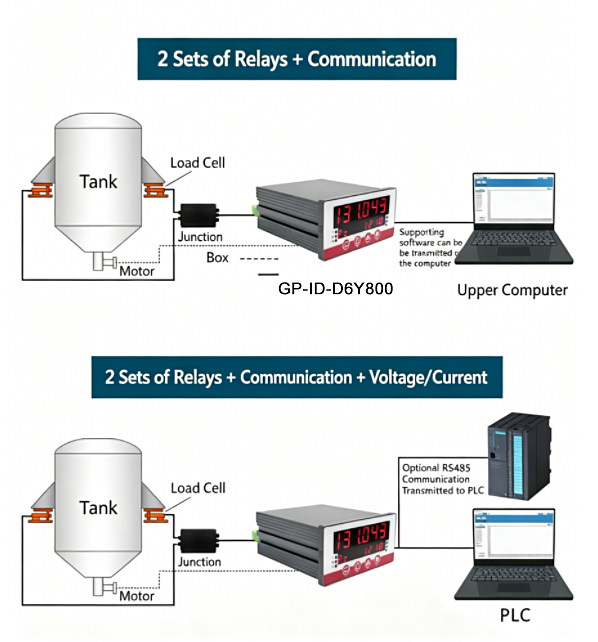

2 SET OF RELAYS

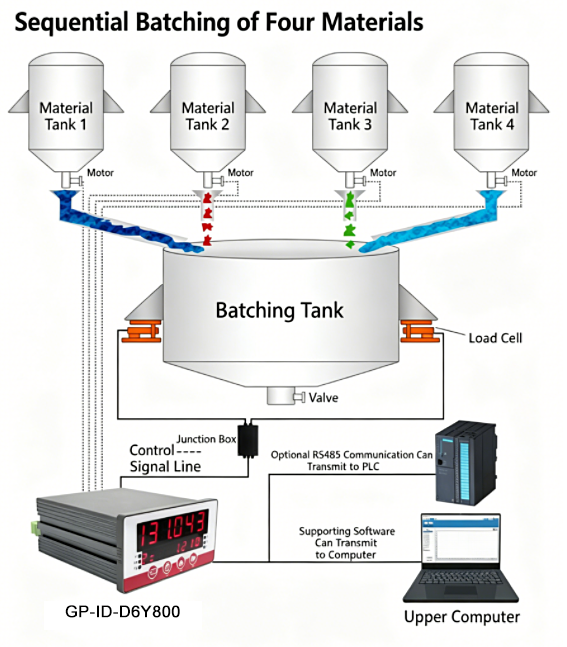

4 SET OF RELAYS

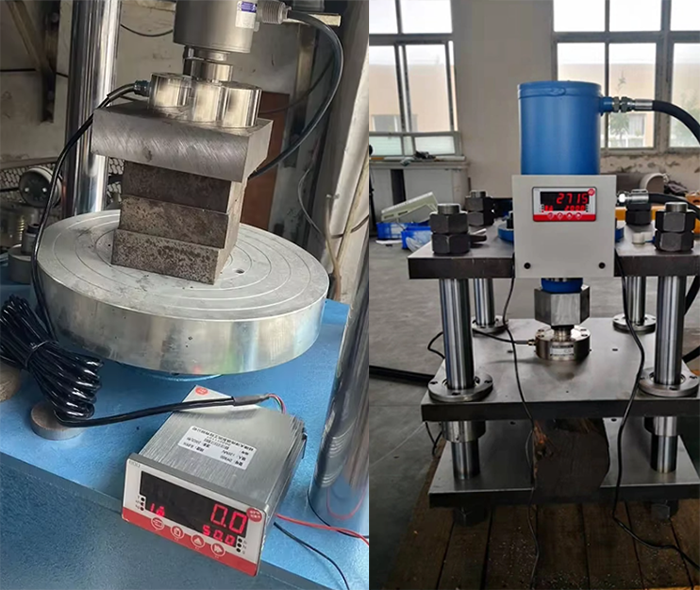

APPLICATION
- Weighing Systems: Electronic scales, batching scales, belt scales.
- Force Measurement: Tension & compression force testing.
- Automatic Control: Press fitting, assembly, feeding systems.
- Industrial Testing: Material test, fatigue test, pressure detection.
- Process Control: Automatic dosing, packaging, monitoring.
- Laboratory Equipment: Precision force & weight measurement.
- Automation Lines: Online weighing & force monitoring.
