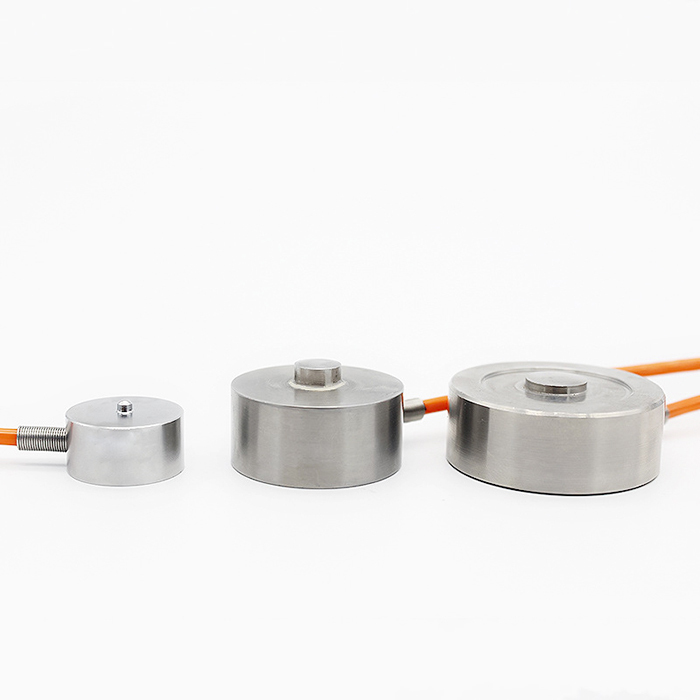

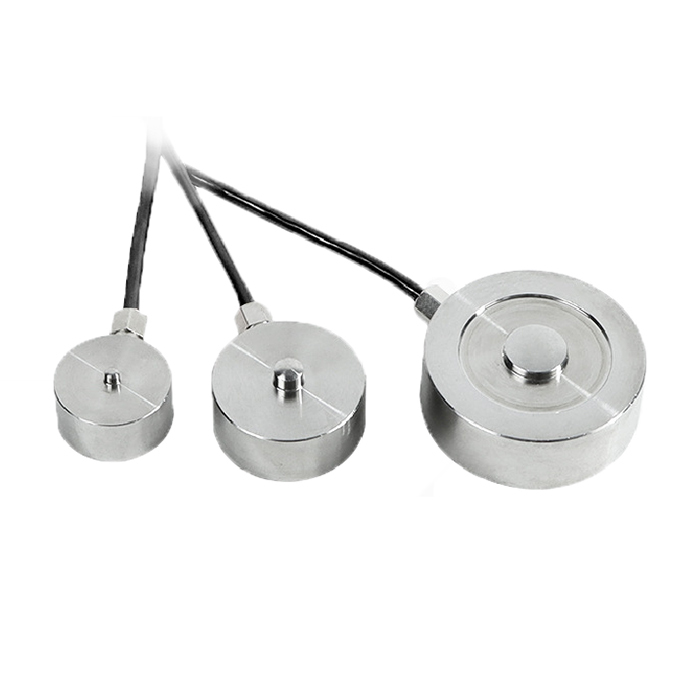

Features
- Mini button type design with central convex force point.
- Wide capacity range: 3kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 300kg, 500kg, 1T, 2T, 3T, 5T, 10T.
- High accuracy with stable anti-interference output.
- Premium 42CrMoA alloy steel for durability.
- Small size, lightweight and easy to carry & install.
- Adapts to various industrial working conditions.
Application Overview

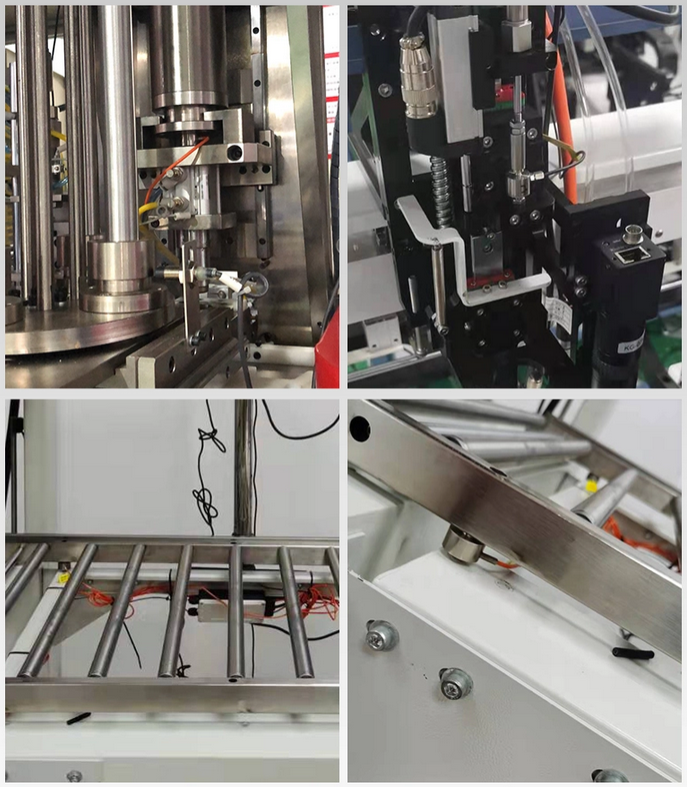

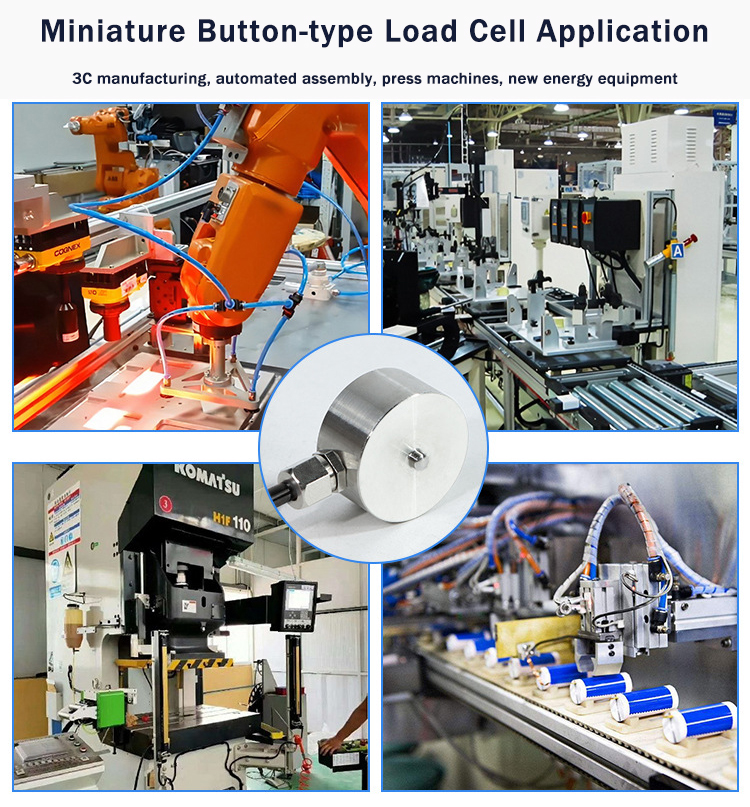

This miniature button load cell is widely used in:
- 3C digital product manufacturing & assembly.
- Automated assembly & testing equipment.
- Press machines & force detection devices.
- New energy equipment & small industrial tools.
- Limited-space compression force measurement.
Specification - GP-LC-MBT
| Rated Capacity |
300 kg ~ 5 ton |
| Output Sensitivity |
2.0±10% mV/V |
| Zero Output |
±1% F.S. |
| Non-linearity |
0.05% F.S. |
| Hysteresis |
0.05% F.S. |
| Repeatability |
0.03% F.S. |
| Creep (30 min) |
0.05% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10℃ |
| Zero Temperature Drift |
0.05% F.S. / 10℃ |
| Response Frequency |
10k Hz |
| Material |
42CrMoA |
| Impedance |
350Ω |
| Insulation Resistance |
≥5000MΩ/100VDC |
| Operating Voltage |
5-15V |
| Operating Temperature Range |
-20~80℃ |
| Safe Overload |
150% |
| Cable Specification |
0.2-1T: Φ5*2m
2-5T: Φ5*5m |
| Cable Maximum Tension |
100N |
| Warranty |
18 months |
*We can provide 3D models and one-on-one technical consultation. Please contact us:
Product Details

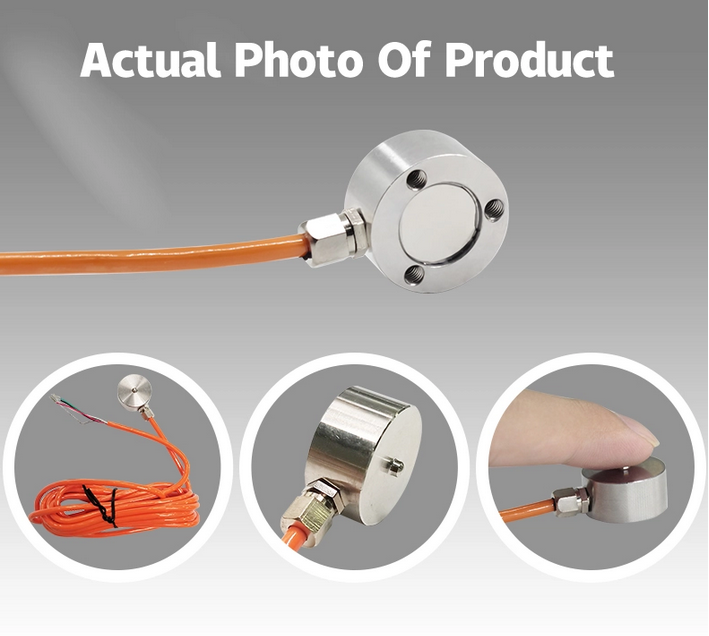

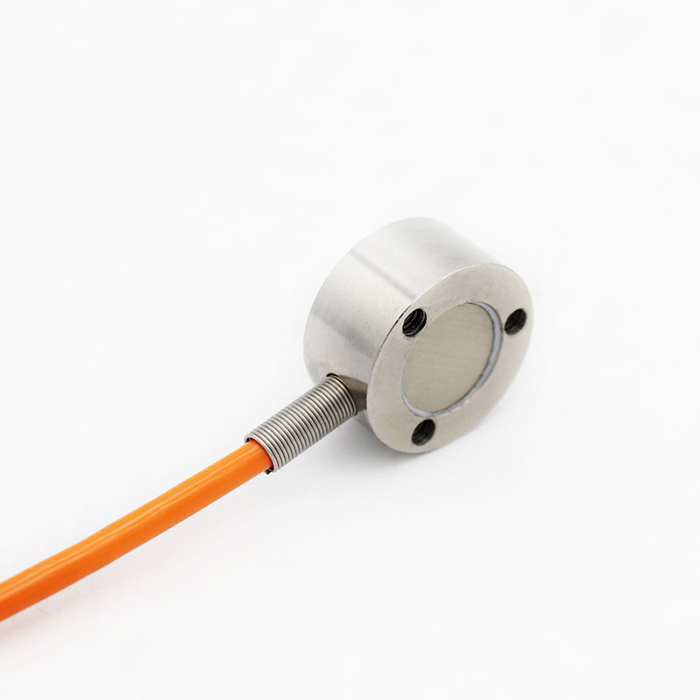

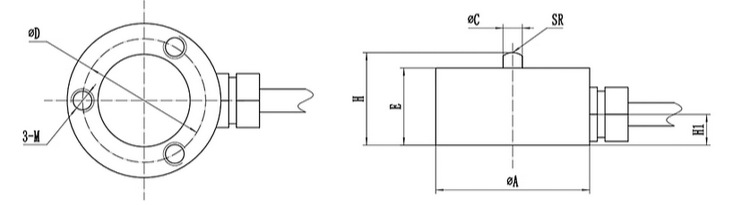

Dimensions
| Capacity |
ΦA |
ΦC |
ΦD |
H |
E |
M |
H1 |
SR |
| 3kg-200kg |
20 |
2.5 |
15.5 |
12 |
10 |
M3 |
4 |
2 |
| 300kg-500kg |
26 |
5 |
18.5 |
15 |
11.5 |
M4 |
5 |
6 |
| 1T-5T |
37.7 |
10.8 |
31 |
15.5 |
14 |
M2.5 |
4 |
50 |
