Overview

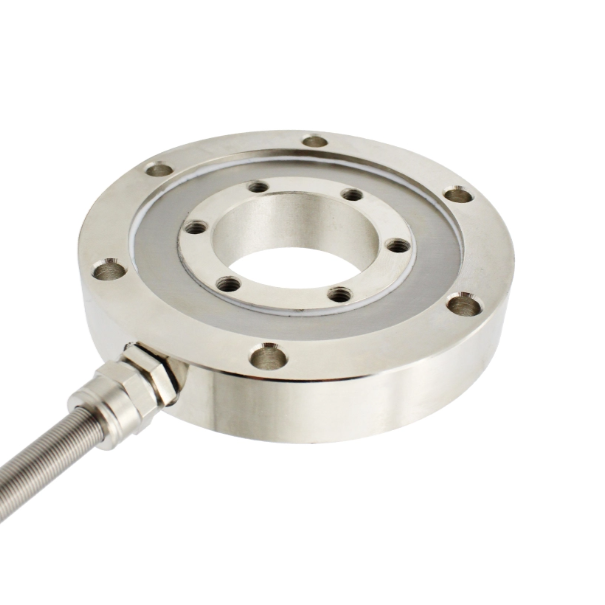

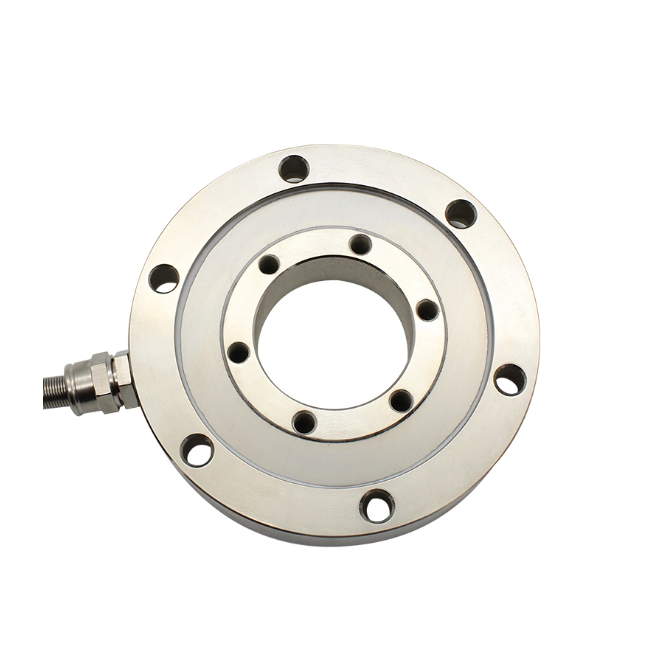

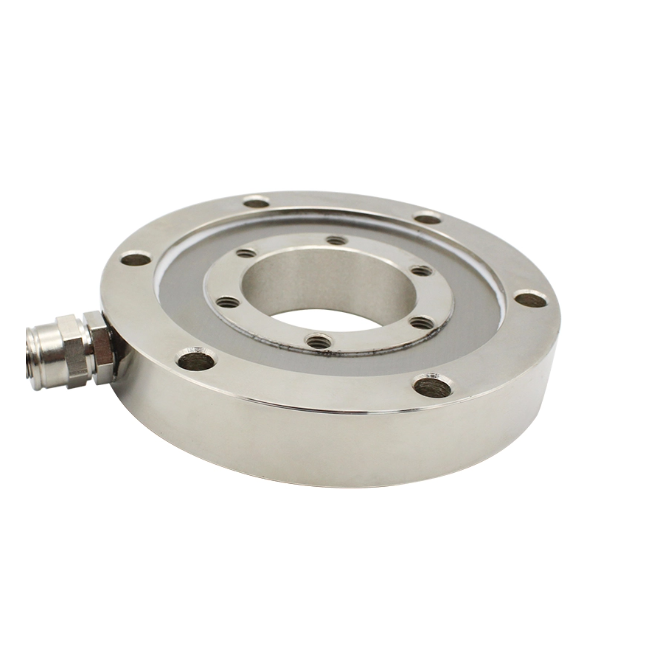

GoodProx ring type load cell GP-LC-HX003 is a high-precision annular force sensor with through-hole structure, specially used for tension and compression force measurement. The mini size and annular design make installation easy. This tension compression load cell provides stable output and high accuracy, widely used in press fitting, clamping force, bolt force monitoring and precision industrial measurement.

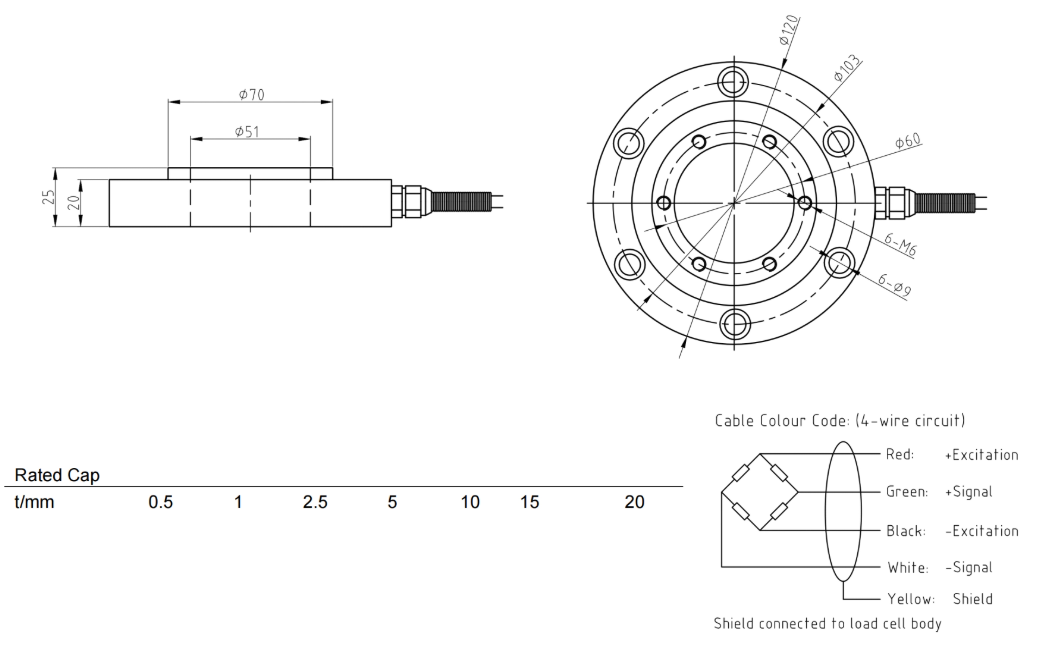

Features
|
Model No. |
GP-LC-HX003 |
||||
|
Rated capacity |
50kg, 200kg, 300kg, 500kg, 1000kg, 3000kg, 5000kg |
||||
|
Accuracy class1)2) |
0.05% |
||||
|
Min. dead load |
0kg |
||||
|
Rated output |
2.0 ± 0.004mV/V |
||||
|
Zero balance |
±1% of Emax |
||||
|
Y-value |
6000 |
||||
|
Repeatability error |
< ± 0.015% of AL3) |
||||
|
Creep; 30 minute |
< ± 0.030% of AL |
||||
|
Min. dead load output return (DR); 30 min |
< ± 0.030% of AL |
||||
|
Temp. effect on |
Min. dead load output |
< ± 0.0023% of Emax/℃ |
|||
|
Rated output 2) |
< ± 0.0020% of AL/℃ |
||||
|
Temperature range |
Compensated |
-10 to + 40 [+ 14 to +104]℃(°F) |
|||
|
Operating |
-40 to + 65 [- 40 to +149] |
||||
|
Safe storage |
-40 to + 80 [- 40 to +176] |
||||
|
Excitation voltage |
Recommended |
5 ~ 15V AC/DC |
|||
|
Terminal resistance |
Maximum |
15V AC/DC |
|||
|
Excitation |
766 ± 10Ω |
||||
|
Output |
700 ± 3Ω |
||||
|
Insulation resistance @50VDC |
> 5000MΩ |
||||
|
Breakdown voltage |
> 500V AC |
||||
|
Seal type / IP rating |
Hermetically welded |
IP68 IP69k |
|||
|
Load limit |
Safe |
150% of Emax |
|||
|
Material |
Ultimate |
300% of Emax |
|||
|
Spring element |
Stainless Steel |
||||
|
Strain gauge |
PEEK |
||||
|
Cable |
O.D.Φ5.5; 4-wire; PVC |
||||
|
Cable length |
6.0m |
||||
|
Fatigue life |
> 1,000,000 cycles @Emax |
||||
|
Deflection at Emax; approx |
< 0.5mm |
||||
|
Barometric pressure effect on Zero Output |
< 1.0Vmin/kPa |
||||
|
Warranty |
18 months | ||||
