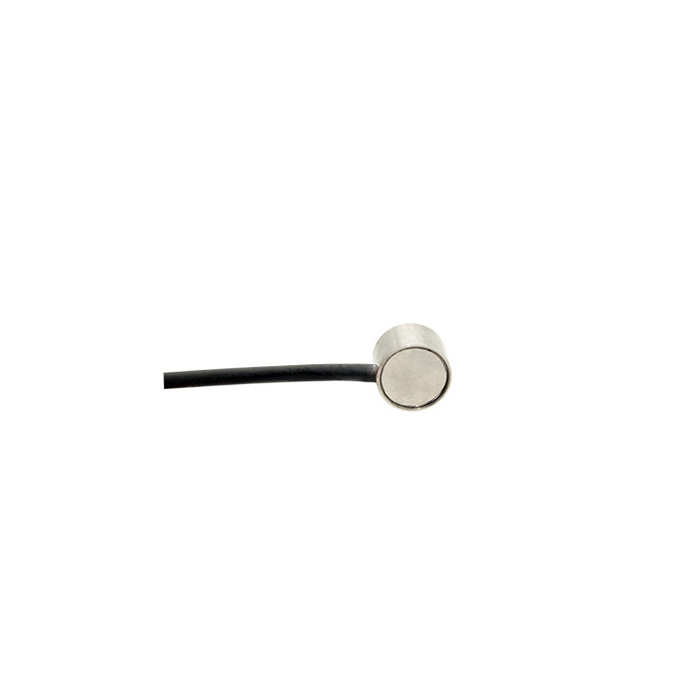

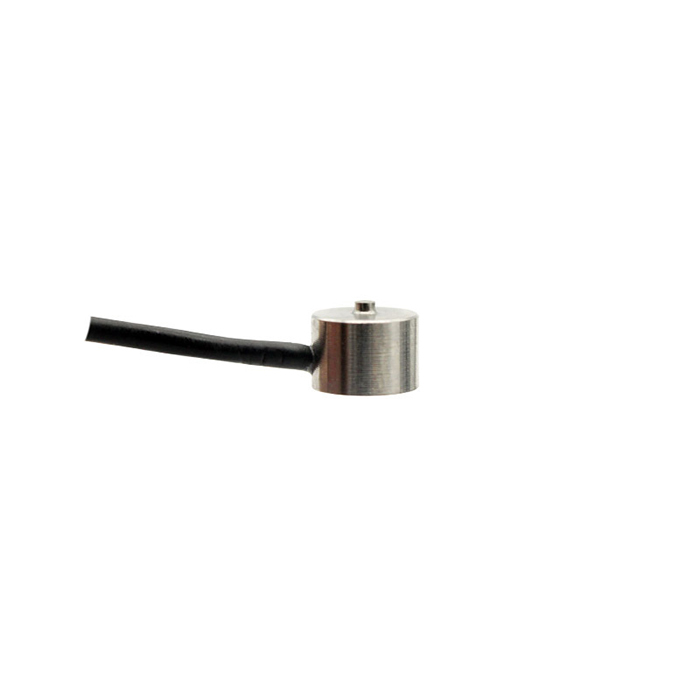

Miniature Load Cell | 3kg-100kg | 8mm Button Compression

Name: Miniature Load Cell | 3kg-100kg | 8mm Button Compression
Brand: GoodProx - Industrial Automation Products Online Store & Solution
SKU: GP-LC-HW108
Price: 116.67 USD
Availability: InStock
Rating: 5 (2 reviews)

GoodProx 8mm button miniature load cell offers 3kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg and 200kg for selectable.

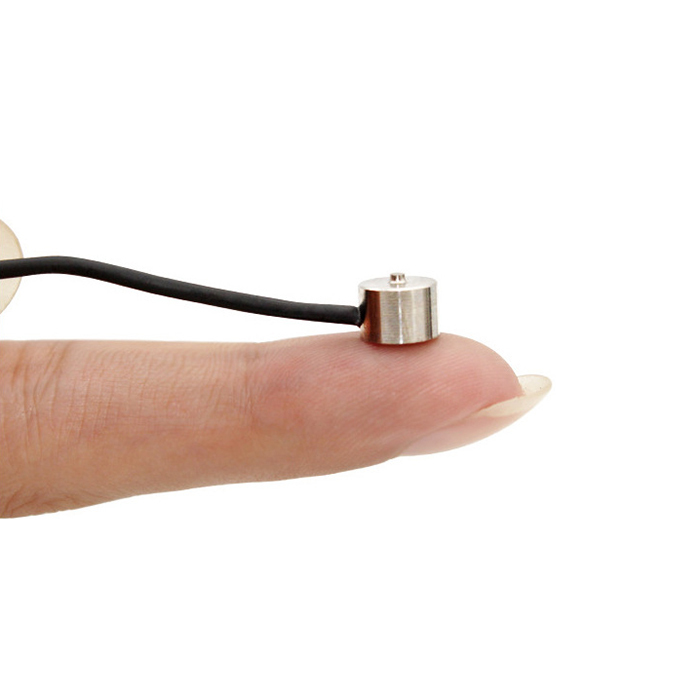

Mini button type with ultra-compact 8*6.5mm size.
Widely used in tight‑space automation equipment, 3C manufacturing and robotic arms.

$116.67

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

1/1

Overview

Features

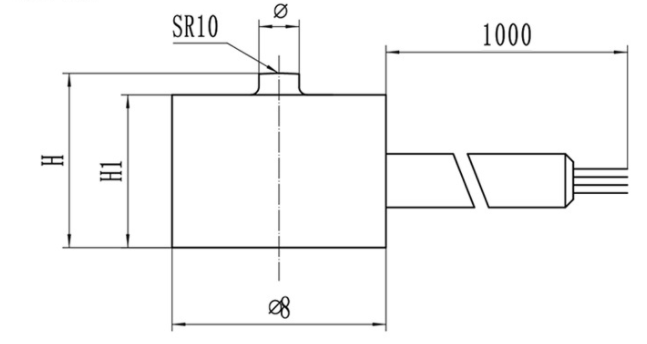

Ultra-small 8mm button design: only 8×6.5mm for limited installation spaces.
Multiple capacities: 3kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg.
Stable anti-interference output signal for accurate force detection.
High-quality alloy steel structure for durability and stability.
High-precision strain gauge for consistent long-term performance.
Lightweight, dust-proof sealed, and easy to integrate.
Widely used in 3C manufacturing, automation equipment & robotic arms.

Application Overview

This 8mm miniature button load cell is widely used in:

3C digital product manufacturing & assembly force detection.
Automation equipment & precision testing instruments.
Robotic arm contact force measurement & control.
Small space industrial force monitoring.
Portable & compact force detection devices.

Specification - GP-LC-HW113

Rated Capacity	3kg ~ 100kg
Output Sensitivity	2.0% mV/V
Zero Output	±2% F.S.
Non-linearity	0.5% F.S.
Hysteresis	0.3% F.S.
Repeatability	0.3% F.S.
Creep (30 min)	0.2% F.S.
Temperature Sensitivity Drift	0.5% F.S. / 10℃
Zero Temperature Drift	0.5% F.S. / 10℃
Response Frequency	1k Hz
Material	Alloy Steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20~80℃
Safe Overload	120%
Cable Specification	Φ2*1m
Cable Maximum Tension	100N
Warranty	18 months
