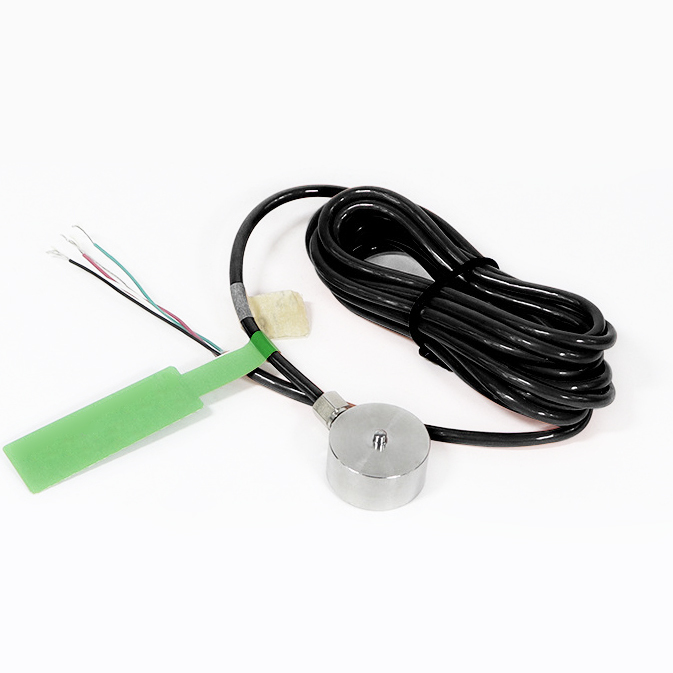

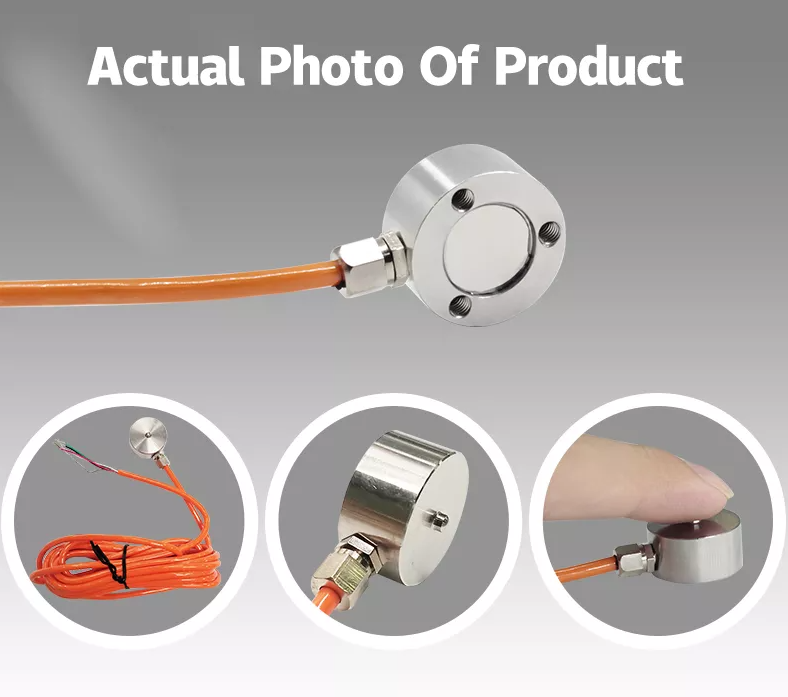

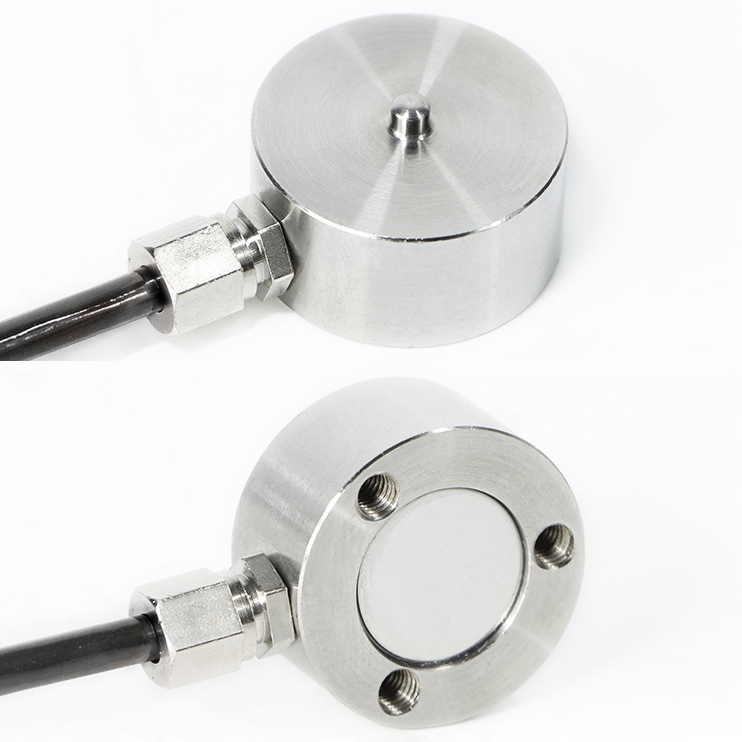

Miniature Load Cell | 3kg-10T | Single Point Compression

GoodProx miniature single point load cell supports 3kg, 5kg, 10kg, 20kg, 50kg, 100kg, 300kg, 500kg, 1T, 3T, 5T and 10T for selectable, can be customized.
Mini type that can be installed in limited-space installation.
Delivering stable anti-interference force measurement for automation equipment, 3C manufacturing and testing applications.

$110.61

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Capacity:

0-3kg

0-5kg

0-10kg

0-20kg

0-30kg

0-50kg

0-100kg

0-200kg

0-300kg

0-500kg

0-1T

0-2T

0-3T

0-5T

0-10T

Quantity:

1/1

Overview

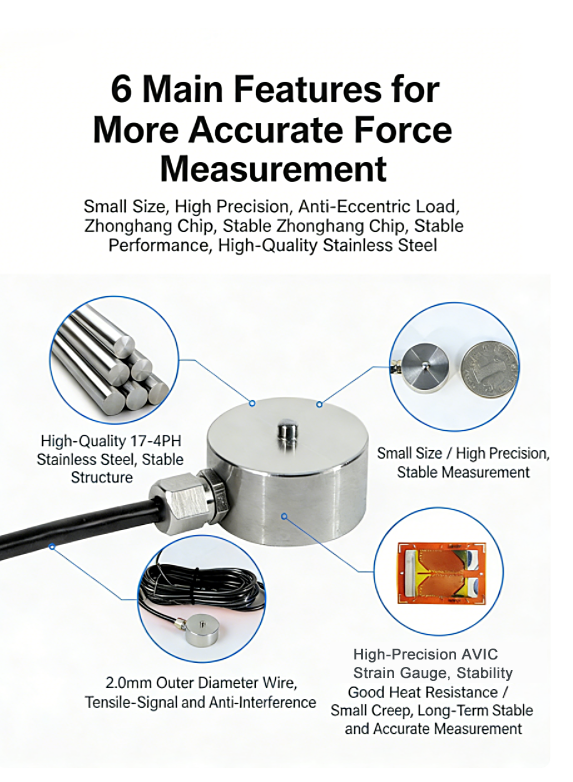

Features

Miniature size for easy installation in tight spaces.
Wide measuring range: 3kg ~ 10T, customizable available.
Single-point structure with excellent anti-eccentric load performance.
Stable anti-interference signal for accurate force detection.
High-quality alloy steel with durable structure.
High-precision strain gauge for long-term stability.
Widely used in automation, 3C manufacturing, testing & batching scales.

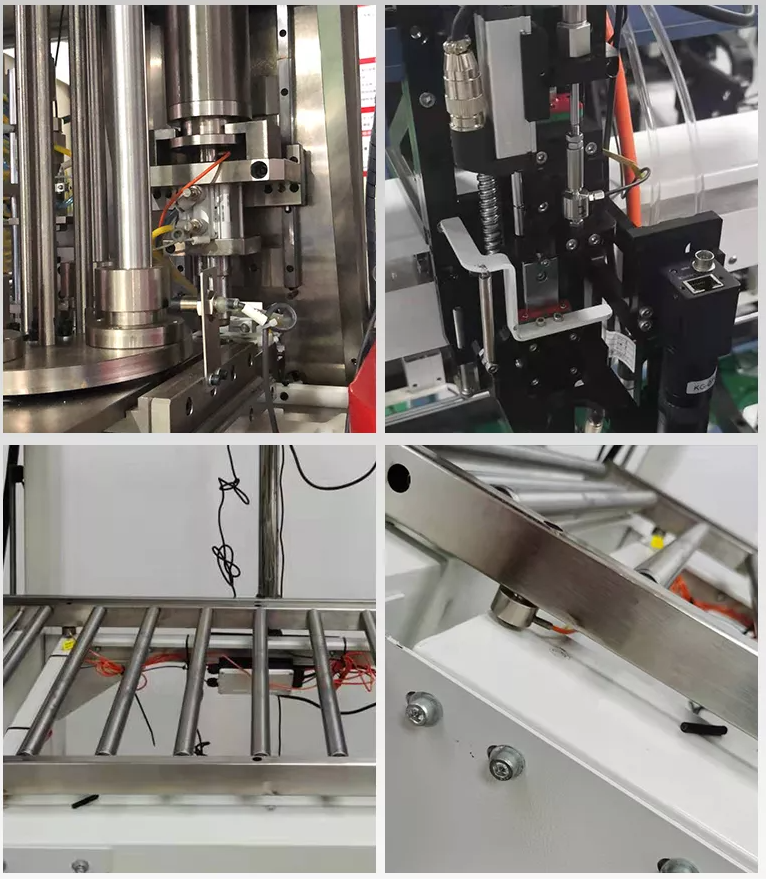

Application Overview

This miniature compression load cell is widely used in:

3C digital manufacturing & assembly force detection.
Automation equipment & robotic systems.
Testing machines & precision detection devices.
Batching scales & small weighing systems.
Limited-space industrial force measurement.

Specification - GP-LC-HW116

Rated Capacity	3kg ~ 10T
Output Sensitivity	1.0-2.0% mV/V
Zero Output	±1% F.S.
Non-linearity	0.3% F.S.
Hysteresis	0.3% F.S.
Repeatability	0.3% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.3% F.S. / 10℃
Zero Temperature Drift	0.3% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	700/1000Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20~80℃
Safe Overload	150%
Cable Specification	Φ32m 10T: Φ52m
Cable Maximum Tension	100N
Warranty	18 months

*We can provide 3D models and one-on-one technical consultation. Please contact us:

Product Details

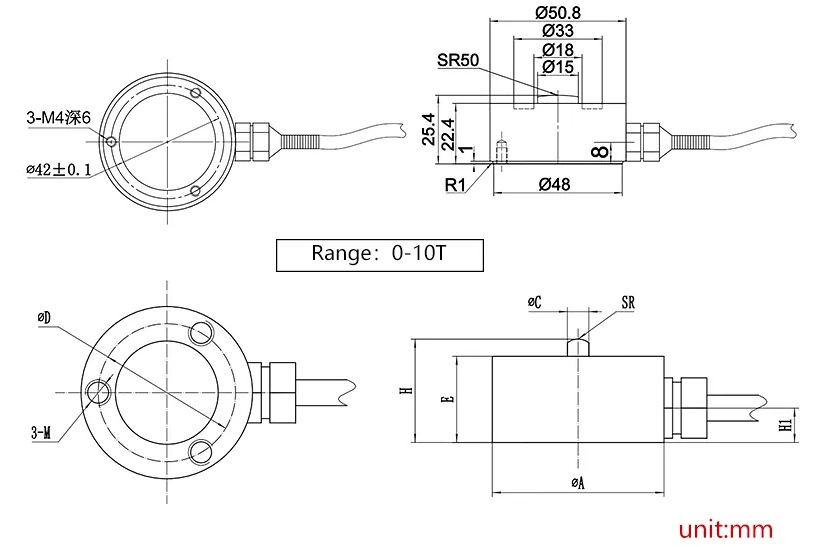

Dimensions

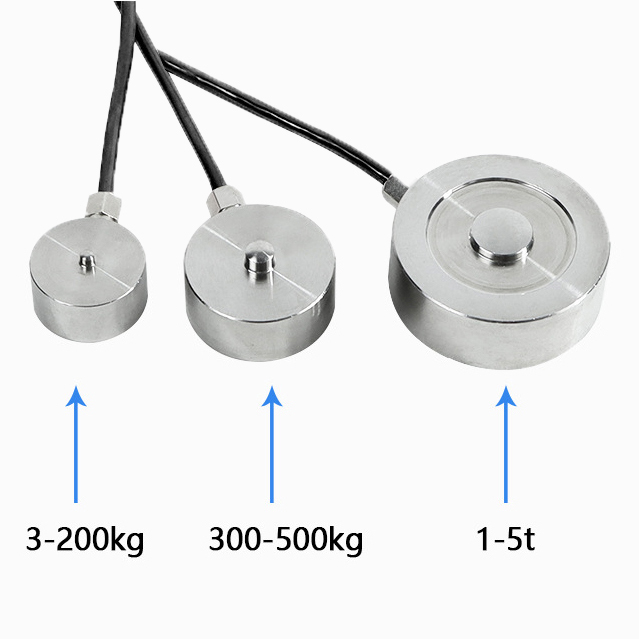

Capacity	ΦA	ΦC	ΦD	H	E	M	H1	SR
3kg 5kg 10kg 20kg 30kg 50kg 100kg 200kg	20	2.5	15.5	12	10	M3	4	2
300kg 500kg	26	5	18.5	15	11.5	M4	5	6
1ton 2ton 3ton 5ton	37.7	10.8	31	15.5	14	M2.5	4	50
