Features
- Stable anti-interference signal for accurate force and pressure measurement.

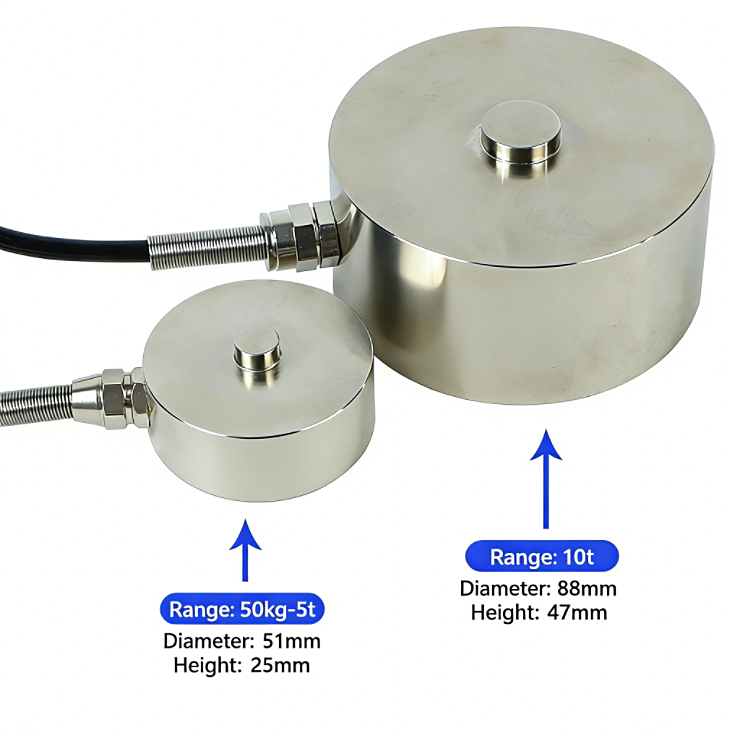

- Multiple ranges: 50kg, 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T, 5T, 10T.

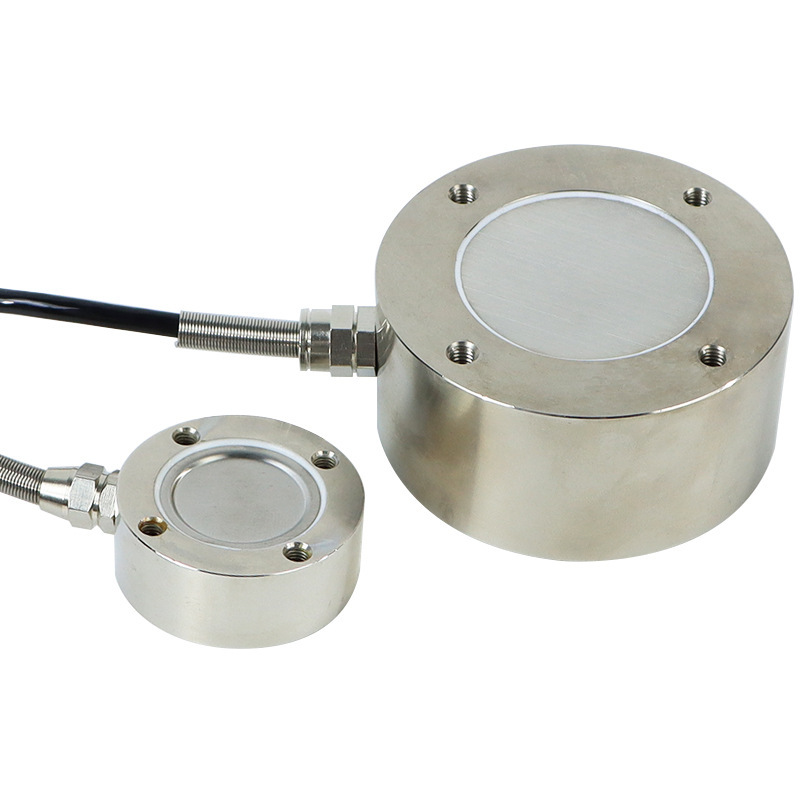

- Compact miniature pan load cell design for limited-space installation.
- Lightweight, simple installation and easy integration.
- Widely used in pull pressure test, material testing and automatic equipment.
Application Overview
Miniature load cell 50kg–10T is widely used in:
- Universal material pull force test equipment.
- Pull pressure test instruments.
- Automatic testing machines.
- Industrial automation devices.
- Limited-space force & pressure detection.
Specification - GP-LC-MH101
| Rated Capacity |
50 kg ~ 10 T |
| Output Sensitivity |
1.0-2.0±5% mV/V |
| Zero Output |
±2% F.S. |
| Non-linearity |
0.3% F.S. |
| Hysteresis |
0.1% F.S. |
| Repeatability |
0.1% F.S. |
| Creep (30 min) |
0.1% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10℃ |
| Zero Temperature Drift |
0.05% F.S. / 10℃ |
| Response Frequency |
10k Hz |
| Material |
Alloy Steel |
| Impedance |
700Ω |
| Insulation Resistance |
≥5000MΩ/100VDC |
| Operating Voltage |
5-15V |
| Operating Temperature Range |
-20~80℃ |
| Safe Overload |
150% |
| Cable Specification |
Φ5*2m |
| Cable Maximum Tension |
98N |
| Warranty |
18 months |
*We can provide 3D models and one-on-one technical consultation. Please contact us:
Product Details

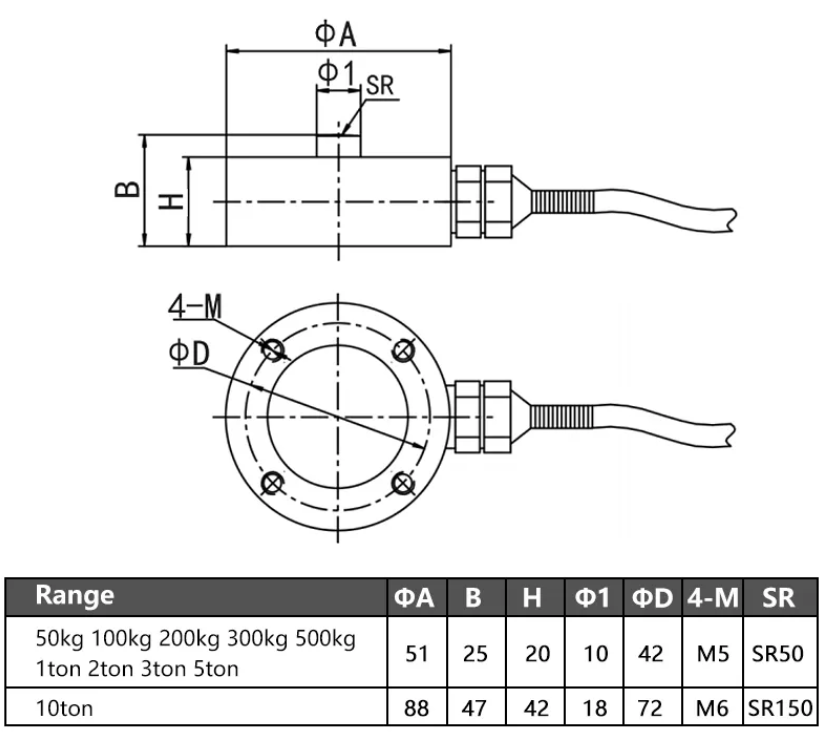

Dimensions
