Home > Sensors > Load Cell > Miniature Load Cell | 5kg-100kg | Mini Button Compression

1/1

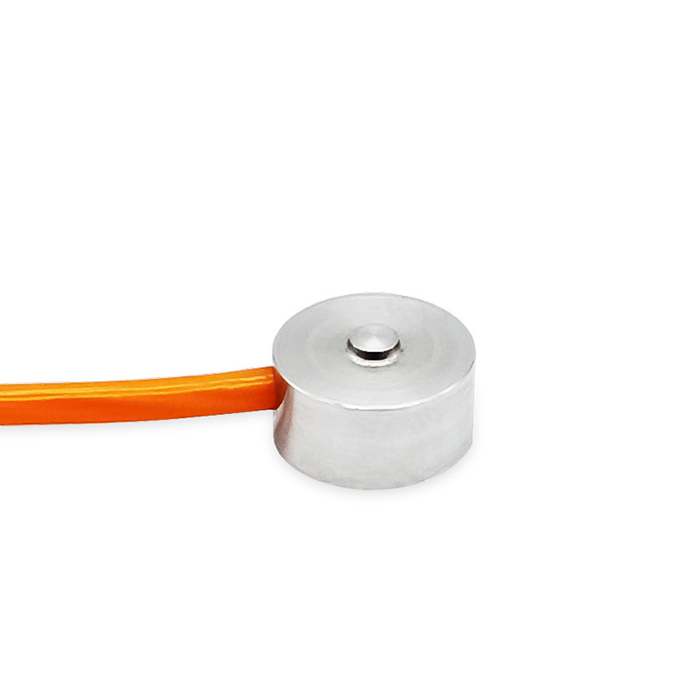

Miniature Load Cell | 5kg-100kg | Mini Button Compression

GoodProx miniature button load cell provides 5kg, 10kg, 20kg, 30kg, 50kg, 100kg compression force measurement.

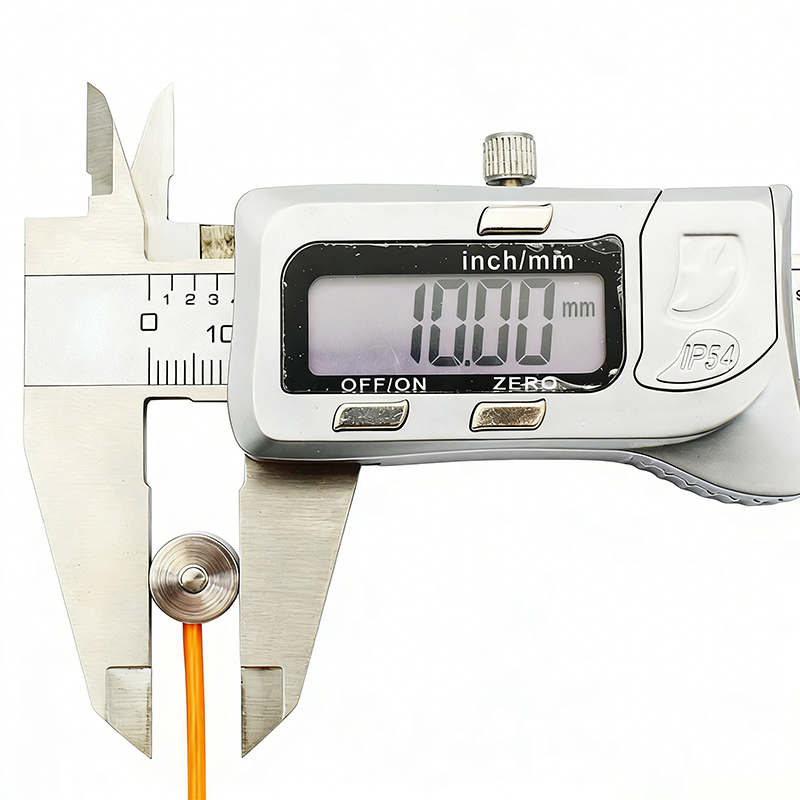

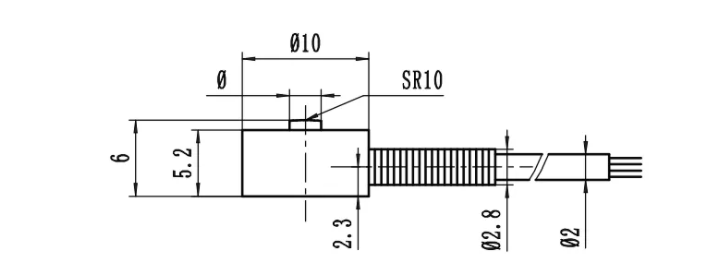

With an ultra-compact 10*6.5mm size.
Mini compression load cell is ideal for limited-space automation equipment, 3C manufacturing and robotic arm applications.

$125.86

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

Features

Mini button type design: only 10*6.5mm for ultra-tight installation spaces.
Capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 100kg.
Stable anti-interference output signal for precision force measurement.
Stainless steel structure for durability and corrosion resistance.
Widely used in 3C digital manufacturing, automation equipment & robotic arms.
Easy integration with small testing & monitoring devices.

Application Overview

This miniature compression load cell is widely used in:

3C digital manufacturing & assembly force detection.
Automation equipment & small machinery monitoring.
Robotic arm contact force measurement.
Precision testing instruments & miniature devices.
Limited-space industrial force detection.

Specification - GP-LC-HW110

Rated Capacity	5kg ~ 100kg
Output Sensitivity	1.0-2.0% mV/V
Zero Output	±2% F.S.
Non-linearity	0.5% F.S.
Hysteresis	0.5% F.S.
Repeatability	0.3% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.5% F.S. / 10℃
Zero Temperature Drift	0.5% F.S. / 10℃
Response Frequency	1k Hz
Material	Stainless Steel
Impedance	350/500Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20~80℃
Safe Overload	120%
Cable Specification	Φ2*1m
Cable Maximum Tension	100N
Warranty	18 months
