Home > Sensors > Load Cell > Miniature Load Cell | 5kg-100kg | Mini Button Compression

1/1

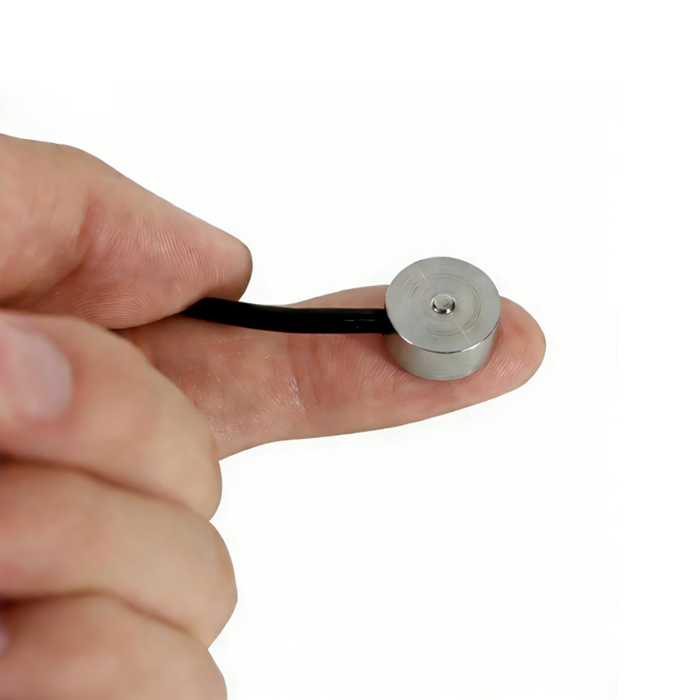

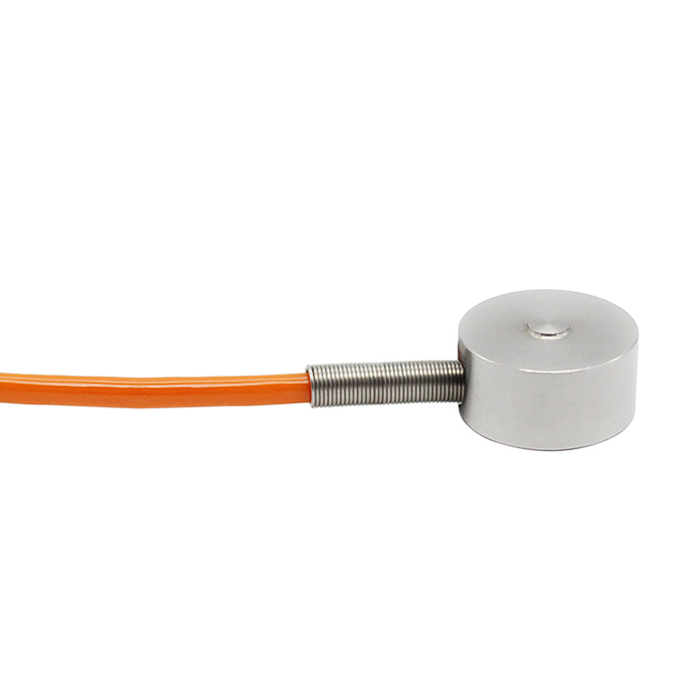

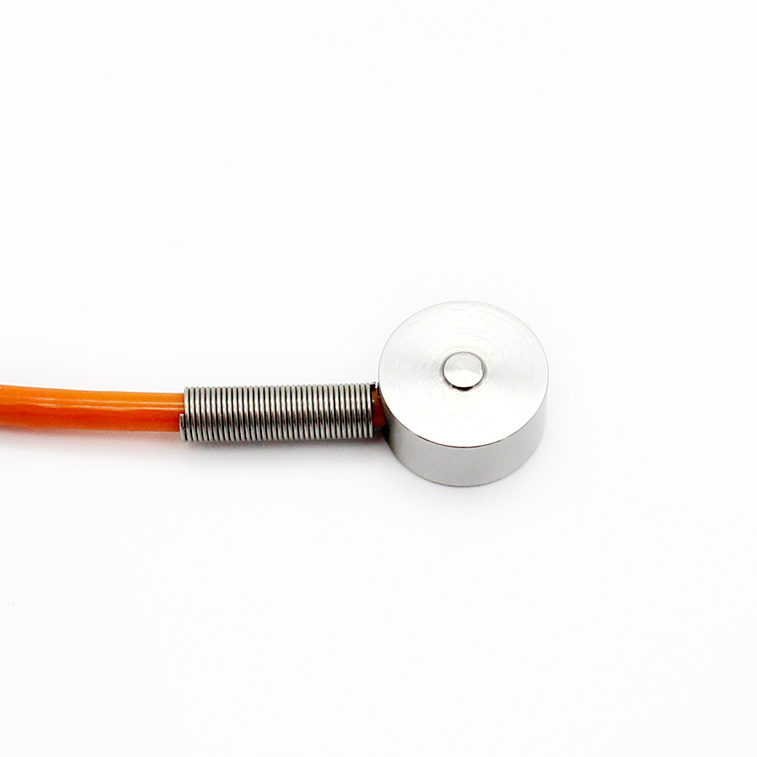

Miniature Load Cell | 5kg-100kg | Mini Button Compression

GoodProx miniature button compression load cell supports 5kg, 10kg, 20kg, 30kg, 50kg and 100kg for selectable, can be customized.

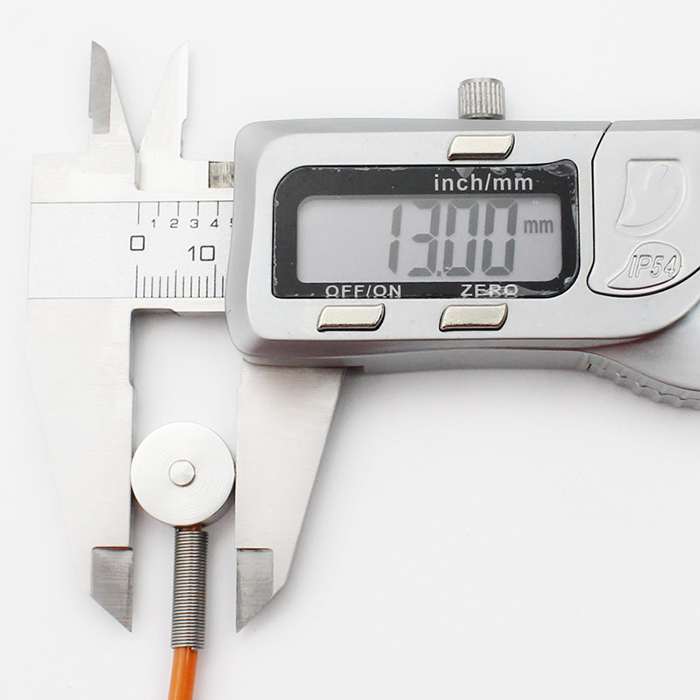

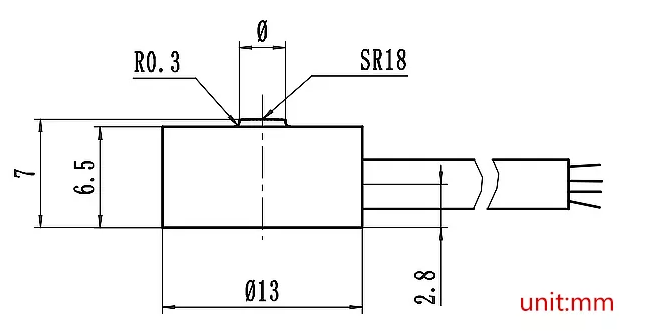

Only 13×6.5mm mini button load cell is ideal for tight‑space installation.
Delivering stable anti-interference force measurement for automation equipment, 3C manufacturing and testing applications.

$125.33

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Overview

Features

Mini button type design: only 13*6.5mm for limited installation spaces.
Capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 100kg (customizable).
Stable anti-interference output signal for accurate force detection.
High-quality alloy steel structure for durability and reliability.
High precision with low creep and long-term stability.
Easy integration into small automation & testing devices.
Widely used in 3C manufacturing, automation equipment & testing machines.

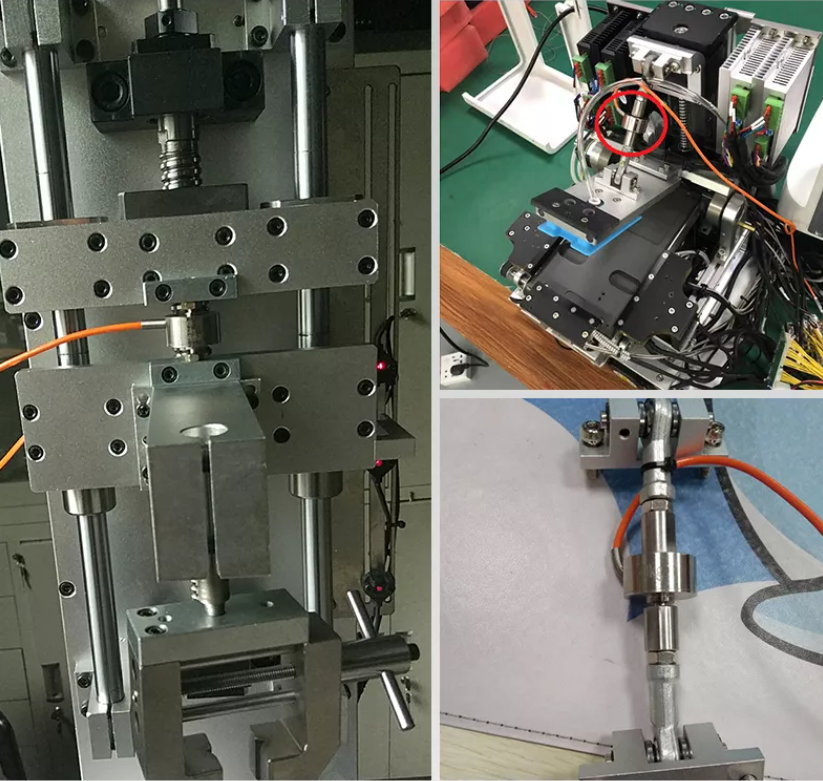

Application Overview

This mini button compression load cell is widely used in:

3C digital manufacturing & assembly force detection.
Automation equipment & small precision machinery.
Testing machines & process force measurement.
Limited-space industrial force monitoring.
Compact force detection devices.

Specification - GP-LC-HW113

Rated Capacity	300g ~ 500kg
Output Sensitivity	1.0-2.0% mV/V
Zero Output	±2% F.S.
Non-linearity	0.5% F.S.
Hysteresis	0.5% F.S.
Repeatability	0.3% F.S.
Creep (30 min)	0.1% F.S.
Temperature Sensitivity Drift	0.5% F.S. / 10℃
Zero Temperature Drift	0.5% F.S. / 10℃
Response Frequency	1k Hz
Material	Alloy Steel
Impedance	500/1000Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20~80℃
Safe Overload	150%
Cable Specification	Φ2*1m
Cable Maximum Tension	100N
Warranty	18 months
