OVERVIEW

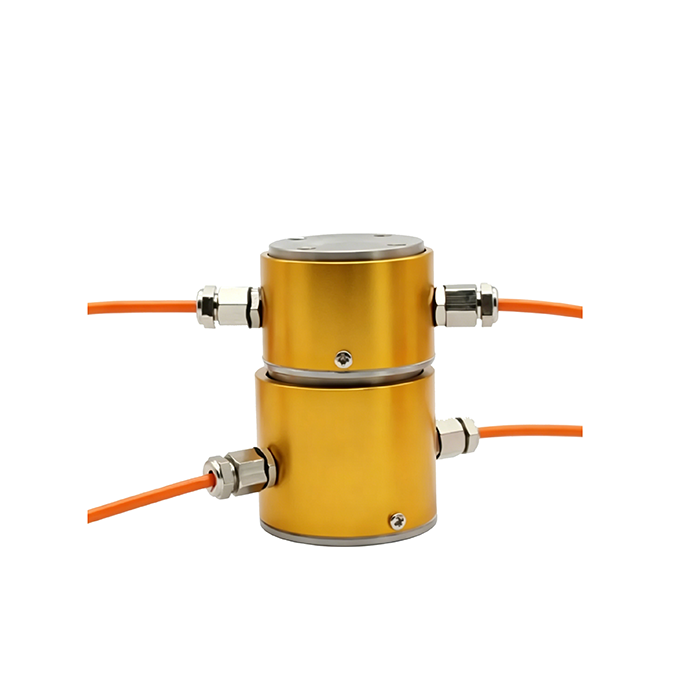

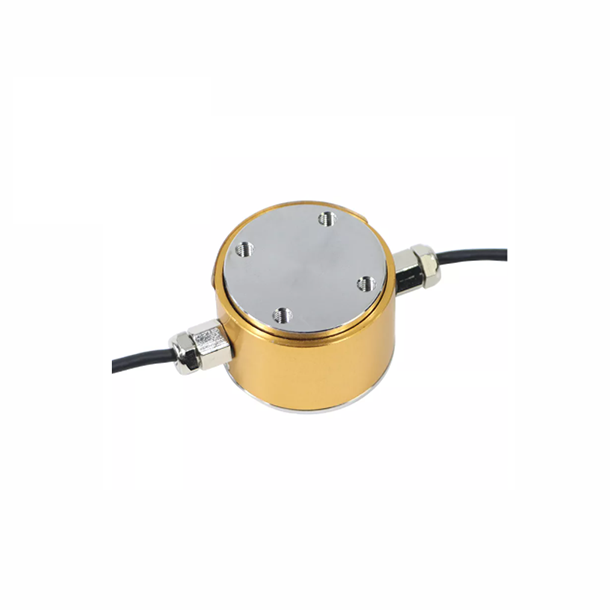

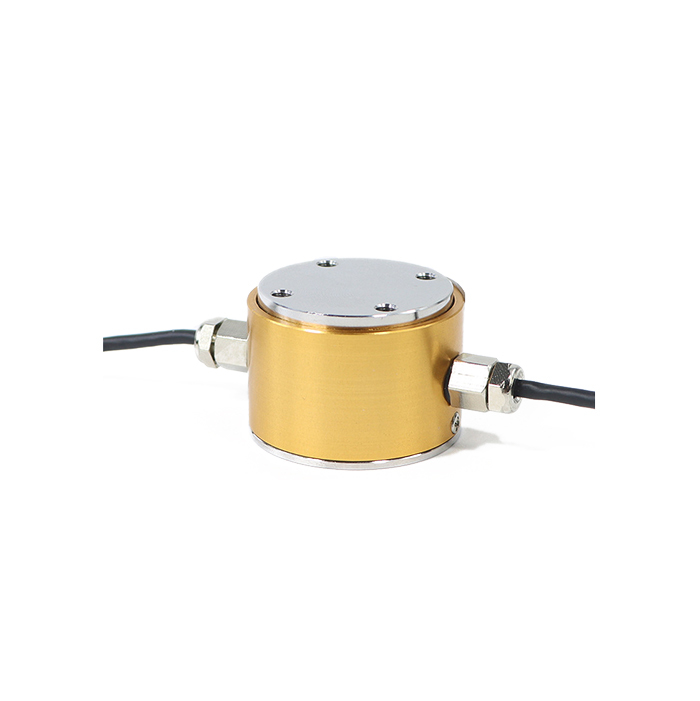

GoodProx GP-LC-DW003 is a high-precision multi-dimensional load cell for measuring force and torque simultaneously. Made of high-quality alloy steel, it features high stability, strong anti-interference, compact structure and customizable design. This robot force sensor is widely used in industrial automation, robotic control, assembly testing and precision measurement.
FEATURES
- High Stability: Stable output for long-term precision measurement.
- Compact Size: Small footprint for limited installation space.
- Alloy Steel Material: High strength, wear-resistant, long service life.
- Anti-Interference: Stable signal in complex industrial environments.
- Multi-Dimensional: Measures 3-axis force and torque at the same time.
- Wide Range: 100N~1000N optional.
- Customizable: Non-standard customization available.
- Easy Integration: Simple installation for automated systems.
Specification - GP-LC-DW003
|
Model
|
GP-LC-DW003
|
|
Capacity
|
100N-1000N
|
|
Output sensitivity
|
2.0±10%mV/V
|
|
Zero point output
|
±2%F.S
|
|
Non-linear
|
0.1%F.S
|
|
Hysteresis
|
0.1%F.S
|
|
Repeatability
|
0.1%F.S
|
|
Creep (30 min)
|
0.05%F.S
|
|
Temperature sensitivity drift
|
0.05%F.S./10℃
|
|
Zero temperature drift
|
0.05%F.S./10℃
|
|
Response frequency
|
1kHz
|
|
Material
|
Alloy Steel
|
|
Impedance
|
350Ω
|
|
Insulation resistance
|
≥5000MΩ/100V DC
|
|
Use voltage
|
5-15V
|
|
Operating temperature range
|
-20-80℃
|
|
Safety overload
|
120%R.C.
|
|
Extreme overload
|
200%R.C.
|
|
Cable line specifications
|
Φ3*2mm
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

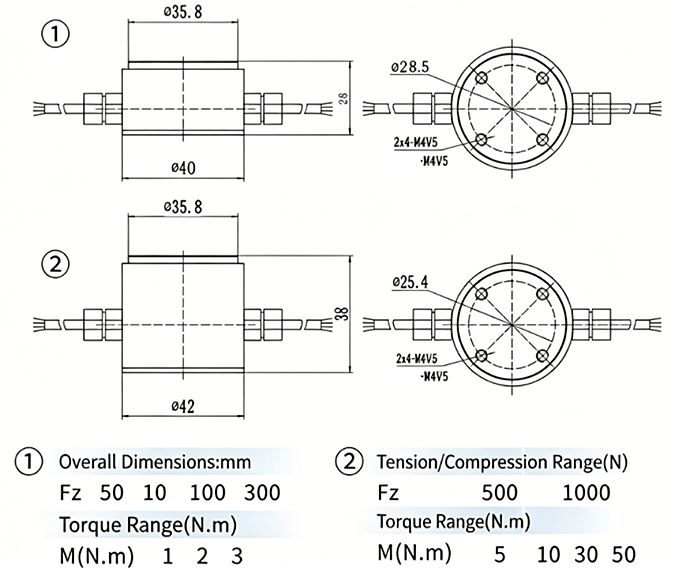

DIMENSIONS

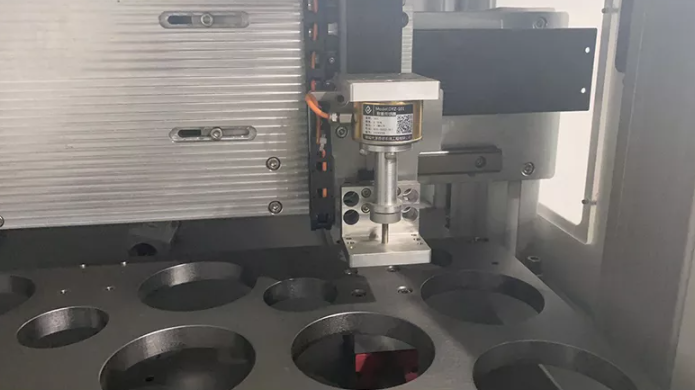

APPLICATION
- Robotic Control: Robot arm force feedback & collision detection.
- Auto Assembly: Automotive press-fit & assembly testing.
- 3C Testing: Mobile & electronic product precision test.
- New Energy: New energy device assembly & test.
- Medical Device: Medical equipment force detection.
- Mold Assembly: Mold fitting & pressure monitoring.
- Industrial Test: Automatic production line testing.
- Dynamic Equipment: Dynamic device force measurement.
