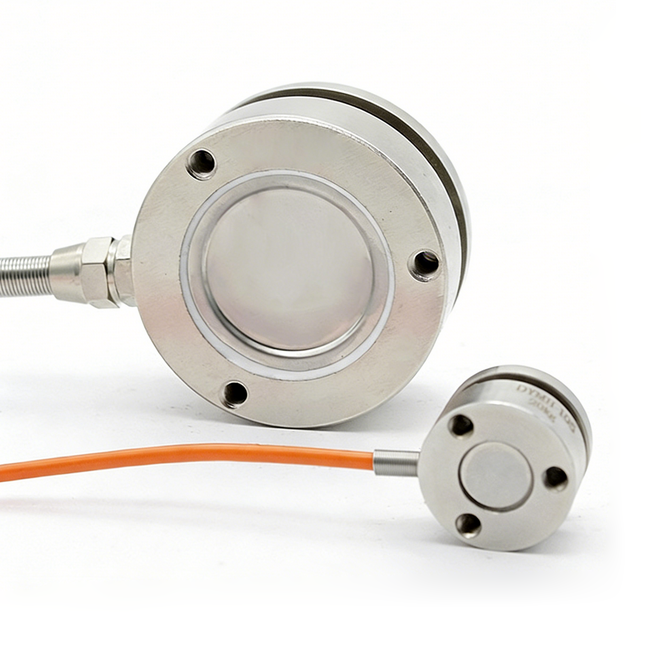

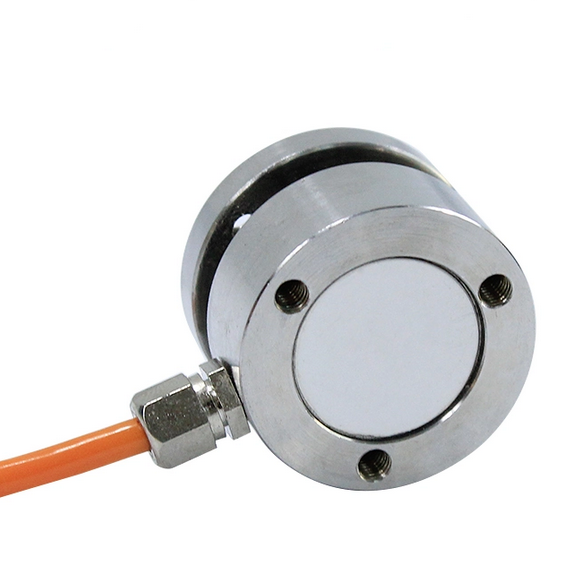

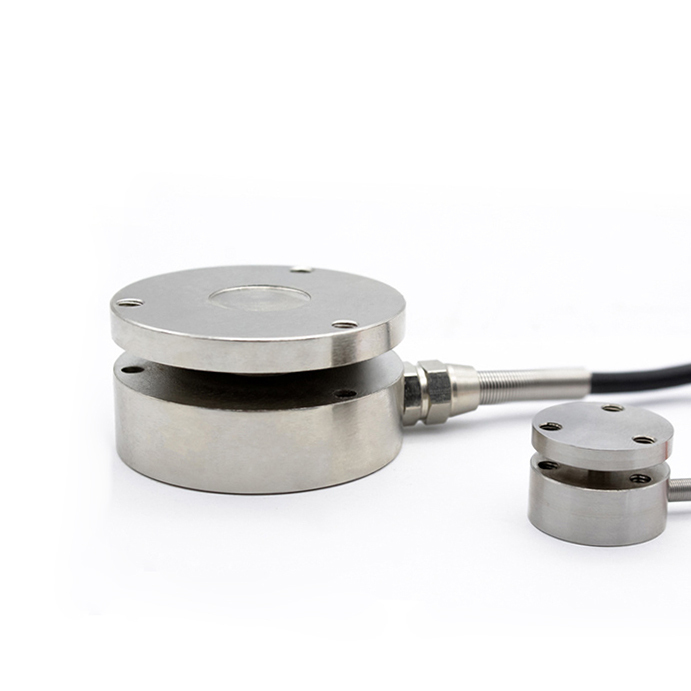

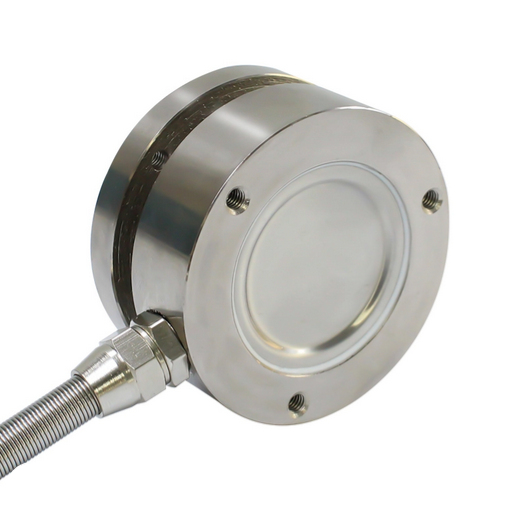

Features

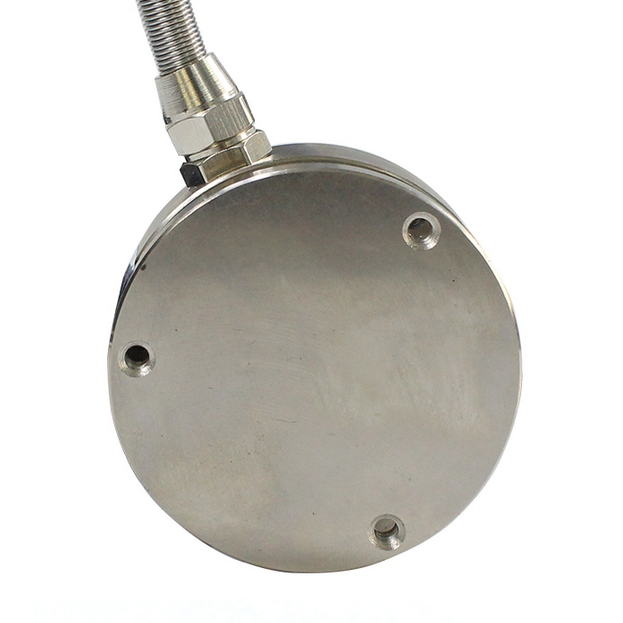

- Flat diaphragm & pancake design for limited-space installation.
- Capacity range: 50kg, 100kg, 200kg, 500kg, 1T, 2T, 3T, 5T, 10T.
- High accuracy with ultra-low nonlinearity, hysteresis and creep.
- Stable anti-interference output signal.
- Alloy steel material for durability & long service life.
- Lightweight, simple installation and easy to carry.
- Perfect for various electronic weighing & automation equipment.

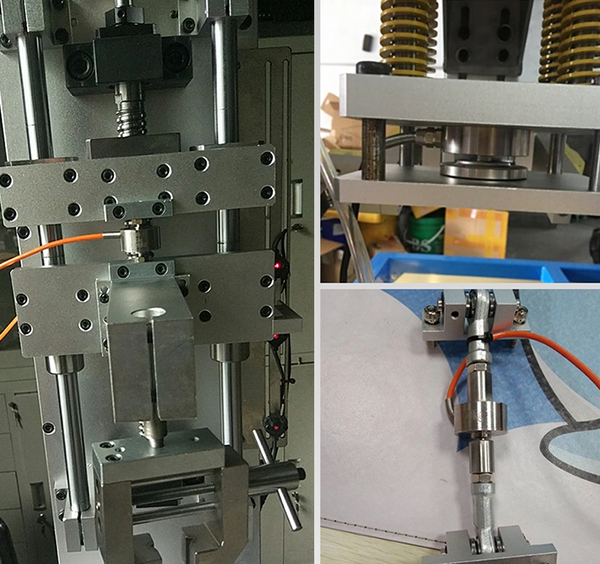

Application Overview
This flat diaphragm pan load cell is widely used in:
- Electronic belt scales.
- Packaging scales & filling scales.
- Automatic weighing & batching systems.
- Industrial automation weighing equipment.

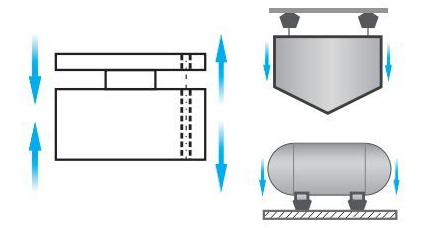

- Limited-space compression force detection.
Specification - GP-LC-MH102
| Rated Capacity |
50 kg ~ 10 T |
| Output Sensitivity |
1.0-2.0±5% mV/V |
| Zero Output |
±2% F.S. |
| Non-linearity |
0.01% F.S. |
| Hysteresis |
0.01% F.S. |
| Repeatability |
0.01% F.S. |
| Creep (30 min) |
0.01% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10℃ |
| Zero Temperature Drift |
0.05% F.S. / 10℃ |
| Response Frequency |
10k Hz |
| Material |
Alloy Steel |
| Impedance |
700Ω |
| Insulation Resistance |
≥5000MΩ/100VDC |
| Operating Voltage |
5-15V |
| Operating Temperature Range |
-20~80℃ |
| Safe Overload |
150% |
| Cable Specification |
Φ5*3m |
| Cable Maximum Tension |
98N |
| Warranty |
18 months |
*We can provide 3D models and one-on-one technical consultation. Please contact us:
Product Details

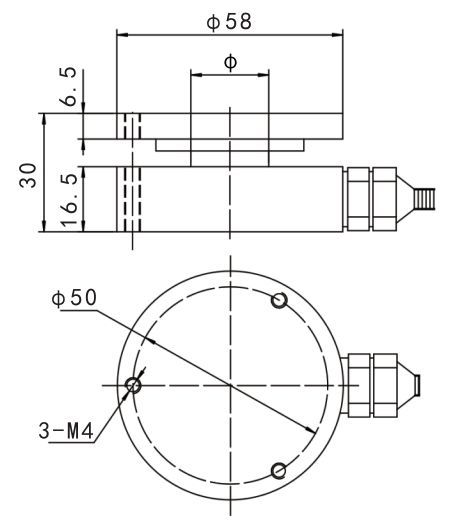

Dimensions
| Capacity |
Φ |
| 50kg-500kg |
10 |
| 1T-10T |
20 |
