Home > Sensors > Load Cell > S-Type Load Cell | 100kg-20T | Tension & Compression Column Type

1/1

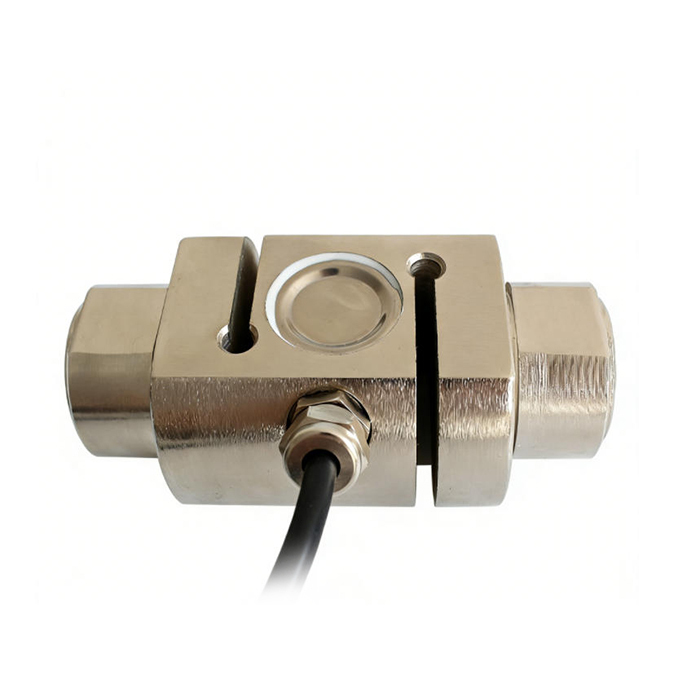

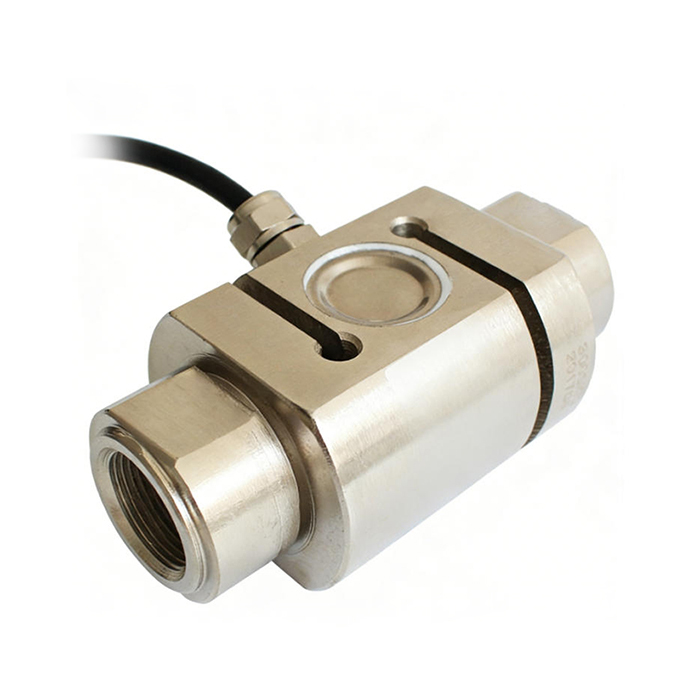

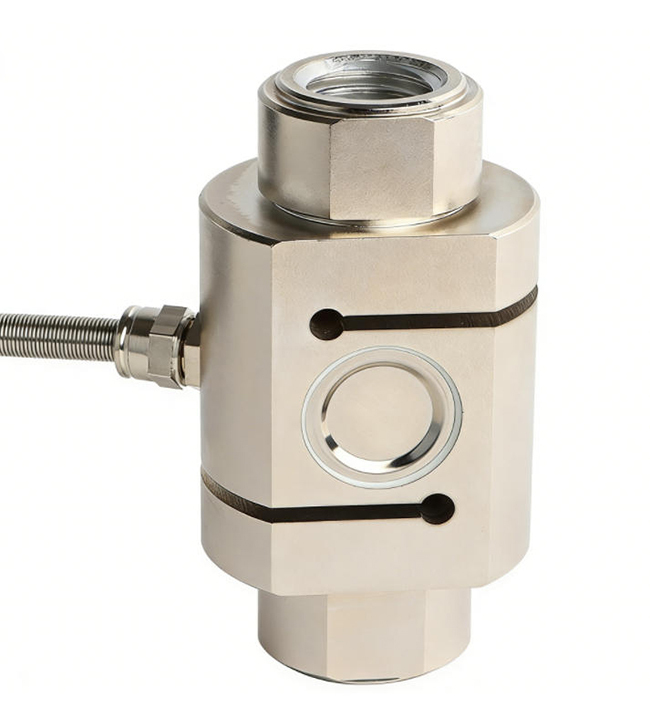

S-Type Load Cell | 100kg-20T | Tension & Compression Column Type

Name: S-Type Load Cell | 100kg-20T | Tension & Compression Column Type
Brand: GoodProx - Industrial Automation Products Online Store & Solution
SKU: GP-LC-LY101
Price: 120.15 USD
Availability: InStock
Rating: 5 (2 reviews)

GoodProx S-type column load cell supports capacities from 100kg to 20T for bidirectional tension and compression force measurement.
With high accuracy, long‑term stability and nickel‑plated alloy steel.
Heavy‑duty S beam load cell is widely used in test machines, weighing scales and automation equipment.

$120.15

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

1/1

Overview

Features

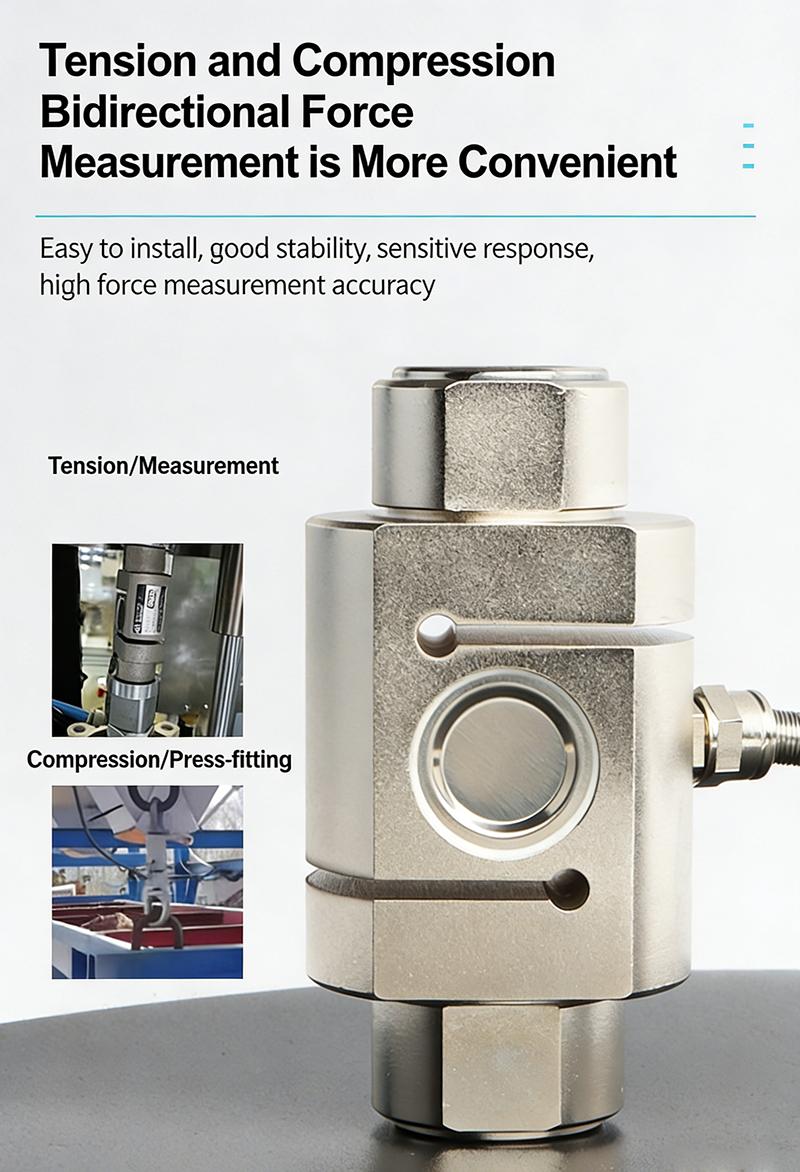

Column‑type S‑beam structure for dual tension & compression sensing.

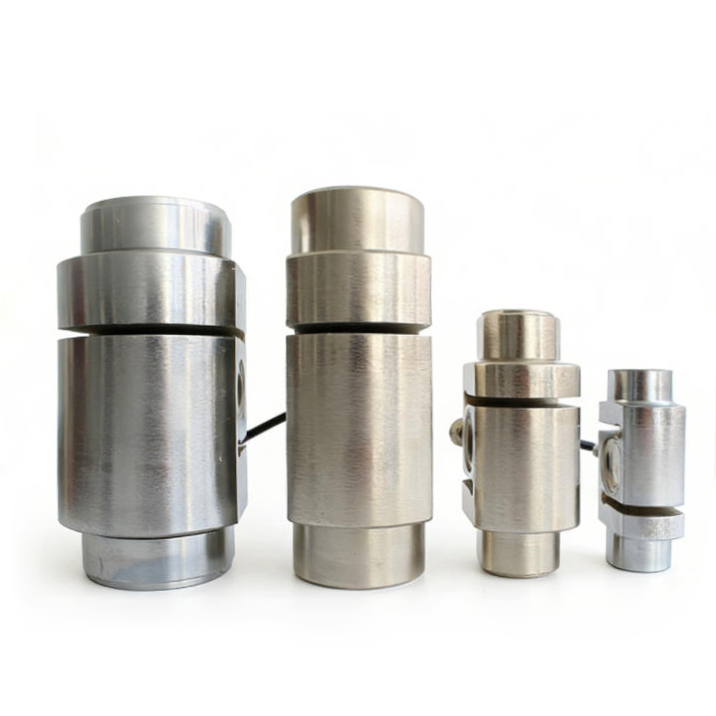

Wide capacity range: 100kg ~ 20T for heavy‑duty applications.
High comprehensive accuracy & excellent long‑term stability.
Premium alloy steel with nickel plating for durability.
Easy installation, sensitive response & high precision.
Suitable for harsh industrial working environments.

Application Overview

This S-type tension compression load cell is widely used in:

Universal material testing machines.
Hopper scales, hook scales & platform scales.
Packaging scales & belt weighing systems.
Push‑pull force testers & force measuring equipment.
Industrial automation & precision force detection.

Specification - GP-LC-LY101

Rated Capacity	100 kg ~ 20 T
Output Sensitivity	2.0±10% mV/V
Zero Output	±1% F.S.
Non-linearity	0.05% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.03% F.S.
Creep (30 min)	0.05% F.S.
Temperature Sensitivity Drift	0.05% F.S. / 10℃
Zero Temperature Drift	0.05% F.S. / 10℃
Response Frequency	10k Hz
Material	Alloy Steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	150% R.C.
Ultimate Overload	200% R.C.
Cable Specification	<2T: Φ52m >2T: Φ55m
Cable Maximum Tension	100N
TEDS	Selectable
Warranty	12 months
