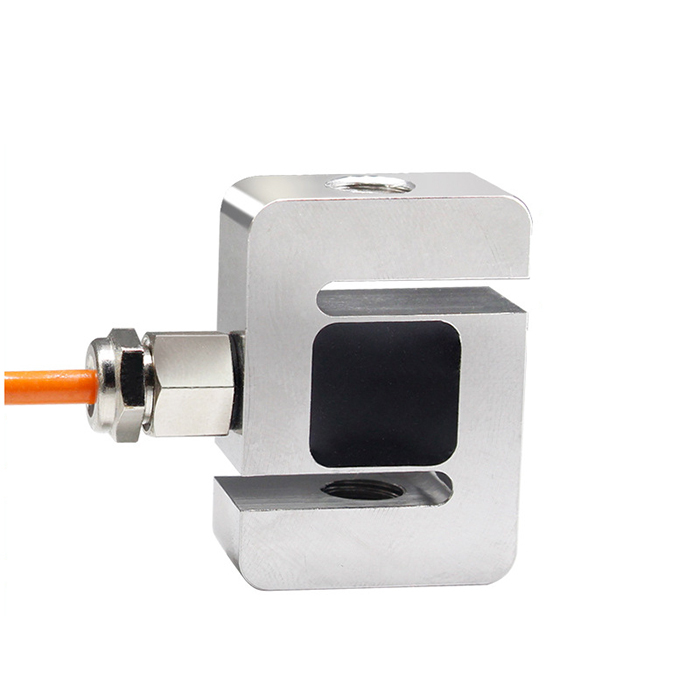

S-Type Minitype Load Cell | 1kg-10kg | High Precision

S-type load cell for tension and compression measurement.
High precision, stable, alloy steel.
For hopper scales, test machines and automation.

$122.10

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Model & Capacity:

LY107: 5kg

LY107: 10kg

LY107: 20kg

LY107: 30kg

LY107: 50kg

LY107: 100kg

LY107: 200kg

LY108: 1kg

LY108: 2kg

LY108: 3kg

LY108: 5kg

LY108: 10kg

LY108: 20kg

LY108: 50kg

LY108: 100kg

LY108: 200kg

LY109: 0.5kg

LY109: 1kg

LY109: 2kg

LY109: 5kg

LY109: 10kg

Quantity:

1/1

Overview

Overview

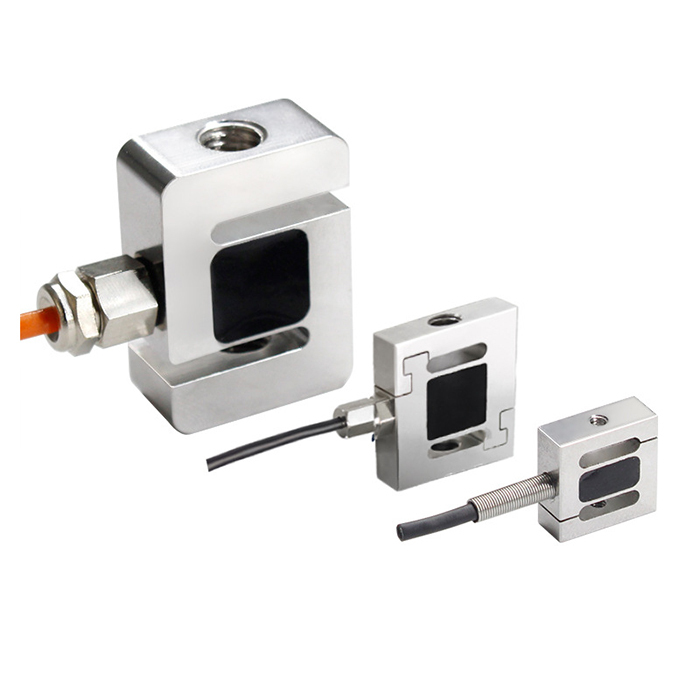

GoodProx s-type load cell GP-LC-LY7/8/9 is a high-precision S-beam load cell designed for tension and compression force measurement. It provides stable output, strong anti-interference and long service life. This tension compression sensor is widely used in hopper scales, test machines, mixing stations and industrial automation equipment.

Features

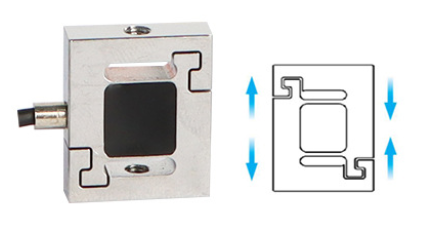

Dual Direction Measurement: Tension and compression available for S-type load cell.
High Precision: Accurate force and weighing detection.
Alloy Steel Material: Sturdy structure, high durability.
Strong Anti-Interference: Stable in complex industrial environments.
Wide Range: Multiple capacities for different applications.
Easy Installation: Standard S-type structure, convenient mounting.
Good Compatibility: Matches various displays and control systems.
Long-Term Stability: Reliable performance for continuous use.

Application Overview

This S-type miniature load cell is widely used in:

Hopper Scale: Weighing for hopper and silo systems.
Test Machine: Universal material and force test equipment.
Mixing Station: Concrete mixing weighing control.
Packaging Machine: Automatic weighing and packaging.
Tension Control: Web tension and force monitoring.
Automation Line: Industrial force and weight detection.
Elevator Safety: Load monitoring for elevator systems.
Mechanical Equipment: Force feedback and measurement.

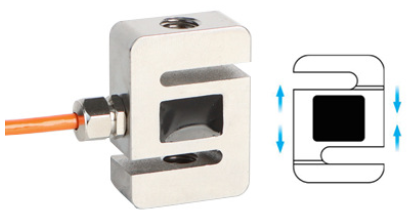

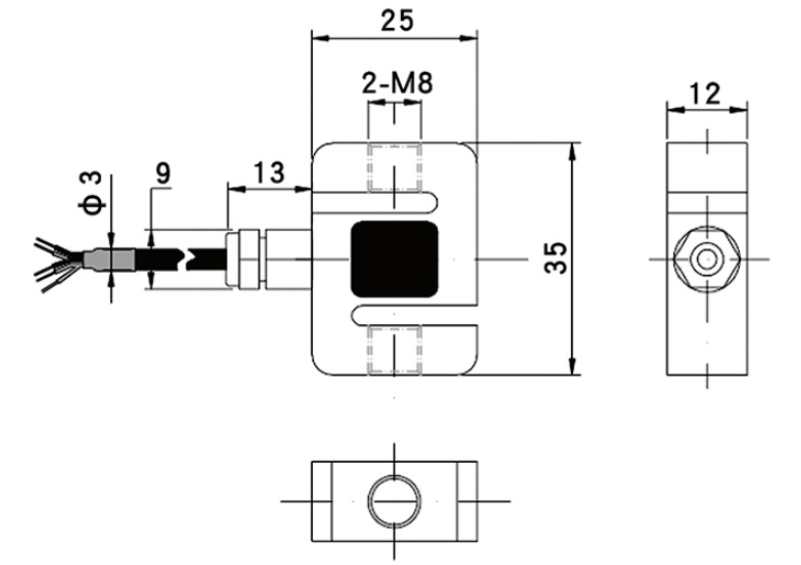

Specification - GP-LC-LY107

Model	GP-LC-LY107
Capacity	0-200kg
Output sensitivity	1.0-2.0mV/v
Zero-point output	±2%F.S.
Non-linearity	0.05%F.S.
Hysteresis	0.03%F.S.
Creep (30min)	0.03%F.S.
Temperature sensitivity	0.03%F.S.
Zero-point temperature drift	0.05%F.S./10℃
Material	Stainless Steel
Impedance	350Ω
Insulation resistance	≥5000MΩ/100VDC
Service Voltage	5-10V
Operating temperature range	-20~80℃
Safety overload	150%
Limiting overload	200%
Cable size	Φ3*2m
Warranty	18 months

Specification - GP-LC-LY108

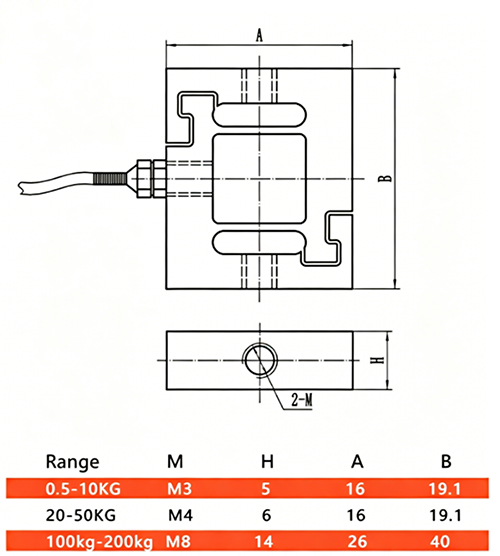

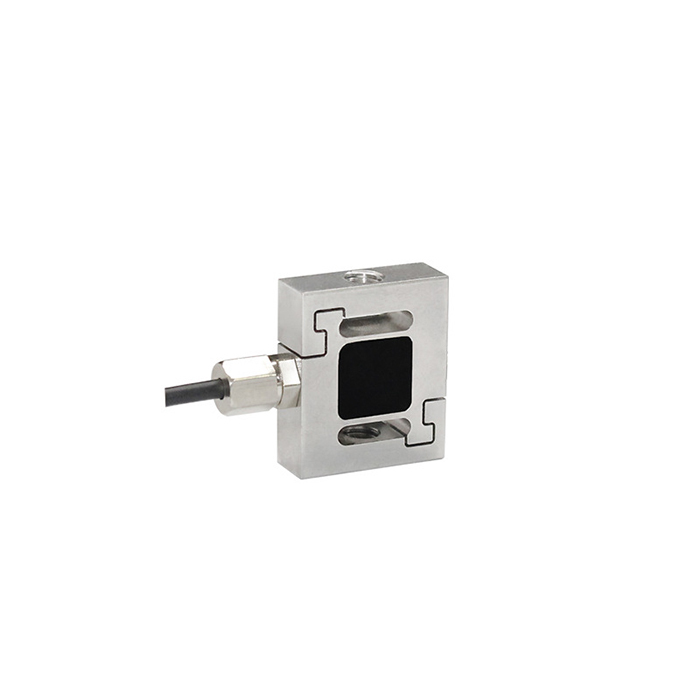

Model	GP-LC-LY108
Capacity	0-200kg
Output sensitivity	1.0-2.0mV/v
Zero-point output	±2%F.S.
Non-linearity	0.1%F.S.
Hysteresis	0.05%F.S.
Creep (30min)	0.05%F.S.
Temperature sensitivity	0.05%F.S.
Zero-point temperature drift	0.05%F.S./10℃
Material	Stainless Steel
Impedance	350Ω
Insulation resistance	≥5000MΩ/100VDC
Service Voltage	5-10V
Operating temperature range	-20~80℃
Safety overload	150%
Limiting overload	200%
Cable size	Φ2*2m
Warranty	18 months

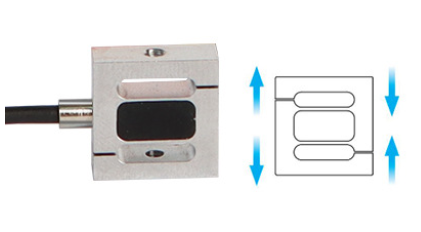

Specification - GP-LC-LY109

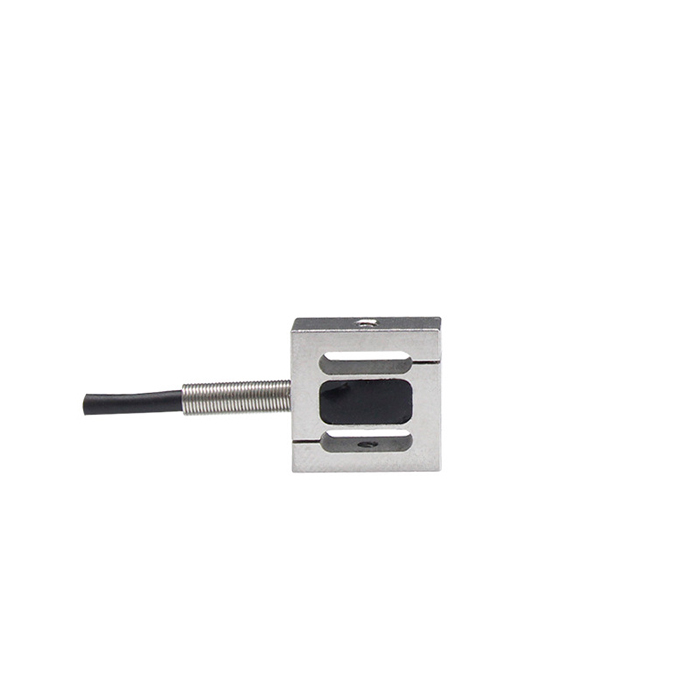

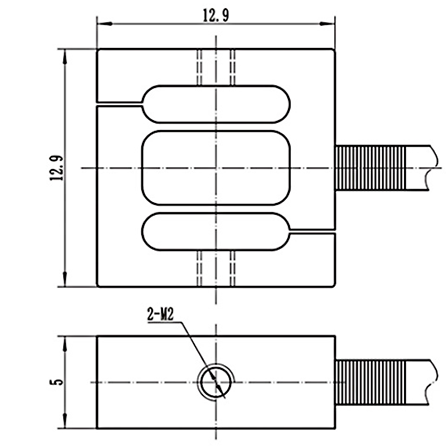

Model	GP-LC-LY109
Capacity	0-10kg
Output sensitivity	1.0-2.0mV/v
Zero-point output	±2%F.S.
Non-linearity	0.1%F.S.
Hysteresis	0.05%F.S.
Creep (30min)	0.05%F.S.
Temperature sensitivity	0.05%F.S.
Zero-point temperature drift	0.05%F.S./10℃
Material	Stainless Steel
Impedance	350Ω
Insulation resistance	≥5000MΩ/100VDC
Service Voltage	5-10V
Operating temperature range	-20~80℃
Safety overload	150%
Limiting overload	200%
Cable size	Φ2*2m
Warranty	18 months
