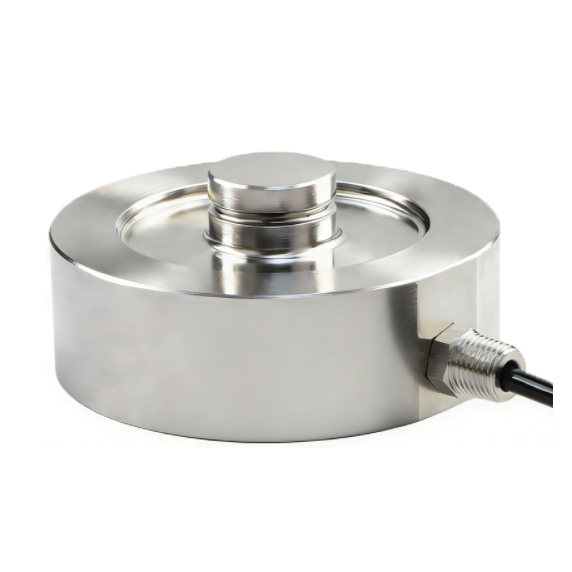

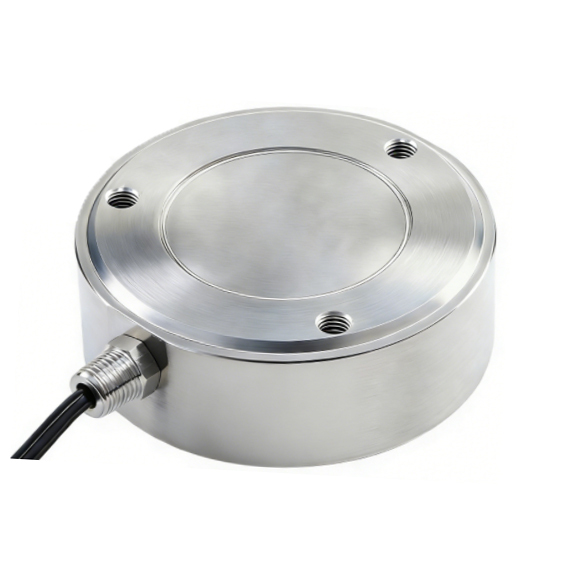

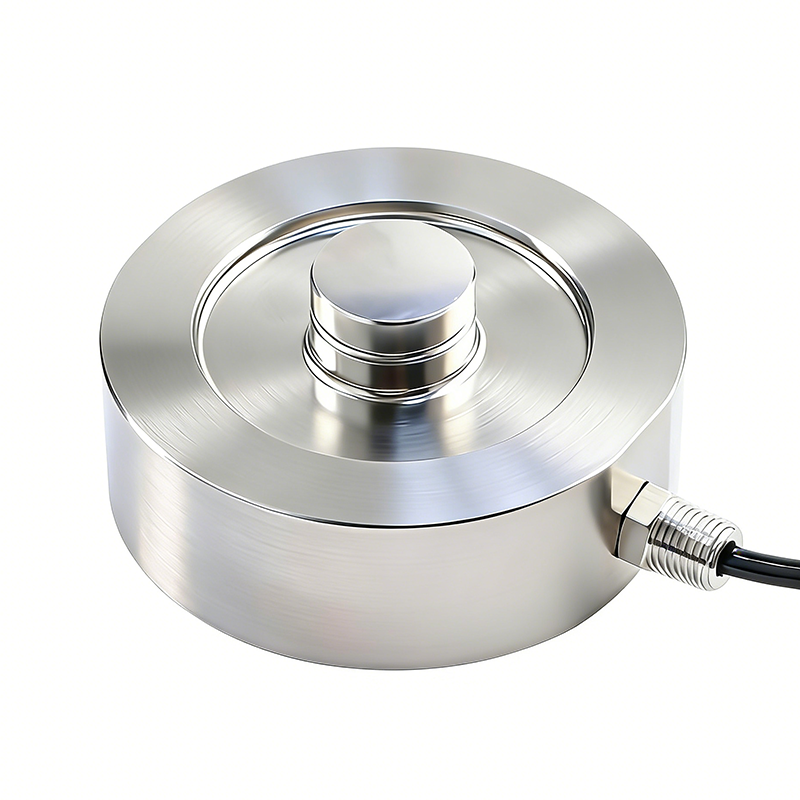

Spoke Load Cell | 0.5T-100T | Compression

SKU:
  • GoodProx spoke load cell supports 0.5T, 1T, 2.5T, 5T, 10T, 15T, 20T, 30T, 50T and 100T for precision compression force measurement.
  • Featuring a low-profile structure and small deflection.
  • Heavy-duty load cell delivers reliable performance for tank weighing, container weighing and industrial batching control systems..
$0.00 $247.69
SAVE $10.00 WITH PURCHASE OVER 1 UNITS
Get it
AUTO10
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Capacity:
    0.5T
    1T
    2.5T
    5T
    10T
    15T
    20T
    30T
    50T
    100T
Quantity:
-
+
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
1/1
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Spoke Load Cell | 0.5T-100T | Compression
  • Overview

Features

  • GoodProx compression spoke load cell max. capacity from 0.5T to 100T.
  • Low profile design with small deflection for stable force detection.
  • High-strength alloy steel construction for durability.
  • Excellent resistance to mechanical fatigue and long service life.
  • High precision output with stable performance.
  • Ideal for medium & large-scale weighing and batching control.

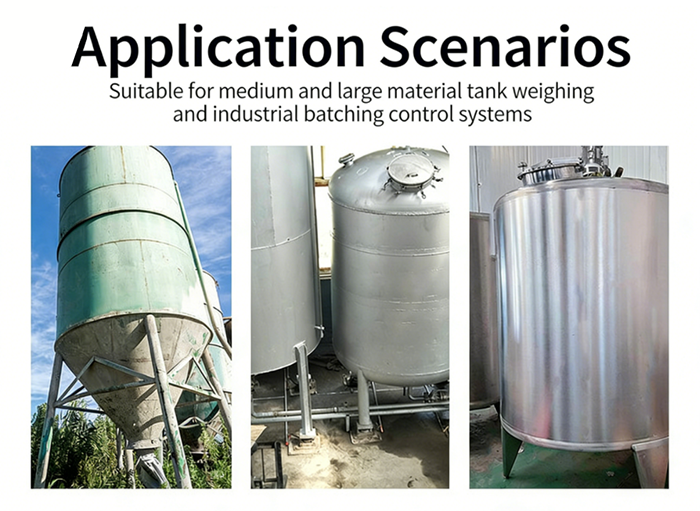

Application Overview
This spoke compression load cell 0.5T–100T is widely used in:
  • Medium & large tank weighing systems.
  • Container weighing & hopper scales.
  • Industrial batching control systems.
  • Automation equipment & force monitoring devices.
  • Heavy-duty industrial force measurement.




Specification - GP-LC-LF103S1
Rated Capacity 0.5T ~ 100T
Output Sensitivity 2.0% mV/V
Zero Output ±1% F.S.
Repeatability 0.015% F.S.
Creep (30 min) 0.03% F.S.
Temperature Sensitivity Drift 0.03% F.S. / 10
Zero Temperature Drift 0.03% F.S. / 10
Response Frequency 10k Hz
Material Alloy Steel
Impedance 766/700Ω
Insulation Resistance ≥5000MΩ/100VDC
Operating Voltage 5-15V
Operating Temperature Range -20~80
Safe Overload 150%
Cable Specification Φ6.5m
Cable Maximum Tension 100N
Warranty 18 months


*We can provide 3D models and one-on-one technical consultation. Please contact us:

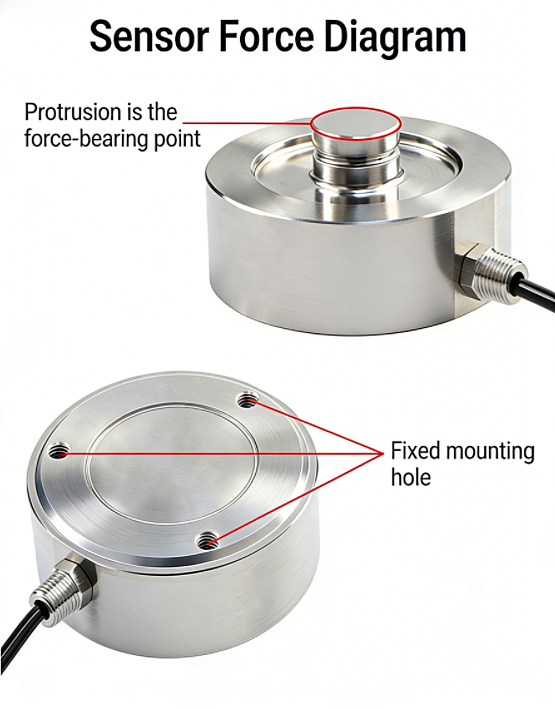

Product Details

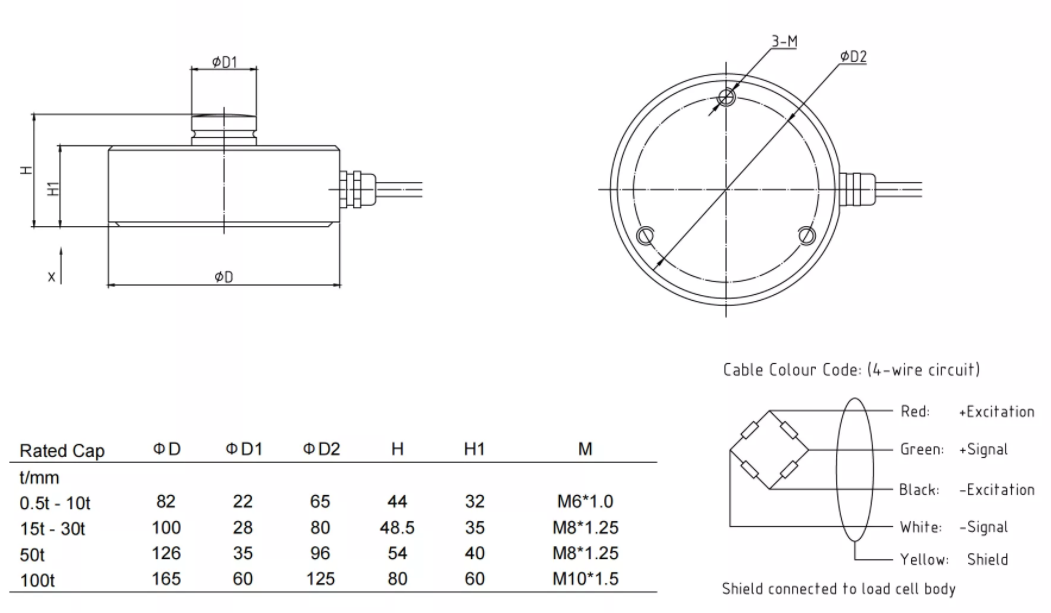

Dimensions
