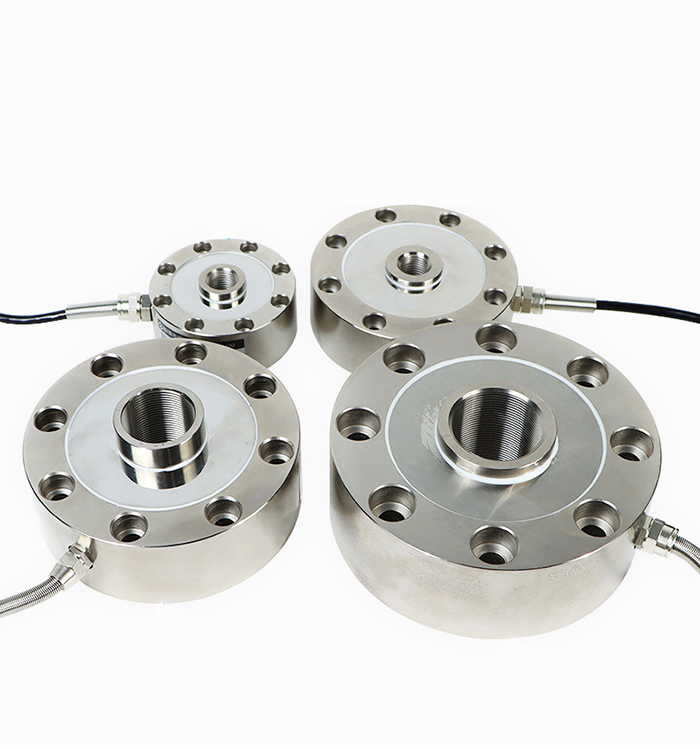

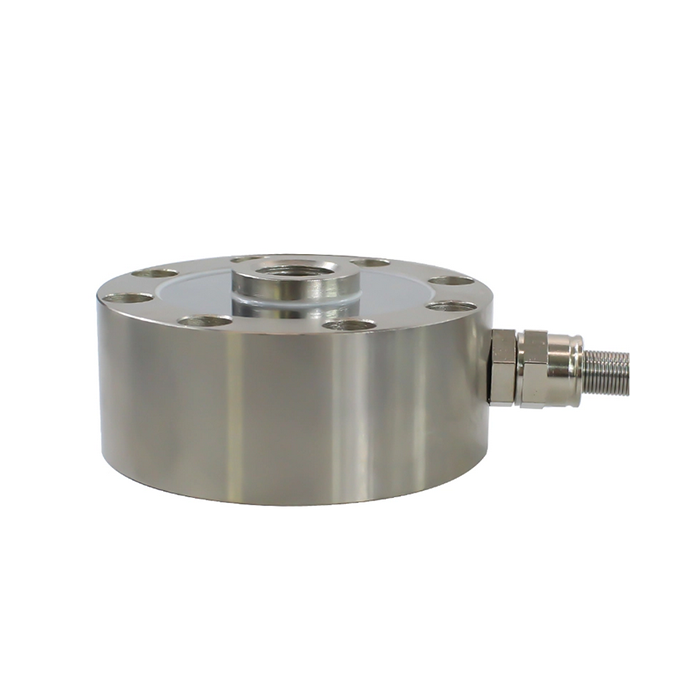

Spoke-Type Load Cell | 50kg-500T | Heavy Duty Force Sensor

SKU:
  • GoodProx spoke-type compression load cell supports an extra-wide capacity range from 50kg to 500T.
  • Built for high stability and accuracy.
  • Heavy-duty force sensor adapts to extreme working conditions and is widely used in industrial weighing, batching systems and large-scale force measurement.
$0.00 $154.76
SAVE $10.00 WITH PURCHASE OVER 1 UNITS
Get it
AUTO10
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Capacity:
    0-50kg
    0-100kg
    0-200kg
    0-300kg
    0-500kg
    0-800kg
    0-1T
    0-5T
    0-10T
    0-50T
    0-100T
    0-200T
    0-500T
Quantity:
-
+
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
1/1
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Compression Load Cell | 50kg-500T | Spoke-Type
  • Overview

Features

  • Spoke-type structure for reliable compression force measurement
  • Ultra-wide capacity: 50kg ~ 500T to meet all heavy-duty needs
  • High accuracy, low hysteresis and excellent long-term stability
  • Stable anti-interference signal for harsh industrial environments
  • High-strength alloy steel for durability & fatigue resistance
  • Simple installation, lightweight and easy to integrate
  • Adapts to extreme working conditions



Application Overview
This spoke-type compression load cell is widely used in:
  • Tank & hopper weighing systems.
  • Industrial batching & packaging scales.
  • Filling scales & electronic belt scales.
  • Large-scale force monitoring equipment.
  • Heavy-duty industrial automation & testing machines.




Specification - GP-LC-LF102
Rated Capacity 50 kg ~ 500 T
Output Sensitivity 2.0±10% mV/V
Zero Output ±1% F.S.
Non-linearity 0.05% F.S.
Hysteresis 0.05% F.S.
Repeatability 0.03% F.S.
Creep (30 min) 0.03% F.S.
Temperature Sensitivity Drift 0.03% F.S. / 10
Zero Temperature Drift 0.03% F.S. / 10
Response Frequency 1k Hz
Material Alloy Steel
Impedance 20-100kg: 700/1400Ω
1-30T: 700Ω
50T: 700Ω
Insulation Resistance ≥5000MΩ/100VDC
Operating Voltage 5-15V
Operating Temperature Range -20~80
Safe Overload 150%

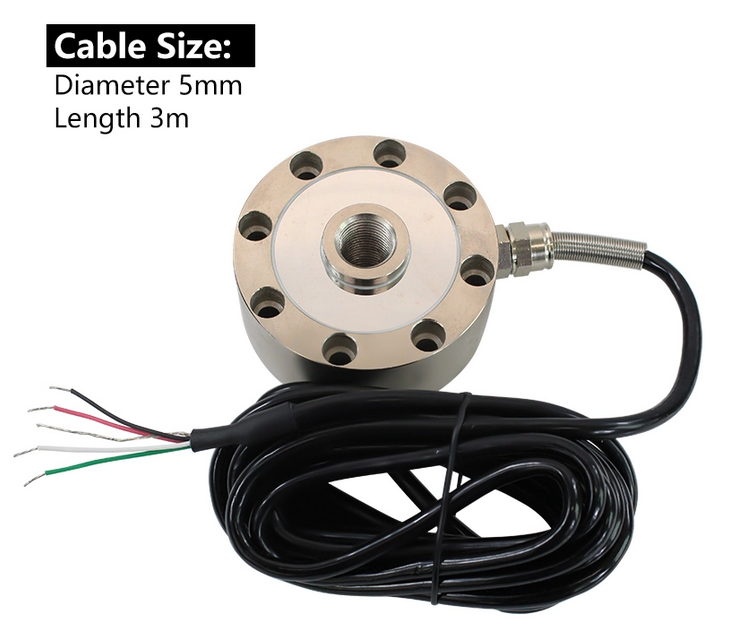

Cable Specification Φ5*3m
Cable Maximum Tension 100N
Warranty 18 months


*We can provide 3D models and one-on-one technical consultation. Please contact us:

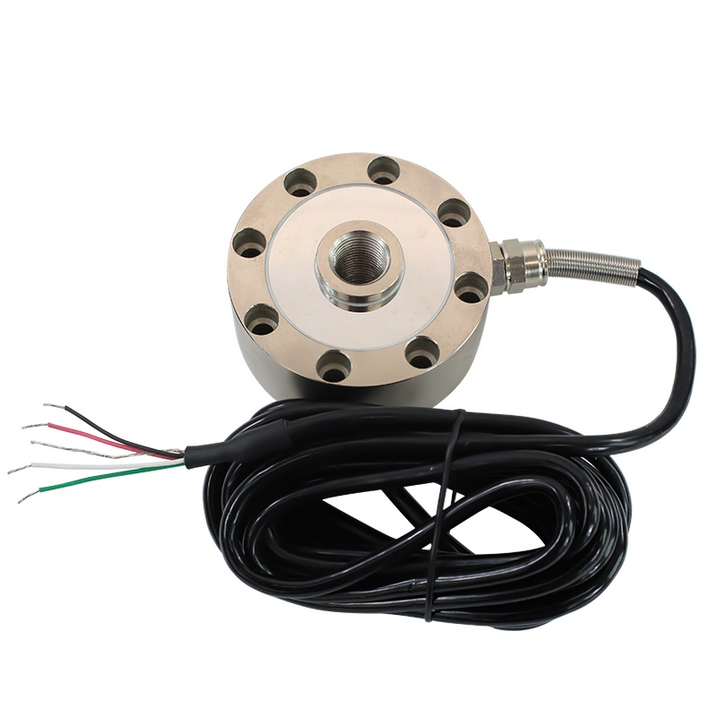

Product Details

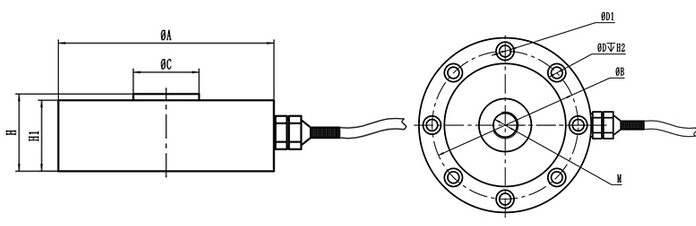

Dimensions




Capacity ΦA ΦB ΦC M H H1 H2 ΦD ΦD1
30kg-1000kg 74 63 24 M16*1.5 34 30 7.2 8-Φ9 8-Φ6
1T-5T 105 89 29 M16*1.5 37 34 7.2 8-Φ11 8-Φ7
10T-20T 120.6 101.8 39 M32*1.5 53.5 41 10.5 8-Φ14 8-Φ9
30T 141 116.8 50.4 M40*1.5 57.2 50.8 11 8-Φ18 8-Φ11
50T-80T 208 174 95 M65*3 70 / 15 16-Φ20 16-Φ13
100T-200T 280 230 136 M76*3 90 / 20 16-Φ30 16-Φ13
300T 360 300 190 M100*3 110 / 20 20-Φ40 20-Φ25
500T 420 370 266 M130*4 140 / 30 20-Φ40 20-Φ28
