Weighing applications are everywhere in industrial production and daily life. But with so many different load cells available, choosing the right one can be confusing.
Many engineers and customers ask: How to choose a load cell? Which one has better accuracy? Don’t worry. Today GoodProx will explain them clearly based on their structure and shape, so you can pick the most suitable weighing load cell.
The most commonly used load cells include single-point load cells, bellows load cells, S-type load cells, cantilever beam load cells, bridge load cells, and spoke load cells. Each has its own advantages and is used in different scenarios.
Single-Point Load Cell
If you need high-precision weighing, a single-point load cell is a great choice. It is widely used in high-precision electronic scales, floor scales, and small packaging machines for items from a few hundred grams to several kilograms. It provides stable weighing accuracy and meets various precise weighing requirements. |
 |

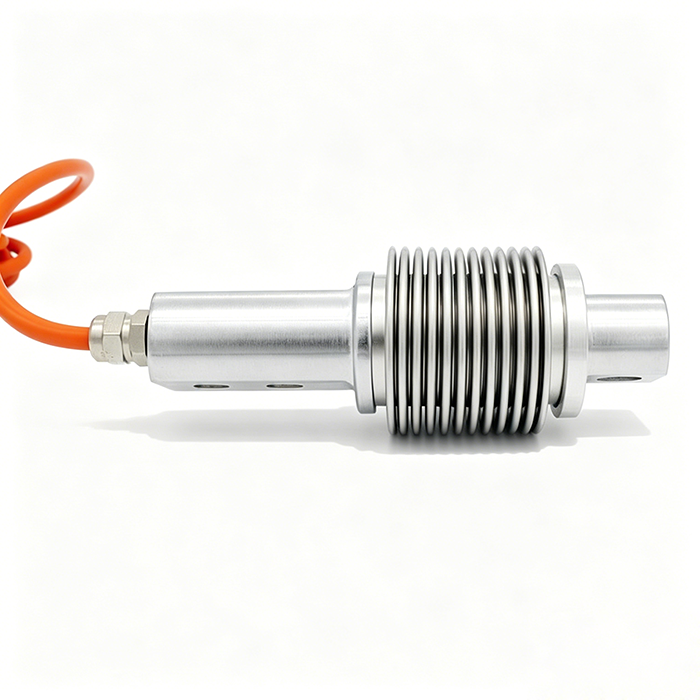

Bellows Load Cell
Bellows load cells are designed for small silos and batching tanks. Their special structure ensures high weighing accuracy, with a measuring range from 10kg to 500kg. They are ideal for high-precision batching applications, ensuring accurate dosing and reliable production quality.
|
 |

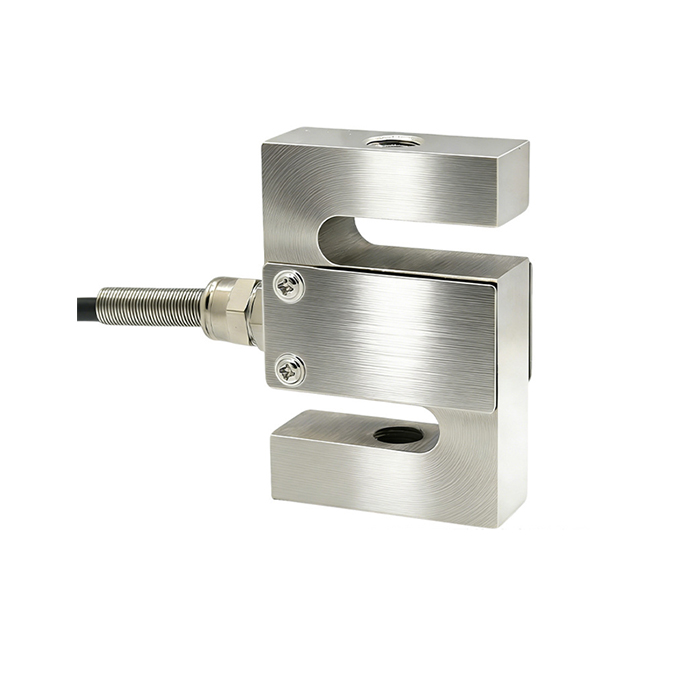

S-Type Load Cell
S-type load cells perform well in tension and compression force testing. They can accurately measure destructive force and impact force. With high measurement accuracy, they are widely used in various mechanical testing scenarios for reliable data collection.
|
 |

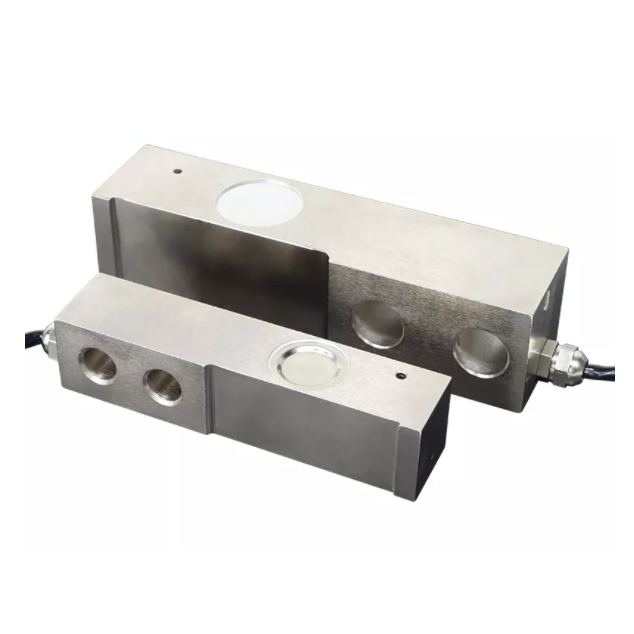

Cantilever Beam Load Cell
Cantilever beam load cells have a very wide range of applications. They are commonly used in various weighing modules, such as material weighing and small bulk weighing. They support a large measuring range from several hundred kilograms to more than 20 tons, with weighing accuracy up to Class C3, making them stable and dependable.
|
 |

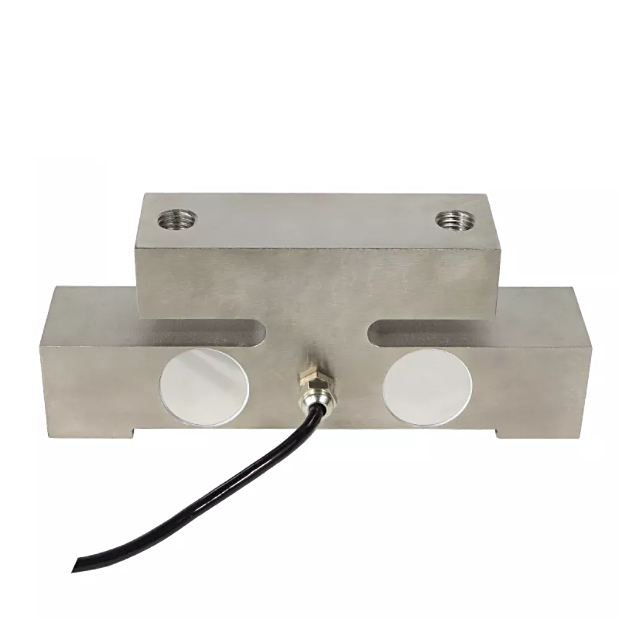

Bridge Load Cell
Bridge load cells are the standard choice for truck scales and large weighbridges. They are affordable with excellent cost performance and high weighing accuracy. After digital upgrading, their accuracy is further improved, providing strong support for bulk cargo weighing.
|
 |

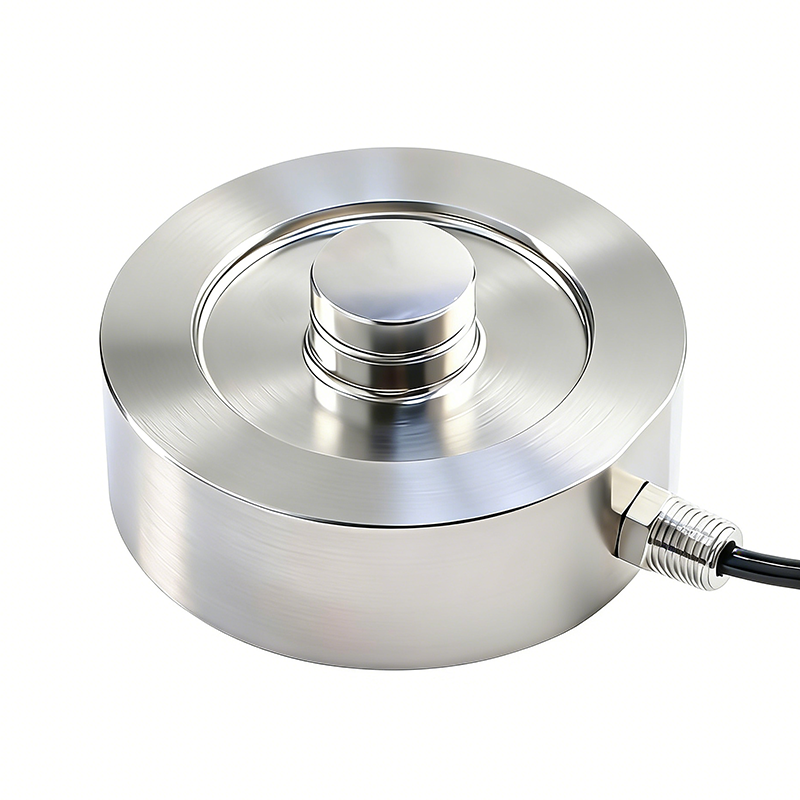

Spoke Load Cell
While spoke load cells are not as accurate as bridge or cantilever beam load cells, they perform well in special applications. They are suitable for bearing weighing and special vehicle weighing. They usually meet Class C1 or C2 standards and satisfy basic weighing requirements in special environments.
|
 |
Now you should have a clearer idea of how to choose a load cell. If you still have questions or need professional load cell selection advice, feel free to contact us. We will help you find the most suitable load cell for efficient and accurate weighing.
