OVERVIEW

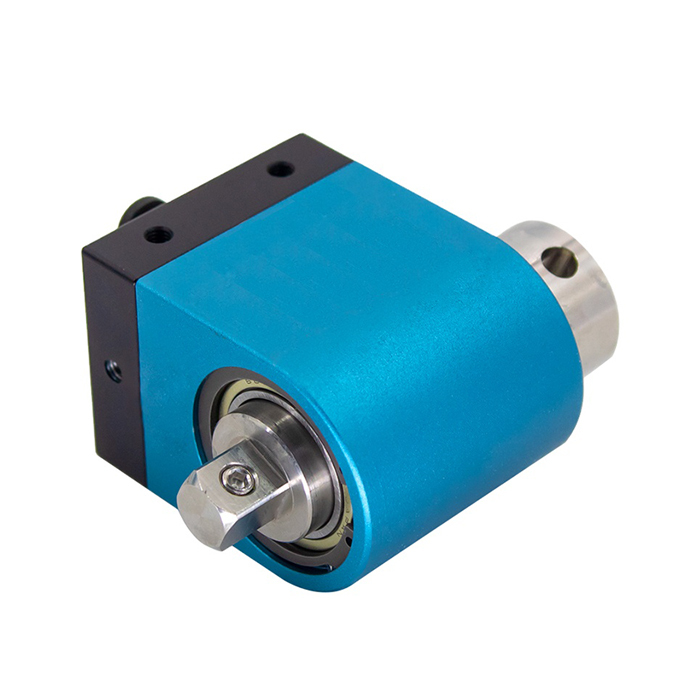

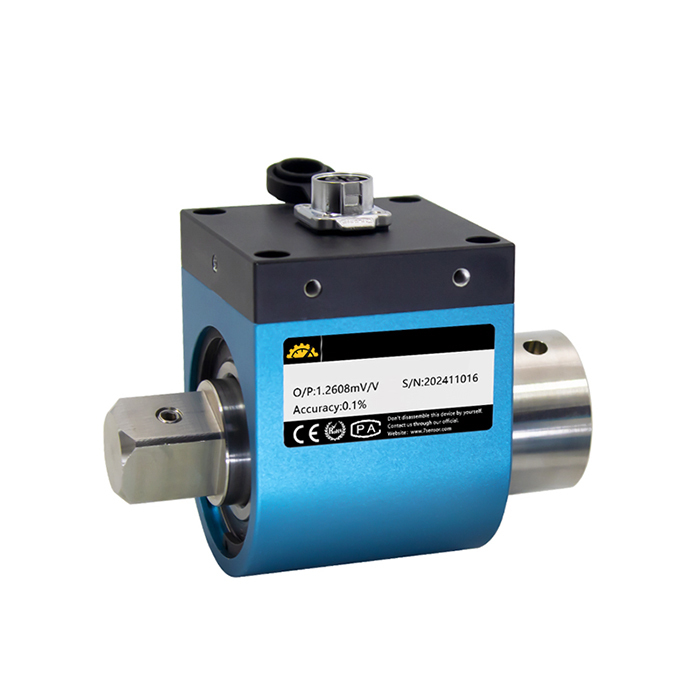

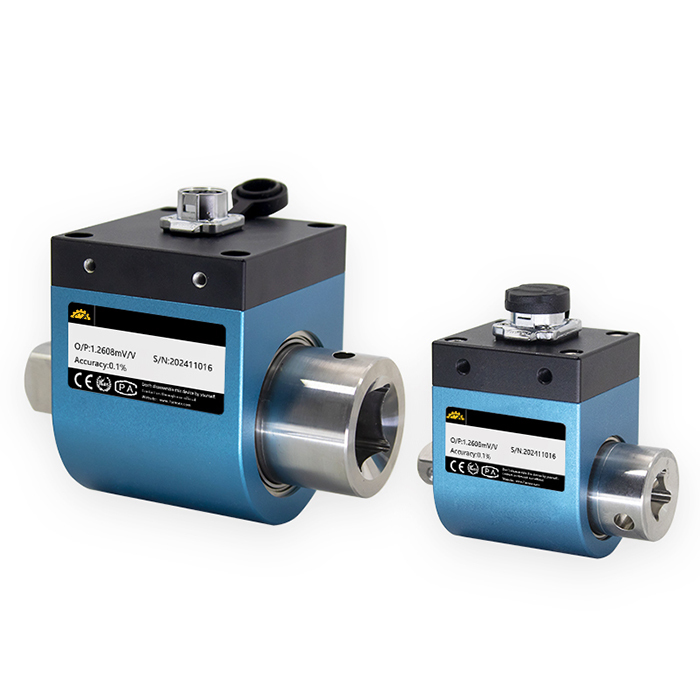

GoodProx dynamic torque sensor GP-TS-N203 supports both static torque and rotary torque measurement. It features high precision, stable performance, long-time high-speed running and bidirectional torque output. This industrial torque transducer is widely used in motor testing, torque wrench calibration, gearbox detection and automation equipment.
FEATURES
- Dual Measurement: Measures static torque and rotary torque.
- High Precision: 0.2% FS nonlinearity, hysteresis and repeatability.
- Stable Performance: Reliable long-term operation.
- High Speed Running: Supports long-time high-speed work.
- Bidirectional Output: Outputs forward and reverse torque signals.
- Torque Wrench Detection: Special for wrench testing.
- Speed Limit: Max speed ≤3000rpm.
- Alloy Steel Material: Strong and durable.
Specification - GP-TS-N203
|
Model
|
GP-TS-N203
|
|
Range
|
0-50Nm: 1Nm, 2Nm, 5Nm, 10Nm, 20Nm, 30Nm, 50Nm.
0-500Nm: 100Nm, 200Nm, 300Nm, 500Nm.
0-3,000Nm: 1,000Nm, 3,000Nm.
|
|
Speed Range
|
≤3000rpm
|
|
Torque Signal
|
<2.0mv/V
|
|
No-linear
|
0.1%F.S.
|
|
Hysteresis
|
0.5%F.S.
|
|
Repeatability
|
0.05%F.S.
|
|
Creep (30min)
|
0.05%F.S.
|
|
Temp Effect on Output
|
0.05%F.S./10℃
|
|
Temp Effect Zero
|
0.05%F.S./10℃
|
|
Response Time
|
1.0ms (50% reaction)
|
|
Response Frequency
|
1kHz
|
|
Maximum Torsion Angle
|
2.6*10rad (0.149°)
|
|
Inertia Moment
|
0.38kgcm
|
|
Natural Frequency of Rotor Vibration
|
19.4kHz
|
|
Torsional Constant
|
3.85*10Nm/rad
|
|
Material
|
Stainless steel
|
|
Annual Stability
|
0.3%/year
|
|
Load Resistance
|
>2kΩ
|
|
Power Supply
|
DC 5-15V
|
|
Consumption of Current
|
<150mA
|
|
Work Environment
|
-20-70℃ 0-85%RH
|
|
Safe Overload
|
200%
|
|
Cable Line Specifications
|
Φ5*3m
|
|
Cable Ultimate Pull
|
10kg
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

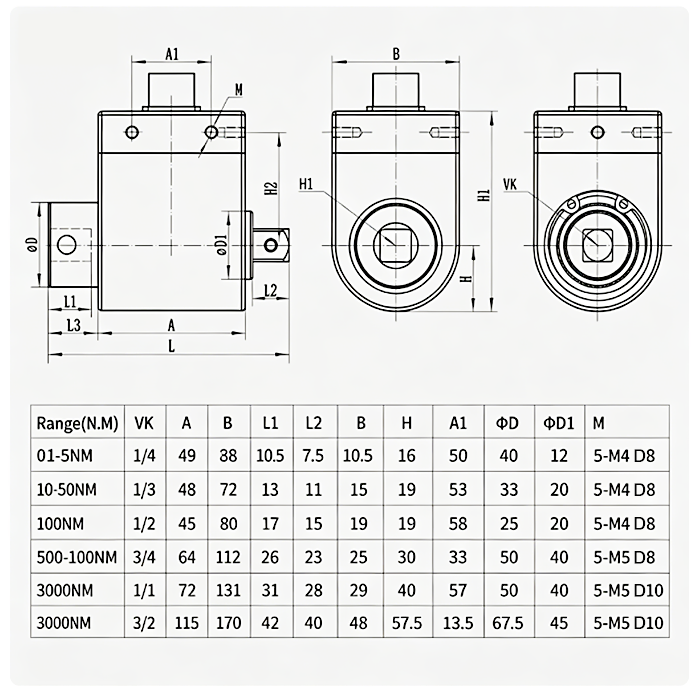

DIMENSIONS

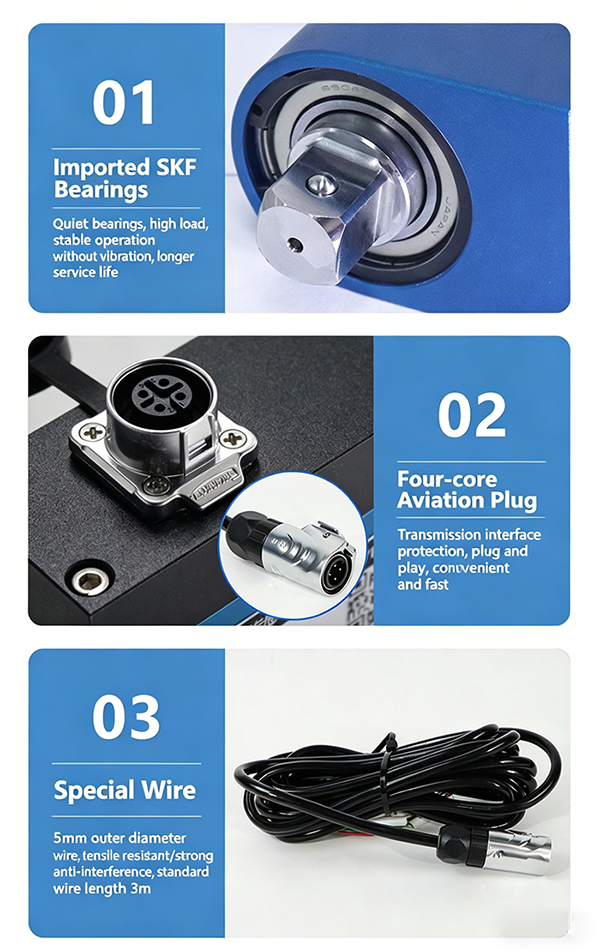

DETAILS
APPLICATION
- Torque Wrench Test: Calibration and detection of torque wrenches.
- Motor Testing: Servo and gear motor torque measurement.
- Gearbox System: Reducer and gearbox performance test.
- Static Torque Test: Non-rotating torque detection.
- Rotary Torque Test: Dynamic rotating torque monitoring.
- Industrial Equipment: Automation machinery torque test.
- Assembly Line: Assembly torque detection and control.

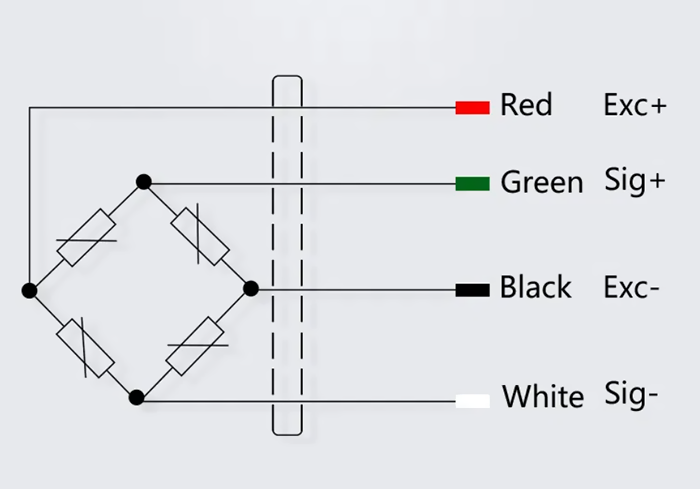

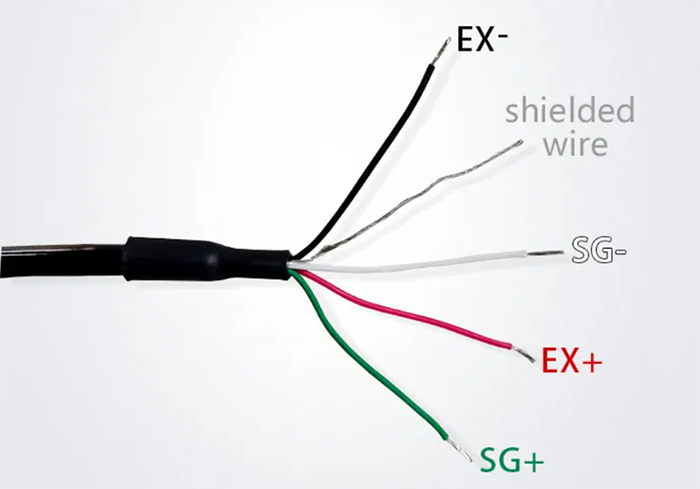

CABLE CONNECTION

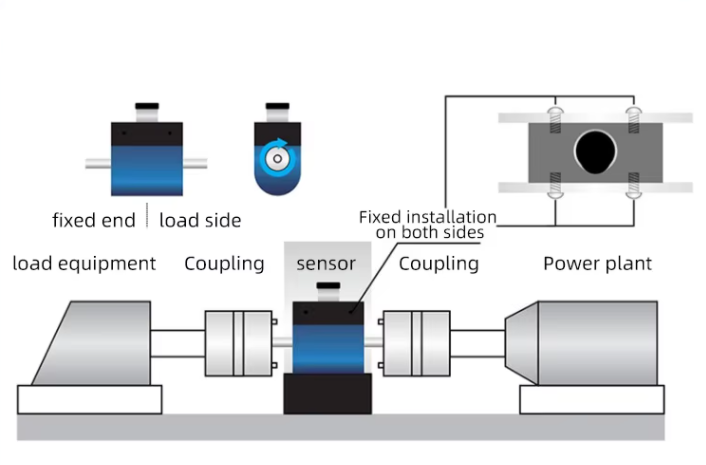

INSTALLATION
Why Choose GoodProx torque sensor GP-TS-N203?
- Measures both static and rotary torque in one sensor.
- High precision ensures accurate test data.
- Stable performance for long-time industrial use.
- Supports forward and reverse torque output.
- Specially designed for torque wrench detection.
- Alloy steel structure ensures durability.
