OVERVIEW

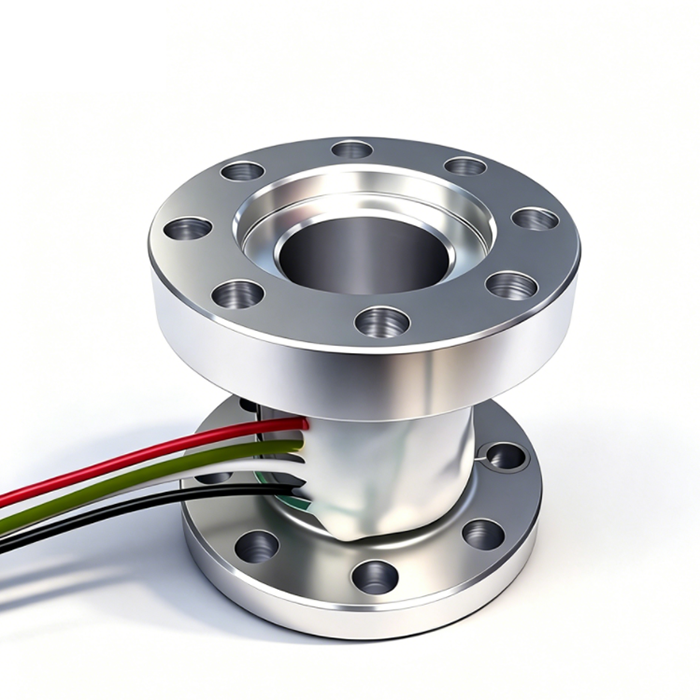

GoodProx static torque sensor is a high‑performance torque load cell designed for accurate static torque measurement. It offers standard ranges of 5Nm, 10Nm, 20Nm, 30Nm to meet different testing demands. Made of stainless steel with IP65 protection, it ensures durability and stability in industrial environments. Supporting both flange mount and pin mount, this static torque sensor is widely used in torque testing, assembly verification, laboratory research, and automation equipment.
FEATURES
- Multiple Measuring Ranges: Supports 5Nm, 10Nm, 20Nm, 30Nm torque detection.
- High Precision Performance: Non‑linearity ≤±0.1%F.S., high accuracy.
- Stainless Steel Material: Rugged, anti‑corrosion, long service life.

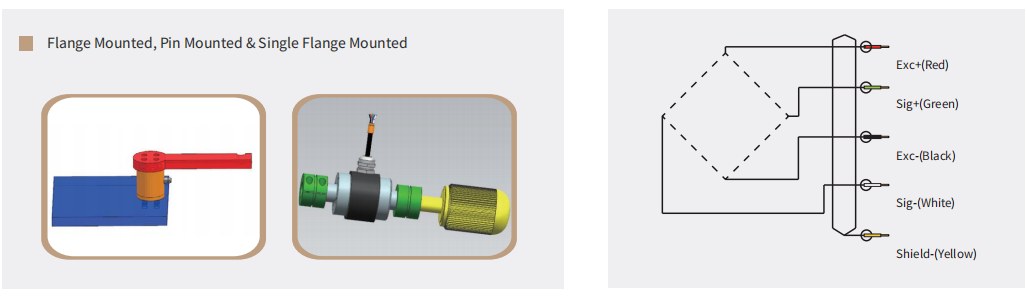

- Flexible Installation: Flange mount and pin mount available.
- IP65 Protection: Dust‑proof and splash‑proof for harsh environments.
- Stable Output: Low drift, good repeatability and creep resistance.
Specification - GP-TS-32F
|
Model
|
GP-TS-32F
|
|
Capacity
|
0~5, 10, 20, 30Nm
|
|
Material
|
Stainless Steel
|
|
Rated Output
|
1.0±2% mV/V
|
|
Zero Balance
|
±2%F.S.
|
|
Non-linearity
|
±0.1%F.S.
|
|
Hysteresis
|
±0.1%F.S.
|
|
Repeatability
|
±0.1%F.S.
|
|
Creep (30min)
|
±0.05%F.S.
|
|
Temp.Effect on Output
|
±0.05%F.S./10℃
|
|
Temp.Effect on Zero
|
±0.05%F.S./10℃
|
|
Input Impedance
|
750±10Ω
|
|
Output Impedance
|
700±10Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended Excitation
|
5-10V
|
|
Operating Temp.Range
|
-20~80℃
|
|
Compensated Temp. Range
|
-10~60℃
|
|
Safe Overload
|
150%
|
|
Maximum Overload
|
200%
|
|
Cable Size
|
Φ5*3m
|
|
Protection Class
|
IP65
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

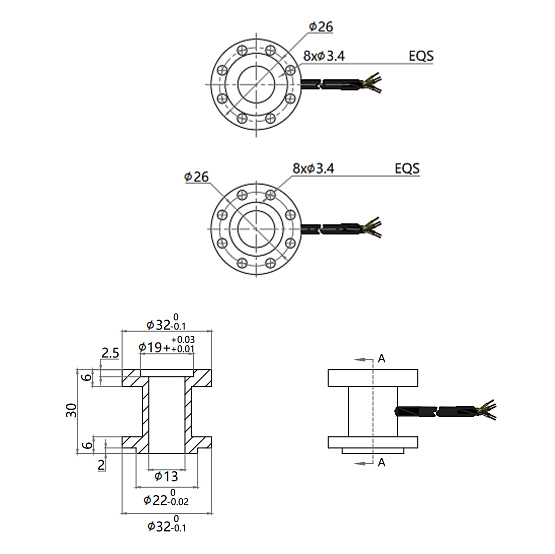

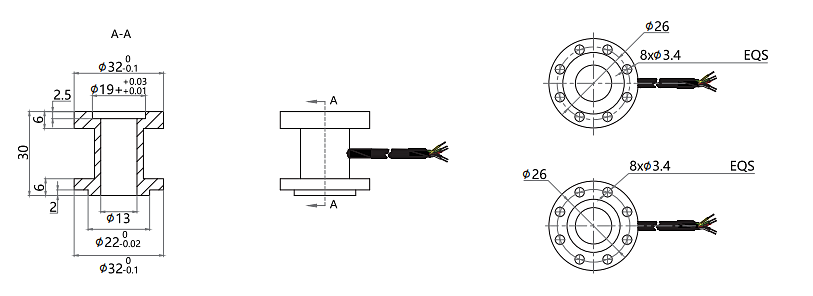

DIMENSIONS
APPLICATION
- Static Torque Testing: For static torsion detection in machines.
- Assembly & Tool Test: Torque verification for tools and assembly lines.
- Industrial Monitoring: Real‑time torque measurement in automation equipment.
- Laboratory Test: Precision torque analysis in R&D and quality control.
- Robot & Machinery: Torque feedback for robotic joints and actuators.
|
Why Choose GoodProx torque sensor GP-TS-32F?
- Professional static torque sensor with calibrated high precision.
- Complete 5/10/20/30Nm ranges for flexible selection.
- Stainless steel body and IP65 protection for long life.
- Dual installation modes fit various equipment structures.
- Stable signal, low temperature drift, strong anti‑interference.
- Cost‑effective for industrial and laboratory torque testing.
