OVERVIEW

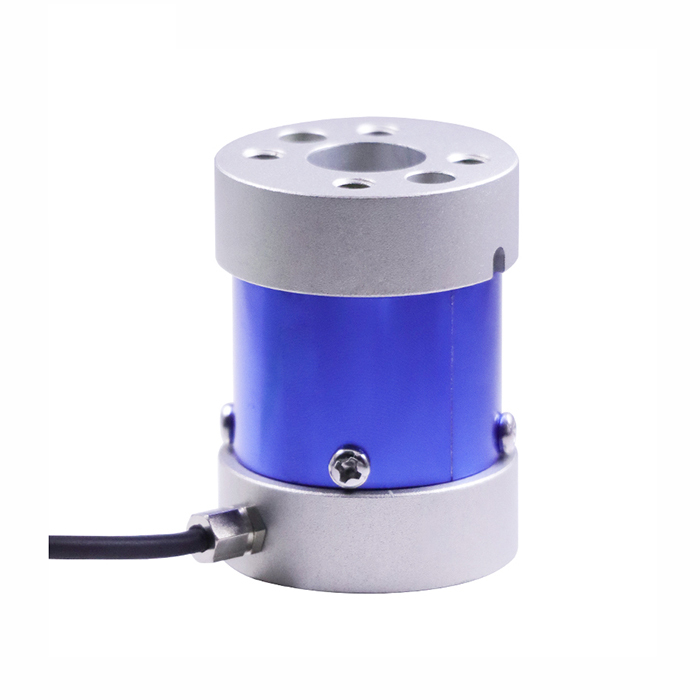

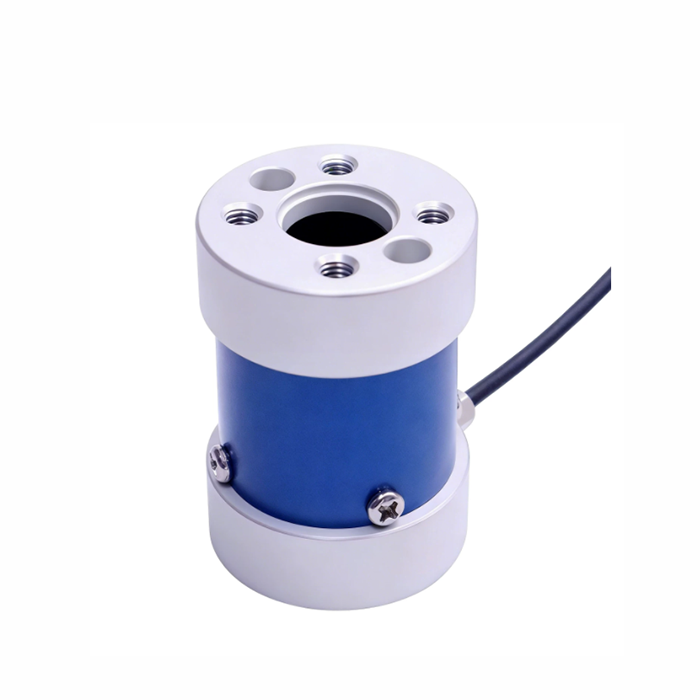

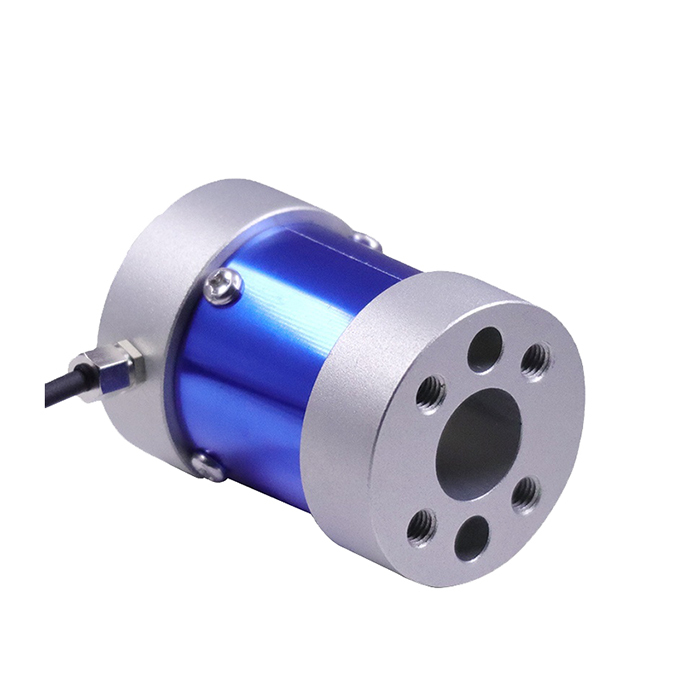

GoodProx static torque sensor GP-TS-N104 is a high-precision reaction torque transducer designed for static and non-continuous rotation torque measurement. With high accuracy, IP65 protection, strong anti-interference and compact structure, this reaction torque transducer is widely used in testing machines, torque wrenches, valves, steering gears and industrial static torque test systems.
FEATURES
- High Precision: 0.05% FS nonlinearity, hysteresis and repeatability.
- Static Measurement: For static & non-continuous rotation torque.
- IP65 Protection: Dustproof and splash-proof for harsh environments.
- Strong Anti-Interference: Stable signal in complex conditions.
- Compact Structure: Small size, lightweight, easy installation.
- Customizable: Non-standard customization available.
- Wide Compatibility: Support 4-20mA/0-5V/0-10V output with transmitter.
- High Stability: Low temperature drift, long-term reliability.
Specification - GP-TS-N104
|
Model
|
GP-TS-N104
|
|
Range
|
0.5Nm, 1Nm, 2Nm, 3Nm, 5Nm, 6Nm.
10Nm, 20Nm, 30Nm, 50Nm.
100Nm, 150Nm.
|
|
No-linear
|
0.05%F.S.
|
|
Hysteresis
|
0.05%F.S.
|
|
Repeatability
|
0.05%F.S.
|
|
Zero Point Output
|
±2%F.S.
|
|
Creep (30 min)
|
0.05%F.S.
|
|
Coupling Accuracy
|
0.05%F.S./10℃
|
|
Zero Temperature Drift
|
0.05%F.S./10℃
|
|
Response Frequency
|
1kHz
|
|
Impedance
|
350Ω
|
|
Insulation Resistance
|
≥ 5000MΩ/100V DC
|
|
Working Power
|
5-15V
|
|
Material
|
Alloy steel, Aluminum alloy
|
|
Operating Temperature Range
|
-20-80℃
|
|
Safety Overload
|
150%R.C.
|
|
Exteme Overload
|
200%R.C.
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

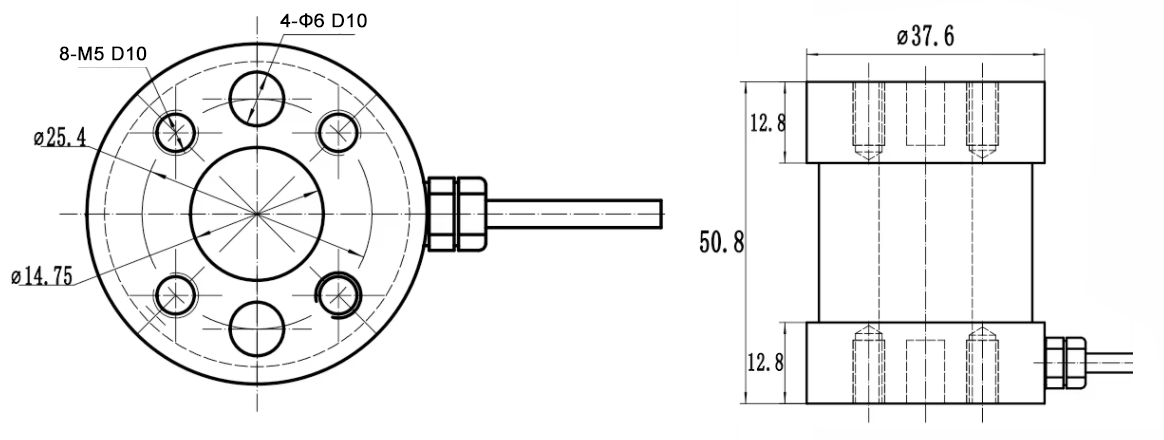

DIMENSIONS
DETAILS
- High testing accuracy and good long-term stability.
- Wide range, good sealing structure.
- Stable and reliable performance, easy to install and use.
- Aluminum material is used for torque sensor, the sensor light weight, silicone seal, long-term corrosion resistance. Solid structure, long life, stability, repeatability, small volume.
|

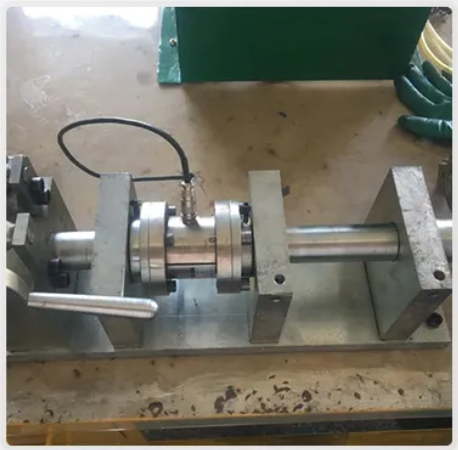

APPLICATION
- Testing Machines: Universal material test equipment
- Torque Wrenches: Precision torque calibration & test
- Valve & Actuator: Valve torque detection & control
- Steering Gear: Automotive steering system test
- Transmission System: Gearbox static torque measurement
- Automation Equipment: Assembly torque monitoring
- Industrial Test: Static torque detection systems
|
 |
Why Choose GoodProx torque sensor GP-TS-N104?
- Professional GP-TS-N104 static torque sensor for high-precision measurement.
- Ultra-high accuracy ensures reliable test data.
- IP65 rating adapts to various working environments.
- Compact design fits limited installation space.
- Strong anti-interference for stable signal output.
- Customizable to meet special application needs.
