OVERVIEW

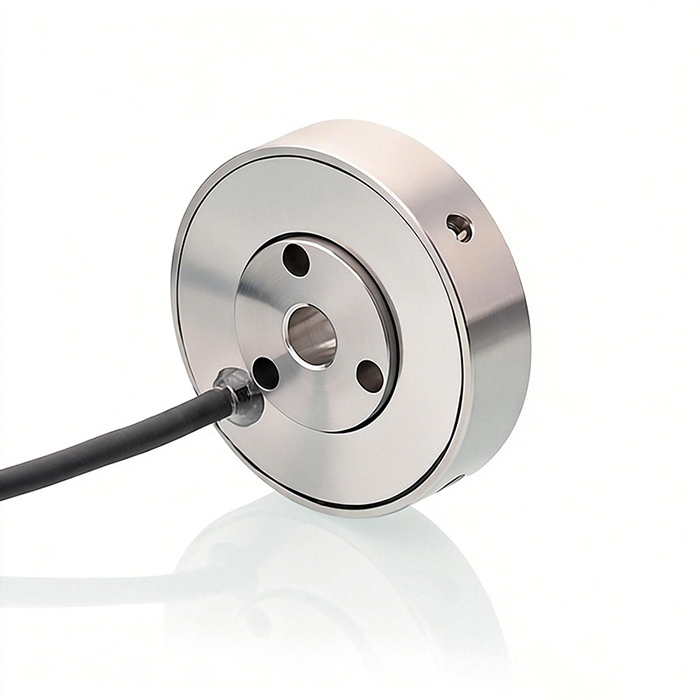

GoodProx static torque sensor is a high‑precision measuring device with ±0.1% F.S. accuracy. It provides standard measuring ranges from 0.5Nm to 10Nm to meet various testing requirements. With stable output, low drift, and compact structure, this high precision torque sensor integrates easily into automated equipment, assembly lines, and laboratory systems. It ensures reliable and consistent static torque measurement for industrial and scientific applications.
FEATURES
- High Precision: Accuracy up to ±0.1% F.S. for accurate measurement.
- Multiple Ranges: Supports 0.5Nm, 1Nm, 2Nm, 3Nm, 5Nm, 10Nm.
- Stable Performance: Low drift, excellent repeatability and hysteresis control.
- Compact Structure: Small size, easy integration into various devices.
- Wide Compatibility: Suitable for industrial test and laboratory equipment.
- Long Service Life: Rugged design for continuous long‑term use.
Specification - GP-TS-LT12
|
Model
|
GP-TS-LT12
|
|
Capacity
|
0~0.5, 1, 2, 3, 5, 10Nm
|
|
Material
|
Aluminium / Stainless Steel
|
|
Rated Output
|
2.0±10% mV/V
|
|
Zero Balance
|
±2%F.S.
|
|
Non-linearity
|
±0.1%F.S.
|
|
Hysteresis
|
±0.1%F.S.
|
|
Repeatability
|
±0.1%F.S.
|
|
Creep (30min)
|
±0.1%F.S.
|
|
Temp.Effect on Output
|
±0.1%F.S./10℃
|
|
Temp.Effect on Zero
|
±0.1%F.S./10℃
|
|
Input Impedance
|
4100±10Ω
|
|
Output Impedance
|
350±10Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended Excitation
|
5V
|
|
Operating Temp.Range
|
-20~80℃
|
|
Compensated Temp. Range
|
-10~60℃
|
|
Safe Overload
|
150%
|
|
Maximum Overload
|
200%
|
|
Cable Size
|
Φ2*3m
|
|
Protection Class
|
IP64
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

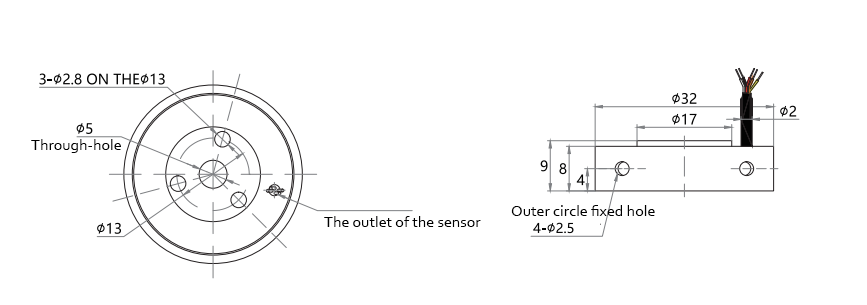

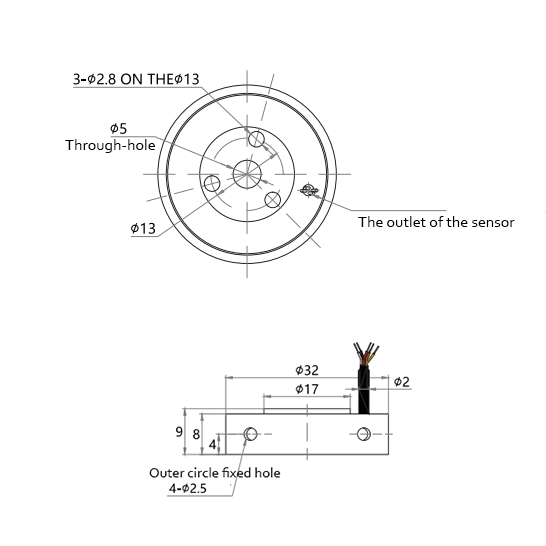

DIMENSIONS
APPLICATION
- Static Torque Testing: Precision static torsion measurement for machines.
- Assembly Line Tools: Torque calibration and verification for tools.
- Laboratory Research: R&D and quality control torque analysis.
- Automation Equipment: Real‑time torque monitoring and feedback.
- Robotic & Mechanical Devices: Precision torque detection for components.

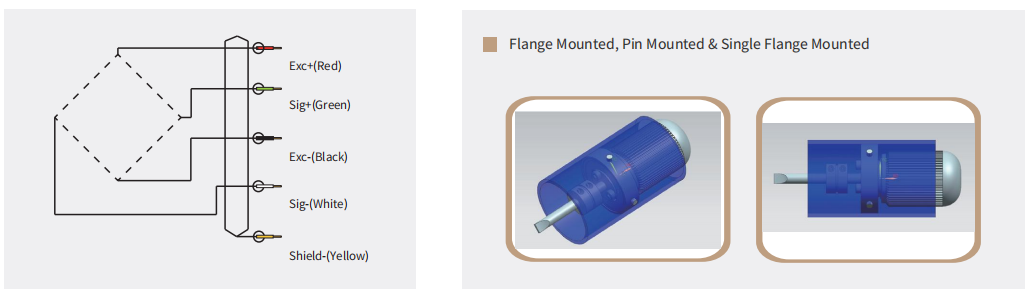

INSTALLATION & WIRING
Why Choose GoodProx torque sensor GP-TS-LT12?
- Professional static torque sensor with ±0.1% F.S. high accuracy.
- Full ranges 0.5‑10Nm for flexible application scenarios.
- Stable signal and long‑term working performance.
- Compact size for easy installation and integration.
- Ideal for industrial testing, laboratory, and automation use.
- Cost‑effective high‑precision torque measurement solution.
