OVERVIEW

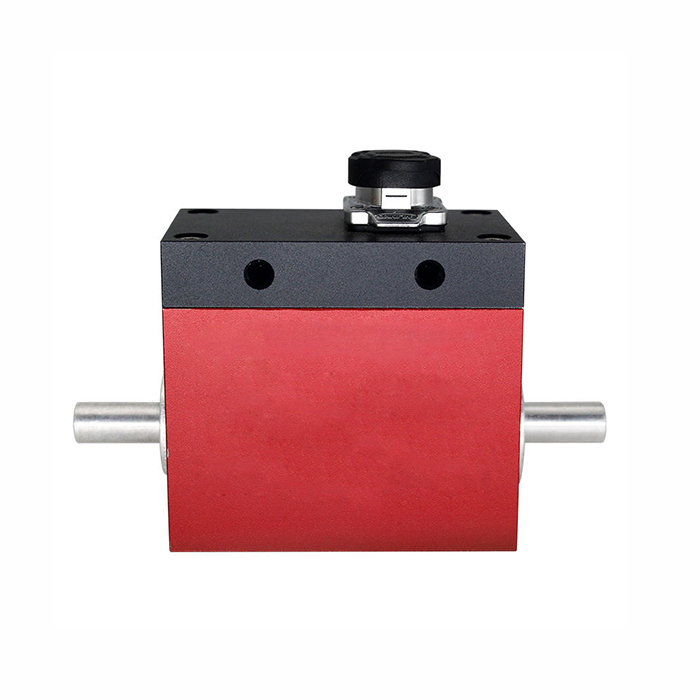

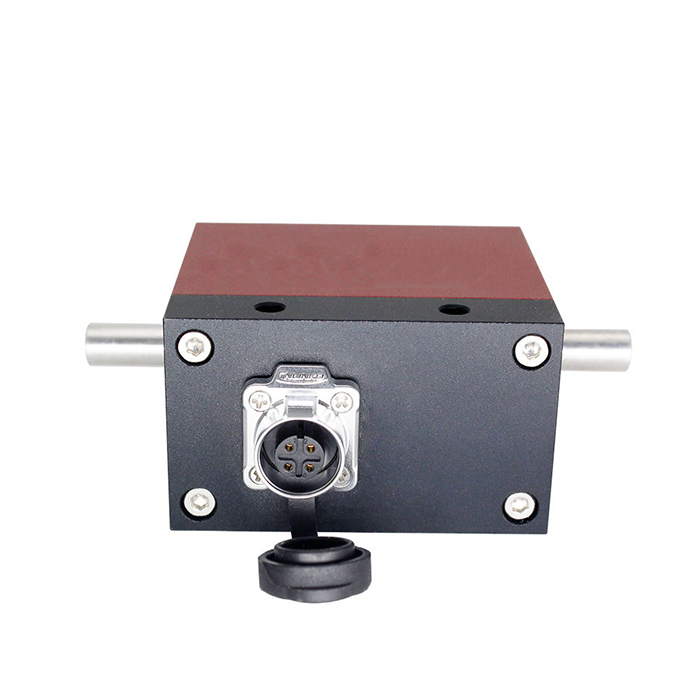

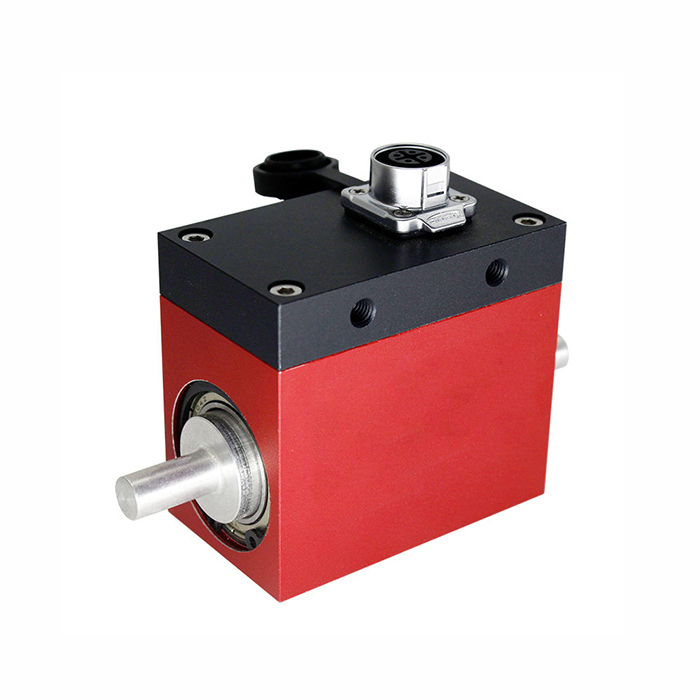

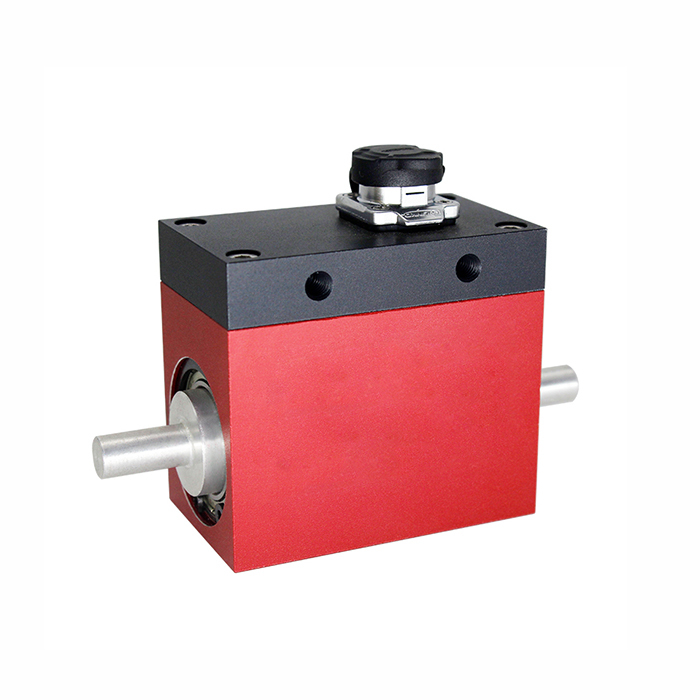

GoodProx dynamic rotary torque sensor GP-TS-N207 is a high-precision non-contact measuring device used for rotary torque measurement. It can detect torque, speed and power at the same time, with stable signal, fast response and strong anti-interference performance. This high-precision torque transducer is widely used in motor test, gearbox detection, robot, engine and industrial automation equipment.
FEATURES
- High Precision: Accurate and stable dynamic rotary torque sensor measurement.
- Non-Contact Design: No wear, long service life non-contact torque sensor.
- Multi-Parameter Detection: Torque, speed and power integrated measurement.
- Fast Response: Real-time dynamic data output for test systems.
- Strong Anti-Interference: Reliable in harsh industrial environments.
- Wide Compatibility: Perfectly matched with PLC and display instruments.
- Compact Structure: Small size, easy installation and integration.
- Long-Term Stability: Stable performance for long time working.
Specification - GP-TS-N203
|
Model
|
GP-TS-N207
|
|
Range
|
0.05Nm~100N.m
|
|
Range of speeds
|
≤3000Rpm
|
|
Zero point output
|
±0.5%F.S.
|
|
No-linear
|
0.1%F.S.
|
|
Lag
|
0.5%F.S.
|
|
Repetitiveness
|
0.05%F.S.
|
|
Creep (30 min)
|
0.05%F.S.
|
|
Temperature sensitivity drift
|
0.05%F.S./10℃
|
|
Zero temperature drift
|
0.05%F.S./10℃
|
|
Response time
|
1.0ms(50% reaction)
|
|
Response frequency
|
1kHz
|
|
Maximum torsion angle
|
2.60x10rad(0.149°)
|
|
Inertia moment
|
0.38kgcm
|
|
Rotor vibration natural frequency
|
19.4kHz
|
|
Torsional constant
|
3.85x10Nm/rad
|
|
Material quality
|
Stainless steel / alloy steel
|
|
Year stability
|
0.3%/year
|
|
Impedance
|
700Ω
|
|
Insulation resistance
|
>5000MΩ/100V DC
|
|
Service voltage
|
5-15V DC
|
|
Use current
|
0.2mA
|
|
Consumption of current
|
<150mA
|
|
Work environment
|
-10-50℃ 0-85%RH
|
|
Safety overload
|
150%
|
|
Cable line specifications
|
φ5x3m
|
|
Cable limit tension
|
98N
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

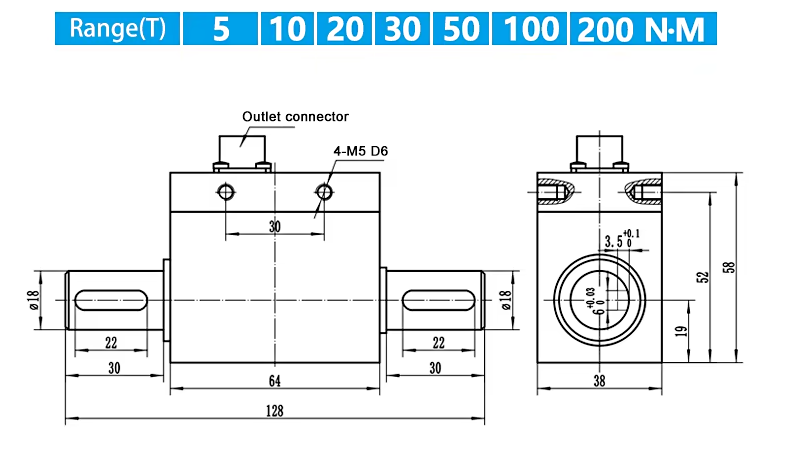

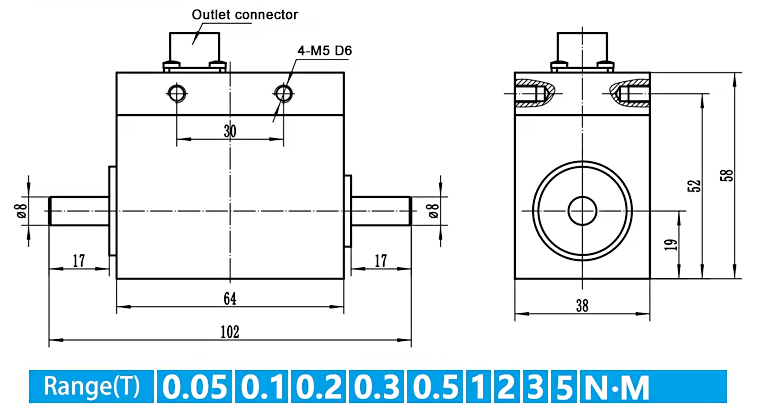

DIMENSIONS

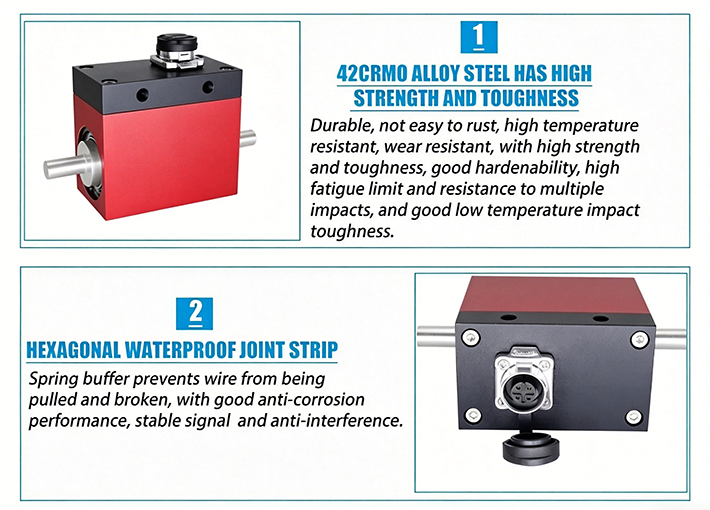

DETAILS
APPLICATION
- Motor Testing: Motor test torque sensor for servo, DC and gear motors.
- Gearbox System: Reducer and gearbox torque detection.
- Robotic Equipment: Robot joint torque feedback control.
- Engine Test: Engine power and torque measurement.
- Test Benches: Laboratory and industrial dynamic test equipment.
- Automation Lines: Assembly line torque monitoring and control.
- Rotary Machinery: Pumps, fans and compressors test.
- Industrial Control: Automatic rotary torque measurement system.
|
 |
Why Choose This Sensor?
- Professional high-precision torque transducer ensures accurate data.
- Non-contact structure extends service life greatly.
- Integrated torque, speed and power detection saves cost.
- Strong anti-interference adapts to complex industrial environments.
- Fast response supports real-time monitoring and control.
- Easy installation and wide compatibility with various systems.
Choose our high-precision torque transducer for reliable rotary torque measurement! Ideal for motor test, automation and industrial test benches.
