OVERVIEW

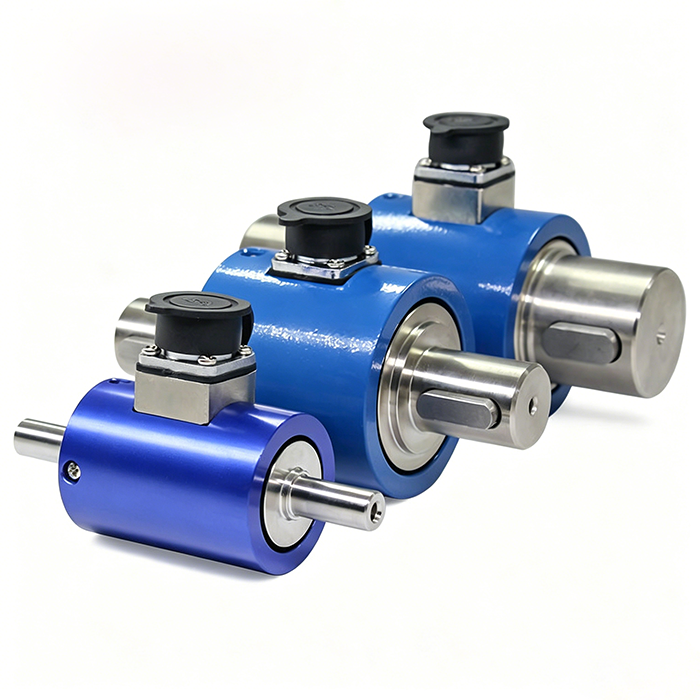

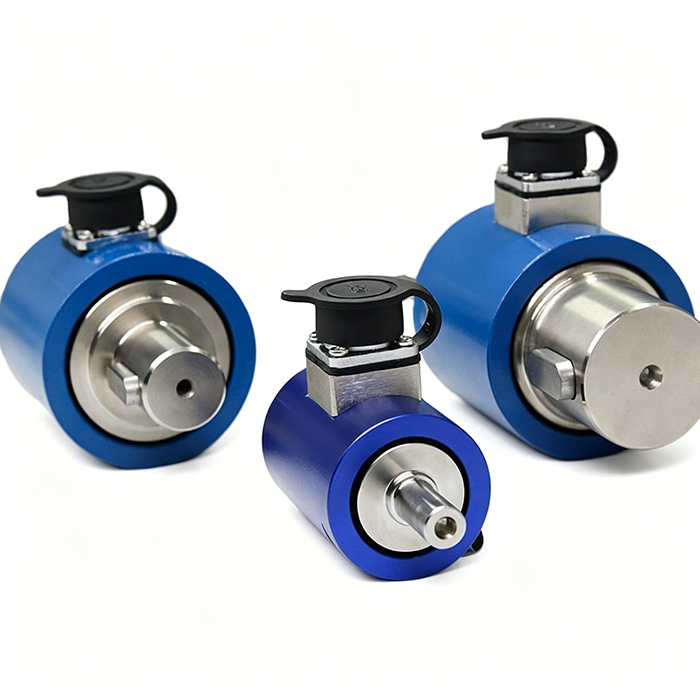

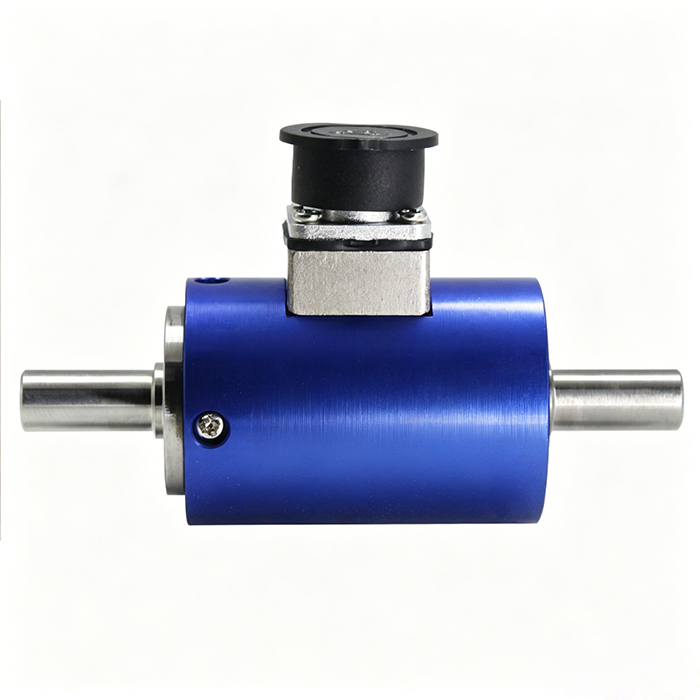

GoodProx static torque sensor GP-TS-N106 is a high-precision reaction torque transducer designed for static torque measurement in non-rotating conditions. It provides stable output, high accuracy and strong anti-interference performance. This high-precision torque sensor is widely used in torque wrench calibration, valve testing, steering gear detection and industrial automation equipment.
FEATURES
- High Precision: Accurate and stable static torque sensor measurement.
- Reaction Type: Ideal for non-rotating static torque measurement.
- Strong Anti-Interference: Reliable in harsh industrial environments.
- Easy Installation: Compact structure, simple mounting.
- Wide Compatibility: Works with displays, PLC and test systems.
- Long-Term Stability: Consistent performance.
- Durable Structure: Stainless steel/alloy steel material.
- Wide Range: Custom ranges available for various applications.
Specification - GP-TS-N204
|
Model
|
GP-TS-N106
|
|
Range
|
0.1-5000N.m
|
|
Zero point output
|
±1%F.S.
|
|
No-linear
|
0.1%F.S.
|
|
Lag
|
0.5%F.S.
|
|
Repetitiveness
|
0.3%F.S.
|
|
Creep (30 min)
|
0.1%F.S.
|
|
Temperature sensitivity drift
|
0.1%F.S./10℃
|
|
Zero temperature drift
|
0.1%F.S./10℃
|
|
Response frequency
|
10kHz
|
|
Material quality
|
Stainless steel
|
|
Year stability
|
0.3%/year
|
|
Impedance
|
350Ω
|
|
Insulation resistance
|
>5000MΩ/100V DC
|
|
Service voltage
|
5-15V DC
|
|
Work environment
|
-10-80℃
|
|
Safety overload
|
150%
|
|
Cable line specifications
|
φ5x3m
|
|
Cable limit tension
|
98N
|
|
Warranty
|
12 months
|
*We can provide 3D models and one-on-one technical consultation. Please contact us:

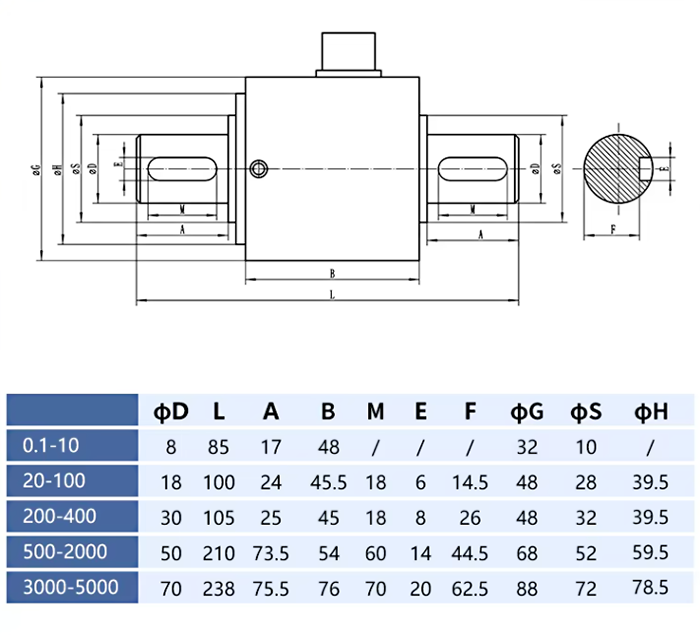

DIMENSIONS
APPLICATION
- Torque Wrench Calibration: Precision wrench test & calibration.
- Valve Test: Valve static torque detection.
- Steering Gear: Automotive steering system measurement.
- Motor Test: Non-rotating motor torque test.
- Gearbox Detection: Reducer static torque inspection.
- Automation Equipment: Assembly torque monitoring.
- Test Benches: Laboratory static torque test systems.
- Mechanical Equipment: Industrial static force measurement.
|
Why Choose GoodProx torque sensor GP-TS-N106?
- Professional static torque sensor for high-precision reaction measurement.
- Stable output ensures reliable test data.
- Strong anti-interference for long-term industrial use.
- Compact design fits limited installation space.
- Wide compatibility with various control systems.
- Customizable ranges to meet different needs.
