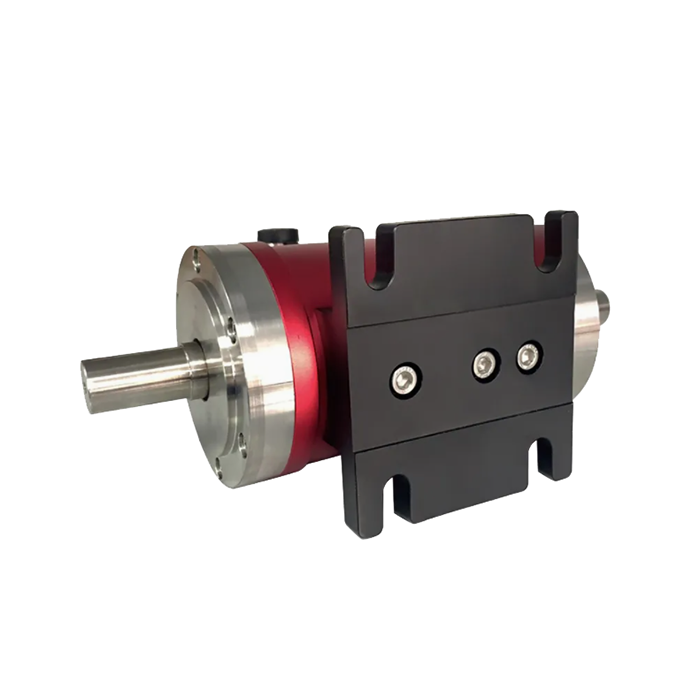

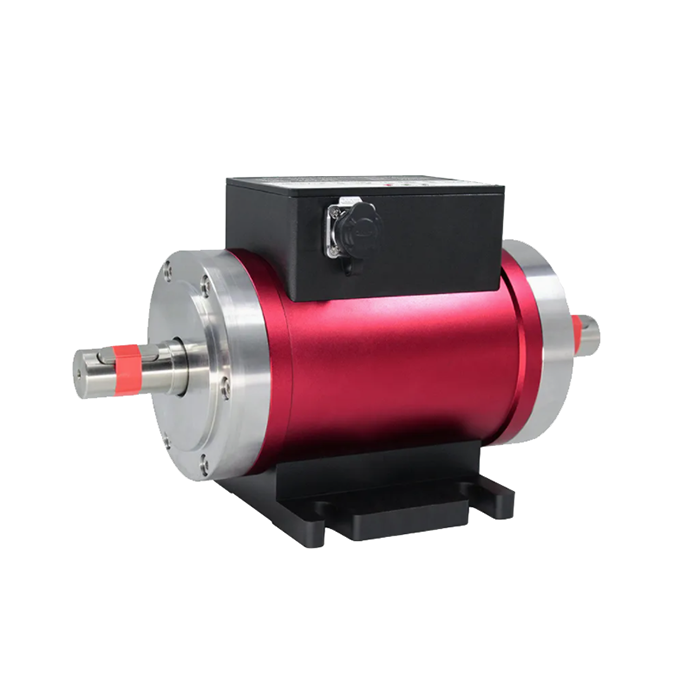

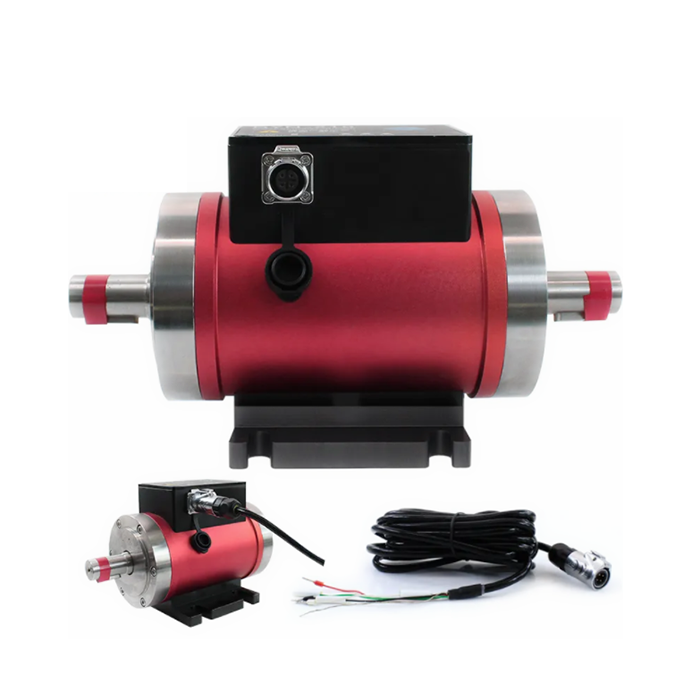

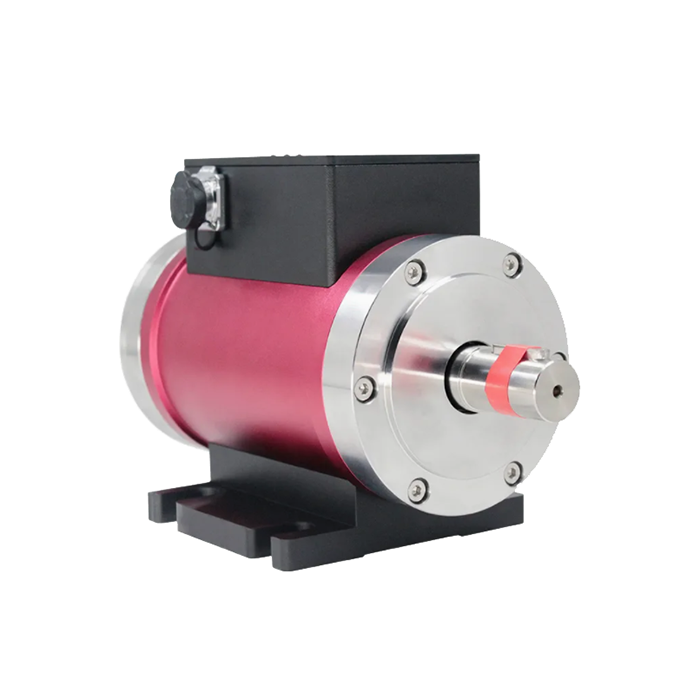

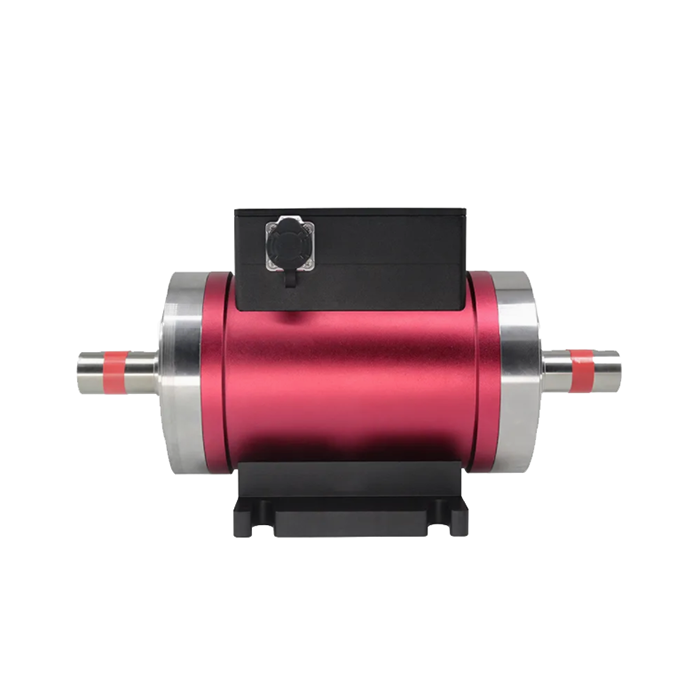

Dynamic Torque Sensor | 5-50,000 Nm | Ultra-Large Measuring

High-precision ultra-large digital rotary torque sensor with LCD display.
Strong anti-interference, easy to install, non-contact transmission of energy and signals.
Measures torque, speed, power, IP67, 4-20mA/1-5V/RS485 output.

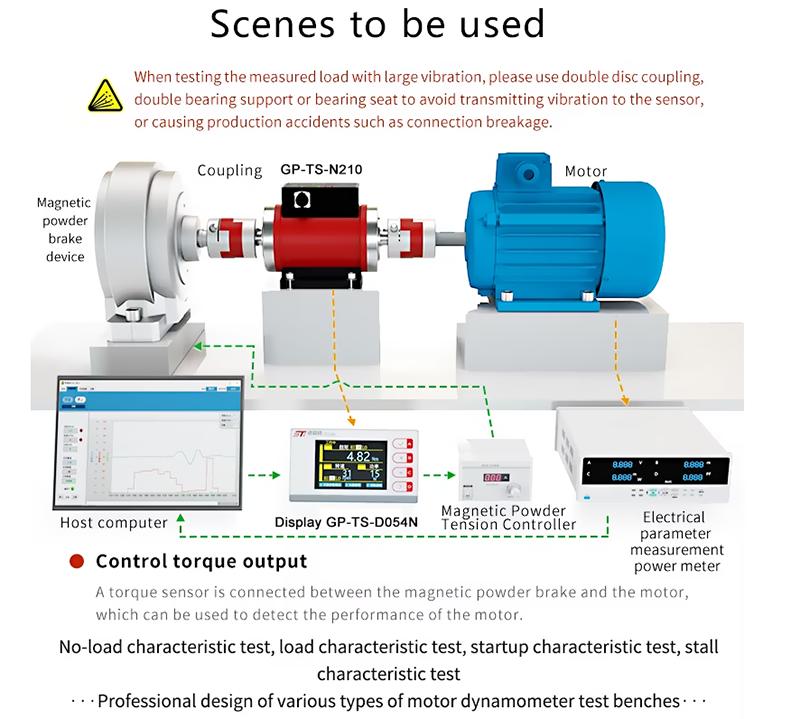

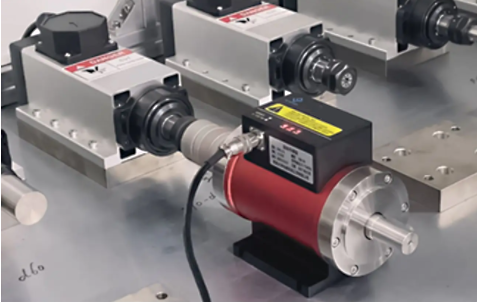

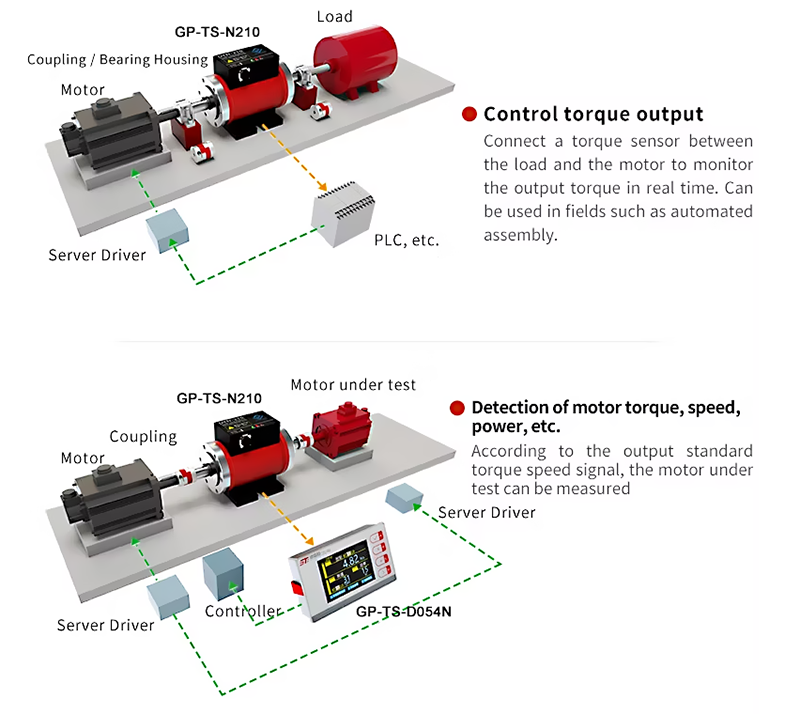

For motor test, gearbox, engine, robot and industrial automation.

$952.33

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Capacity:

5 Nm

10 Nm

20 Nm

30 Nm

50 Nm

100 Nm

200 Nm

300 Nm

500 Nm

1000 Nm

2000 Nm

3000 Nm

5000 Nm

10000 Nm

20000 Nm

30000 Nm

50000 Nm

Quantity:

1/1

Overview

OVERVIEW
GoodProx rotary torque sensor GP-TS-N210 is a non-contact, shaft-to-shaft measuring device for torque, speed and power. It supports an ultra-wide measuring range from 5Nm to 50,0000Nm, with high precision, IP67 protection and multiple signal output options. This industrial torque sensor is widely used in motor testing, gear detection, engine measurement and automation systems.

FEATURES

Ultra Wide Range: 5Nm–50,0000Nm optional.
Non-Contact Design: No wear, long service life.
Shaft-to-Shaft Structure: Easy installation & alignment.
High Precision: Up to ±0.1% FS accuracy.
IP65 Protection: Dustproof & splash-proof.
Multi Signal Output: 5-15kHz/4-20mA/1-5V/RS485.
High Speed Compatibility: Max 15000rpm.
Strong Stability: Low temperature drift & long-term reliability.

Specification - GP-TS-N210

Model	GP-TS-N210
Range	0-50Nm: 5Nm, 10Nm, 20Nm, 30Nm, 50Nm 0-500Nm: 100Nm, 200Nm, 300Nm, 500Nm 0-5,000Nm: 1,000Nm, 2,000Nm, 3,000Nm, 5,000Nm 0-50,000Nm: 10,000Nm, 20,000Nm, 30,000Nm, 50,000Nm
Speed Range	≤15000rpm
Speed Signal	120/60/10 pulse/turn 4-20/0-20mA/0-5V/0-10V
Torque Signal	5-15kHz
No-linear	0.1%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.2%F.S.
Temp Effect on Output	0.01%F.S./10℃
Temp Effect Zero	0.01%F.S./10℃
Response Time	0.6ms (50% reaction)
Response Frequency	1kHz
Maximum Torsion Angle	2.6*10rad (0.149°)
Inertia Moment	0.38kgcm
Natural Frequency of Rotor Vibration	19.4kHz
Torsional Constant	3.85*10Nm/rad
Material	Stainless steel
Annual Stability	0.3%/year
Load Resistance	>2kΩ
Power Supply	DC 24V 0.2A
Consumption of Current	<200mA
Work Environment	-20-70℃ 0-85%RH
Safe Overload	200%

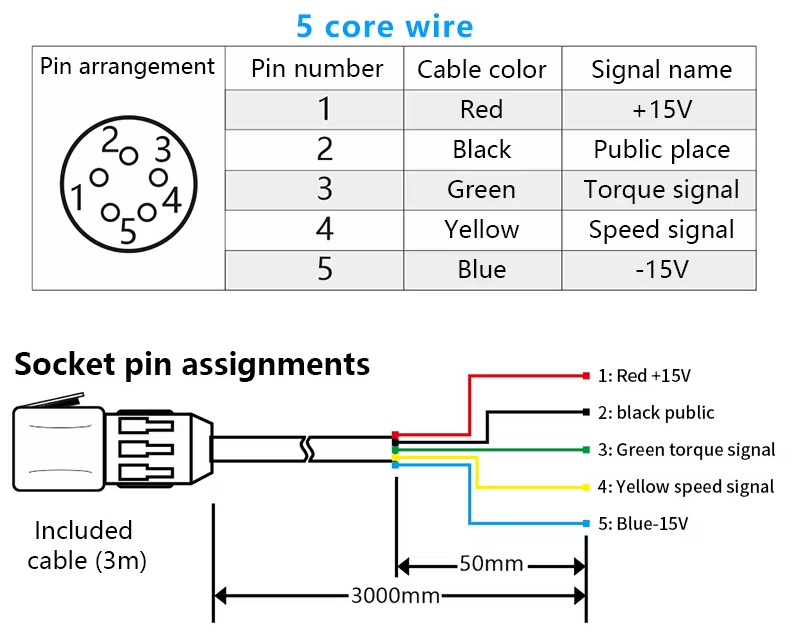

Cable Line Specifications	Φ5*3m
Warranty	12 months

*We can provide 3D models and one-on-one technical consultation. Please contact us:

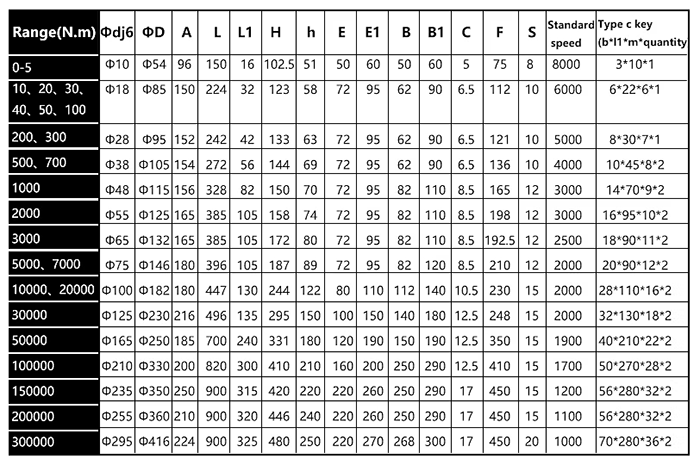

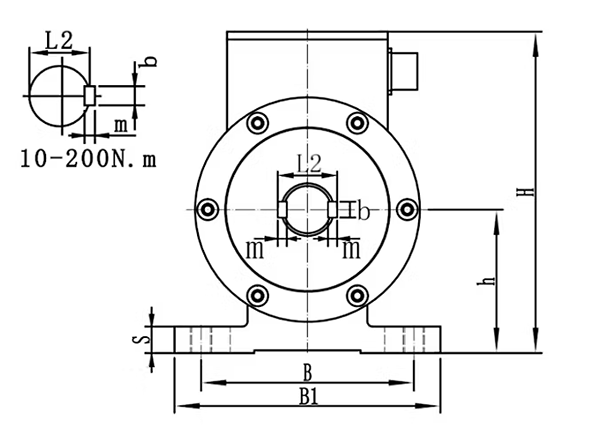

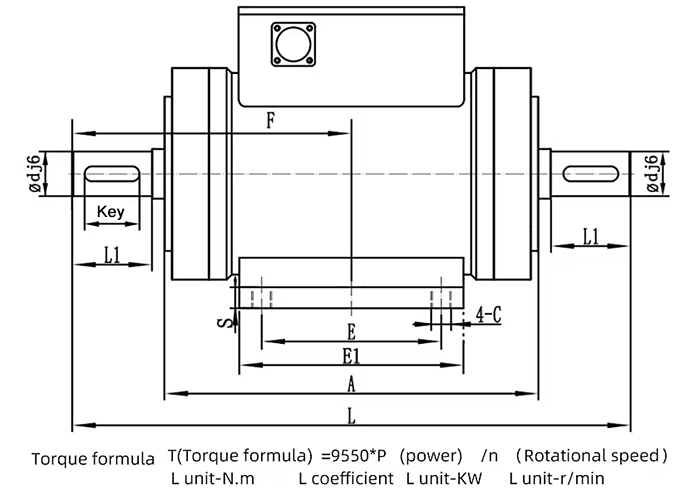

DIMENSIONS

DETAILS

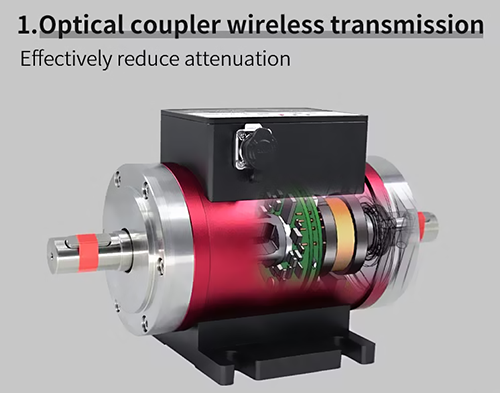

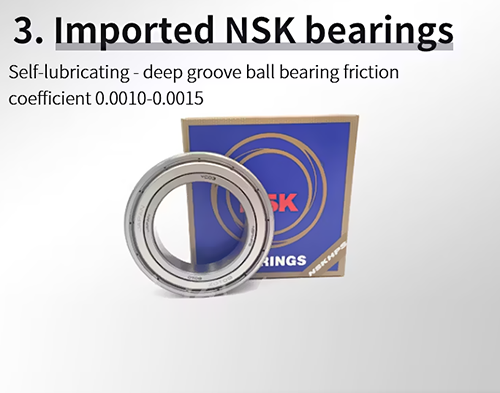

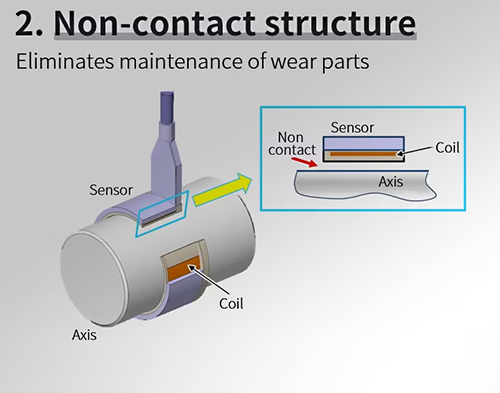

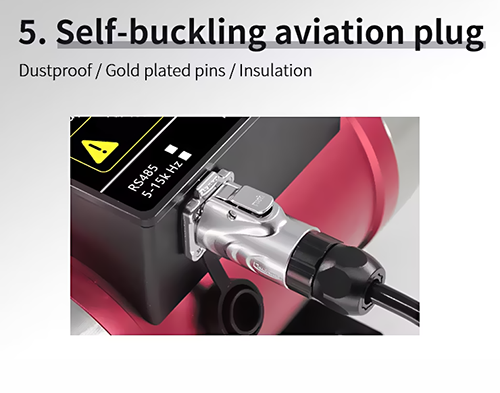

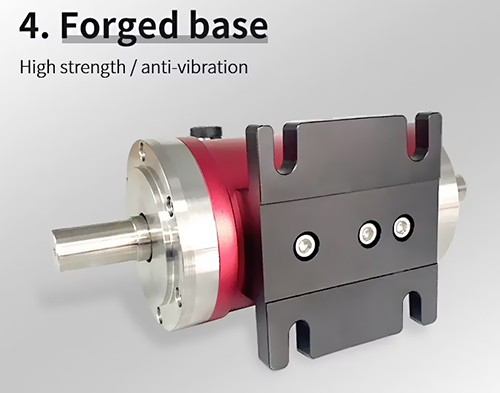

	Optical coupler wireless transmission: Effectively reduce attenuation. Non-contact structure: Eliminates maintenance of wear parts. Imported NSK bearings: Self-lubricating - deep groove ball bearing friction coefficient 0.0010-0.0015. Forged base: High strength / anti-vibration. Self-buckling aviation plug: Dustproof / Gold plated pins / Insulation.
